Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Spider Farmer Grow Tent Kit, which includes 62% RH Two-Way Humidity Control Packs, a G3000 Bar Style LED Grow Light, a 3x3x6ft Indoor Grow Tent, and a complete Ventilation System. Please read all instructions carefully before use to ensure optimal performance and safety.
Product Overview: Kit Components
Your Spider Farmer Grow Tent Kit is designed to provide a complete and controlled environment for plant cultivation and product preservation. The kit includes the following main components:
- Spider Farmer 62% RH Two-Way Humidity Control Packs (10 packs)
- G3000 Bar Style LED Grow Light
- 3x3x6ft Indoor Grow Tent (36"x36"x70")
- Ventilation System (4" Inline Fan, Carbon Filter, Ducting, 6" Clip Fan)
- Additional accessories: Temperature Humidity Monitor, Timer, 5 Gallon Grow Bags (x4), Trellis Plant Netting, YOYO Hanger (x2), Vent Cover (x2), Corner Shelves (x2), Hose Clamps (x3)
Figure 1: All components included in the Spider Farmer Grow Tent Kit.
Spider Farmer 62% RH Two-Way Humidity Control Packs
Functionality
These humidity control packs are designed to maintain a precise 62% relative humidity (RH) level within your storage containers. They utilize a two-way system, meaning they will absorb excess moisture when the environment is too humid and release purified water vapor when it is too dry, ensuring a perfectly balanced storage environment.
Figure 2: Internal structure and function of the 2-way humidity control pack.
Usage
- Place one 8g humidity control pack directly into your airtight storage container with up to 1 oz of herbs or other sensitive materials.
- The pack will automatically regulate the humidity to 62% RH.
- Each pack maintains freshness for approximately 3-4 months, depending on usage and environmental conditions. Replace the pack when it becomes rigid or hard.

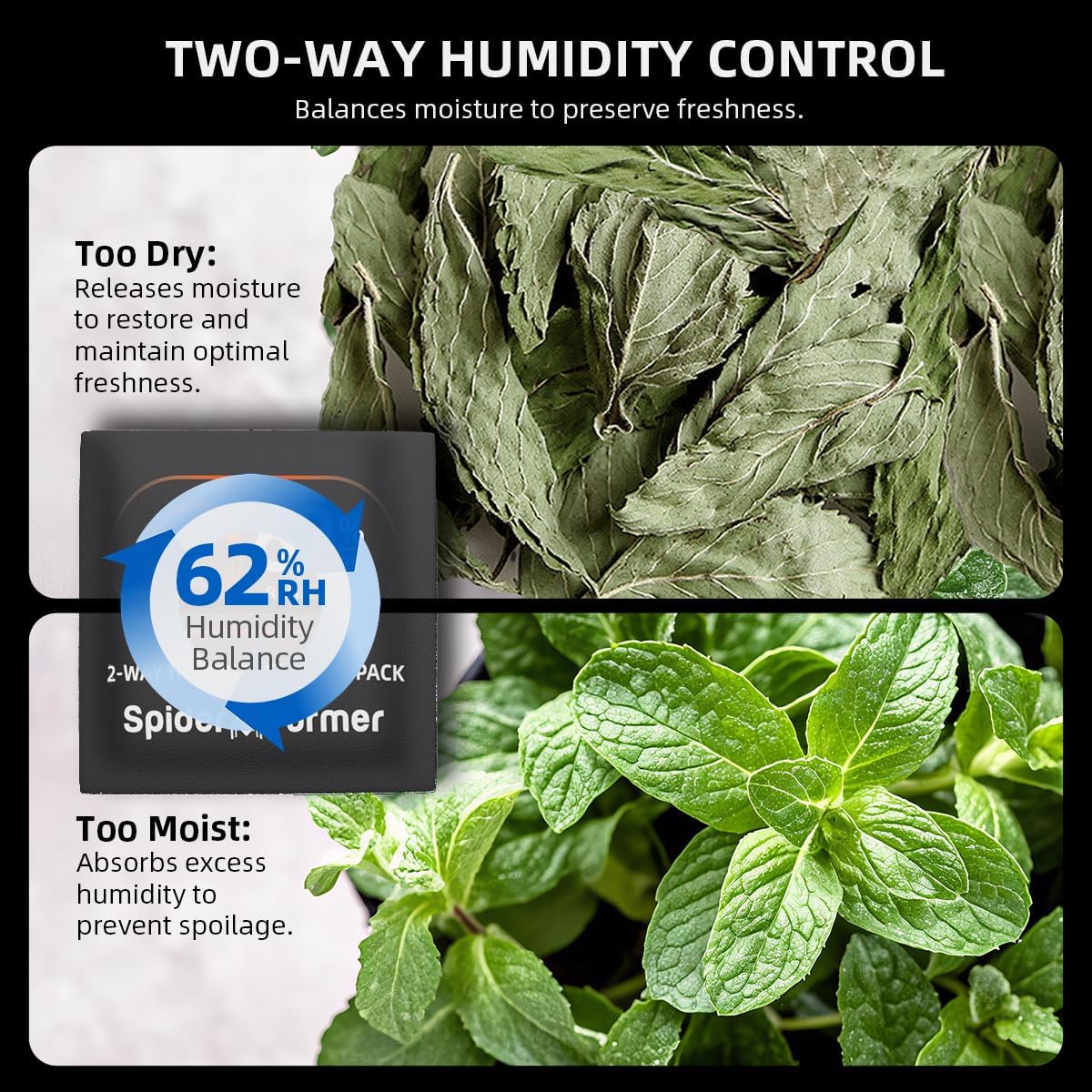

Figure 3: Demonstration of two-way humidity control in action.
Safety and Materials
Spider Farmer humidity packs are made with a safe and natural salt-and-water solution. They are designed for direct contact with herbs and other materials, preserving their natural freshness and flavor without releasing harmful substances. The product is RoHS certified eco-friendly.

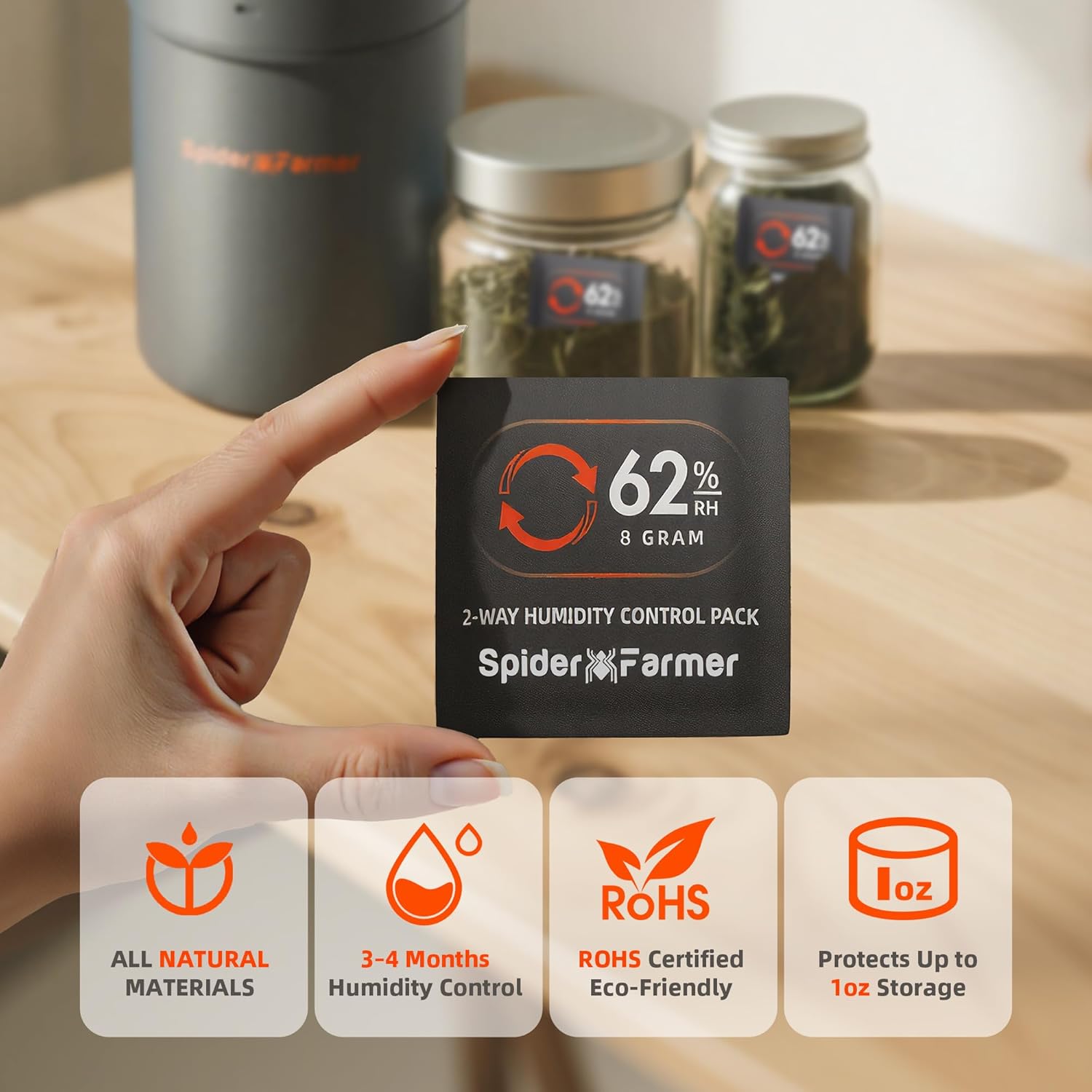

Figure 4: Key features and benefits of the humidity control packs.
G3000 Bar Style LED Grow Light
Features
The G3000 LED Grow Light is engineered for maximum efficiency and uniform light distribution, crucial for high-yield growth throughout the plant cycle.
- Unique Extended Light Bar Design: Provides comprehensive canopy coverage, especially at the edges of the cultivation area.
- High-Efficiency Diodes: Equipped with 1184pcs Bridgelux diodes.
- Power Consumption: Draws 300 watts.
- High PPF: Achieves 852 umol/S.
- Impressive PPE: Delivers 2.8 umol/J.
- Coverage Area: Optimized for a 3x3 ft high-yield growth area.
Figure 5: G3000 LED Grow Light diode and performance specifications.
Usage Guidelines (Hanging Height & Dimming)
Proper hanging height and dimming settings are essential for optimal plant growth and energy efficiency. Adjust settings according to the plant's growth stage.
| Stage | Working Time | Height | Dimming |
|---|---|---|---|
| Seeding | 18H ON | 12" | 20% - 30% |
| Vegetative | 18H ON | 12" | 50% - 60% |
| Flowering | 12H ON | 12" | 90% - 100% |
Figure 6: G3000 LED Grow Light hanging height and dimming recommendations.
3x3x6ft Indoor Grow Tent
Construction and Materials
The grow tent is constructed with high-quality materials to create an optimal and secure growing environment.
- High-Density 1680D Oxford Fabric: Provides durability, lightproof properties, tear-proof resistance, and waterproof capabilities.
- 100% Reflective Diamond Mylar: Amplifies light efficiency by reflecting light back onto plants.
- Lightproof Layering: Ensures no light escapes or enters, maintaining a controlled photoperiod.
Figure 7: Grow tent material layers and their benefits.
Dimensions
The grow tent measures 36 inches (width) x 36 inches (depth) x 70 inches (height), providing a spacious 3x3x6ft growing area.
Ventilation System
The included ventilation system is crucial for maintaining optimal air quality, temperature, and humidity within the grow tent.
- 4" Inline Fan: Provides powerful air extraction to remove stale air and heat.
- Carbon Filter: Filters out odors from the exhaust air.
- Ducting: Connects the fan and filter to the tent's exhaust ports.
- 6" Clip Fan: Circulates air within the tent to prevent hot spots and strengthen plants.
- Fan Speed Control: Allows adjustment of the inline fan's speed.
Setup Instructions
Follow these general steps for assembling your grow tent kit. Refer to the individual component manuals for more detailed instructions.
1. Grow Tent Assembly
- Unpack all tent frame components and the canvas.
- Assemble the metal frame according to the provided diagrams, ensuring all poles are securely connected.
- Carefully pull the tent canvas over the assembled frame. Ensure zippers are open to ease installation.
- Zip up the tent completely once the canvas is properly positioned.
2. LED Grow Light Installation
- Attach the YOYO hangers or other hanging hardware to the top bars of the tent frame.
- Securely hang the G3000 LED grow light from the hangers, ensuring it is level.
- Connect the digital dimming box to the grow light and then to a power outlet.
3. Ventilation System Setup
- Determine the optimal placement for your inline fan and carbon filter (typically inside the tent for exhaust, or outside for intake).
- Connect the carbon filter to the inline fan using ducting and hose clamps.
- Attach the ducting to one of the tent's exhaust ports. Ensure all connections are airtight to prevent odor leaks.
- Mount the 6" clip fan inside the tent to promote air circulation around the plants.
- Connect the inline fan to the fan speed control, then to a power outlet.
Operating Your Grow Kit
1. Humidity Control Packs
Place the 62% RH humidity control packs directly with your stored items. They will automatically regulate the humidity. Monitor the pack's texture; replace when it becomes stiff or hard.
2. LED Grow Light Operation
- Use the digital dimming box to adjust the light intensity according to the plant's growth stage (refer to the 'Usage Guidelines' table in the G3000 section).
- Utilize the included timer to set the desired light cycle (e.g., 18 hours on/6 hours off for vegetative, 12 hours on/12 hours off for flowering).
- Regularly check the hanging height to ensure optimal light penetration and prevent light burn.
3. Ventilation Management
- Adjust the inline fan speed using the fan speed control to maintain desired temperature and humidity levels within the tent.
- Ensure the 6" clip fan is positioned to provide gentle air movement across the plant canopy, improving air circulation and strengthening stems.
- Use the temperature and humidity monitor to keep track of environmental conditions inside the tent.
Maintenance Guidelines
Regular maintenance ensures the longevity and efficiency of your grow kit components.
1. Grow Tent Care
- Wipe down the interior Mylar surfaces with a damp cloth as needed to maintain reflectivity.
- Inspect zippers and seams periodically for wear and tear.
- Ensure all lightproof coverings are properly sealed.
2. LED Grow Light Care
- Gently clean the LED light surface with a soft, dry cloth to remove dust and debris, ensuring maximum light output.
- Ensure adequate airflow around the light to prevent overheating.
3. Humidity Control Packs
- Replace packs every 3-4 months or when they become rigid.
- Store unused packs in their original airtight packaging to preserve their lifespan.
4. Ventilation System
- Periodically check the carbon filter for blockages and replace it as recommended by the manufacturer (typically every 6-12 months depending on usage).
- Ensure the inline fan and clip fan blades are free of dust and debris to maintain efficient operation.
Troubleshooting Common Issues
This section addresses common issues you might encounter with your grow kit.
1. Humidity Imbalance in Storage
- Issue: Humidity in storage container is too high or too low.
- Solution: Check if the humidity control pack is still active (soft and pliable). If rigid, replace it. Ensure the storage container is airtight.
2. Grow Light Not Functioning / Dimming Issues
- Issue: Light does not turn on or dimming is inconsistent.
- Solution: Verify all power connections, including the digital dimming box. Ensure the dimmer is not set to 0%. Check the timer settings.
3. Poor Airflow / High Temperature in Tent
- Issue: Stale air, high temperature, or high humidity inside the grow tent.
- Solution: Check if the inline fan is running and set to an appropriate speed. Ensure ducting is not kinked or blocked. Inspect the carbon filter for excessive buildup. Verify the clip fan is operating and positioned correctly for air circulation.
Product Specifications
Humidity Control Packs
- Humidity Control: 62% RH
- Pack Size: 8g each
- Quantity: 10 packs per set
- Capacity: Protects up to 1 oz of herbs per pack
- Duration: 3-4 months per pack
- Materials: Natural salt-and-water solution
- Certifications: RoHS Certified Eco-Friendly
Figure 8: Humidity control pack specifications and dimensions.
G3000 LED Grow Light
- Power Draw: 300 Watts
- Diodes: 1184pcs Bridgelux diodes
- PPE: 2.8 umol/J
- PPF: 852 umol/S
- Coverage: 3x3 ft for high-yield growth
- Design: Bar Style, Full Spectrum
Grow Tent
- Dimensions: 36"x36"x70" (3x3x6ft)
- Material: High-Density 1680D Oxford Fabric
- Interior: 100% Reflective Diamond Mylar
- Features: Lightproof, Tear-proof, Waterproof
Ventilation System
- Inline Fan: 4-inch
- Filter: Carbon Filter
- Circulation Fan: 6-inch Clip Fan
Warranty Information
The Spider Farmer 62% RH Humidity Control Packs come with a 2-year warranty. For warranty details regarding the G3000 LED Grow Light, Grow Tent, and Ventilation System components, please refer to their individual product documentation or contact Spider Farmer customer support directly.
Customer Support
For further assistance, technical support, or inquiries regarding your Spider Farmer products, please visit the official Spider Farmer website or contact their customer service department through the contact information provided on their website.
