Jocoevol Wood Pellet Smoker Grill Instruction Manual

Introduction

Thank you for choosing the Jocoevol Wood Pellet Smoker Grill. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new pellet grill. Please read all instructions carefully before use to ensure optimal performance and longevity of your appliance.

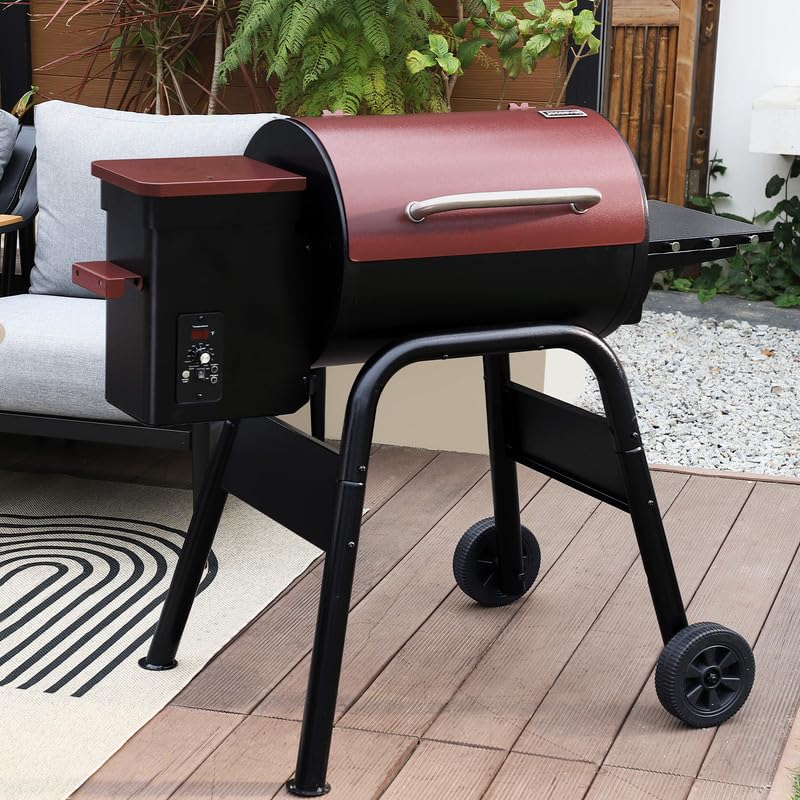

Image: The Jocoevol Wood Pellet Smoker Grill, showcasing its design and cooking capacity with food on the grates.

Safety Information

Always follow basic safety precautions when operating this appliance to reduce the risk of fire, electric shock, or injury. Keep this manual for future reference.

• Outdoor Use Only: This grill is designed for outdoor use only. Do not operate indoors or in enclosed areas.
• Clearance: Maintain a minimum distance of 10 feet (3 meters) from combustible materials.
• Electrical Safety: Ensure the power cord is not damaged and is connected to a properly grounded outlet. Keep the cord away from hot surfaces.
• Fuel: Use only food-grade wood pellets designed for pellet grills. Do not use charcoal, lighter fluid, or other fuels.
• Hot Surfaces: The grill surfaces become extremely hot during operation. Use heat-resistant gloves and avoid direct contact.
• Children and Pets: Keep children and pets away from the grill during operation and while it is cooling down.
• Supervision: Never leave the grill unattended while in use.
• Grease Fires: In case of a grease fire, turn off the grill and keep the lid closed until the fire extinguishes. Do not use water.

Components Overview

Familiarize yourself with the main components of your Jocoevol Wood Pellet Smoker Grill.

Image: Detailed view of the grill highlighting key components such as the control panel, side shelf, and wheels.

• Pellet Hopper: Stores wood pellets. Capacity: 20 lbs (approx. 9.07 kg).
• Control Panel: Features a temperature display and adjustable settings for precise temperature control.
• Cooking Grates: Enamel-coated for durability and easy cleaning. Dual-zone grilling area.
• Lid: High-temperature resistant, reinforced insulated lid.
• Side Operating Table: Provides additional workspace and includes utility hooks for tools.
• Grease Bucket: Collects grease runoff for easy disposal.
• Legs and Wheels: Sturdy legs and heavy-duty wheels for stability and mobility.
• Bottom Exhaust Fan: Assists in maintaining consistent temperatures and smoke circulation.

Setup and Initial Use

Assembly

Refer to the included assembly guide for detailed step-by-step instructions. Ensure all components are securely fastened before proceeding.

1. Attach the legs and wheels to the main body of the grill.
2. Secure the side operating table and pellet hopper.
3. Install the cooking grates and grease collection system.
4. Connect the power cord to the control panel.

Image: Overall dimensions of the assembled grill, useful for planning placement.

Initial Burn-In (Seasoning)

Before cooking food for the first time, it is crucial to perform an initial burn-in to remove any manufacturing oils or residues and season the cooking grates.

1. Fill the pellet hopper with food-grade wood pellets.
2. Plug in the grill and turn it on.
3. Set the temperature to 350°F (175°C) and allow it to run for at least 45 minutes.
4. Turn off the grill and let it cool completely.
5. Your grill is now seasoned and ready for use.

Operating Instructions

Loading Pellets

Open the pellet hopper lid and pour wood pellets into the hopper. Ensure the hopper is not overfilled. The hopper has a 20 lb capacity.

Image: Internal view illustrating the pellet hopper and temperature control mechanism.

Powering On and Temperature Control

1. Plug the grill into a grounded electrical outlet.
2. Turn the power switch to the "ON" position.
3. Use the temperature control dial to select your desired cooking temperature, ranging from 180°F to 425°F (82°C to 218°C). The advanced PID temperature control system will maintain a consistent heat.
4. Allow the grill to preheat to the set temperature before placing food on the grates. This typically takes 10-15 minutes.

Cooking Functions (6-in-1 Versatility)

Your Jocoevol pellet grill offers multiple cooking methods:

• Grill: For direct heat cooking, searing, and high-temperature cooking.
• Smoke: For low and slow cooking, infusing food with rich wood-fired flavor. Use lower temperature settings (e.g., 180-225°F).
• Bake: Ideal for baking items like bread, pizzas, or desserts.
• Roast: For cooking larger cuts of meat or poultry at moderate temperatures.
• Braise: For slow cooking with moisture, often in a covered dish.
• BBQ: A general term encompassing various outdoor cooking styles, often involving smoking and grilling.

Image: Food cooking on the grill grates, demonstrating the cooking capacity.

Maintenance

Cleaning After Each Use

• Cooking Grates: Once cooled, scrape off any food residue with a grill brush. The enamel-coated grates are designed for easy cleaning.
• Grease Bucket: Regularly empty and clean the grease bucket to prevent overflow and potential fire hazards.
• Ash Clean-Out: Periodically remove ash from the firepot and ash collection system. Ensure the grill is completely cool before cleaning ash.
• Exterior: Wipe down the exterior surfaces with a damp cloth. Avoid abrasive cleaners.

Long-Term Storage

If storing the grill for an extended period, especially in humid conditions:

• Empty all wood pellets from the hopper and auger system. Pellets can absorb moisture and swell, leading to auger jams.
• Clean the grill thoroughly, including the firepot and grease management system.
• Store the grill in a dry, covered area. Consider using a grill cover for added protection.

Troubleshooting

This section addresses common issues you might encounter. For problems not listed here, please contact customer support.

Specifications

Image: Detailed view of the cooking area and its dimensions.

Warranty and Support

Jocoevol stands behind the quality of its products. For warranty information, technical support, or replacement parts, please refer to the warranty card included with your purchase or visit the official Jocoevol website. You may also contact customer support through the retailer where the product was purchased.

When contacting support, please have your model number (Wood Pellet Smoker Grill) and purchase date available.
