Yoosee YB-93 Mini IP WiFi Camera User Manual

1. Introduction

Thank you for choosing the Yoosee YB-93 Mini IP WiFi Camera. This manual provides essential information for the proper installation, operation, and maintenance of your security camera. Please read this manual thoroughly before using the product to ensure optimal performance and safety.

The Yoosee YB-93 is a versatile wireless security camera designed for indoor use, offering a 360-degree panoramic view, high-definition video recording, night vision, motion detection, and two-way audio communication. It connects via Wi-Fi and can be controlled and monitored remotely via a smartphone or tablet application.

Image 1.1: Yoosee YB-93 Mini IP WiFi Camera and E27 socket adapter. This image shows the camera unit, which resembles a light bulb, alongside a separate E27 screw-in socket adapter, highlighting its design for easy installation into standard light fixtures.

2. Product Overview

2.1 Key Features

• High Definition Video: 2.0 Megapixel (1280x960P) resolution for clear imaging, with 1080p video capture.
• 360-Degree Panoramic View: Pan and Tilt functionality for comprehensive area coverage.
• Night Vision: Equipped with IR LEDs for clear monitoring in low-light conditions.
• Motion Detection: Alerts and recording triggered by detected movement.
• Two-Way Audio: Built-in microphone and speaker for communication.
• Wi-Fi Connectivity: Wireless connection (IEEE802.11b/g/n) for remote access.
• Local Storage: Supports Micro SD card up to 128GB for video recording.
• Easy Installation: Designed for standard E27 light bulb sockets.

2.2 Camera Components

Image 2.1: Labeled components of the Yoosee YB-93 Camera. This diagram identifies key parts including the E27 power connector, built-in WiFi antenna, microphone (MIC), white and IR LEDs, camera lens, light sensor, reset button, MicroSD card slot, and speaker.

1. E27 Power Connector: Standard screw-in base for power supply.
2. Built-in WiFi Antenna: For wireless network connection.
3. MIC (Microphone): Captures audio for two-way communication and recording.
4. White and IR LEDs: Provide illumination for night vision and potentially additional lighting.
5. Camera Lens: Captures video footage.
6. Light Sensor: Detects ambient light levels to activate night vision.
7. Reset Button & MicroSD Card Slot: Used for factory reset and local storage.
8. Speaker: Outputs audio for two-way communication.

3. Setup Instructions

3.1 Installation

The Yoosee YB-93 camera is designed for easy installation into a standard E27 light bulb socket. Ensure the power to the socket is turned off before installation.

1. Prepare the Socket: Ensure the E27 light bulb socket is clean and dry.
2. Screw in the Camera: Gently screw the camera into the E27 socket until it is secure. Do not overtighten.
3. Power On: Turn on the power to the E27 socket. The camera will power on and initiate its self-test. You may hear a voice prompt indicating it is ready for connection.

Image 3.1: Easy installation into an E27 standard base. This image illustrates the simple process of screwing the camera into a standard E27 light bulb socket, emphasizing its user-friendly design.

3.2 App Download and Initial Connection

To operate the camera, you need to download the Yoosee or YYP2P application on your smartphone or tablet.

1. Download App: Search for "Yoosee" or "YYP2P" in your device's app store (Google Play Store for Android, Apple App Store for iOS) and install it.
2. Register Account: Open the app and follow the on-screen instructions to register a new account or log in if you already have one.
3. Add Device: Tap the "+" icon or "Add Device" option in the app. Select the method for adding your camera (e.g., "Add via Wi-Fi connection" or "Scan QR code" if available on the camera/packaging).
4. Connect to Wi-Fi: Follow the app's prompts to connect the camera to your 2.4GHz Wi-Fi network. Ensure your phone is connected to the same Wi-Fi network during setup.
5. Complete Setup: Once connected, you can name your camera and begin live viewing.

If you encounter issues during setup, refer to the Troubleshooting section or use the camera's reset button (refer to Image 2.1 for location).

4. Operating Instructions

The Yoosee YB-93 camera is controlled entirely through the Yoosee or YYP2P mobile application.

4.1 Live View and Control

• Access Live Feed: Open the app and select your camera from the device list to view the live video stream.
• Pan & Tilt: Swipe your finger across the live view screen to remotely adjust the camera's horizontal (pan) and vertical (tilt) angles, providing a 360-degree coverage.
• Digital Zoom: Pinch in/out on the live view to digitally zoom in or out of the image.
• Two-Way Audio: Tap the microphone icon in the app to speak through the camera's speaker, and listen to audio from the camera's microphone.
• Night Vision: The camera automatically switches to night vision mode in low light. You can usually manually toggle this setting in the app if needed.

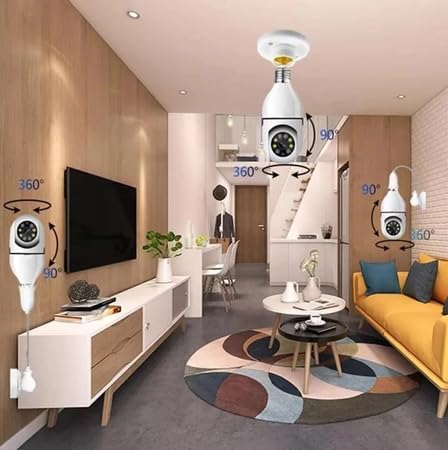

Image 4.1: Camera demonstrating 360-degree coverage in a room. This image shows the camera installed in various positions within a room, illustrating its ability to pan and tilt for full 360-degree surveillance.

4.2 Recording and Storage

• Micro SD Card: Insert a Micro SD card (up to 128GB, Class 10 recommended) into the designated slot (refer to Image 2.1). The camera will automatically begin recording based on your app settings.
• Motion Detection Recording: Enable motion detection in the app settings. The camera will record video clips when motion is detected and send alerts to your phone.
• Cloud Storage: The app may offer optional cloud storage services for recorded footage (subscription may be required).
• Playback: Access recorded videos via the app's playback feature, typically found in the camera's settings or timeline view.

Image 4.2: Key features of the Yoosee YB-93 Camera. This graphic highlights features such as Full HD 1080P, compatibility with Tuya, remote pan & tilt, Wi-Fi connection, light function, motion detection, remote viewing, and a Micro SD card slot.

5. Maintenance

• Cleaning: Gently wipe the camera lens and body with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Firmware Updates: Periodically check the Yoosee/YYP2P app for available firmware updates. Keeping your camera's firmware updated ensures optimal performance and security.
• Power Cycle: If the camera becomes unresponsive, try turning off the power to the E27 socket for a few seconds, then turning it back on.

6. Troubleshooting

• Camera not connecting to Wi-Fi:
  • Ensure your Wi-Fi network is 2.4GHz. This camera does not support 5GHz Wi-Fi.
  • Check Wi-Fi password accuracy.
  • Move the camera closer to the Wi-Fi router.
  • Perform a factory reset using the reset button (refer to Image 2.1) and try setup again.
• No video feed:
  • Verify the camera is powered on and connected to Wi-Fi.
  • Check your internet connection.
  • Restart the camera and the app.
• Motion detection alerts not working:
  • Ensure motion detection is enabled in the app settings.
  • Check app notification settings on your phone.
  • Adjust motion detection sensitivity.
• Micro SD card not recording:
  • Ensure the SD card is inserted correctly and formatted within the app.
  • Check if the SD card is full; consider enabling loop recording or replacing it.
  • Verify recording settings in the app.

7. Specifications

8. Warranty and Support

This product is covered by a standard manufacturer's warranty. Please refer to your purchase documentation for specific warranty terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact your retailer or the manufacturer's customer service through the contact information provided at the point of purchase.

Always ensure you are using the latest version of the Yoosee or YYP2P application for the best experience and access to the most current features and security updates.
