Alloyman 20V Max Cordless Tiller User Manual

Introduction

Thank you for choosing the Alloyman 20V Max Cordless Tiller. This manual provides comprehensive instructions for the safe assembly, operation, maintenance, and troubleshooting of your new electric garden tool. Please read this manual thoroughly before first use and keep it for future reference. Proper use and care will ensure long-lasting performance and your satisfaction.

Important Safety Information

WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Read the user manual carefully before operating the device.
• Always wear appropriate personal protective equipment, including sturdy gloves and eye protection, when operating the tiller. Never operate the device without hand protection.
• Do not use the device on unstable or slippery surfaces. Ensure firm footing.
• Do not use the device near heat sources or open flames.
• Do not use the device in rain or wet conditions.
• Do not leave the device unattended during operation.
• Stop the device and disconnect the battery before cleaning, making adjustments, or performing any repairs.
• Keep the device out of reach of children and pets.
• Ensure the safety switch and trigger are pressed simultaneously to activate the tiller, preventing accidental startup.

Product Overview and Features

The Alloyman 20V Max Cordless Tiller is designed for efficient soil cultivation in gardens, flower beds, and raised beds. Its cordless design offers freedom of movement without tangled cables.

Key Features:

• Cordless Operation: Provides unrestricted mobility for gardening tasks.
• Powerful Performance: Equipped with four robust steel tines, reaching speeds up to 360 RPM.
• Efficient Cultivation: Processes soil up to 23 cm (9 inches) wide and 17 cm (6.7 inches) deep.
• Ergonomic Design: Lightweight and easy to handle, with an adjustable auxiliary handle to reduce fatigue.
• Enhanced Safety: Features a safety switch that requires simultaneous activation with the trigger to prevent accidental starts.
• Dual Battery System: Includes two 20V 4.0Ah Li-ion batteries, offering approximately 30 minutes of runtime per battery, allowing for extended work sessions by alternating batteries.
• Versatile Applications: Ideal for tilling, digging, weeding, and breaking up compacted soil.

Components:

Familiarize yourself with the main components of your tiller:

• Main Handle with Safety Switch and Trigger
• Adjustable Auxiliary Handle
• Motor Housing
• Tiller Blades (Tines)
• Battery Compartment
• Battery Pack (2x 20V 4.0Ah)
• Charger

Figure 1: Alloyman 20V Max Cordless Tiller. This image shows the complete tiller assembly, highlighting its yellow and black design.

Figure 2: Ergonomic Design. This image illustrates the comfortable grip and height adjustment feature of the tiller's handle, designed to reduce user fatigue.

Figure 3: Powerful Tilling Action. The image shows the tiller's blades actively cultivating soil, with an overlay indicating a rotation speed of up to 360 RPM.

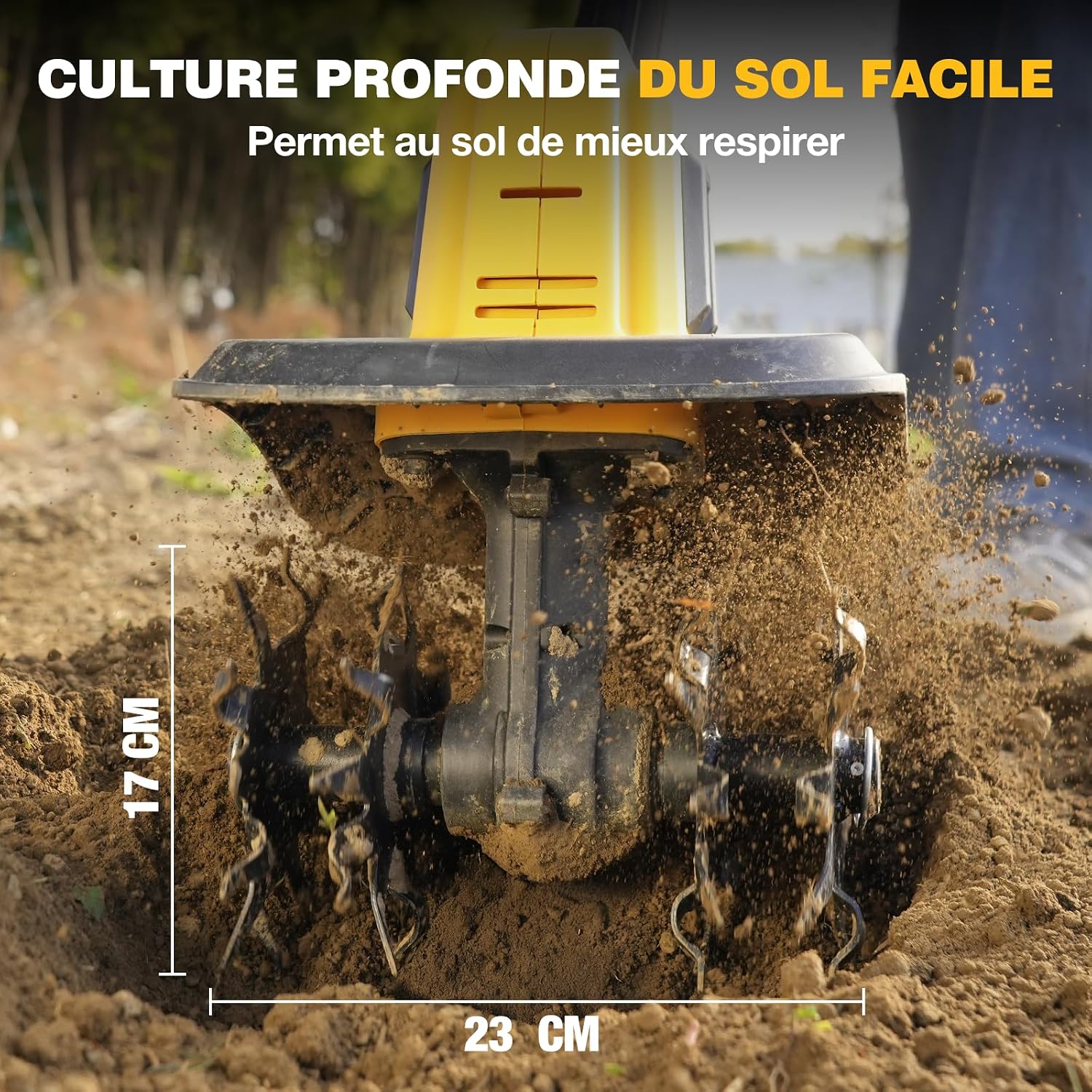

Figure 4: Working Dimensions. This image demonstrates the tiller's working width of 23 cm and depth of 17 cm during soil cultivation.

Figure 5: Blade Clearance. A close-up view showing the 7 cm clearance between the tiller blades and the main body, designed to prevent stone blockages.

Figure 6: Versatile Gardening Applications. A collage depicting the tiller being used for various tasks such as tilling grass, preparing soil, and working in raised garden beds.

Setup and Assembly

Your Alloyman Cordless Tiller requires minimal assembly. Follow these steps to prepare your tool for use:

1. Unpack Components: Carefully remove all parts from the packaging. Verify that all components listed in the packing list are present and undamaged.
2. Assemble Handle: Attach the auxiliary handle to the main shaft. Adjust its position to a comfortable height for your posture, then secure it firmly.
3. Install Tiller Blades: Ensure the tiller blades are correctly installed and secured according to the diagrams in the included quick-start guide.
4. Charge Batteries: Before first use, fully charge both 20V 4.0Ah Li-ion batteries using the provided charger. Insert the battery into the charger, ensuring the indicator light shows charging status. Once fully charged, remove the battery.
5. Insert Battery: Slide a fully charged battery into the battery compartment on the tiller until it clicks securely into place. Ensure it is properly seated.

NOTE: Always ensure the battery is removed from the tiller before performing any assembly, adjustment, or cleaning tasks.

Figure 7: Battery System. This image displays the two 20V 4.0Ah batteries included with the tiller, highlighting their capacity and runtime.

Operating Instructions

Follow these guidelines for safe and effective operation of your cordless tiller:

1. Pre-Operation Check:
   • Ensure the battery is fully charged and securely inserted.
   • Inspect the tiller blades for any damage or debris.
   • Clear the work area of any large stones, roots, or obstacles that could jam the blades.
   • Wear appropriate safety gear: gloves, eye protection, and sturdy footwear.
2. Starting the Tiller:
   • Grip the main handle firmly with one hand and the auxiliary handle with the other.
   • Press and hold the safety switch (usually a button on the handle).
   • While holding the safety switch, squeeze the trigger to start the motor. Release the safety switch once the motor starts.
3. Tilling Technique:
   • Begin tilling at one end of the area, moving slowly and steadily.
   • Allow the tiller to work at its own pace. Do not force it into hard soil.
   • For deeper cultivation, make multiple passes over the same area, gradually increasing depth.
   • Overlap each pass slightly to ensure even tilling.
   • When turning, lift the tiller slightly to avoid digging too deep or damaging the blades.
4. Stopping the Tiller:
   • Release the trigger to stop the motor.
   • Always remove the battery from the tiller when not in use, or before making any adjustments or cleaning.

CAUTION: Be aware of kickback if the blades strike a hard object. Maintain a firm grip on both handles.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your Alloyman Tiller.

1. Cleaning After Use:
   • Always remove the battery before cleaning.
   • Use a stiff brush or a damp cloth to remove soil, debris, and plant matter from the blades and motor housing.
   • Pay special attention to the area around the blades to prevent buildup.
   • Do not use water jets or harsh chemicals to clean the tiller.
2. Blade Inspection:
   • Regularly inspect the tiller blades for wear, damage, or bending.
   • If blades are dull or damaged, they may need sharpening or replacement. Refer to authorized service centers for blade replacement.
   • Remove any tangled weeds or roots from the blades immediately.
3. Battery Care:
   • Store batteries in a cool, dry place away from direct sunlight and extreme temperatures.
   • Do not store fully discharged batteries for extended periods. Charge them periodically if not in use.
   • Use only the original Alloyman charger for your batteries.
4. Storage:
   • Store the tiller in a dry, secure location, out of reach of children.
   • Remove the battery before storing for extended periods.

Figure 8: Easy Cleaning. This image demonstrates the process of removing the tiller blades for easy cleaning and removal of tangled weeds.

Troubleshooting

Before contacting customer support, try these common troubleshooting steps:

Technical Specifications

Warranty and Support

For warranty information, please refer to the warranty card included with your product or visit the official Alloyman website. If you encounter any issues not covered in this manual or require technical assistance, please contact Alloyman customer support through their official channels.

Keep your purchase receipt as proof of purchase for warranty claims.
