FUNYET NY-03 16-inch Laptop Instruction Manual

1. Introduction

Welcome to the FUNYET NY-03 16-inch Laptop user manual. This guide provides essential information for setting up, operating, maintaining, and troubleshooting your new laptop. Please read this manual thoroughly to ensure optimal performance and longevity of your device.

2. Safety Information

To prevent damage to your device or injury to yourself and others, please observe the following safety precautions:

• Do not expose the laptop to extreme temperatures, direct sunlight, or high humidity.
• Avoid placing heavy objects on the laptop.
• Keep liquids away from the device. In case of spills, immediately power off and disconnect the charger.
• Use only the original power adapter provided with your laptop.
• Do not attempt to disassemble or repair the laptop yourself. Contact qualified service personnel for assistance.
• Ensure proper ventilation to prevent overheating. Do not block air vents.

3. Package Contents

Verify that all items are present in your product package:

• FUNYET NY-03 16-inch Laptop
• Power Adapter
• User Manual (this document)

4. Product Overview

Familiarize yourself with the physical features and components of your FUNYET NY-03 laptop.

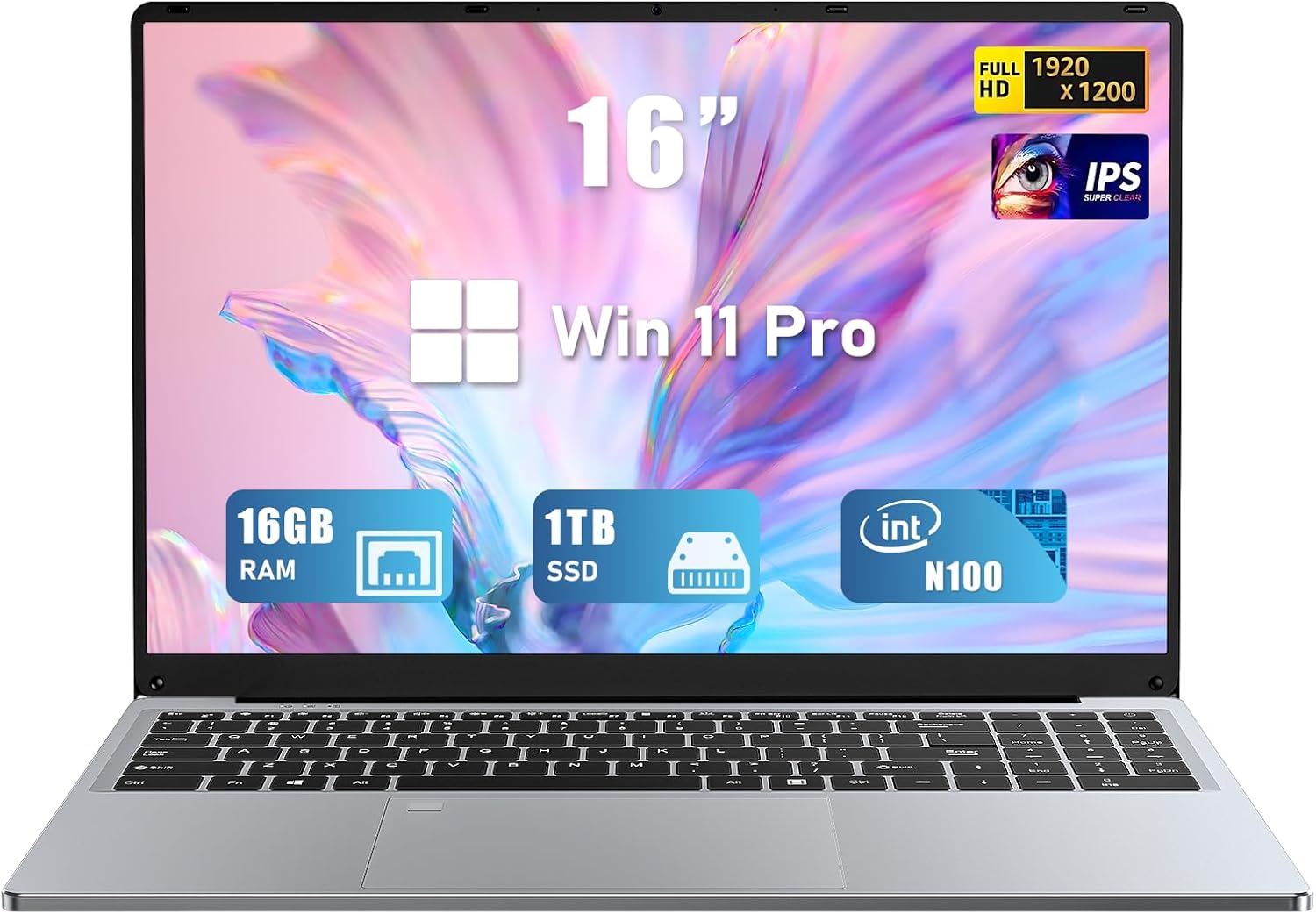

Figure 4.1: Front view of the FUNYET NY-03 16-inch Laptop, showcasing its sleek design and large display.

4.1. External Components

• 16.0-inch FHD IPS Display: High-resolution screen for clear visuals.
• Backlit Keyboard: Full-size keyboard with adjustable backlighting for comfortable typing in various lighting conditions.
• Large Touchpad: Responsive touchpad for precise navigation.
• Integrated Webcam: Located above the display for video calls.
• Fingerprint Reader: Integrated for secure and quick login.

4.2. Ports and Connectors

Figure 4.2: Side view of the FUNYET NY-03 laptop highlighting the various input/output ports.

• USB 3.0 Ports: For connecting high-speed USB devices.
• USB 2.0 Port: For connecting standard USB devices.
• Mini HDMI Port: For connecting to external displays.
• DC Power Input: For connecting the power adapter.
• 3.5mm Audio Jack: For connecting headphones or external speakers.

4.3. Product Videos

5. Setup

5.1. Initial Power-On

1. Connect the power adapter to the DC power input port on your laptop and then to a power outlet.
2. Press the power button located on the keyboard to turn on the laptop.
3. Follow the on-screen instructions to complete the initial Windows 11 Pro setup, including language, region, and network settings.

5.2. Network Connection

To connect to a Wi-Fi network:

1. Click the Wi-Fi icon in the taskbar.
2. Select your desired network from the list.
3. Enter the network password if prompted and click Connect.

6. Operating Your Laptop

6.1. Basic Operations

• Power On/Off: Press the power button to turn on. To shut down, click the Start button, then Power > Shut down.
• Keyboard: The backlit keyboard allows for comfortable typing. Use the Fn keys (e.g., Fn + F5/F6) to adjust backlight brightness.
• Touchpad: Supports multi-touch gestures for navigation. Refer to Windows settings for customization.
• Fingerprint Reader: Set up your fingerprint for secure and fast login via Windows Hello in Settings > Accounts > Sign-in options.

6.2. Display Features

Figure 6.1: The 16-inch FHD IPS display with a 1920x1200 resolution, offering a vibrant and immersive viewing experience.

The 16.0-inch FHD IPS display provides a resolution of 1920x1200 pixels, ensuring sharp and vibrant visuals. The micro-bezel design enhances the immersive viewing experience.

6.3. Performance

Figure 6.2: Visual representation of the Intel 12th Gen N100 Processor, highlighting its 4 cores and 3.4 GHz turbo frequency for efficient performance.

Powered by an Intel 12th Gen N100 processor with 4 cores and 4 threads, operating up to 3.4 GHz, the laptop delivers seamless performance for daily tasks. With 16GB of RAM and a 1TB high-speed SSD, it efficiently handles multitasking and provides ample storage.

6.4. Connectivity

The laptop supports 802.11a/b/g/n/ac Wi-Fi for fast internet access and Bluetooth for connecting wireless peripherals.

6.5. Battery Management

Figure 6.3: Illustration of the laptop's long battery life, indicating up to 8 hours of usage on a single charge.

The laptop is equipped with a 6000mAH rechargeable battery, offering up to 8 hours of battery life. To maximize battery longevity, ensure the laptop is fully charged before first use and avoid frequent deep discharges.

6.6. Operating System: Windows 11 Pro

Your laptop comes pre-installed with Windows 11 Pro, offering enhanced security, productivity features, and a modern user interface. Explore features like Snap Layouts, Widgets, and Microsoft Teams integration for an optimized computing experience.

7. Maintenance

• Cleaning: Use a soft, lint-free cloth to clean the screen and exterior. Avoid abrasive cleaners or solvents.
• Software Updates: Regularly check for and install Windows updates to ensure system stability and security.
• Storage: Store the laptop in a cool, dry place when not in use.

8. Troubleshooting

This section addresses common issues you might encounter with your laptop.

• Laptop does not power on: Ensure the power adapter is securely connected and the battery is charged. Try a different power outlet.
• No Wi-Fi connection: Check if Wi-Fi is enabled in Windows settings. Restart your router and the laptop.
• Slow performance: Close unnecessary applications, check for malware, and ensure sufficient free space on the SSD.
• Screen issues: Adjust display brightness. If the screen remains blank or distorted, try connecting to an external monitor via Mini HDMI to diagnose.

9. Specifications

10. Warranty and Support

Your FUNYET NY-03 laptop comes with a 1-year warranty. For any issues or queries, please contact FUNYET customer support. They aim to reply within 24 hours.

• Customer Service: Enjoy worry-free usage with dedicated round-the-clock customer service.
• Contact Information: Refer to the contact details provided in your product packaging or on the official FUNYET website for support.
