Homall Electric Standing Desk User Manual

1. Introduction

Thank you for choosing the Homall Electric Standing Desk. This manual provides essential information for the safe assembly, operation, and maintenance of your new height-adjustable desk. Please read these instructions carefully before use and retain them for future reference.

The Homall Electric Standing Desk is designed to enhance your workspace with its versatile features, including a seamless extra-thick desktop, integrated digital display, a multi-zone organizer drawer, and built-in USB and Type-C charging ports. Its electric height adjustment mechanism allows for smooth transitions between sitting and standing positions, promoting a healthier work environment.

Image 1.1: The Homall Electric Standing Desk in a typical office setup, showcasing its design and functionality.

2. Safety Information

• Ensure all components are securely fastened before use.
• Keep children and pets away from the desk during operation to prevent injury.
• Do not overload the desk. The maximum load capacity for the lift mechanism is 110 lbs (50 kg). The tabletop itself has a load-bearing capacity of 150 lbs.
• Avoid placing liquids directly on the desktop without protective coasters.
• Do not attempt to disassemble or repair the motor or control unit yourself. Contact customer support for assistance.
• Ensure the power cord is not pinched or damaged.
• This product requires assembly by two people due to the weight of the components.

3. Package Contents

Before assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

• Desktop (1 piece)
• Desk Legs/Frame (2 pieces)
• Motor and Control Box (1 set)
• Power Adapter and Cable (1 set)
• Drawer Assembly (1 piece)
• Hardware Kit (screws, tools, cable grommets)
• User Manual (this document)

4. Setup and Assembly

Assembly is required for this product. It is recommended that two people perform the assembly due to the weight of the desk components. Follow the detailed instructions provided in the separate assembly guide for step-by-step installation.

Key Assembly Points:

• Ensure all electrical connections are secure before plugging into a power source.
• Verify the stability of the desk after assembly by gently shaking it.
• Route cables through the provided cable grommets for a tidy workspace.

Image 4.1: Product dimensions for the 55-inch Homall Electric Standing Desk, including desktop and frame measurements.

5. Operating Instructions

5.1. Height Adjustment

The desk features an electric motor for smooth and quiet height adjustment. The height can be adjusted from 28.3 inches to 46.5 inches.

• Up/Down Buttons: Use the ▲ (Up) and ▼ (Down) buttons on the integrated digital display to manually adjust the desk height.
• Memory Presets: The desk has three programmable memory presets (1, 2, 3). To save a desired height, adjust the desk to the preferred position, then press and hold one of the memory buttons (1, 2, or 3) until the display flashes or beeps, indicating the position is saved. To recall a saved position, simply press the corresponding memory button.

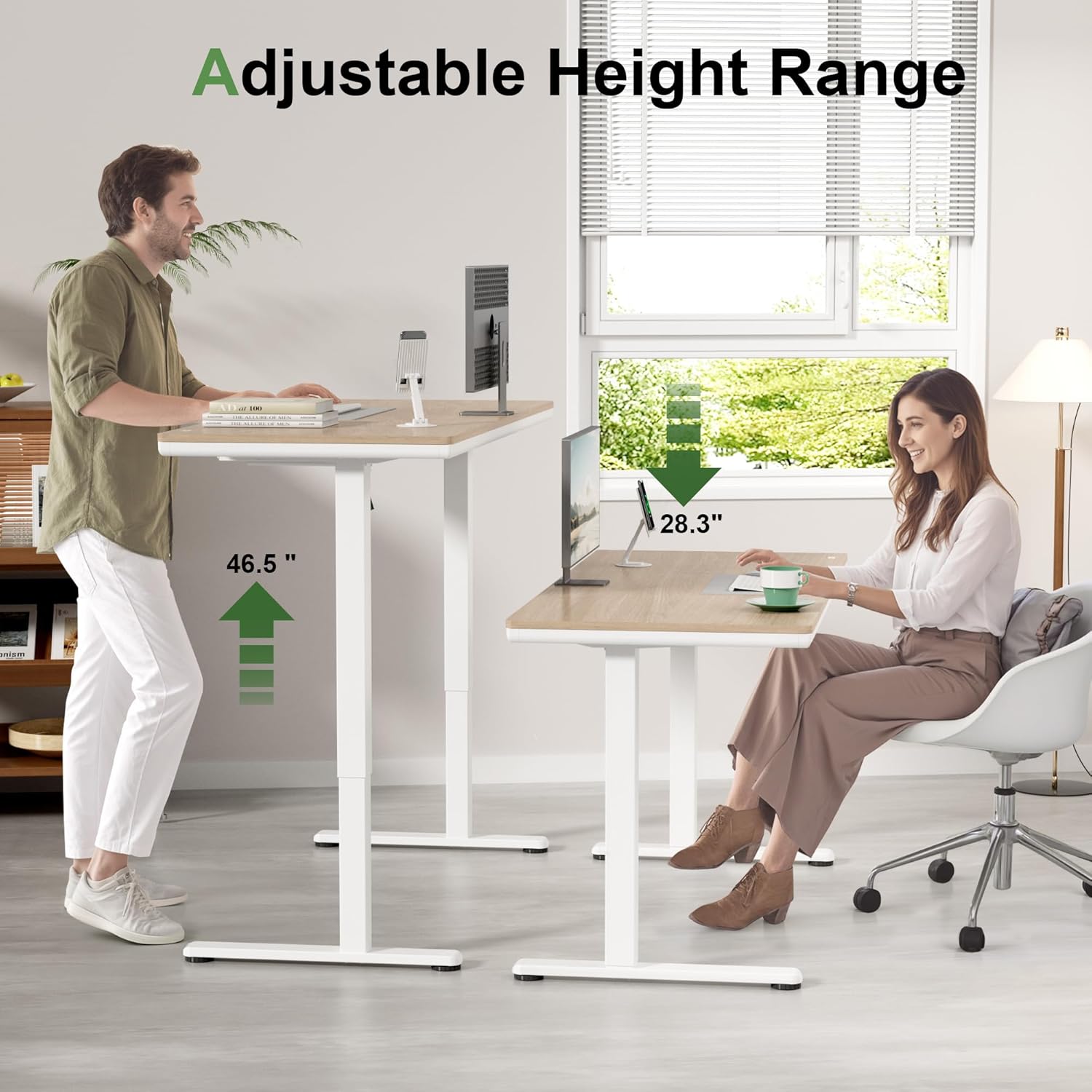

Image 5.1: Illustration of the adjustable height range, demonstrating the desk's versatility for both sitting and standing positions.

5.2. Integrated Digital Display and Charging Ports

The digital display is seamlessly integrated into the desktop, showing the current height. Adjacent to the display are the control buttons and charging ports.

• USB and Type-C Ports: The desk is equipped with both USB and Type-C charging ports. These ports provide a combined 10W output, allowing you to charge two devices simultaneously.

Image 5.2: Detail of the desktop's integrated digital display and charging hub, highlighting the control interface and connectivity options.

5.3. Drawer Usage

The built-in 4-zone organizer drawer helps keep your workspace tidy by providing categorized storage for office supplies. The drawer features reinforced metal edges and base for enhanced load capacity and a deeper interior for increased storage space.

Image 5.3: The desk's surface and open drawer, illustrating the storage compartments and the desktop's writable, easy-to-clean, and waterproof features.

6. Maintenance

• Desktop Cleaning: The desktop surface is scratch-resistant and easy to clean. Use a soft, damp cloth with a mild cleaner to wipe down the surface. Avoid abrasive cleaners or harsh chemicals.
• Frame Cleaning: Wipe the metal frame with a soft, dry cloth.
• Regular Checks: Periodically check all screws and connections to ensure they remain tight.
• Cable Management: Ensure cables are neatly organized and not obstructing the desk's movement.

7. Troubleshooting

If you encounter issues with your Homall Electric Standing Desk, refer to the following common troubleshooting steps:

• Desk Not Moving: Check if the power cord is securely plugged into both the desk and the wall outlet. Ensure no objects are obstructing the desk's movement.
• Uneven Movement: If the desk moves unevenly, ensure the weight distribution on the desktop is balanced.
• Error Codes on Display: If an error code appears, unplug the desk for 10 minutes, then plug it back in. If the error persists, contact customer support.
• Noise During Operation: A slight motor sound is normal. If you hear unusual or loud noises, ensure all screws are tightened and nothing is rubbing against the moving parts.

8. Specifications

9. Warranty Information

For specific warranty details regarding your Homall Electric Standing Desk, please refer to the warranty card included with your product or contact Homall customer support directly. Warranty coverage typically includes manufacturing defects and malfunctions under normal use conditions.

10. Customer Support

If you have any questions, require assistance with assembly, or need troubleshooting support, please contact Homall customer service. You can typically find contact information on the Homall website or through the retailer where you purchased the product.

For more information, you may visit the Homall Store on Amazon.
