1. Product Overview
The AFEXOA RGB Night Light Alarm Clock (Model NC-01) combines a digital alarm clock with a versatile night light, featuring an hourglass design. It offers multiple wake-up sounds, adjustable volume, snooze functionality, and various lighting modes including warm white and 7 RGB ambient colors. It also includes a sleep timer for convenience.
Image: The AFEXOA RGB Night Light Alarm Clock in its hourglass form, illuminated with rainbow colors, positioned on a bedside table. The digital display shows the time 8:38.
2. Package Contents
Please check the box for the following items:
- 1 x AFEXOA RGB Night Light Alarm Clock (Model NC-01)
- 1 x Type-C Charging Cable
- 1 x Quick Start Guide
- 1 x User Manual (this document)
Image: The AFEXOA RGB Night Light Alarm Clock, its retail packaging, and included accessories (Type-C cable, quick start guide, user manual).
3. Setup Guide
3.1. Charging the Device
Before first use, fully charge the alarm clock using the provided Type-C USB cable. Connect the cable to the charging port on the device and a compatible USB power adapter (not included). The charging indicator will show the charging status.
3.2. Initial Power On
Once charged, the device should power on automatically. If not, locate the power button (usually on the base) and press it to turn on the device.
3.3. Setting the Time (12/24H Format)
Refer to the quick start guide or the device's base for specific buttons to set the time. Typically, there will be a 'Time Set' button or a combination of 'M' (Mode) and '+' / '-' buttons. You can switch between 12-hour and 24-hour formats as desired.
Image: The alarm clock's digital display showing time in both 12-hour (AM/PM) and 24-hour formats, illustrating the time setting feature.
4. Operating Instructions
4.1. Alarm Clock Functions
To set an alarm:
- Press the 'Alarm' button (or 'M' button until alarm mode is selected).
- Use the '+' and '-' buttons to adjust the desired alarm time.
- Confirm the time setting.
- Select from 7 available wake-up sounds (e.g., beep, bird, piano, soft music).
- Adjust the alarm volume from 8 levels to suit your preference. The alarm sound will gradually increase in volume to provide a gentle wake-up.
Image: The alarm clock on a nightstand, highlighting its features for customizing alarms, including 7 wake-up ringtones and 8 volume levels.
Image: A visual representation of the 7 available wake-up sounds and the 8 adjustable volume levels for the alarm function.
4.2. Snooze Function
When the alarm sounds, gently touch or tap the top surface of the alarm clock to activate the snooze function. This will provide an additional 9 minutes of sleep time. The snooze function can be used multiple times. If no operation is detected within 20 minutes of the alarm sounding, the alarm will automatically turn off.
Image: A person reaching to tap the alarm clock for the 9-minute snooze function.
4.3. Night Light Operation (Warm White)
To turn on the warm white night light, simply touch the top surface of the device. To adjust the brightness, keep your hand on the top surface for a short period. The brightness will cycle through its levels, release your hand when the desired brightness is reached.

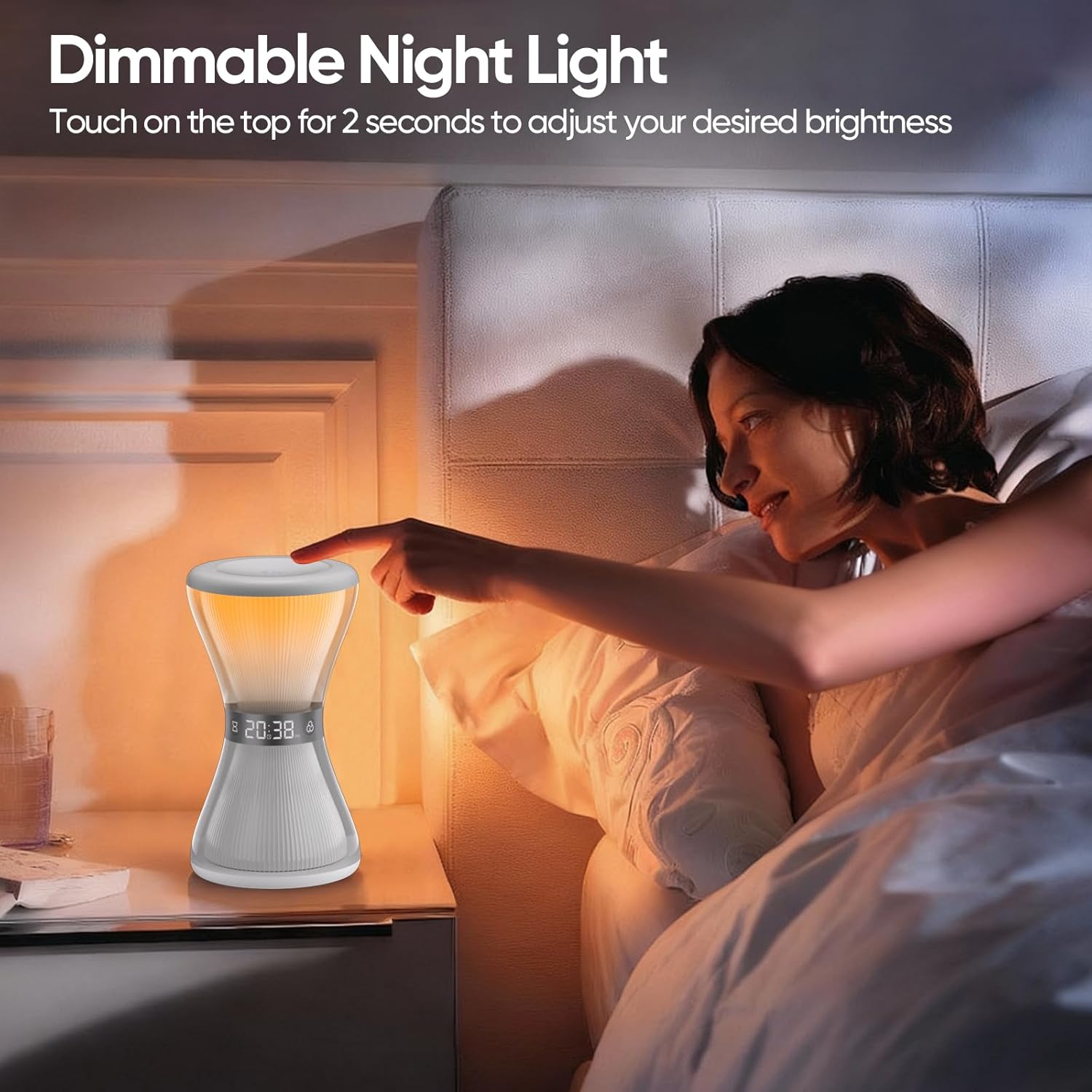

Image: A person interacting with the top of the alarm clock to adjust the dimmable warm white night light.
4.4. RGB Ambient Lights
The alarm clock features 7 RGB ambient light colors and a flowing light effect. You can select your favorite light mode to create a specific atmosphere. There are 3 adjustable brightness levels for the RGB lights. Consult the quick start guide for specific button presses to cycle through modes and adjust brightness.
Image: The alarm clock showcasing its various RGB ambient light colors and patterns, demonstrating the 'Gorgeous Light Show' feature.
4.5. Sleep Timer
The sleep timer allows you to set a duration (from 5 to 90 minutes) after which the lights will automatically turn off. During the timer, you can choose from four static light colors: white, red, blue, and green. This feature is designed to aid sleep by gradually dimming or turning off the light.
Image: A child sleeping next to the alarm clock, which is set to a pink light, illustrating the sleep aid with auto-off timer feature.
Image: A visual representation of the sleep timer function, showing various time settings from 5 to 90 minutes.
4.6. Hourglass Countdown Visual Mode
The unique hourglass design can display a visual countdown with lights. Red, green, blue, and white lights are available for selection in this mode, providing a decorative and calming visual effect. This is a visual feature and not a functional timer for user input.
Image: A child studying at a desk with the alarm clock displaying a white hourglass countdown light, providing a visual aid.
5. Maintenance
5.1. Cleaning
To clean the alarm clock, gently wipe its surface with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or immerse the device in water.
5.2. Battery Care
The device is powered by a built-in Lithium Ion battery. For optimal battery life, avoid fully discharging the battery frequently and store the device in a cool, dry place when not in use for extended periods. Do not attempt to replace the battery yourself.
6. Troubleshooting
- Device does not power on: Ensure the device is fully charged using the provided Type-C cable. Check if the power button is pressed.
- Alarm does not sound: Verify that the alarm is set correctly and enabled. Check the alarm volume level.
- Lights are not working: Ensure the device is powered on. Check if the light mode is selected and brightness is adjusted.
- Time display is incorrect: Re-enter the time settings as described in Section 3.3.
- Snooze function not responding: Ensure you are tapping the designated touch area on the top of the device.
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | NC-01 |
| Brand | AFEXOA |
| Dimensions (W x H) | 3.54" x 6.3" |
| Weight | 200 Grams |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Power Source | Battery Powered (1 Lithium Ion battery included) |
| Display Type | Digital |
| Special Features | Adjustable Brightness, Alarm, Illuminated, Mood Light, Timer |
| Wake-up Sounds | 7 options |
| Alarm Volume Levels | 8 levels |
| Snooze Duration | 9 minutes |
| Sleep Timer | 5-90 minutes |
| Ambient Lights | 7 RGB colors, 3 brightness levels |
| Night Light | Warm white, adjustable brightness |
8. Warranty and Support
For warranty information or technical support, please refer to the contact details provided in your product packaging or visit the official AFEXOA website. Keep your purchase receipt for warranty claims.
