Hi-Spec 8V Cordless Drill and 70-Piece Tool Kit Instruction Manual

1. Introduction

Thank you for choosing the Hi-Spec 8V Cordless Drill and 70-Piece Tool Kit. This comprehensive kit is designed for essential everyday home repair, maintenance, and DIY projects. It includes a versatile USB rechargeable electric drill driver and a selection of hand tools, all organized in a compact toolbox case.

This manual provides important information on the safe and effective use, setup, operation, and maintenance of your tool kit. Please read it thoroughly before first use and keep it for future reference.

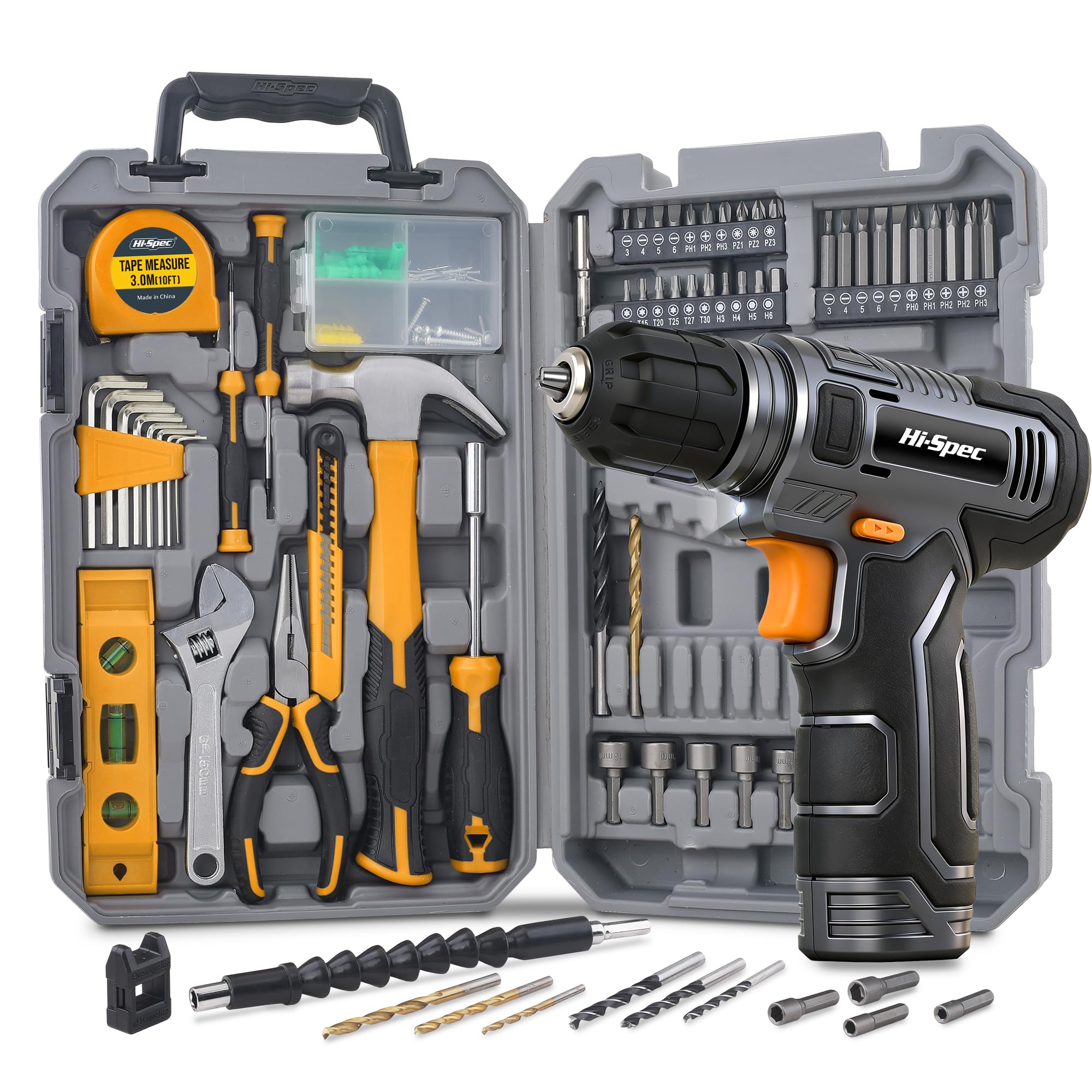

Image 1.1: The complete Hi-Spec 70-Piece Tool Kit, neatly organized in its gray carrying case.

2. Safety Information

WARNING: Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

General Power Tool Safety Warnings:

• Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Personal Safety: Always wear eye protection. Use safety glasses, goggles, or a face shield. Wear hearing protection when operating power tools. Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Battery Use and Care: Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

Specific Drill Safety:

• Always ensure the drill bit or screwdriver bit is securely fastened in the chuck before operating.
• Do not use the drill for materials it is not designed for, such as brick, concrete, hardened metals, or tiles.
• Apply appropriate pressure; excessive force can cause the drill to stall or break bits.

3. Setup

3.1 Unpacking the Kit

Carefully remove all components from the carrying case. Verify that all items listed in the kit contents are present and undamaged. Familiarize yourself with the layout of the tools within the case.

Image 3.1: The tool kit opened, displaying the cordless drill, various bits, and hand tools.

3.2 Charging the Cordless Drill

The 8V cordless drill is powered by a 1500mAh rechargeable battery. Before first use, fully charge the drill.

1. Locate the USB-C charging port on the base of the drill handle.
2. Connect the provided USB charging cable to the drill and to a suitable USB power source (e.g., laptop, power bank, USB wall adapter).
3. The LED indicator lights on the drill will show the charging status. Refer to the drill's specific indicators for full charge notification.
4. Once fully charged, disconnect the cable.

Image 3.2: The 8V cordless drill connected to a USB-C power source for charging, with indicator lights visible.

3.3 Inserting Drill Bits and Screwdriver Bits

1. Ensure the drill is turned off and the forward/reverse switch is in the neutral (locked) position to prevent accidental startup.
2. Twist the chuck counter-clockwise to open the jaws.
3. Insert the desired drill bit or screwdriver bit into the chuck, ensuring it is seated firmly.
4. Twist the chuck clockwise to tighten the jaws securely around the bit. Pull on the bit to confirm it is locked in place.

Image 3.3: The drill chuck demonstrating how different bits (wood, soft plastics, screwdriving, nut driver socket) are inserted.

4. Operating Instructions

4.1 Cordless Drill Operation

The Hi-Spec 8V Cordless Drill features variable speed control and a forward/reverse switch.

1. Selecting Direction: Use the forward/reverse switch (typically located above the trigger) to select the desired rotation direction. Push left for forward (screwing in, drilling), push right for reverse (unscrewing). Position in the middle to lock the trigger.
2. Variable Speed Control: The drill's speed is controlled by the pressure applied to the trigger. Press lightly for slower speeds and increased control, press harder for faster speeds. Releasing the trigger will stop the drill automatically.
3. LED Work Light: A built-in LED light illuminates the work area when the trigger is pressed, improving visibility in dimly lit spaces.

Image 4.1: The cordless drill highlighting its key specifications and the integrated LED work light.

4.2 Using the Hand Tools

The kit includes a variety of essential hand tools for different tasks:

• Hammer: For driving and removing nails. Always strike squarely and wear safety glasses.
• Pliers: For gripping, bending, and cutting wires or small objects.
• Adjustable Spanner: For tightening or loosening nuts and bolts of various sizes. Adjust the jaw opening to fit the fastener snugly.
• Screwdrivers: Both full-size and precision screwdrivers are included for various screw types. Select the correct tip to avoid damaging the screw head.
• Tape Measure: For accurate measurements.
• Spirit Level: For checking horizontal and vertical alignment.
• Hex Keys (Allen Wrenches): For fasteners with hexagonal sockets.

Image 4.2: Examples of the tool kit in use for common household tasks, including drilling, plumbing, furniture assembly, and electrical work.

5. Maintenance

5.1 Cleaning

• After each use, wipe down all tools with a clean, dry cloth to remove dust, dirt, and debris.
• For stubborn grime, a slightly damp cloth can be used, followed by immediate drying.
• Do not use harsh chemicals or abrasive cleaners, as these can damage tool finishes.

5.2 Lubrication

• Periodically apply a light coat of machine oil to moving parts of hand tools (e.g., pliers, adjustable spanner) to ensure smooth operation and prevent rust.
• The drill's internal components are factory-lubricated and generally do not require user lubrication.

5.3 Storage

• Always store the tools in their original carrying case in a dry, cool place, away from direct sunlight and moisture.
• Ensure all tools are clean and dry before storage to prevent rust and corrosion.
• Keep the case latched to prevent tools from falling out and to keep them organized.

5.4 Battery Care

• Avoid fully discharging the drill battery frequently. Recharge it before it is completely depleted.
• If storing the drill for an extended period, charge the battery to approximately 50% capacity.
• Do not store the drill in extreme temperatures.

6. Troubleshooting

7. Specifications

8. Warranty & Support

8.1 Warranty Information

For detailed warranty information regarding your Hi-Spec 8V Cordless Drill and 70-Piece Tool Kit, please refer to the warranty card included with your purchase or visit the official Hi-Spec website. Keep your proof of purchase for any warranty claims.

8.2 Customer Support

If you encounter any issues or have questions about your Hi-Spec tool kit that are not covered in this manual, please contact Hi-Spec customer support. Contact information can typically be found on the product packaging or the official Hi-Spec website.
