MSmask Full LED Bed Frame with Storage Headboard and Drawers User Manual

Model: full bed frame with storage headboard

1. Important Safety Instructions

Please read all instructions carefully before assembly and use. Keep this manual for future reference.

  • Ensure all parts are present and undamaged before beginning assembly. Do not use if any parts are missing or broken.
  • Assemble the bed frame on a soft, clean surface to prevent scratches.
  • Tighten all bolts and screws firmly, but do not overtighten. Re-check all connections periodically.
  • Keep small parts away from children during assembly to avoid choking hazards.
  • Do not stand on the bed frame during assembly or use.
  • Maximum static load capacity: 1000 pounds. Do not exceed this weight limit.
  • For electrical components (LED lights, charging station), ensure proper connection to a suitable power source. Do not overload outlets.
  • Keep liquids away from the charging station and LED light connections.

2. Package Contents

Verify that all components listed below are included in your package. If any items are missing or damaged, please contact customer support.

  • Headboard (with LED lights and charging station)
  • Footboard
  • Side Rails (2)
  • Storage Drawers (2)
  • Steel Frame Components
  • Wood Slats
  • Light Kit (pre-installed in headboard)
  • Power Strip (integrated into headboard)
  • Screw Bag (containing all necessary hardware)
  • Installation Manual (this document)
  • Remote Control for LED lights
Diagram showing all components of the MSmask Full LED Bed Frame

Figure 2.1: Exploded view of bed frame components, including headboard, footboard, side rails, drawers, and hardware.

3. Assembly Instructions

Follow these steps carefully to assemble your MSmask Full LED Bed Frame. It is recommended to have two people for assembly.

3.1 Prepare for Assembly

  • Unpack all components and lay them out on a soft, clean surface to prevent damage.
  • Identify all parts using the provided parts list and diagrams.
  • Ensure you have the necessary tools (usually an Allen wrench is included, a screwdriver might be needed).

3.2 Frame Assembly

  1. Attach the side rails to the headboard and footboard using the designated bolts and washers. Ensure all connections are secure.
  2. Install the central support beam and its legs. These provide crucial stability for the mattress.
  3. Place the wooden slats across the frame. Many slats feature Velcro for quick and secure installation. Ensure they are evenly spaced and firmly attached.

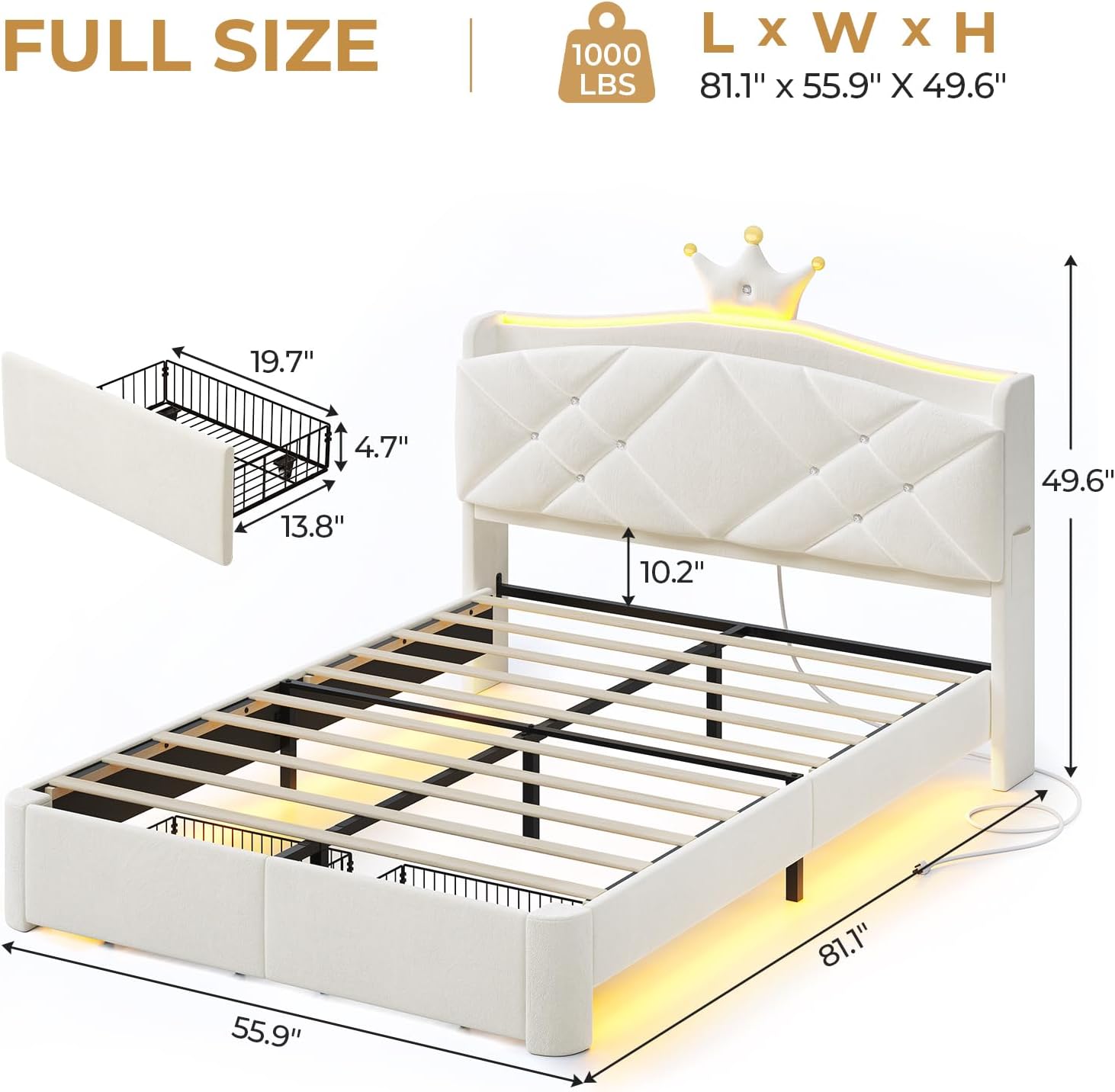

Diagram showing the dimensions and structural components of the bed frame, including headboard height, bed length, and width.

Figure 3.1: Structural overview and dimensions of the MSmask Full LED Bed Frame. Note the placement of slats and support legs.

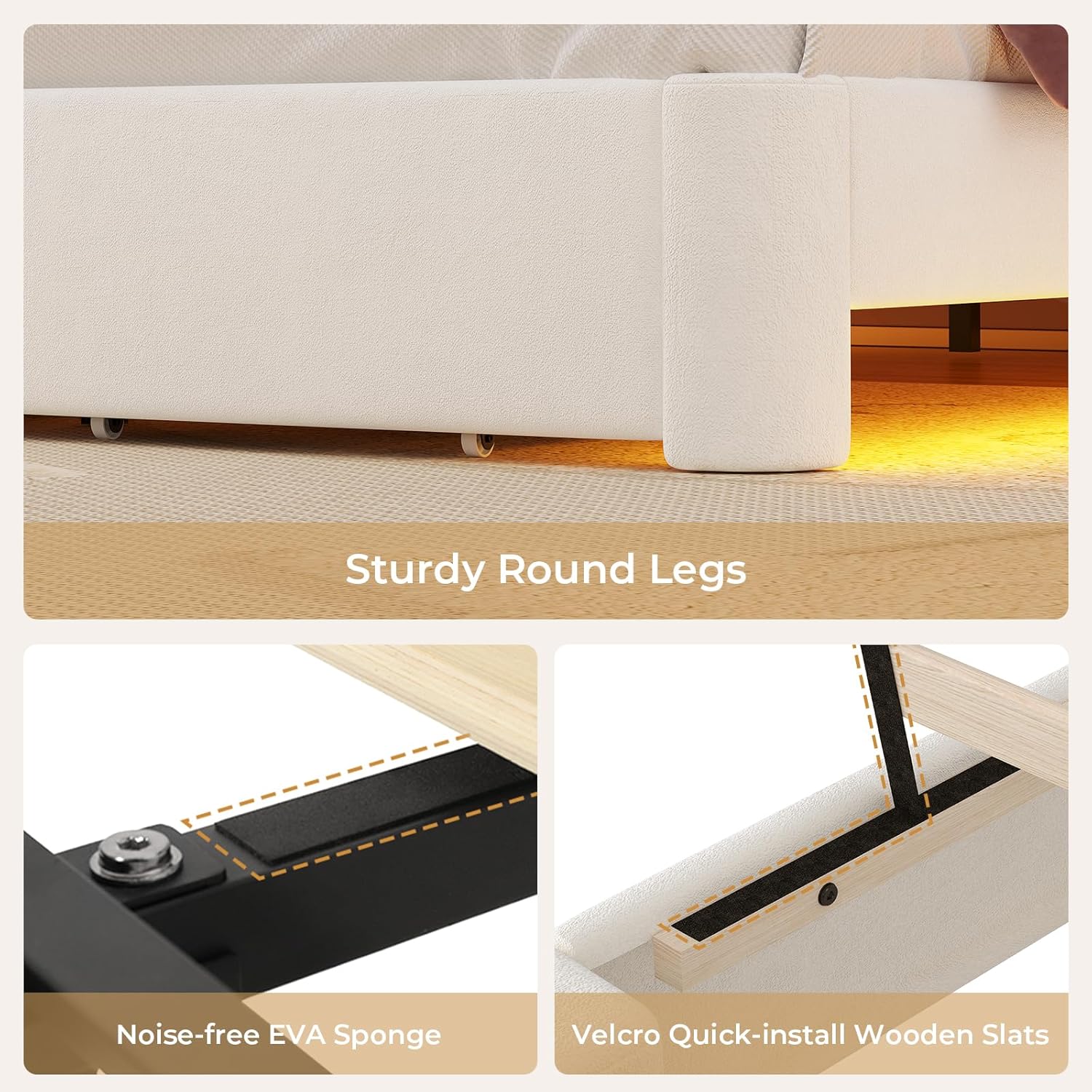

Close-up of the bed frame's sturdy round legs and noise-free EVA sponge for slats, highlighting stable construction.

Figure 3.2: Detail of the sturdy round legs and noise-free EVA sponge for slat installation, ensuring stability and quiet operation.

3.3 Storage Drawer Assembly

  1. Assemble the drawer frames according to the instructions provided with the drawer components.
  2. Attach the fabric drawer fronts to the assembled frames.
  3. Slide the assembled drawers into the designated spaces under the bed frame.

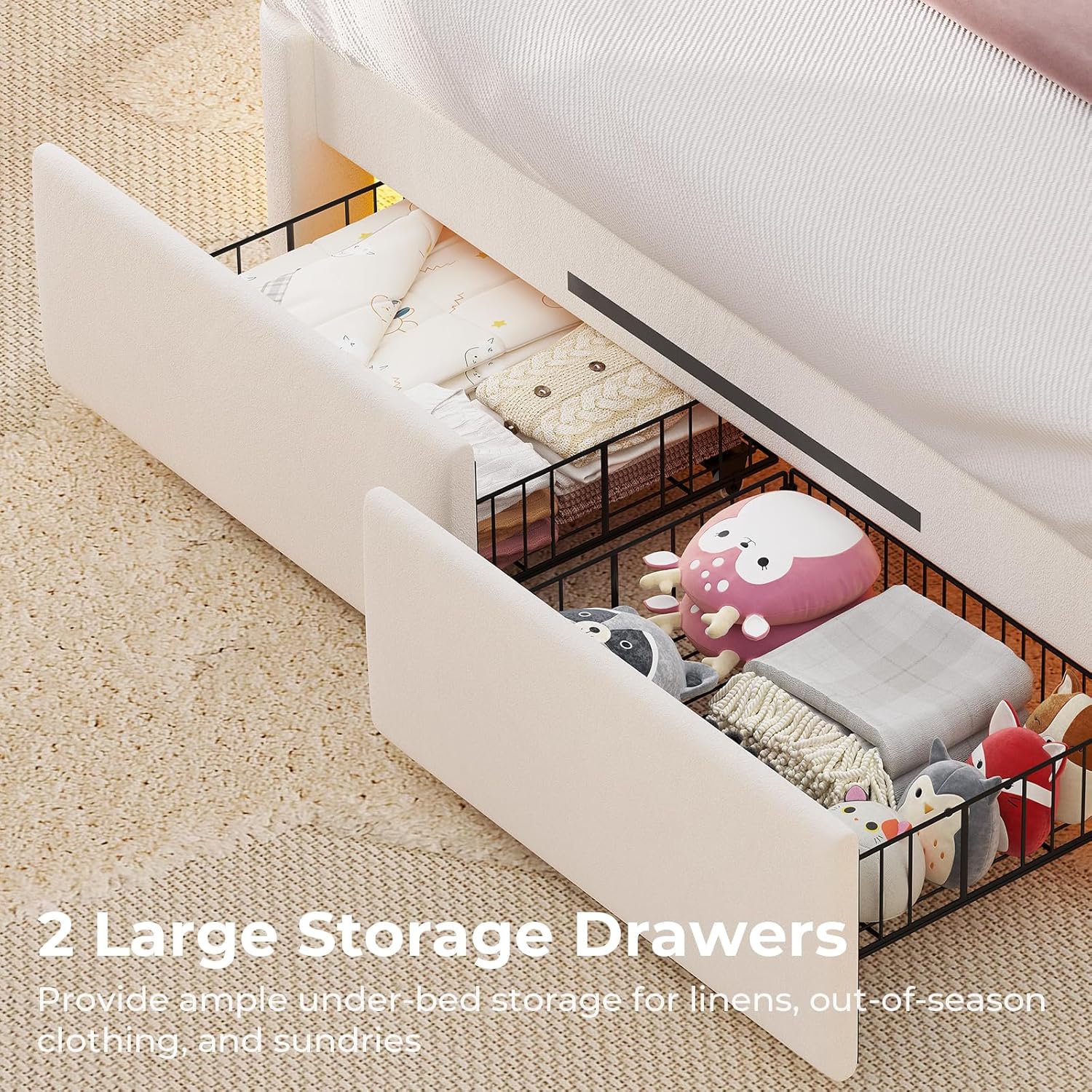

Image showing two large storage drawers pulled out from under the bed, filled with linens and plush toys.

Figure 3.3: The two large storage drawers provide ample space for linens, clothing, and other items.

3.4 Headboard Features Setup

  • The LED light strips are pre-installed in the headboard and under the bed. Connect the power cable to a wall outlet.
  • The charging station is integrated into the headboard. Connect its power cable to a wall outlet.

3.5 Assembly Video Guide

Video 3.1: An overview of the MSmask Princess Bed features and assembly process. This video demonstrates key components and their installation.

4. Operating Instructions

4.1 LED Lighting System

The bed frame features integrated RGB LED light strips in the headboard and under the bed. These can be controlled via a remote control or a dedicated mobile application.

  • Power On/Off: Use the power button on the remote or in the app to turn the lights on or off.
  • Color Selection: Choose from over 60,000 RGB colors using the color wheel or preset options.
  • Brightness Adjustment: Adjust the light intensity to your preference.
  • Dynamic Modes: Select from various dynamic lighting effects.
  • Music Mode: The lights can synchronize with music, creating a dynamic atmosphere.
  • Timing Function: Set timers for the lights to turn on or off automatically.
Image showing the LED bed frame with various light colors, remote control, and mobile app interface for light control.

Figure 4.1: Control options for the LED lighting system, including remote and smartphone app.

4.2 Charging Station

The headboard includes a built-in charging station for convenient access to power.

  • AC Outlets: Two 125V/12A AC outlets for standard electrical devices.
  • USB Port: One 5V/2A USB-A port for charging compatible devices.
  • Type-C Port: One 5V/3A Type-C port for fast charging compatible devices.
  • Ensure the bed frame's main power cable is connected to a live wall outlet for the charging station to function.

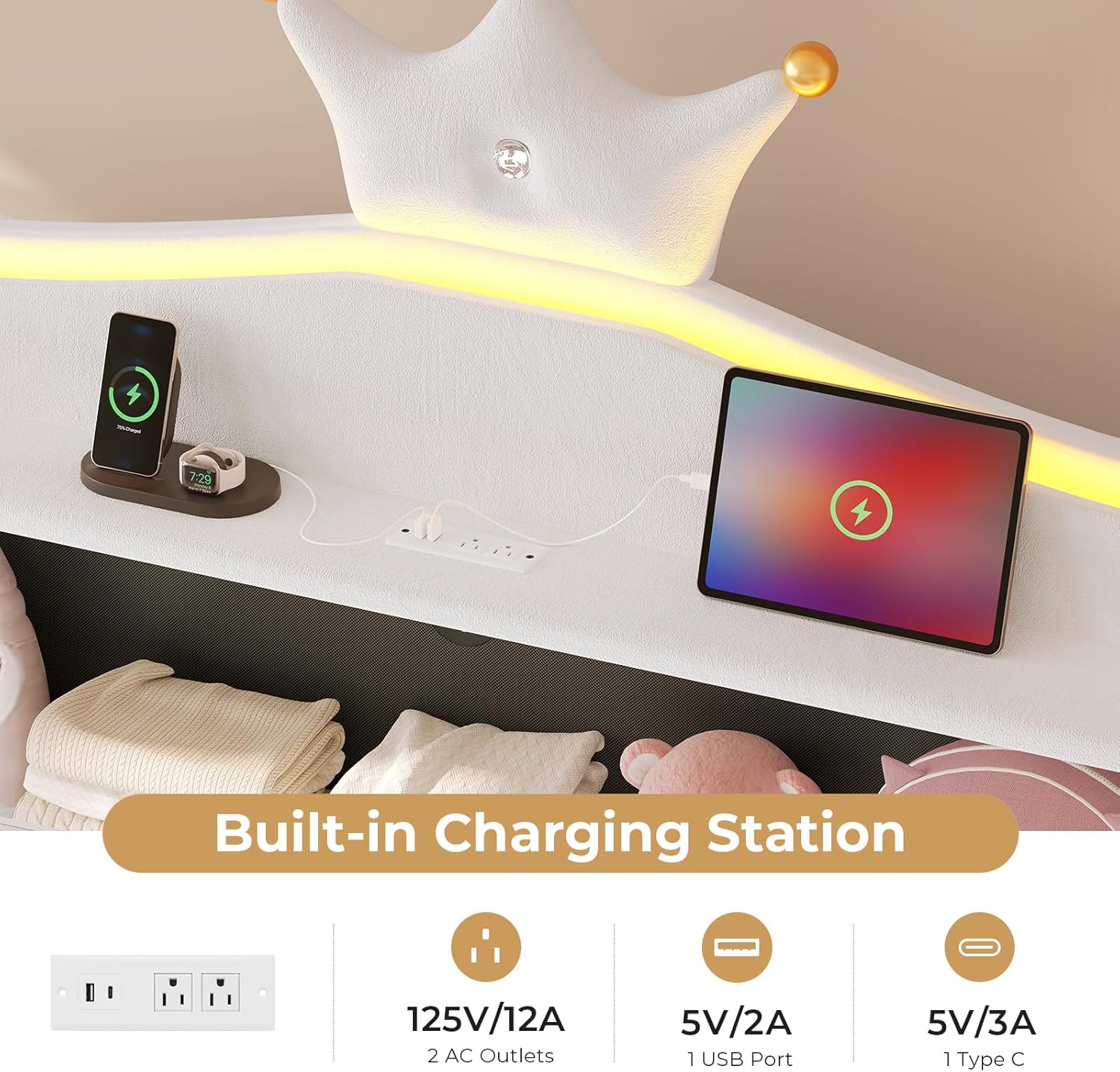

Close-up of the built-in charging station on the headboard, showing two AC outlets, one USB-A port, and one USB-C port.

Figure 4.2: The integrated charging station provides convenient power access for various electronic devices.

4.3 Headboard Storage

The headboard features multiple storage options to keep your bedside tidy.

  • Hidden Compartment: A large hidden compartment behind the main headboard panel is ideal for storing plush toys, books, or other personal items.
  • Open Shelf: An open shelf above the hidden compartment provides easy access for items like alarm clocks, small books, or decorative pieces.
  • Side Pockets: Two side pockets are integrated into the headboard for smaller items like remote controls or mobile phones.

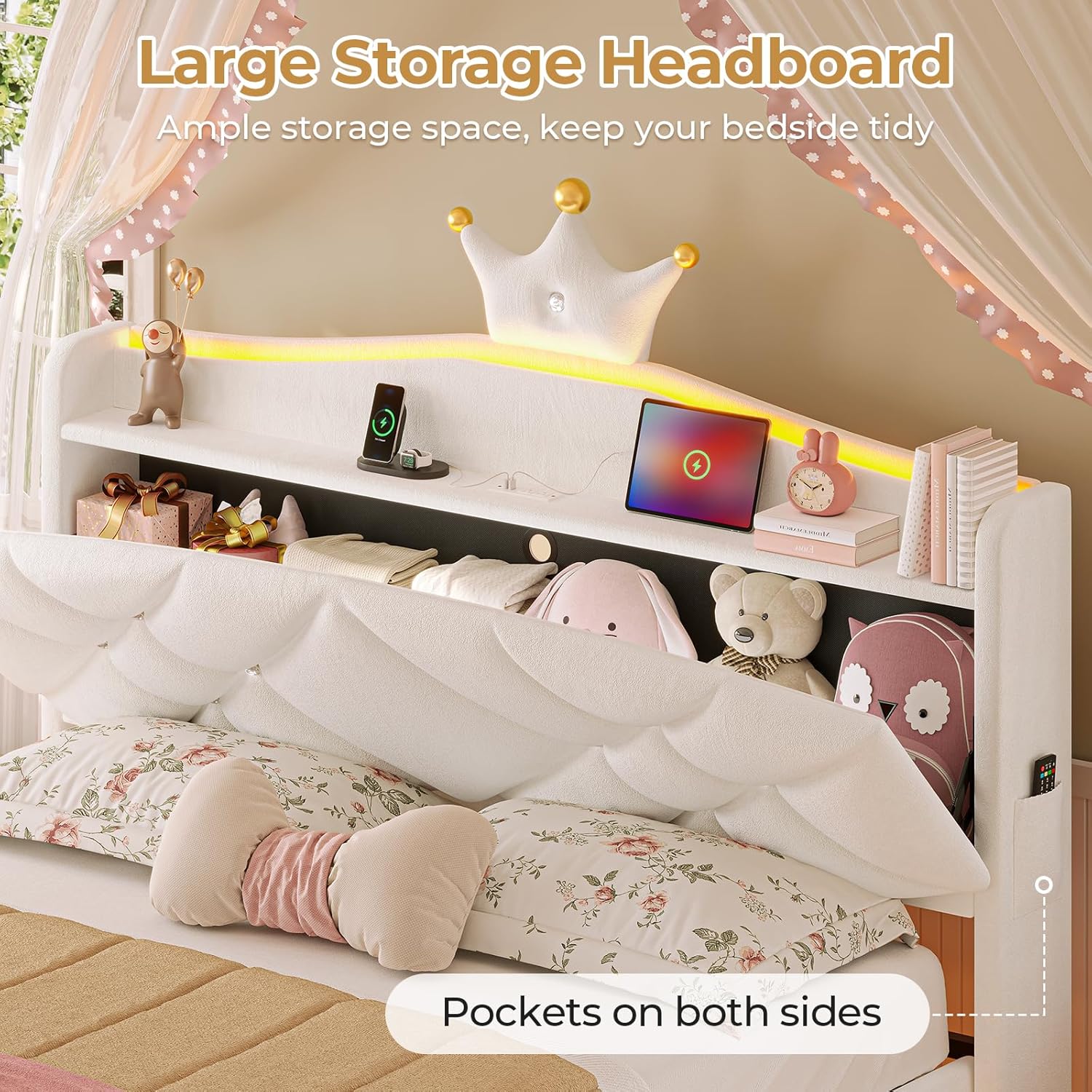

Image showing the headboard with its hidden compartment open, revealing storage space for toys and books, and an open shelf above.

Figure 4.3: The multi-functional headboard offers both hidden and open storage solutions.

5. Maintenance and Care

  • Cleaning: Wipe the bed frame with a dry cloth. For upholstered velvet fabric, use a soft brush or vacuum with an upholstery attachment to remove dust. Avoid harsh chemicals or abrasive cleaners.
  • Fabric Care: The velvet fabric is designed to be skin-friendly, breathable, and soft. To maintain its quality, avoid direct sunlight exposure for prolonged periods and promptly address any spills.
  • Fasteners: Periodically check all bolts and screws to ensure they remain tight. Re-tighten if necessary to maintain stability.
  • Electrical Components: Keep the LED lights and charging station free from dust and moisture. Do not attempt to repair electrical components yourself; contact qualified personnel if issues arise.
  • Drawer Care: Ensure storage drawers slide smoothly. Clean the interior of the drawers as needed.
Close-up of the velvet upholstered headboard with crystal buttons, highlighting the fabric's texture and properties.

Figure 5.1: The velvet fabric upholstery requires gentle care to maintain its soft touch and appearance.

6. Troubleshooting

ProblemPossible CauseSolution
LED lights not working.
  • Power cable not connected.
  • Remote control battery low.
  • Loose connection in LED strip.
  • Ensure power cable is securely plugged into a working outlet.
  • Replace remote control batteries.
  • Check all LED strip connections.
Charging station not providing power.
  • Power cable not connected.
  • Device not compatible or cable faulty.
  • Outlet overloaded.
  • Verify the bed frame's main power cable is plugged in.
  • Test with a different device or charging cable.
  • Unplug other devices from the charging station.
Bed frame feels unstable or squeaks.
  • Loose bolts or screws.
  • Uneven floor.
  • Slats not properly seated.
  • Re-tighten all assembly hardware.
  • Adjust bed placement or use shims if the floor is uneven.
  • Ensure all wooden slats are correctly positioned and secured.

7. Specifications

  • Brand: MSmask
  • Model: full bed frame with storage headboard
  • Size: Full-2 Drawers
  • Product Dimensions: 81.1"L x 55.9"W x 49.6"H
  • Upholstery Fabric Type: Velvet
  • Color: White
  • Weight Limit: 1000 Pounds
  • Item Weight: 91.1 Pounds
  • Special Features: Charging Station (2 AC outlets, 1 USB, 1 Type-C), Curved Legs, LED Storage Headboard, 2 Storage Drawers
  • Assembly Required: Yes
  • Care Instructions: Wipe with Dry Cloth

8. Warranty and Support Information

For warranty details, product support, or to report missing/damaged parts, please contact MSmask customer service. Refer to your purchase documentation for specific warranty terms and contact information.

You can also visit the official MSmask store for more information: MSmask Store on Amazon
