1. Introduction
Thank you for choosing the MSmask Full LED Bed Frame with Storage Headboard and 2 Storage Drawers. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed frame. Please read these instructions carefully before beginning assembly and retain them for future reference.
Safety Information
- Ensure all parts are present and undamaged before assembly. Do not proceed with assembly if any parts are missing or damaged.
- Assemble the bed frame on a soft, clean surface to prevent scratches.
- Tighten all screws and bolts securely, but do not overtighten. Periodically check and re-tighten fasteners as needed.
- Keep small parts away from children during assembly to prevent choking hazards.
- Do not exceed the maximum weight limit of 800 pounds.
- Ensure the power strip and LED light connections are properly secured and away from moisture.
2. Package Contents
Verify that all the following components are included in your package:
- Headboard and Footboard sections
- 2 Storage Drawers
- Steel Frame components
- Wood Slats (10 solid wooden slats)
- LED Light Kit
- Power Strip (Built-in Charging Station)
- Screw Bag with all necessary fasteners and tools
- Installation Manual (this document)
Figure 2.1: Overview of bed frame components and dimensions (81.1"L x 55.9"W x 49.6"H).
3. Assembly Instructions
Assembly is required for this bed frame. Follow the detailed, numbered instructions provided in the separate installation manual included in your package. No specialist skills are required for assembly.
General Assembly Steps:
- Unpack and Identify Parts: Lay out all components and hardware. Refer to the parts list in the installation manual to ensure everything is present.
- Assemble the Headboard: Attach the headboard sections, including the storage compartment and charging station, according to the manual.
- Construct the Side Rails: Connect the side rails to the headboard and footboard.
- Install Support Legs and Slats: Secure the central support legs and evenly distribute the wooden slats across the frame. The wooden slats feature Velcro for easy attachment.
- Assemble and Insert Drawers: Construct the two storage drawers and slide them into their designated positions under the bed frame.
- Install LED Light Kit: Attach the LED light strips to the designated areas on the headboard and under the bed frame, following the wiring instructions.
- Connect Power: Plug in the power strip for the charging station and LED lights.
Figure 3.1: Structural components for stability and ease of assembly.
4. Operating Instructions
4.1. LED Lighting System
The bed frame features integrated RGB LED light strips on the headboard and along the sides. These lights can be controlled via a dedicated mobile application or the included remote control.
- Color Selection: Choose from over 60,000 RGB colors to customize your lighting ambiance.
- Dynamic Modes: Access 29 dynamic lighting modes for various effects.
- Music Mode: Synchronize the lights with music for an interactive experience.
- Brightness Adjustment: Adjust the light intensity for use as a night light or ambient illumination.
- Timing Function: Set schedules for the lights to turn on or off automatically.

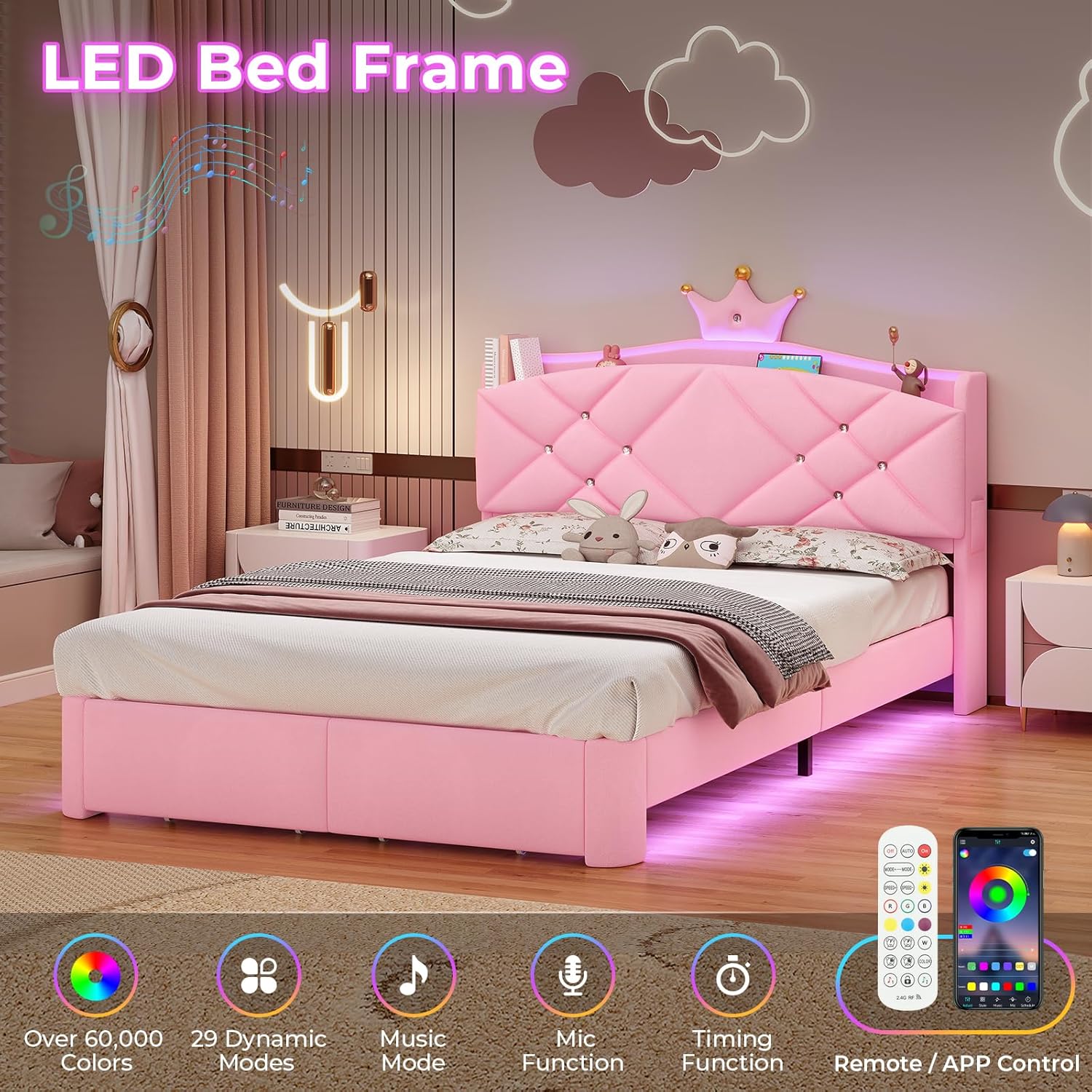

Figure 4.1: LED lighting features and control options.
4.2. Built-in Charging Station
The headboard includes a convenient charging station for your electronic devices.
- Outlets: 2 standard 125V/12A AC outlets.
- USB Ports: 1 USB port (5V/2A) and 1 Type-C port (5V/3A) for charging compatible devices.
- Ensure the bed frame is plugged into a wall outlet for the charging station to function.
Figure 4.2: Built-in charging station details.
4.3. Storage Features
The bed frame is designed with multiple storage solutions to help keep your room organized.
- Storage Headboard: Features 1 hidden large compartment, 1 open shelf, and 2 side pockets. Ideal for storing books, remote controls, and small personal items.
- Storage Drawers: Two large drawers located at the foot of the bed provide ample space for linens, out-of-season clothing, or other sundries.
Figure 4.3: Headboard storage compartments.

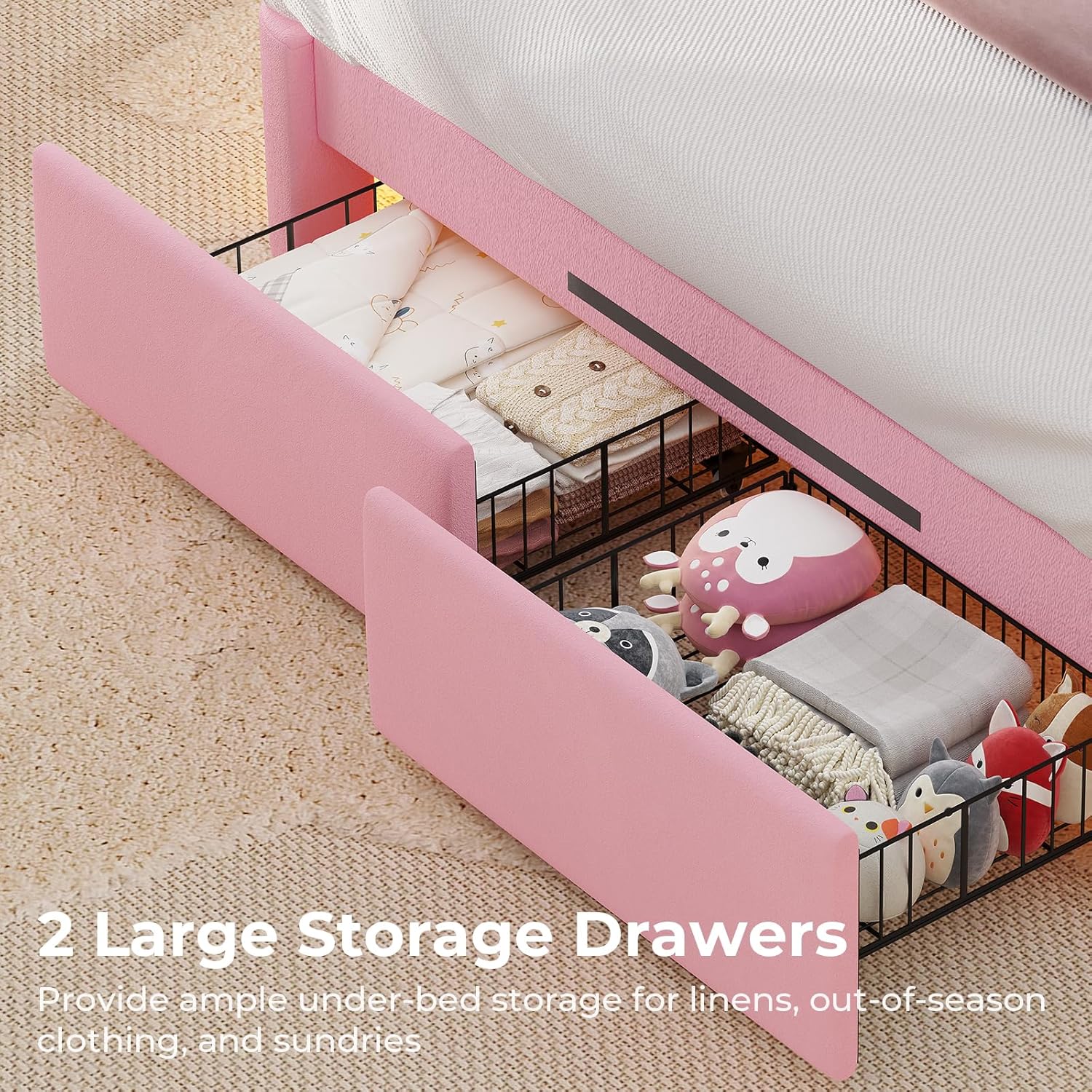

Figure 4.4: Under-bed storage drawers.
5. Maintenance and Care
To maintain the appearance and longevity of your MSmask bed frame, follow these care instructions:
- Cleaning: Wipe the upholstered velvet fabric and other surfaces with a dry cloth. Avoid using harsh chemicals or abrasive cleaners, which may damage the material.
- Fasteners: Periodically check all screws and bolts to ensure they remain tight. Re-tighten as necessary to maintain stability.
- LED Lights: If LED lights malfunction, check the power connection and ensure the remote or app is properly paired.
6. Troubleshooting
If you encounter issues with your bed frame, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is wobbly or noisy. | Loose fasteners; uneven floor. | Check and tighten all screws and bolts. Ensure the bed is on a level surface. |
| LED lights are not working. | Power connection issue; remote/app not paired; damaged light strip. | Verify the power cord is securely plugged in. Re-pair the remote or app. Contact customer support if the strip is damaged. |
| Charging station is not providing power. | Bed frame not plugged in; device incompatibility. | Ensure the bed frame's main power cord is plugged into a functional wall outlet. Check device compatibility with USB/Type-C ports. |
| Drawers do not slide smoothly. | Obstruction; improper assembly. | Check for any items obstructing the drawer path. Review assembly steps for the drawers to ensure correct installation. |
If the problem persists after attempting these solutions, please contact MSmask customer support for further assistance.
7. Specifications
| Feature | Detail |
|---|---|
| Model | full bed frame with storage headboard |
| Brand | MSmask |
| Size | Full |
| Product Dimensions | 81.1"L x 55.9"W x 49.6"H |
| Item Weight | 91.1 Pounds |
| Weight Limit | 800 Pounds |
| Upholstery Fabric Type | Velvet |
| LED Features | RGB (60,000+ colors), 29 Dynamic Modes, Music Mode, Timing Function, App/Remote Control |
| Charging Station | 2 AC Outlets (125V/12A), 1 USB Port (5V/2A), 1 Type-C Port (5V/3A) |
| Storage | Headboard (hidden compartment, open shelf, 2 side pockets), 2 Under-bed Drawers |
| Frame Material | Steel, Solid Wood Slats |
| Assembly Required | Yes |
| Care Instructions | Wipe with Dry Cloth |
8. Warranty and Support
For any questions, concerns, or issues regarding your MSmask Full LED Bed Frame, please contact MSmask customer support. Refer to your purchase documentation for specific warranty details and contact information. Our support team is available to assist you with assembly, troubleshooting, and general product inquiries.
Contact Information: Please refer to the contact details provided at the point of purchase or on the official MSmask website.
