Introduction
Thank you for choosing the Sangcon Personal Portable Blender. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new blender. Please read it thoroughly before first use and retain it for future reference.
Product Overview
The Sangcon Personal Portable Blender is designed for convenience and versatility, allowing you to prepare shakes, smoothies, and other blended drinks anywhere. It features a powerful motor, dual blending modes, and a durable, portable design.

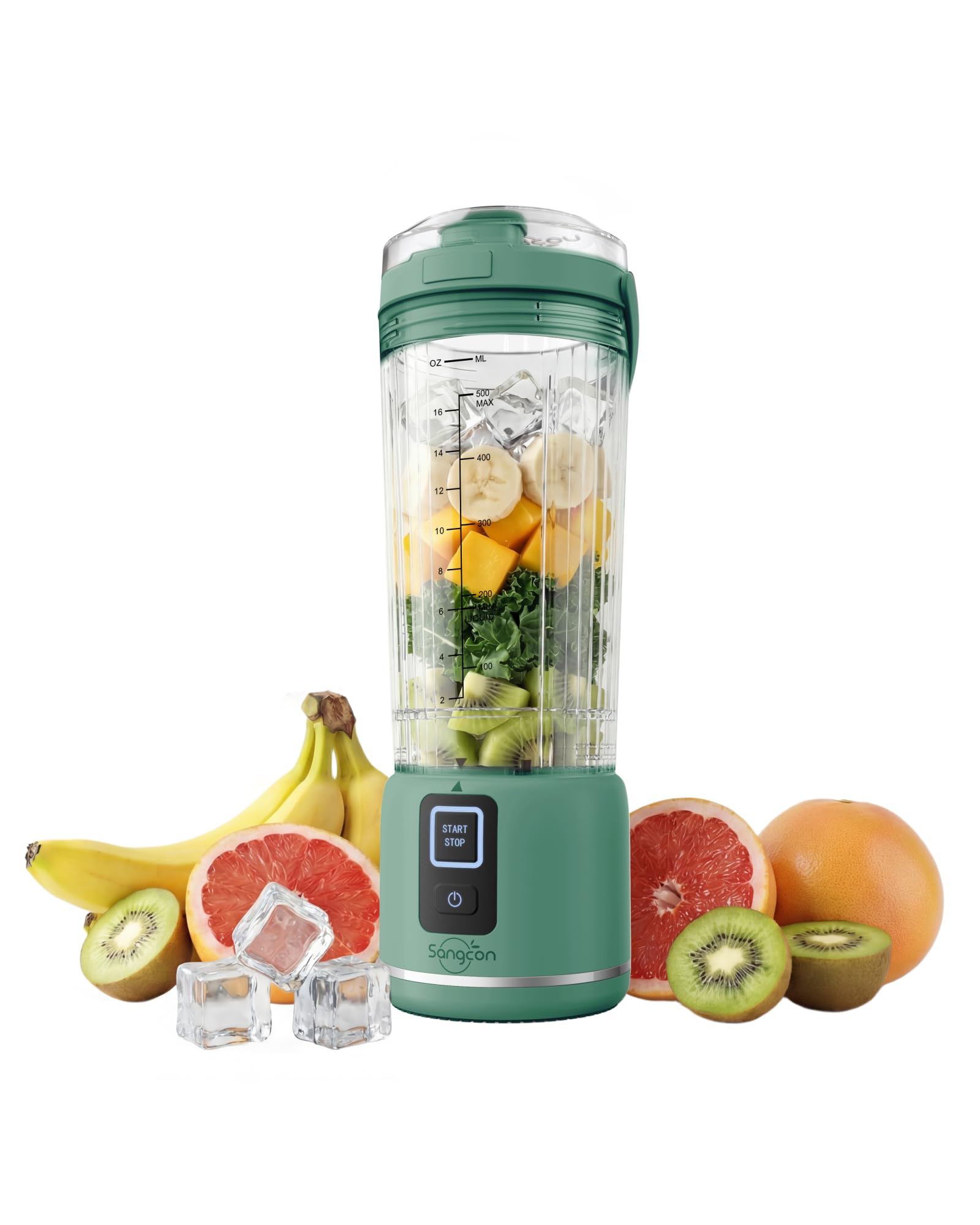

Image: Sangcon Personal Portable Blender, showcasing its compact design.
Components
- Blender Base (Motor Unit)
- Blender Cup (500ml / 16oz capacity, BPA-free PCTG)
- Lid with integrated handle and drinking spout
- USB-C Charging Cable
Setup
1. Initial Charge
Before first use, fully charge the blender. Connect the provided USB-C cable to the charging port on the blender base and plug the other end into a compatible USB power source (e.g., wall adapter, laptop, power bank). The indicator light will show charging status.
Image: Blender base connected via USB-C for charging, illustrating various charging options like wall charger, laptop, power bank, and car USB.
2. Assembly
- Ensure the blender cup is clean and dry.
- Align the blender cup with the motor base. Twist clockwise until securely locked. The blender will not operate if the cup is not properly aligned and locked due to safety sensors.
- Add your desired ingredients to the cup. Do not exceed the 'MAX' fill line.
- Securely attach the lid by twisting it clockwise until tight.
Image: Step-by-step guide showing how to prepare ingredients, add liquid, select blend mode, and serve.
Operating Instructions
The blender features two blending modes for different ingredient types.
Image: Illustration of the two blending modes: Blend Mode (short press, green light) for soft ingredients and Pulse Mode (long press, blue light) for hard ingredients like ice.
Blending Modes
- Blend Mode (Green Light): For softer ingredients like fruits, vegetables, and protein powders. Press the power button once. The indicator light will turn green, and the blender will run for approximately 45 seconds.
- Pulse Mode (Blue Light): For harder ingredients such as ice, frozen berries, or nuts. Press and hold the power button for 2 seconds. The indicator light will turn blue, and the blender will operate in pulse mode, crushing ingredients to a snow-like texture. Release the button to stop.
Blending Process
- Ensure the blender is fully charged and assembled correctly.
- Add ingredients. For best results, add liquids first, then soft ingredients, and finally harder ingredients or ice.
- Select the desired blending mode (Blend or Pulse).
- For optimal blending, you may gently shake the blender during operation to ensure all ingredients come into contact with the blades.
- Once blending is complete, the blender will stop automatically in Blend Mode, or you can release the button in Pulse Mode.
- Unscrew the lid and enjoy your freshly blended drink directly from the cup, or pour it into another container.
Video: Official Sangcon Store video demonstrating the portable blender's features, including dual modes, blending various ingredients, and portability.
Cleaning and Maintenance
Easy Cleaning
The Sangcon Personal Portable Blender is designed for easy cleaning.
- Self-Cleaning: Add water and a drop of dish soap to the blender cup. Secure the lid and run the blender in Blend Mode for a few seconds. Rinse thoroughly.
- Dishwasher Safe Parts: The blender cup and lid are top-rack dishwasher safe.
- Motor Base: The motor base is IPX5 water-resistant, allowing for easy rinsing under a faucet. DO NOT SUBMERGE THE MOTOR BASE IN WATER. Wipe with a damp cloth if necessary.
Image: Demonstrates rinsing the IPX5 waterproof motor base under running water. Note: Do not submerge.
Storage
Store the blender in a clean, dry place. Ensure the cup and lid are completely dry before storing to prevent odors or mold growth.
Safety Precautions
- Always ensure the cup is securely attached to the motor base before operating.
- Do not operate the blender when empty.
- Keep hands and utensils out of the blender cup during operation.
- Do not overfill the blender cup beyond the 'MAX' line.
- Avoid blending hot liquids, as pressure buildup can cause the lid to open and spray hot contents.
- Keep the blender out of reach of children.
- Only use the provided USB-C cable for charging.
- Do not attempt to disassemble or repair the motor base yourself. Contact customer support for assistance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Blender does not start. | Cup not securely attached. | Ensure the cup is twisted clockwise until it locks into place. |
| Battery is low or depleted. | Charge the blender fully using the USB-C cable. | |
| Ingredients are too large or too much. | Cut ingredients into smaller pieces and do not exceed the MAX fill line. | |
| Blender stops during operation. | Overload protection activated. | Remove some ingredients, add more liquid, or cut ingredients smaller. Allow the motor to cool down for 15-20 minutes before restarting. |
| Battery is low. | Recharge the blender. | |
| Leaking from the lid. | Lid not properly secured or gasket is misplaced. | Ensure the lid is tightly twisted on and the silicone gasket is correctly seated. |
Specifications
- Brand: Sangcon
- Model: Personal Portable Blender (ASIN: B0G2BWVXGC)
- Battery: 6000mAh (up to 15 blending cycles per charge)
- Charging: USB-C
- Motor Power: 140W
- Blade Speed: 20,000 RPM
- Blades: 6-blade SUS304 Stainless Steel
- Capacity: 500ml / 16 ounces
- Material: BPA-free PCTG (cup), Stainless Steel (blades)
- Water Resistance: IPX5 (motor base for rinsing)
- Dimensions: 3.74"D x 3.98"W x 12.54"H
- Weight: 1.78 Pounds
- UPC: 199874538112
Image: Detailed view of the blender highlighting its dimensions, IPX5 waterproof rating, 500ml capacity, and 304 stainless steel construction.
Warranty and Support
Sangcon is committed to providing quality products and customer satisfaction.
- Warranty: This product comes with a 1-Year Limited Warranty.
- Returns: Enjoy 30-Day Hassle-Free Returns.
- Support: Lifetime Support for all inquiries.
- Contact: For quick assistance or any questions, please refer to the contact information provided with your purchase or visit the official Sangcon website.
