Ehaho RV Door Lock Replacement (Model JD-RV1) User Manual

1. Introduction

The Ehaho RV Door Lock Replacement, Model JD-RV1, provides enhanced security and convenient access for recreational vehicles and travel trailers. This lock features multiple unlocking methods including a keyless keypad, remote control, and mechanical key. It is designed with a dual deadbolt system for security, an IP65 waterproof rating for outdoor durability, and an emergency Type-C power input. This manual provides comprehensive instructions for proper installation, operation, and maintenance of your RV door lock.

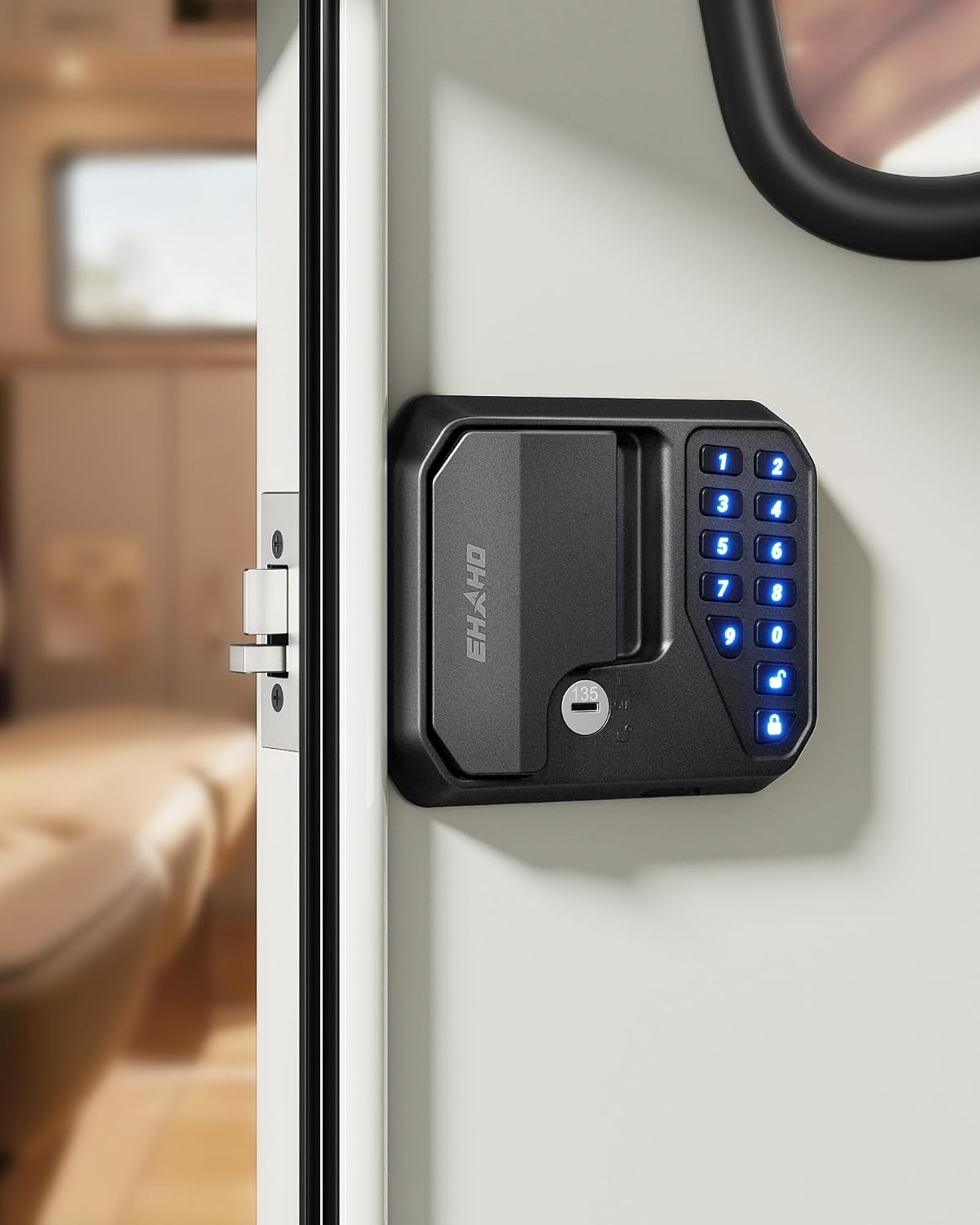

Figure 1: Ehaho RV Door Lock Replacement, front view.

A black Ehaho RV door lock with a keypad and keyhole, designed for recreational vehicles.

2. Package Contents

Please verify that all items listed below are included in your package. If any items are missing or damaged, contact Ehaho customer support.

• 1 x Exterior Lock Panel
• 1 x Interior Lock Panel
• 2 x Remote Controls
• 2 x Mechanical Keys
• 4 x 1.5V AA Batteries
• 1 x Lock & Frame Plates Set
• 1 x Installation Tool Kit (screws, screwdriver)
• 1 x Cushion Pad
• 1 x User Manual (this document)

Figure 2: Package Contents.

This image displays all components included in the Ehaho RV Door Lock package: exterior and interior lock panels, two remote controls, two mechanical keys, four 1.5V AA batteries, lock and frame plates, an installation tool kit, and a cushion pad.

3. Specifications

4. Installation and Setup

4.1 Compatibility Check

Ensure your RV door meets the following dimensions for proper fit:

• Door Cutout: 2.75 inches (width) × 3.75 inches (height)
• Door Thickness: 1.25 inches to 1.5 inches

Figure 3: Door Dimensions for Installation.

A diagram illustrating the required door cutout dimensions for the Ehaho RV Door Lock: 2.75 inches by 3.75 inches, and a compatible door thickness range of 1.25 to 1.5 inches.

4.2 Installation Steps

Installation typically takes 15-30 minutes. Follow these general steps:

1. Remove Existing Lock: Unscrew and remove your current RV door lock.
2. Install New Lock Components: Carefully assemble the new Ehaho exterior and interior lock panels, ensuring all wires are connected correctly and not pinched.
3. Secure the Lock: Tighten the screws to firmly secure the new lock in place.
4. Install Batteries: Open the battery compartment on the interior panel and insert the four 1.5V AA batteries, observing correct polarity.

Figure 4: Installation Steps.

A visual guide showing the three main steps for installing the Ehaho RV Door Lock: 1) unscrewing the existing lock, 2) assembling the new lock components, and 3) tightening the screws to secure the new lock.

4.3 Initial Programming

Upon first power-up, the lock will guide you through setting a master passcode. Refer to the detailed programming instructions provided in the separate quick start guide for specific steps on setting user codes and pairing remote FOBs. The lock provides voice prompts to assist with programming.

5. Operation

The Ehaho RV Door Lock offers multiple convenient ways to secure and access your RV.

5.1 Unlocking Methods

• Keypad Entry: Enter your programmed passcode on the backlit keypad. The Anti-Peeping Password feature allows you to input random digits before or after your actual PIN to obscure your code from onlookers.
• Remote Control: Press the unlock button on the paired remote FOB to unlock the door from a distance.
• Mechanical Key: Use one of the provided mechanical keys as a traditional backup method to unlock the door.

Figure 5: Multiple Unlocking Methods.

This image shows the Ehaho RV Door Lock being operated via its illuminated keypad, alongside smaller insets demonstrating unlocking with a mechanical key and a remote control.

Figure 6: Anti-Peeping Password Feature.

An illustration of the Anti-Peeping Password feature, showing how random digits can be entered before or after the correct 6-digit passcode to enhance security and prevent unauthorized viewing of the PIN.

5.2 Auto-Lock Function

The lock features an automatic re-locking function. After a set period (refer to programming instructions for customization), the lock will automatically engage the deadbolt, regardless of whether the door is open or closed.

5.3 Emergency Power

In the event of depleted internal batteries, the lock can be temporarily powered using a standard Type-C power source (e.g., a power bank). Connect the Type-C cable to the port on the exterior panel to provide emergency power and gain access.

Figure 7: Type-C Emergency Power.

The Ehaho RV Door Lock connected to an external power bank via a Type-C cable, illustrating the emergency power supply feature for access when internal batteries are depleted.

5.4 Voice Prompts

The lock provides audible voice prompts to guide you through operations and programming, enhancing user experience.

6. Maintenance

6.1 Battery Replacement

The lock will provide a low battery alert when the internal AA batteries are running low. Replace all four batteries promptly to ensure continuous operation. Use high-quality alkaline batteries for best performance.

6.2 Cleaning

Clean the exterior of the lock with a soft, damp cloth. Avoid using abrasive cleaners or solvents, as these can damage the finish and electronic components. Ensure the keypad remains free of dirt and debris for optimal functionality.

6.3 Weather Resistance

The lock is designed with an IP65 waterproof housing, providing protection against dust and water jets. It is rated for reliable operation in temperatures ranging from -25°C to 65°C. While robust, avoid prolonged submersion or direct high-pressure water exposure.

7. Troubleshooting

If you encounter issues with your Ehaho RV Door Lock, refer to the following common problems and solutions:

• Lock Not Responding:
  • Check battery levels. Replace all four AA batteries if they are low or depleted.
  • If batteries are new, ensure they are inserted with correct polarity.
  • Use the Type-C emergency power input to check if the lock powers on.
• Keypad Not Working:
  • Ensure the keypad is clean and free of obstructions.
  • Verify the passcode is entered correctly.
  • Check battery levels.
• Remote FOB Not Working/Syncing:
  • Ensure the remote FOB has a working battery.
  • Re-attempt the pairing process as described in the programming instructions.
  • Ensure you are within the effective range of the lock.
• Difficulty with Programming:
  • Listen carefully to the voice prompts for guidance.
  • Refer to the detailed programming section in the quick start guide.
  • Ensure you are performing steps within the allotted timeframes.
• Auto-Lock Not Engaging:
  • Verify the auto-lock feature is enabled in the settings.
  • Check for any physical obstructions preventing the deadbolt from extending.

If these steps do not resolve the issue, please contact Ehaho customer support for further assistance.

8. Warranty and Support

8.1 Warranty Information

The Ehaho RV Door Lock (Model JD-RV1) is covered by a 2-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.

8.2 Customer Support

For technical support, warranty claims, or any questions regarding your Ehaho RV Door Lock, please contact Ehaho customer service. Refer to the contact information provided with your product packaging or visit the official Ehaho website for current support details.
