KMM LT-161 Handheld Car Vacuum Cleaner & Air Duster Instruction Manual

1. Product Overview

The KMM LT-161 is a versatile 2-in-1 handheld device functioning as both a vacuum cleaner and an air duster. Designed for portability and high performance, it features a 16000PA suction power and a 120W motor operating at 84000RPM, making it effective for cleaning dust, debris, sand, and pet hair in various environments including homes, cars, and offices.

Its cordless design, lightweight build (1.04 lbs), and Type-C fast charging capability ensure convenience and efficiency for quick cleanups and extended use. The device is equipped with a washable and reusable HEPA filter for enhanced filtration and motor protection.

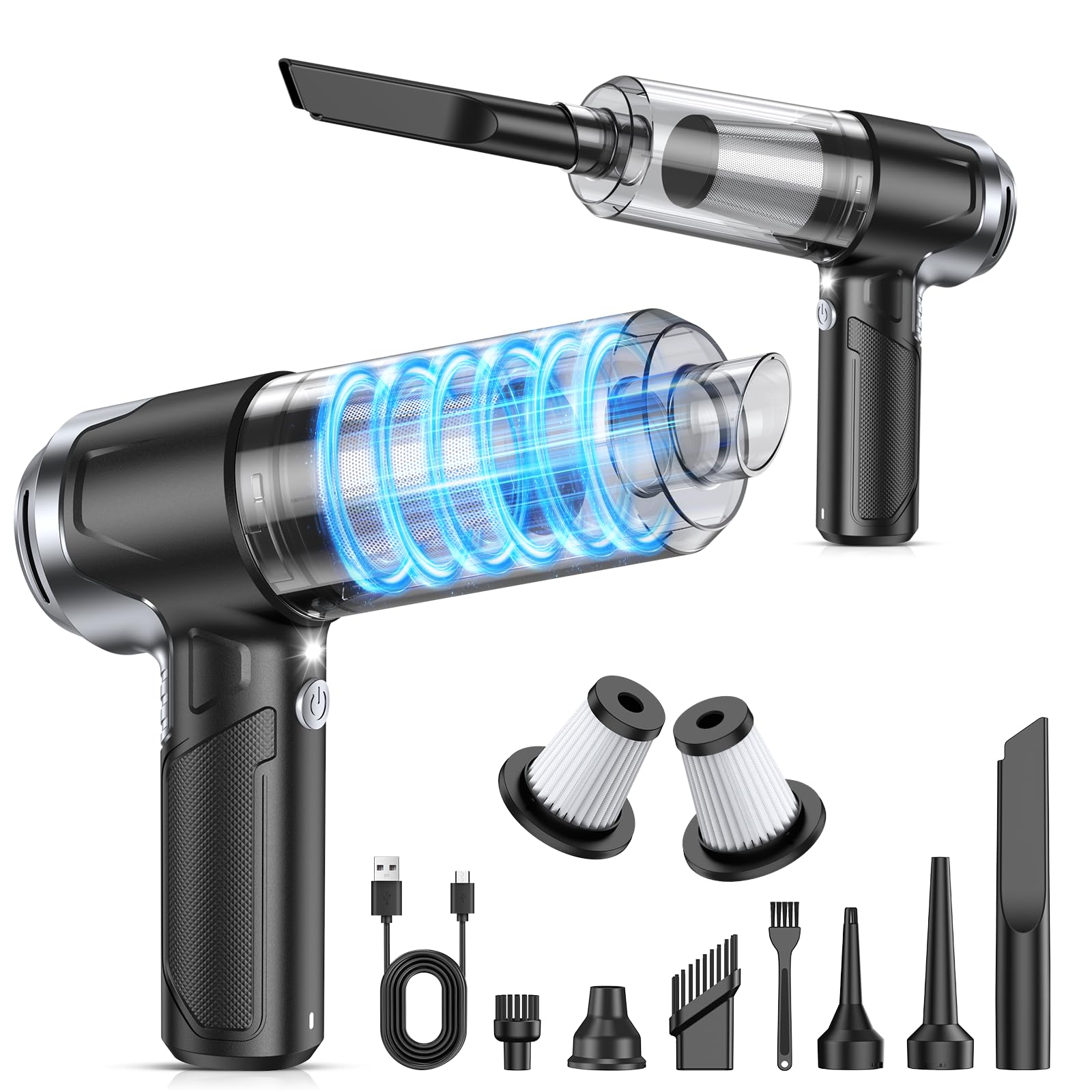

Image 1: KMM LT-161 Handheld Vacuum Cleaner demonstrating powerful 16000PA suction and 120W motor.

2. What's Included

The KMM LT-161 package includes the following components:

• Vacuum Cleaner Unit
• Metal & HEPA Filters (washable and reusable)
• Long Suction Nozzle (for crevices)
• Flat Brush (for vacuuming and wiping)
• Dust Blow Nozzle (for keyboards and narrow crevices)
• Inflatable Nozzle (for balloons, swimming rings)
• Air Bleed Nozzle (for air mattresses, vacuum bags)
• Type-C Charging Cable
• Small Cleaning Brush
• User Manual

Image 2: Visual representation of all accessories included with the KMM LT-161.

3. Setup

3.1 Charging the Device

Before first use, fully charge the vacuum cleaner. The device has a built-in 5200mAh battery and a Type-C charging port. Connect the provided Type-C charging cable to the port on the device and to a compatible USB power source (e.g., power adapter, car charger, power bank, computer USB port). The charging time is approximately 3 hours, providing a run time of up to 30 minutes.

Image 3: KMM LT-161 Handheld Vacuum Cleaner being charged via its Type-C port, showing charging indicators.

3.2 Attaching Nozzles

Select the appropriate nozzle for your cleaning task. To attach a nozzle, align it with the suction or blowing port of the device and push firmly until it clicks into place. Ensure a secure fit to maintain optimal performance.

Image 4: Different multi-purpose suction and blow nozzles for the KMM LT-161.

4. Operating Instructions

4.1 Power On/Off and Speed Settings

Press the power button to turn the device on. The LED light will illuminate, and the display will show battery level and current speed mode. The device offers two speed settings: low and high. Press the power button once for low speed, and again for high speed. Press a third time to turn off the device.

4.2 Vacuuming Function

Attach the desired suction nozzle (long suction nozzle or flat brush) to the front of the device. Direct the nozzle towards the area to be cleaned. The powerful 16000PA suction will effectively pick up dirt, dust, and debris. The integrated LED light assists in illuminating dark areas, ensuring thorough cleaning.

Video 1: Demonstration of the KMM Handheld Vacuum Cleaner in action, cleaning various surfaces including a scanner, printer, and car interior.

4.3 Air Duster Function

To use as an air duster, attach the dust blow nozzle to the rear port of the device. Turn on the device and direct the airflow to blow away dust and debris from keyboards, narrow crevices, or other surfaces. This function is also useful for inflating items like balloons or swimming rings using the inflatable nozzle, or for air evacuation from vacuum bags using the air bleed nozzle.

Video 2: Overview of the KMM Handheld Car Vacuum Cleaner, showcasing its various functions and attachments.

5. Maintenance

5.1 Emptying the Dust Bin

After use, rotate the dust bin to detach it from the main unit. Remove the filter assembly from the dust bin and empty the collected debris into a trash receptacle. For thorough cleaning, use the provided small cleaning brush to remove any stubborn particles from the filter.

5.2 Cleaning the HEPA Filter

The HEPA filter is washable and reusable. After emptying the dust bin, wash the filter and dust bin screen with cold water. Ensure the filter is completely air-dried in a ventilated environment before reassembling it into the device. Do not wash the main body of the vacuum cleaner with water; wipe it with a soft, damp cloth.

Image 5: The dual filtration system and washable HEPA filter of the KMM LT-161.

Image 6: Detailed steps for cleaning and maintenance of the KMM LT-161.

6. Troubleshooting

If the device is not functioning as expected, please ensure it is fully charged and that the dust bin and filter are clean and correctly assembled. If issues persist, refer to the user manual for further guidance or contact customer support.

7. Specifications

8. Warranty and Support

For any questions or support regarding your KMM Handheld Car Vacuum Cleaner, please contact KMM customer service. We are committed to assisting every customer and welcome your inquiries.

Please retain your purchase receipt for warranty purposes.
