Gemilai G3028A Espresso Machine User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Gemilai G3028A Espresso Machine. Please read it thoroughly before first use and keep it for future reference.

The Gemilai G3028A Espresso Machine features an integrated 550ml brew boiler, Hybrid group head, and upgraded Dual PID Temperature system for precise control of brew and steam temperatures. It offers adjustable OPV pressure control and an automatic milk frothing system.

Figure 1: Overview of Gemilai G3028A Espresso Machine features.

2. Setup

2.1 Unboxing and Initial Inspection

Carefully remove all components from the packaging. Inspect the machine and accessories for any signs of damage. Retain packaging for future transport or service.

2.2 Included Accessories

Ensure all listed accessories are present in the box:

• G3028A Espresso Machine (Elephant Grey)
• White Oak Portafilter (Double Cup)
• White Oak Portafilter (Bottomless)
• White Oak Tamper
• 58mm Filter Basket (Single Cup)
• Cleaning Disc
• Cleaning Brush
• Screwdriver
• Instruction Manual
• User Guide

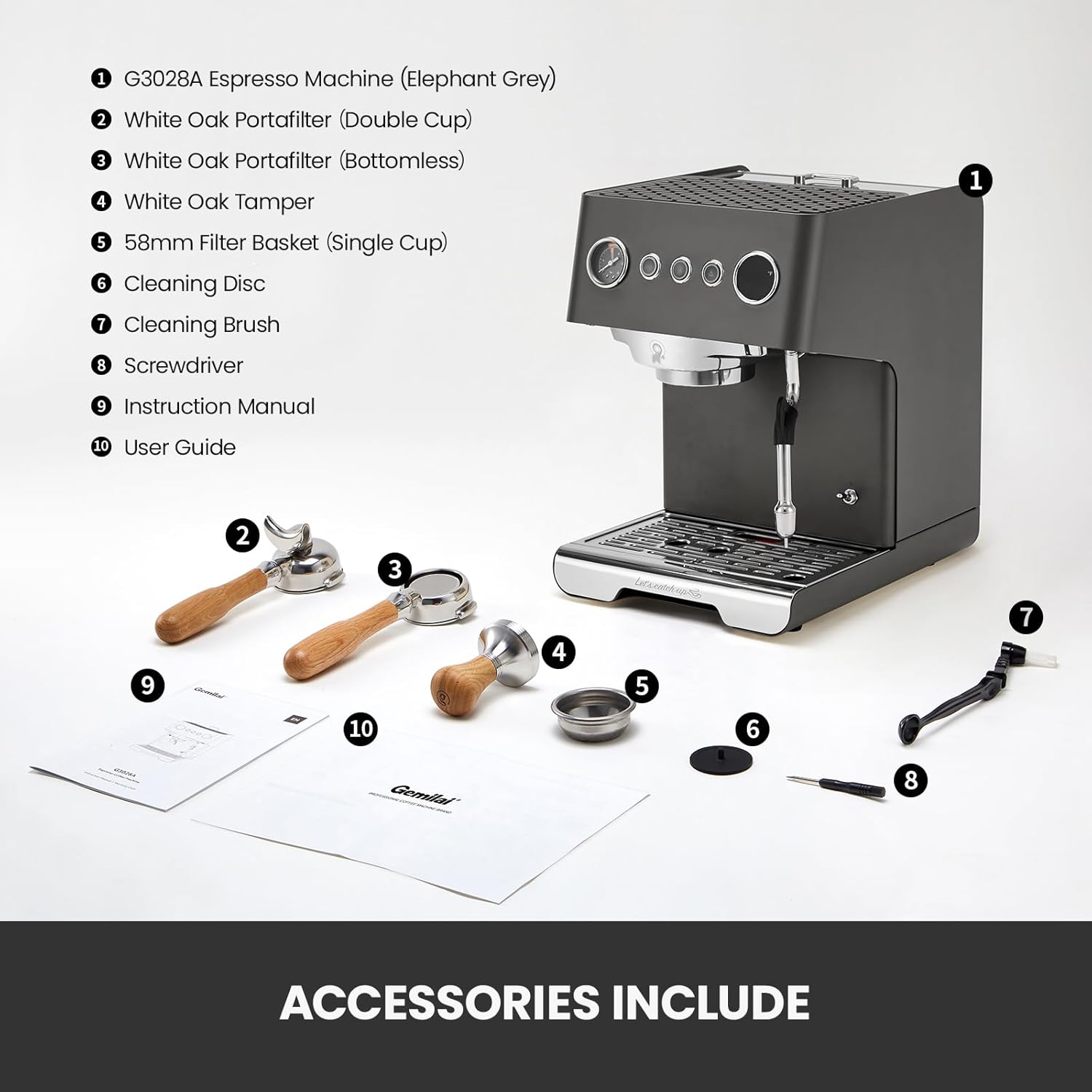

Figure 2: All accessories included with the Gemilai G3028A Espresso Machine.

2.3 Water Tank Preparation

Place the water tank and fill it with an appropriate amount of softened water. Ensure the water level is kept between the highest and lowest water scale marks.

3. Operating Instructions

3.1 Basic Coffee Preparation

Follow these steps to make a perfect espresso:

1. Turn on the power switch. Wait for the machine to heat up until the touch screen displays the desired temperature (e.g., 199°F).
2. Grind fresh coffee beans to a fine consistency, similar to fine table salt, suitable for espresso.
3. Add about 18 grams of fresh coffee powder to the filter basket. Flatten it with a coffee distributor and then press it with a tamper. The amount of powder should be around the groove line of the filter basket (9-12g for single, 17-20g for double).
4. Press the manual coffee making button to drain some water and warm up the group head. Press it again to turn off the water.
5. Align the portafilter handle with the left 45-degree triangle mark and tighten it from left to right to install it on the group head.
6. Press the coffee making button to start extraction.

Figure 3: The 58mm commercial brewing system and control panel.

3.2 Adjustable OPV Pressure Control

The machine features a dual-mode OPV system allowing preset pressure or manual fine-tuning during extraction (6–11 bar). This adapts to light or dark roasts for optimal flavor.

Figure 4: Adjustable OPV for pressure control.

3.3 Automatic Milk Frothing

The built-in automatic frothing system with an NTC temperature sensor provides precise control (104℉-194℉) for dense, silky microfoam.

1. Pour an appropriate amount of refrigerated whole milk or fresh milk into the milk frothing pitcher.
2. Press the steam button to release steam first, then let it dry.
3. Place the steam nozzle at the three o'clock position of the pitcher and start milk frothing. Adjust the steam intake angle as needed.
4. After turning off, wipe the steam wand clean with a clean, damp cloth.
5. Finally, make latte art.

Figure 5: Automatic temperature milk frothing system.

3.4 Parameter Settings

The intuitive double touchscreen allows customization of brewing and steam temperature, brew time, and pre-infusion settings.

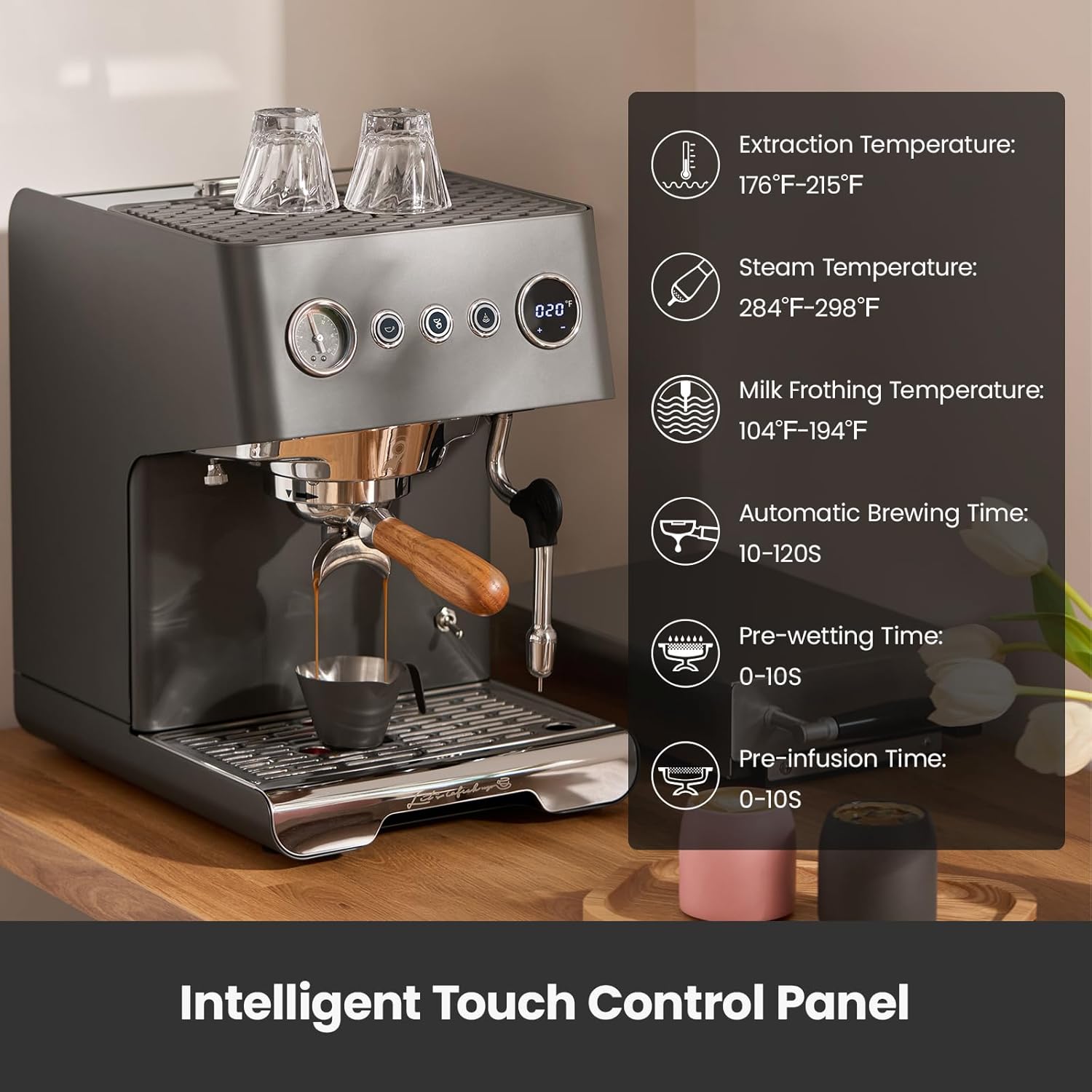

Figure 6: Intelligent Touch Control Panel with various settings.

4. Maintenance

Regular maintenance ensures optimal performance and longevity of your espresso machine. The machine features smart descaling reminders and a detachable drip tray for easy cleanup.

4.1 Descaling

The appliance should be descaled and maintained on a regular basis, approximately every 2-3 months. After making coffee a total of 500 times, the machine will enter the descaling reminder mode, and the touch screen display will automatically show "CLn".

4.2 Cleaning the Drip Tray and Water Tank

The drip tray is detachable for easy cleaning. The large 57oz removable water tank should be cleaned regularly.

5. Troubleshooting

If you encounter issues, refer to the following common problems and solutions:

• Poor Espresso Extraction: This can be caused by incomplete machine preheating, coarse or insufficient coffee grounds, or low tamping pressure. Ensure coffee freshness, as oils can evaporate with prolonged air exposure, reducing pressure.
• Water Shortage Reminder (F-3): If the touch display shows "F-3", it means the water tank lacks water. Please refill it with filtered water (between the maximum and minimum level marks).
• Brew Boiler NTC Error (E-1): If the touch display shows "E-1", it means that the brew boiler NTC is open or short-circuited, or the temperature is below 32°F / 0°C. Make sure to use the machine in an environment above 32°F / 0°C. Please contact customer service or a maintenance specialist for assistance.
• Steam Thermocouple Error (E-3): If the touch display shows "E-3", it means that the steam thermocouple is open or short-circuited. Please contact customer service or a maintenance specialist for assistance.
• Steam Thermoblock NTC Error (E-4): If the touch display shows "E-4", it means that the steam thermoblock NTC is open or short-circuited, or the temperature is below 32°F / 0°C. Make sure to use the machine in an environment above 32°F / 0°C. Please contact customer service or a maintenance specialist for assistance.

6. Specifications

Figure 8: Product dimensions.

7. Warranty and Support

The Gemilai G3028A Espresso Machine comes with a 2-year warranty. For any issues not covered in this manual, or for assistance with error codes E-1, E-3, or E-4, please contact customer service or a qualified maintenance specialist.
