WASJOYE 6.6L Small Key Lock Safe Box Instruction Manual

1. Introduction

This manual provides essential instructions for the safe and efficient use of your WASJOYE 6.6L Small Key Lock Safe Box. Designed for securing valuables in homes, businesses, and offices, this safe offers reliable protection for money, jewelry, passports, and other important items. Please read this manual thoroughly before installation and operation.

Image: The WASJOYE 6.6L Small Key Lock Safe Box, showing its dimensions (17cm x 20cm x 17cm) and internal capacity (0.23 cu.ft.), with a passport placed next to it for size comparison.

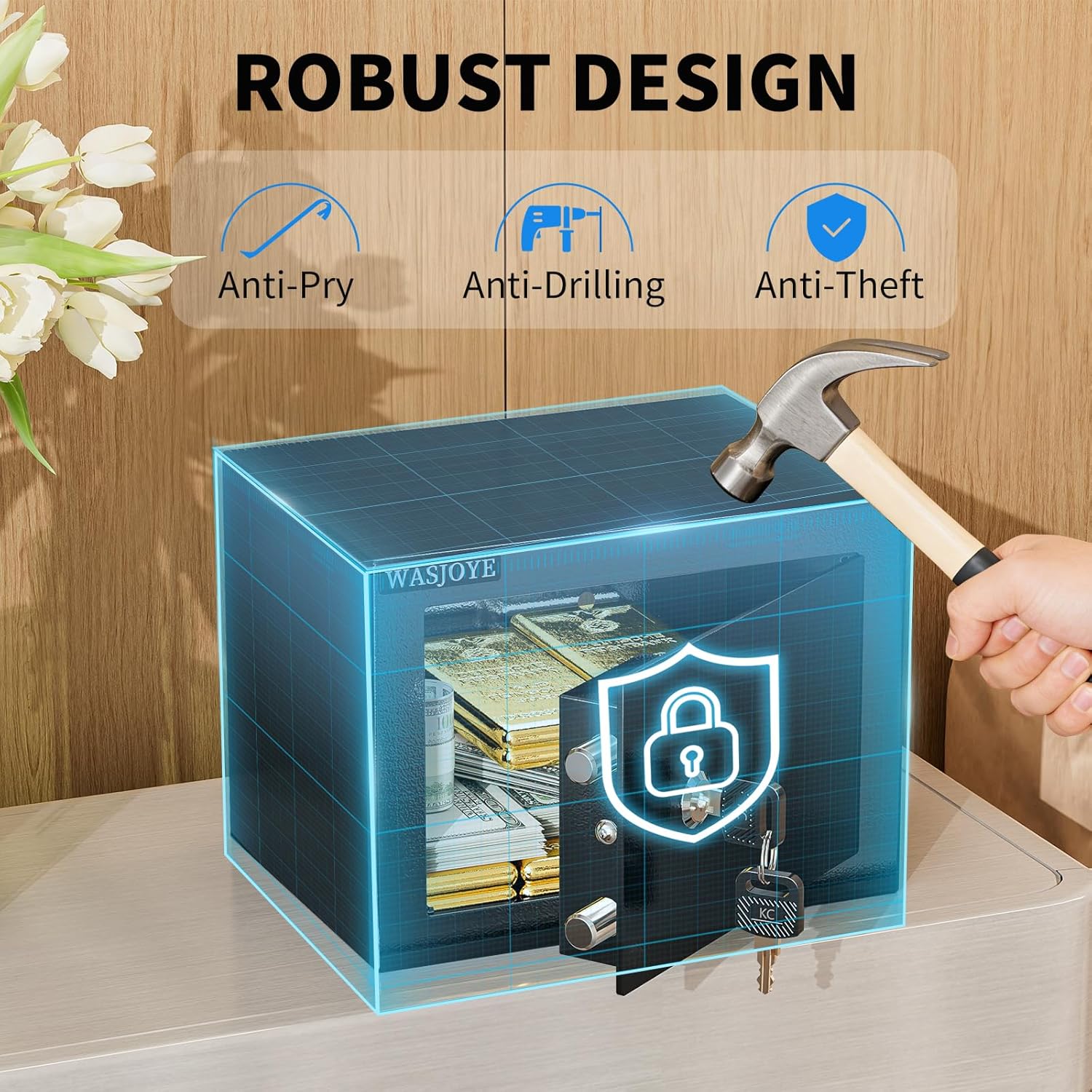

Image: Illustration of the safe's robust design, emphasizing its anti-pry, anti-drilling, and anti-theft features for enhanced security.

2. What's in the Box

Upon unpacking, please ensure all the following components are present:

• 1 x WASJOYE 6.6L Small Key Lock Safe Box
• 2 x Emergency Keys
• 4 x Expansion Screws
• 1 x Floor Mat
• 1 x Instruction Manual (this document)

Image: A visual representation of the items included in the package: the WASJOYE safe, two emergency keys, a floor mat, and two expansion bolts for mounting.

3. Setup and Installation

The WASJOYE safe is designed for easy installation in various locations to enhance security. It can be mounted on a wall, floor, shelf, or inside a cabinet.

Mounting Instructions:

1. Mark the Holes Position: Open the safe door. Using the pre-drilled holes on the back or bottom of the safe as a template, mark the desired drilling points on your chosen surface (wall, floor, etc.).
2. Drill the Holes: Using an appropriate drill bit for your surface, drill holes at the marked positions.
3. Insert Expansion Screw Sleeves: Insert the provided expansion screw sleeves into the drilled holes.
4. Secure the Safe: Align the safe's mounting holes with the expansion sleeves. Insert the expansion screws through the safe and into the sleeves, then tighten them securely to fix the safe in place.

Image: A four-step visual guide demonstrating the installation process: 1. Marking hole positions, 2. Drilling holes on the wall, 3. Inserting expansion screw sleeves, and 4. Tightening screws to secure the safe.

Image: The WASJOYE safe securely mounted inside a wooden cabinet, demonstrating a practical hidden installation method.

4. Operating Instructions

Your WASJOYE safe uses a traditional key lock mechanism for secure access.

Opening the Safe:

1. Insert one of the provided emergency keys into the keyhole on the safe door.
2. Turn the key clockwise to unlock the safe.
3. Pull the door open.

Closing and Locking the Safe:

1. Ensure the safe door is fully closed.
2. Turn the key counter-clockwise to lock the safe.
3. Remove the key and store it in a secure location separate from the safe.

Image: A hand demonstrating the insertion of an emergency key into the safe's lock. The image also illustrates various items such as passports, cash, documents, jewelry, and pistols, indicating suitable contents for storage.

5. Maintenance

To ensure the longevity and proper functioning of your WASJOYE safe, follow these simple maintenance guidelines:

• Keep the safe clean by wiping it with a soft, dry cloth. Avoid abrasive cleaners.
• Periodically check the mounting screws to ensure they remain tight and secure.
• Store emergency keys in a safe, memorable location away from the safe itself.
• Avoid exposing the safe to extreme temperatures or high humidity, as it is not waterproof.

6. Troubleshooting

If you encounter any issues with your WASJOYE safe, please refer to the following common solutions:

• Key not turning: Ensure the key is fully inserted into the keyhole. Check for any obstructions.
• Door not closing properly: Verify that no items inside the safe are obstructing the door's closure. Check for any debris around the door frame.
• Lost Emergency Keys: If both emergency keys are lost, contact WASJOYE customer support. You will need to provide the key cylinder code, which can be found in the keyhole, to request replacement keys.

7. Specifications

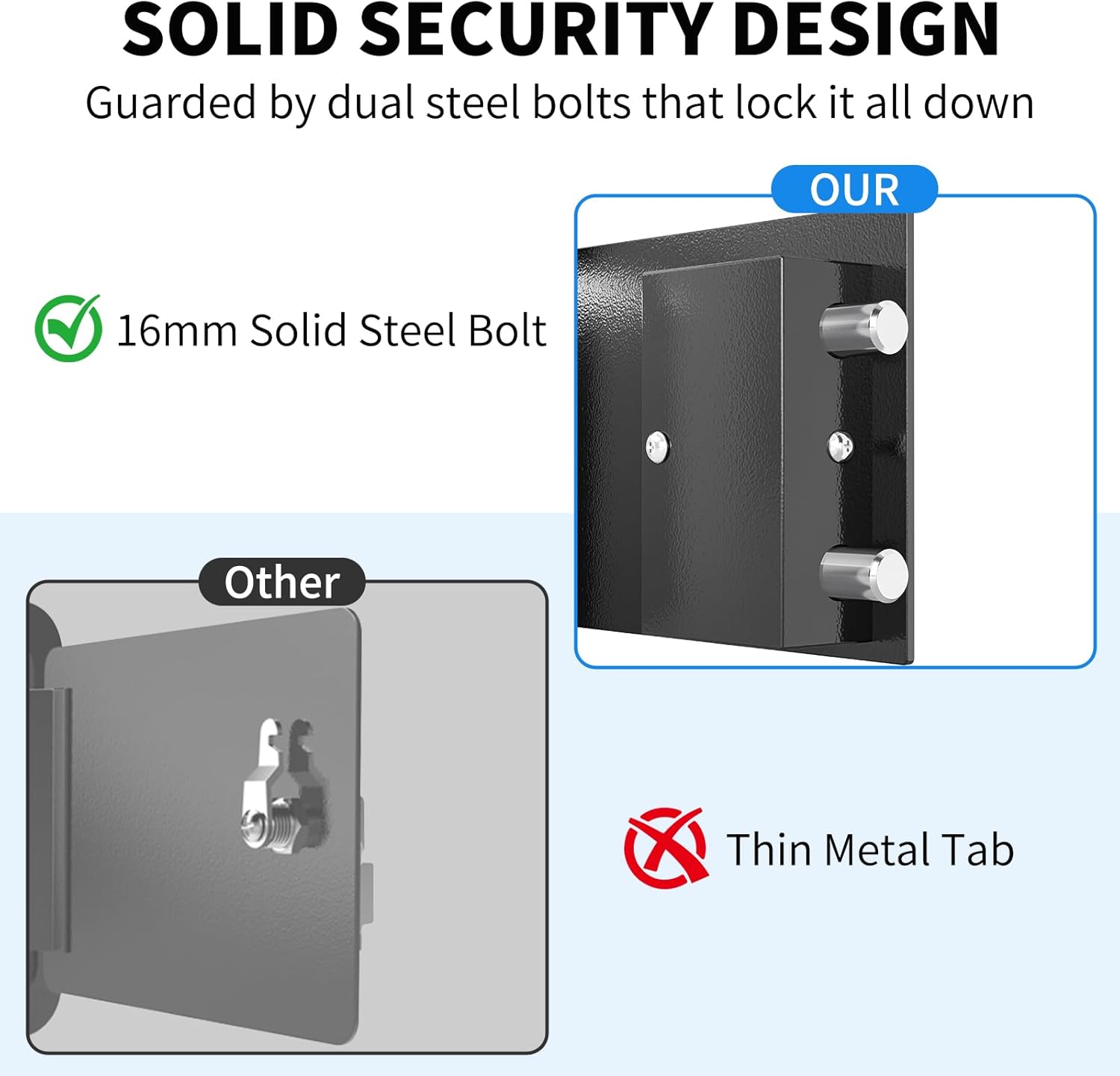

Image: A detailed view of the safe's solid security design, highlighting the robust 16mm solid steel bolts that provide strong locking, contrasting with weaker thin metal tabs found in other designs.

8. Warranty and Support

For warranty information or customer support, please refer to the contact details provided with your purchase or visit the official WASJOYE website. If you require emergency key replacement, please contact the seller directly and provide the key cylinder code located in the keyhole.

9. Product Videos

No relevant official product videos from the seller for this specific key lock safe model were found in the provided data.
