1. Safety Information
Please read and understand all instructions and safety warnings before installing, operating, or servicing this appliance. Failure to follow these instructions may result in fire, explosion, property damage, personal injury, or loss of life.
- For LP/Propane Use Only: This fireplace logs set is designed exclusively for use with LP/Propane gas. Do not attempt to use with natural gas or any other fuel type.
- Vent-Free Operation: This is a vent-free appliance. It draws combustion air from the room and vents combustion products into the room. Ensure adequate ventilation as per local codes.
- Oxygen Depletion Sensor (ODS): Equipped with an ODS pilot system designed to shut off the appliance if oxygen levels drop below a safe threshold. Do not tamper with or bypass the ODS.
- Clearances: Maintain proper clearances to combustibles as specified in the installation instructions.
- Glass Doors: If your fireplace has glass doors, they must be fully opened when the heater is operating to prevent overheating and potential damage.
- Child Safety: Keep children and pets away from the hot surface of the appliance. The remote control includes a child lock feature (CP lock).
- Professional Installation: Installation and service must be performed by a qualified installer, service agency, or gas supplier.
- Fuel Storage: Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
2. Components Included
The EROMMY 24 Inch Ventless LP/Propane Fireplace Logs Set includes the following items:
- Gas Burner Assembly
- 7 Hand-Painted Ceramic Logs (Birch Wood Design)
- Lava Rock (approximately 6.6 pounds)
- Remote Control
- Receiver Box
- Required Batteries (1 AAA for ignition, 4 AAA for receiver, 2 AAA for remote control)
Image 2.1: Complete EROMMY 24 Inch Ventless LP/Propane Fireplace Logs Set with remote control and lava rocks.

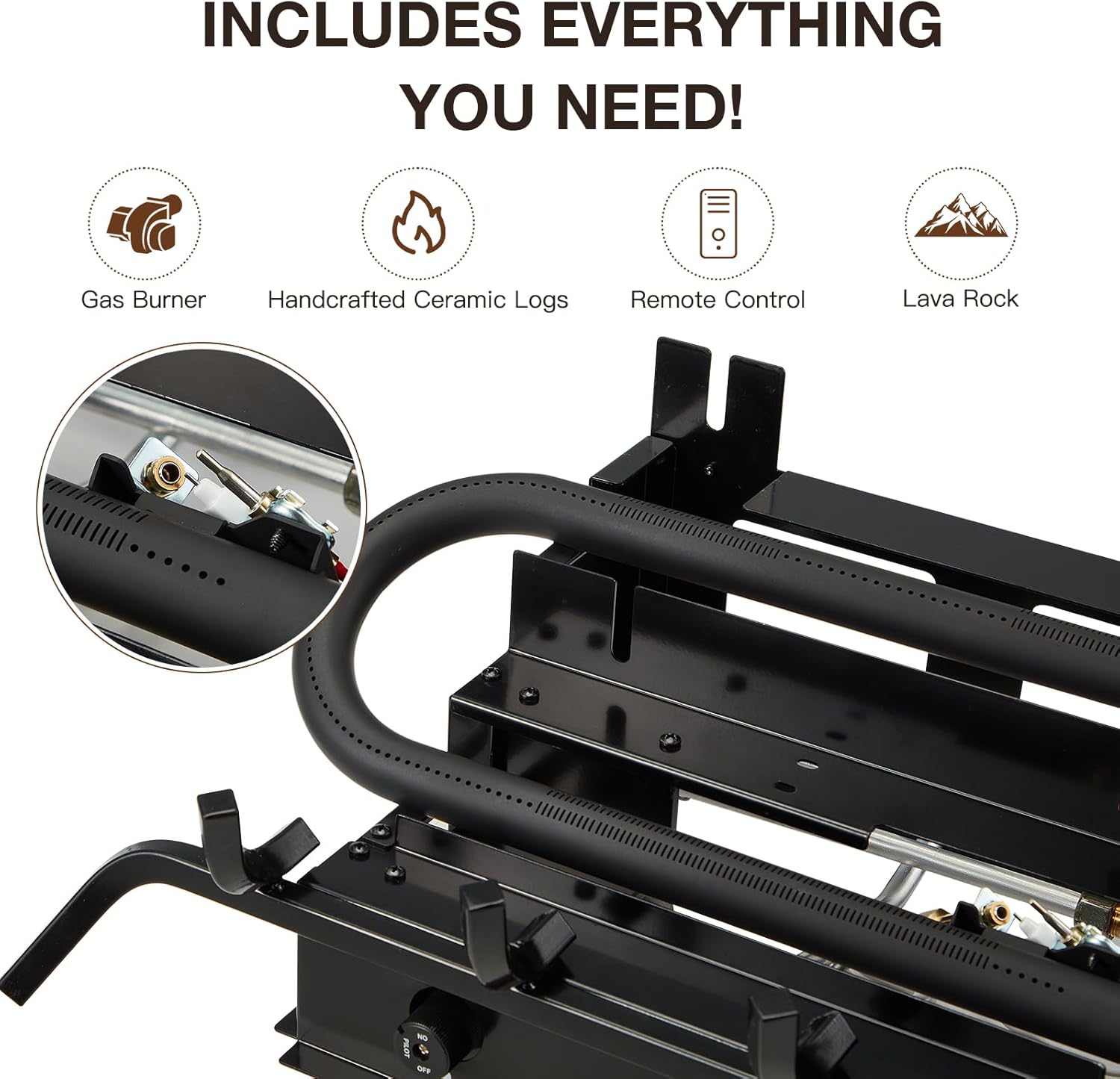

Image 2.2: Visual representation of the main components: Gas Burner, Handcrafted Ceramic Logs, Remote Control, and Lava Rock.
3. Setup and Installation
Proper installation is crucial for safe and efficient operation. Refer to the detailed instructions below and consult a qualified professional if needed.
3.1 Firebox Requirements
Ensure your firebox meets the minimum required dimensions:
- Minimum Firebox Required: 14"D x 32"W (22"W rear) front x 24"H.
Image 3.1: Diagram showing the dimensions of the fireplace logs set and minimum firebox requirements.
3.2 Battery Installation
- Ignition Battery: Install one AAA battery into the IGNITION compartment. Tighten the cap clockwise.
Image 3.2: Step-by-step visual guide for installing the AAA battery into the ignition unit.
- Receiver Batteries: Install four AAA batteries into the receiver box. Ensure correct polarity.
Image 3.3: Visual guide for inserting four AAA batteries into the receiver unit.
- Remote Control Batteries: Install two AAA batteries into the remote control.
Image 3.4: Visual guide for inserting two AAA batteries into the remote control unit.
3.3 Connecting the Receiver
Connect the main unit to the receiver. Ensure the receiver's switch is in the OFF position before connecting.
Image 3.5: Illustration of connecting the receiver to the main fireplace unit, ensuring the receiver is in the OFF position.
3.4 Lava Rock and Log Placement
Distribute the provided lava rocks around the burner. Carefully place the ceramic logs according to the numbered markings on each log and the instruction manual diagram to ensure proper flame distribution and safety.
Image 3.6: Lava rocks spread around the burner base.
Image 3.7: The set of 7 hand-painted birch wood ceramic logs.
Important: Each log is marked with a number. Follow the specific log placement diagram provided in the printed manual for optimal performance and appearance.
4. Operating Instructions
Follow these steps to safely operate your EROMMY Ventless Fireplace Logs Set.
4.1 Initial Startup (Pilot Light Ignition)
- Ensure the receiver switch is in the REMOTE position.
- Press lightly on the control knob and turn it counterclockwise to the PILOT position.
- While holding the control knob in the PILOT position, press and hold the IGNITION button until the pilot flame lights and stabilizes (approximately 30-60 seconds). Release the IGNITION button, then slowly release the control knob.
- If the pilot flame does not stay lit, repeat the process.
4.2 Igniting the Main Burner (Remote Control)
- Wake up the remote control by pressing any button. The display should show normally.
- Press the ON button on the remote control to ignite the main flame.
- To adjust temperature or mode, use the MODE button to switch between manual mode and automatic constant temperature mode. Use the UP and DOWN buttons to set the desired temperature.
- To turn off the main flame, press the OFF button on the remote control. The pilot flame will remain lit.
Image 4.1: Detailed view of the remote control and its functions.
4.3 Shutting Down the Appliance
- To turn off the main flame, press the OFF button on the remote control.
- To turn off the pilot flame completely, rotate the control knob on the main unit to the OFF position.
4.4 Important Notes
- Auto-Shutoff: The remote control system features an auto-shutoff after 2 hours if no signal is detected for 15 minutes.
- Child Lock (CP Lock): Refer to the remote control manual for instructions on activating and deactivating the child lock feature.
- Temperature Units: The remote control allows for °F/°C conversion.
- Glass Doors: Always ensure any glass doors on your fireplace are fully open when the unit is operating.
4.5 Operating Instructions Video
Watch this video for a visual guide on operating your EROMMY Ventless Fireplace Logs Set.
Video 4.1: EROMMY Ventless Fireplace Operating Instructions (Remote Control). This video demonstrates the steps for setting up and operating the fireplace logs set using the remote control.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your fireplace logs set.
- Cleaning: Ensure the appliance is completely cool before cleaning. Use a soft, damp cloth to wipe down the logs and burner assembly. Do not use abrasive cleaners.
- Log Inspection: Periodically inspect the ceramic logs for any cracks or damage. Replace damaged logs immediately to maintain proper flame pattern and safety.
- Pilot and Burner Inspection: Annually, have a qualified service technician inspect the pilot and main burner for proper operation and cleanliness.
- Ventilation: Ensure that the area around the fireplace remains clear of obstructions to allow for proper air circulation.
- Battery Replacement: Replace batteries in the remote control and receiver as needed. If the remote control display becomes dim or unresponsive, replace the batteries.
6. Troubleshooting
If you encounter issues with your fireplace logs set, refer to the following common troubleshooting steps. For persistent problems, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pilot light won't light or stay lit. |
|
|
| Main burner won't ignite with remote. |
|
|
| Flames are low or irregular. |
|
|
| Unusual odors. |
|
|
7. Specifications
| Feature | Detail |
|---|---|
| Model | 24 Inch Ventless Fireplace Logs Set |
| Brand | EROMMY |
| Fuel Type | LP/Propane Only |
| BTU Output | 30,000 BTU |
| Heating Efficiency | 99.9% |
| Heating Area | Up to 1,100 square feet |
| Log Material | High-temperature Ceramic (Birch Wood Design) |
| Number of Logs | 7 |
| Ignition Type | Pulse Ignition |
| Safety Features | Oxygen Depletion Sensor (ODS) |
| Control | Wireless Remote Control (Manual & Thermostat Modes, Child Lock, °F/°C Conversion, Auto-shutoff) |
| Minimum Firebox Dimensions | 14"D x 32"W (22"W rear) front x 24"H |
8. Warranty & Support
For warranty information, product support, or to purchase replacement parts, please contact EROMMY customer service.
- Customer Service: Refer to your product packaging or the EROMMY official website for contact details.
- Online Resources: Visit the EROMMY Store on Amazon for additional product information and support.
