JAMFLY 12x15FT Heavy Duty Metal Carport Instruction Manual

1. Introduction

Thank you for choosing the JAMFLY 12x15FT Heavy Duty Metal Carport. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your carport. Please read these instructions thoroughly before beginning assembly and retain them for future reference.

2. Safety Information

Important Safety Precautions:

• Ensure all fasteners are tightened and secured during installation to maintain structural integrity.
• The carport must be installed on a level surface for optimal stability.
• Exercise caution when handling metal components to prevent cuts or injuries. Wearing gloves is recommended.
• Do not attempt to assemble the carport in high winds or severe weather conditions.
• Regularly inspect the carport for any loose fasteners or damaged components.

3. Product Features

The JAMFLY Heavy Duty Metal Carport is designed for durability and protection. Key features include:

• Galvanized Steel Construction: Frame and roof are made from premium galvanized steel with a powder-coated finish, offering resistance to sun, water, wind, and snow.
• Enhanced Safety: Features soft, abrasion-resistant rubber trim around the roof edges to prevent scratches and injuries.
• Versatile Use: Provides ample space for cars, trucks, boats, motorcycles, and can also serve as a shelter for outdoor events.
• Reinforced Base: Designed for enhanced stability on various surfaces, providing integral structural support.
• Thicker Roof Board: Features a 50% thicker steel plate for high load-bearing capacity, making it stronger and easier to install.
• 135° Steep-Sloped Roof: Engineered to handle 50% more weight than standard carports, improving snow and water runoff.
• Triangle Reinforcement: Provides 50% higher wind resistance for increased stability.

4. Package Contents

The JAMFLY Carport kit is shipped in three (3) boxes, which may arrive at different times. Please ensure all boxes have been received before beginning assembly. The package typically includes:

• Galvanized Steel Frame Components
• Galvanized Steel Roof Panels
• Reinforced Base Plates
• Ground Reinforcing Poles (if applicable)
• All necessary assembly hardware (bolts, nuts, washers)
• Instruction Manual
• Protective Gloves (2 pairs)

If any parts are missing or damaged, please contact customer service immediately.

Figure 1: Product Dimensions and Package Contents Overview

5. Setup Instructions

Assembly requires at least 2-3 people and can be time-consuming. Follow the steps below and refer to the detailed instruction manual included in your package for specific diagrams and part numbers.

1. Site Preparation: Choose a level surface for installation. Clear the area of any debris or obstructions. Ensure adequate space around the carport for assembly.
2. Unpack Components: Carefully unpack all boxes and lay out the components. Verify all parts are present against the parts list in your manual. Remove any protective plastic film from panels.
3. Assemble Frame: Begin by assembling the main frame structure according to the provided diagrams. Secure all bolts and nuts finger-tight initially.
4. Install Roof Supports: Attach the roof support beams and triangle reinforcements to the main frame. Ensure these are securely fastened for structural stability and wind resistance.
5. Attach Roof Panels: Carefully place and secure the galvanized steel roof panels onto the frame. Ensure proper overlap and alignment to prevent leaks. The ceiling is sprayed with high-quality powder coating for durability and rain erosion prevention.
6. Install Base and Anchoring: Attach the reinforced base plates to the bottom of the frame posts. If installing on uneven ground such as gravel, utilize the ground reinforcing poles as instructed in your manual, cutting holes in side metal panels if necessary.
7. Final Tightening: Once the entire structure is assembled, go back and securely tighten all fasteners. Double-check all connections for stability.

Figure 2: Carport Assembly Overview

Figure 3: Upgraded Triangle Frame and Reinforced Base Design

Figure 4: Ground Reinforcing Poles for Enhanced Stability

Figure 5: 50% Thicker Roof Board Detail

Figure 6: Galvanized Sheet Ceiling

6. Operating Guidelines

The JAMFLY Carport is designed to provide protection for your vehicles and equipment. To ensure optimal performance and longevity:

• Park vehicles centrally within the carport to maximize coverage.
• Avoid hanging heavy objects from the frame or roof, as this may compromise structural integrity.
• Do not use the carport as a permanent enclosed structure without proper ventilation and safety considerations.
• In areas prone to heavy snowfall, regularly clear snow from the roof to prevent excessive weight accumulation, despite the carport's high load-bearing capacity.

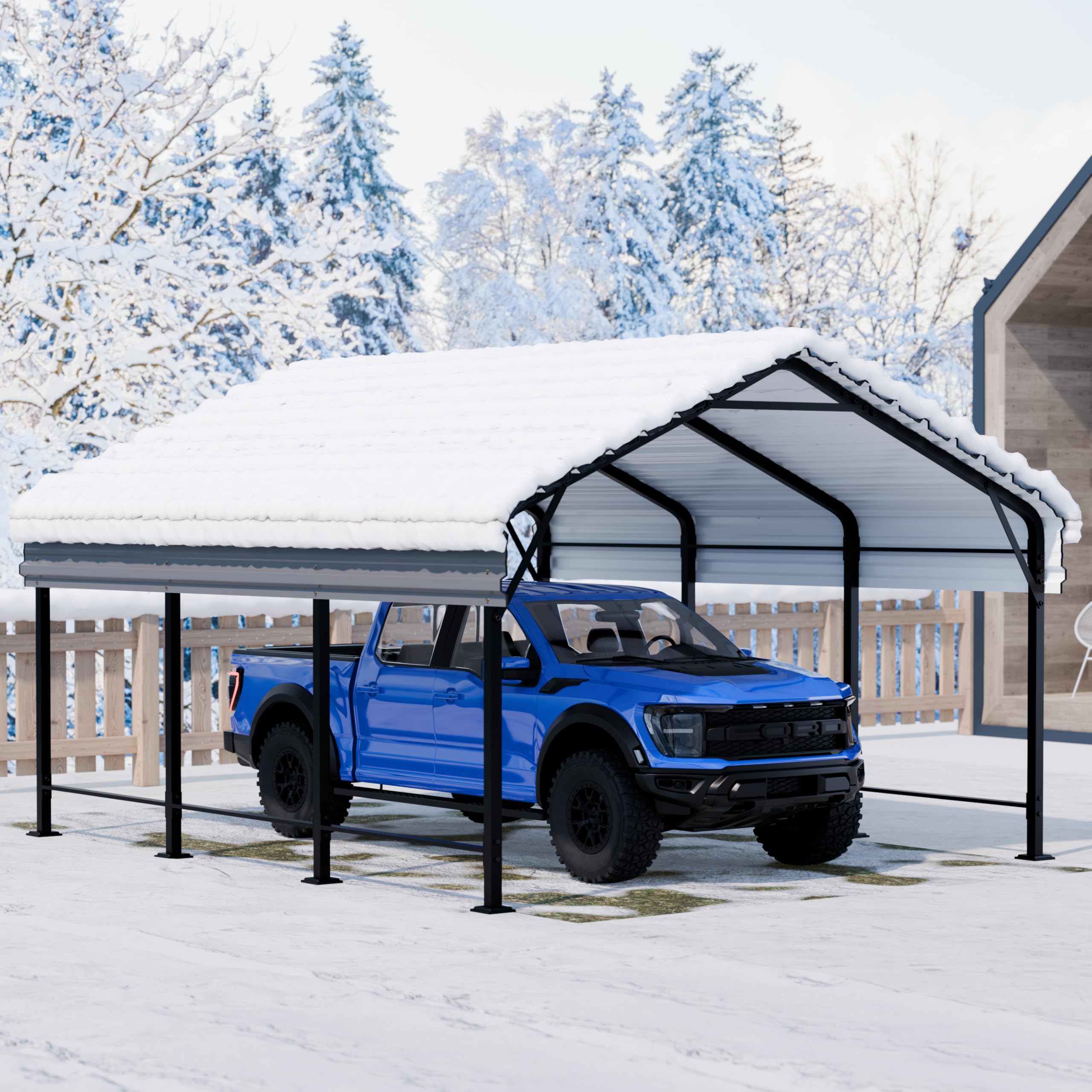

Figure 7: Carport in use with a vehicle

Figure 8: Carport providing shelter for a vehicle

Figure 9: Carport used for tractor storage

7. Maintenance

Regular maintenance will extend the life and performance of your carport.

• Cleaning: Periodically clean the roof and frame with mild soap and water to remove dirt, leaves, and other debris. Avoid abrasive cleaners or tools that could damage the finish.
• Fastener Inspection: Annually, or more frequently after severe weather, inspect all bolts, nuts, and connections. Tighten any loose fasteners to ensure the structure remains secure.
• Damage Check: Inspect the roof panels and frame for any signs of damage, rust, or wear. Address minor issues promptly to prevent further deterioration.
• Snow Removal: In regions with heavy snowfall, gently remove accumulated snow from the roof using a soft brush or broom to prevent excessive load.

8. Troubleshooting

Here are solutions to common issues you might encounter:

• Leaks: If water leaks through the roof, check the roof panel overlaps and ensure all fasteners are tight. Applying a weather-resistant sealant (e.g., high-temp silicone caulk) to seams can help. Ensure the carport is installed on a level surface to prevent water pooling.
• Instability: If the carport feels unstable, verify that all frame connections are securely tightened and that the base is properly anchored to the ground. Ensure the ground reinforcing poles are correctly installed if used.
• Missing Parts: If you find parts missing upon delivery, please contact JAMFLY customer service with your purchase details and the specific parts required. The carport is shipped in multiple boxes, so ensure all have arrived.
• Difficulty Assembling: Review the instruction manual carefully. Ensure you have adequate assistance (2-3 people recommended) and the necessary tools. Contact customer service if you encounter persistent difficulties.

9. Specifications

10. Warranty

For specific warranty information regarding your JAMFLY Carport, please refer to the warranty card included with your product or contact JAMFLY customer support directly. Warranty terms typically cover manufacturing defects and material flaws under normal use.

11. Customer Support

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact JAMFLY customer service. Have your model number (JF-1215CP-GR) and purchase information ready for faster service.

You can typically find contact information on the JAMFLY brand store page on Amazon or through the documentation included with your product.
