YISUFO 70-inch TV Stand with 36-inch Electric Fireplace User Manual

Introduction

Thank you for choosing the YISUFO 70-inch TV Stand with 36-inch Electric Fireplace. This manual provides essential information for the safe assembly, operation, and maintenance of your new entertainment center. Please read all instructions carefully before beginning assembly or use.

Image: The YISUFO 70-inch TV Stand with its integrated 36-inch electric fireplace, shown in a modern living room with a television placed on top.

Important Safety Information

Please observe the following safety precautions to prevent injury or damage to the product:

• Read all instructions before assembly and use.
• Keep children and pets away from the assembly area.
• Ensure all parts are present and undamaged before assembly. Do not use if any parts are missing or broken.
• Assemble on a soft, clean surface to prevent scratches.
• Do not overtighten screws during assembly.
• Place the TV stand on a level, stable surface.
• Do not exceed the maximum weight capacity for the tabletop (132 lbs) or shelves (33 lbs each).
• For the electric fireplace, ensure proper ventilation and do not block air inlets/outlets.
• Do not place flammable materials near the fireplace.
• Always unplug the fireplace before cleaning or maintenance.

Package Contents

Your YISUFO TV Stand with Electric Fireplace is shipped in two separate boxes. Please ensure you have received both packages and all components are accounted for before beginning assembly.

Image: Visual representation of the product being delivered in two separate boxes, which may arrive on different days.

Refer to the included assembly instructions for a detailed list of all parts and hardware.

Setup and Assembly

Assembly of the YISUFO TV Stand is designed to be straightforward with illustrated, step-by-step instructions provided in the packaging. All parts are clearly numbered for easy identification.

Before You Begin:

• Clear a spacious area for assembly.
• Lay out all components on a soft, clean surface to prevent scratches.
• Identify all parts and hardware using the provided list.
• Have necessary tools ready (e.g., screwdriver).

Assembly Steps:

1. Follow the detailed, numbered instructions included in your product packaging.
2. Attach the main structural panels using the provided hardware.
3. Install the shelves and cabinet doors.
4. Carefully insert the 36-inch electric fireplace into its designated opening.
5. Connect any LED lighting components as instructed.
6. Ensure all connections are secure before moving the unit.

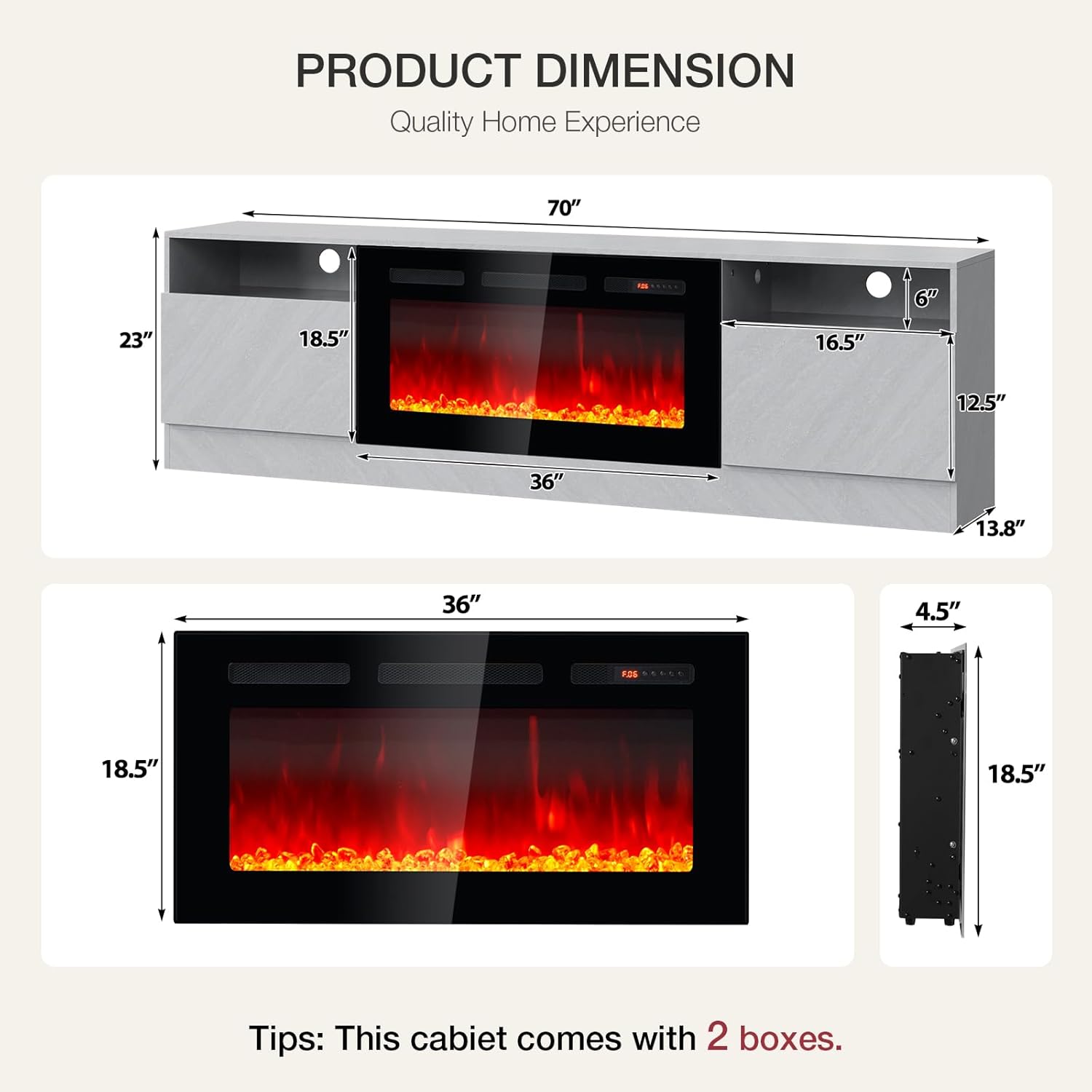

Image: Detailed product dimensions for both the TV stand and the electric fireplace, aiding in assembly and placement.

Operating Instructions

Your YISUFO TV Stand features an integrated 36-inch electric fireplace with various customizable settings and LED lighting.

Electric Fireplace Operation:

The electric fireplace can be controlled via the included remote control or the control panel on the unit.

Image: The remote control for the electric fireplace, highlighting its various functions.

Image: The control panel on the fireplace unit, detailing its functions.

• Power On/Off: Press the ON/OFF button to turn the fireplace on or off.
• Flame Colors: The fireplace offers 12 flame colors. Use the FLAME button to cycle through the options. Long press the flame button for 3 seconds to adjust the brightness (5 levels).
• LED Backlight/Light Strip: The unit includes 12 colors for the LED backlight and light strip. Refer to the specific controls for these features, typically integrated with the flame color or a separate light button.
• Heat Settings: Select between 750W and 1500W heat output using the HEAT button. The fireplace provides 5001 BTU powerful heat output.
• Temperature Control: Adjust the desired room temperature from 60°F to 99°F using the TEMPERATURE buttons.
• Timer Function: Set an automatic shut-off timer from 0 to 9 hours using the TIMER button.
• Overheating Protection: The fireplace is equipped with an overheating protection device for safety.

Image: Visual representation of the 12 distinct flame colors and 5 brightness levels offered by the electric fireplace.

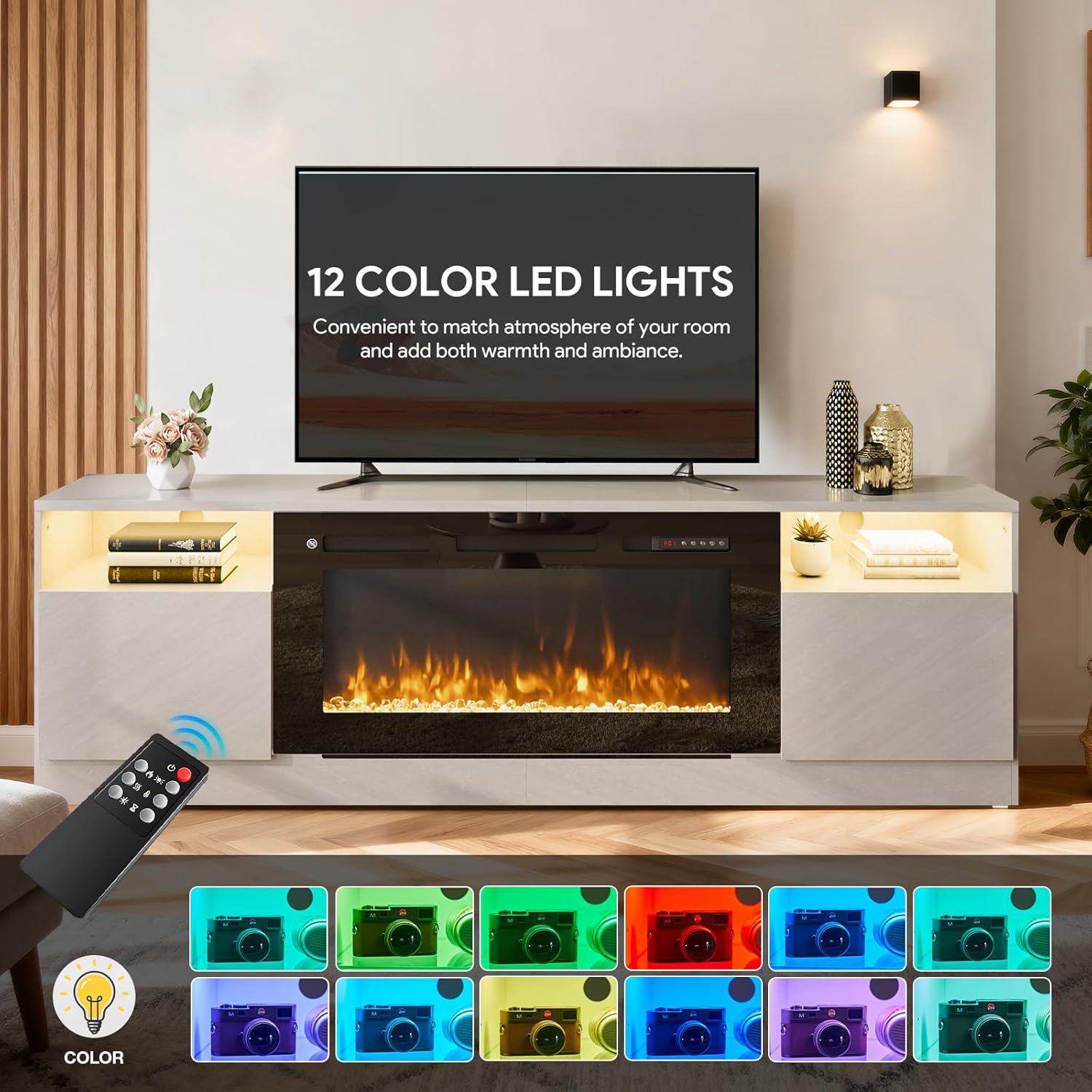

Image: The TV stand demonstrating the 12 color LED lights that can be used to match room ambiance.

Storage Features:

The TV stand offers ample storage space for media devices, gaming consoles, DVDs, and other accessories.

• Open Shelves: Ideal for displaying decorative items or housing frequently used electronics.
• Closed Cabinets: Provide concealed storage to keep your living space tidy.

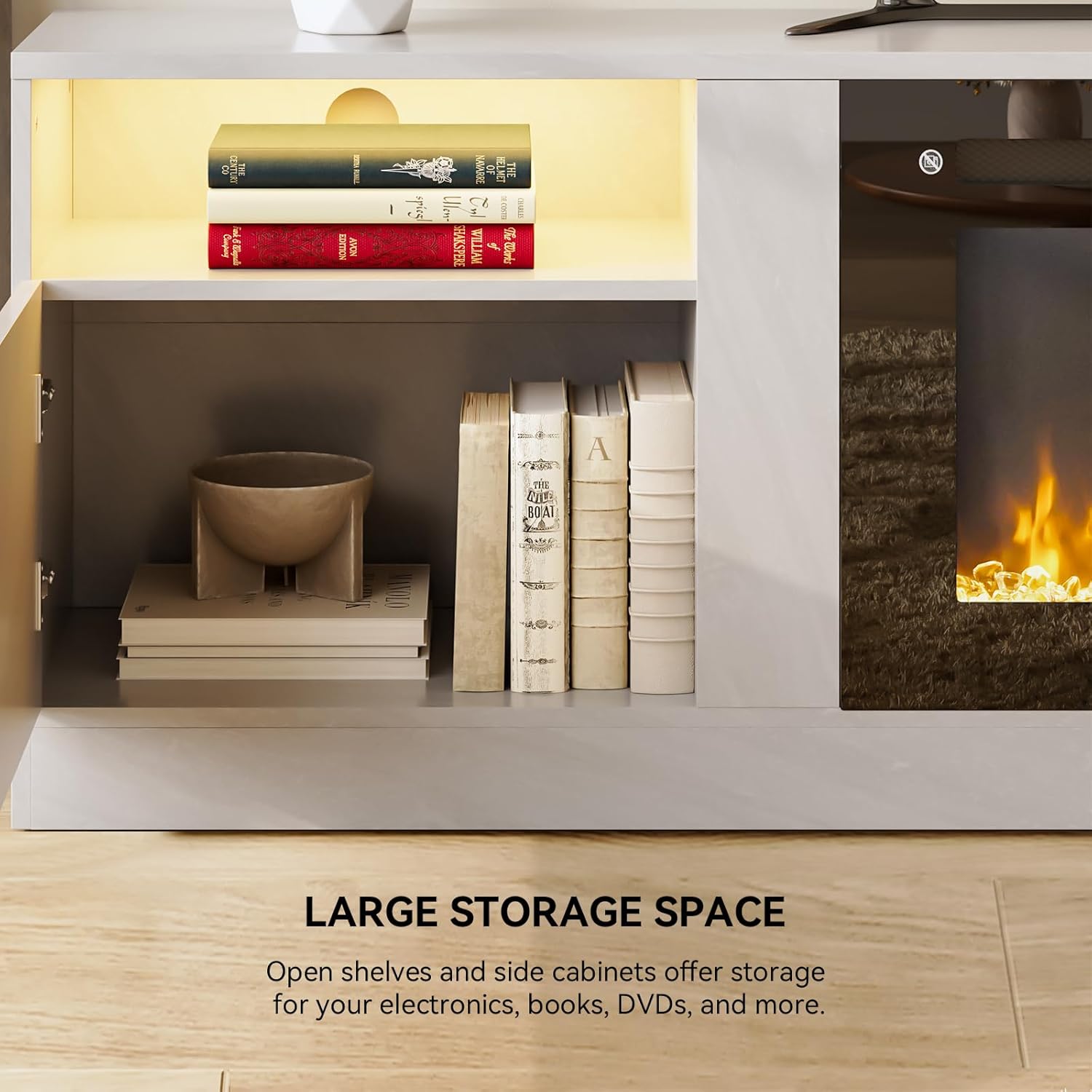

Image: A detailed view of the TV stand's storage compartments, showcasing its capacity for various items.

Image: The cabinet door, featuring a mirror craft finish, designed for easy cleaning and daily maintenance.

Maintenance

Regular maintenance will help keep your YISUFO TV Stand and Electric Fireplace in optimal condition.

• Cleaning the Stand: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish. The mirror craft door is designed for easy cleaning.
• Cleaning the Fireplace: Ensure the fireplace is unplugged and cool before cleaning. Use a soft, dry cloth to wipe the exterior. Do not spray liquids directly onto the unit.
• Dusting: Regularly dust all surfaces, including the interior of open shelves, to prevent buildup.
• Inspecting Connections: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.

Troubleshooting

If you encounter issues with your YISUFO TV Stand or Electric Fireplace, refer to the following common solutions:

If the problem persists after attempting these solutions, please contact YISUFO customer support for further assistance.

Specifications

Image: A visual summary of key product specifications and dimensions.

Image: Guide for suitable TV sizes, indicating the stand can accommodate TVs up to 80 inches.

Warranty Information

This YISUFO product comes with a Limited Warranty. For specific details regarding the terms and conditions of your warranty, please refer to the warranty card included with your product or contact YISUFO customer support.

Customer Support

If you have any questions, require assistance with assembly, or need troubleshooting help that is not covered in this manual, please contact YISUFO customer support. You can typically find contact information on the product packaging or on the official YISUFO website.
