1. Product Overview
The Shine Decor IP68 RGB+IC Strip and PoolGlow Neon is a professional-grade underwater lighting solution designed for demanding water feature projects. This product is engineered for applications such as swimming pools, fountains, waterfalls, architectural wetlands, and underwater stages. Its robust construction and advanced features ensure reliable performance in submerged environments.
Important Note: This product is intended for professional installation by qualified contractors and designers who possess the necessary expertise in customized lighting systems and electrical sealing requirements. It is not recommended for DIY or casual consumer use due to its specialized nature.
2. Safety Information
Adherence to all local and national electrical codes is mandatory during installation. Failure to comply may result in electrical shock, fire, or damage to the product. Always disconnect power before installation or maintenance.
- UL Listed: This product is UL676 E541111 listed, ensuring compliance with safety standards for underwater luminaires.
- Zero Shock, Zero Leak: Engineered to prevent electrical shock and water leakage when properly installed.
- Professional Installation: Installation must be performed by a certified electrician or lighting professional experienced with underwater electrical systems.
- Water Immersion: Designed for continuous immersion in water. Ensure all connections are sealed to IP68 standards.

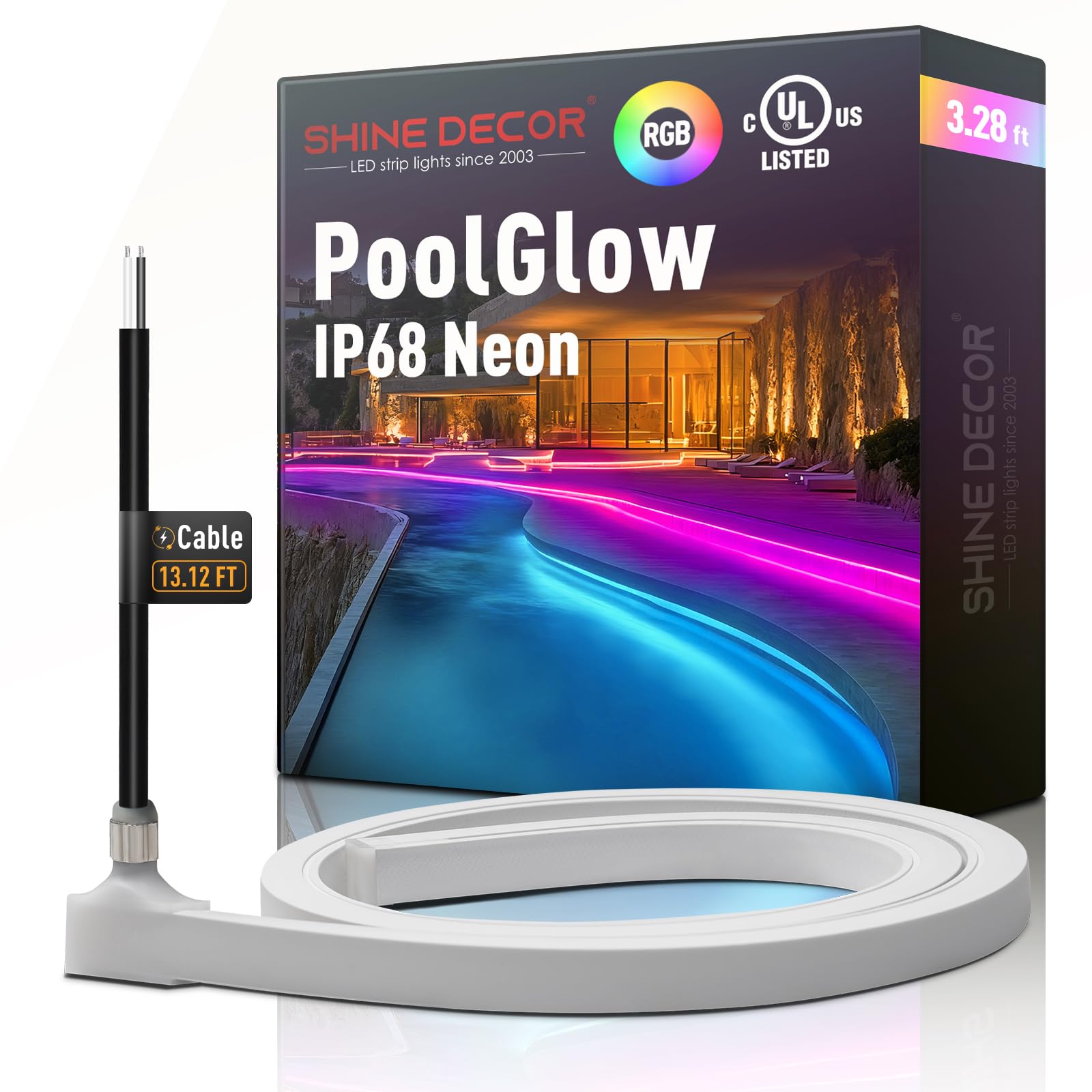

Image: The PoolGlow Neon strip illuminates a swimming pool, highlighting its UL676 certification for safety and its 'Zero Shock, Zero Leak' design for underwater use.
3. Product Features and Specifications
Key Features
- IP68 Depth Proof: Fully submersible and protected against long-term immersion under pressure.
- Silicone Construction: Resistant to chlorine, ozone, acid, and alkali, ensuring durability in various water chemistries.
- High Forces-Withstand Structure: IK08 impact protection and water pressure resistance for robust performance.
- Long Lifespan: Rated for 50,000+ hours of operation.
- Spot-Free Bright Glow: Achieves uniform illumination without visible hot spots.
- RGB+IC Technology: Individual pixel control for dynamic color effects.
- Energy Efficient: Operates at 9W/M.
- Seamless Connection: Features a 13.12 FT compression-molded cable for secure, cutting-free installation.
Technical Specifications
| Brand | Shine Decor |
| Model | IP68 RGB+IC Strip+PoolGlow Neon |
| ASIN | B0FWBS3FY4 |
| Ingress Protection (IP) Rating | IP68 (Depth Proof) |
| Impact Protection (IK) Rating | IK08 |
| LED Type | SMD 4040 (RGB) |
| LEDs per Meter | 120 LEDs/M |
| Color Rendering Index (CRI) | 80 |
| Power Consumption | 9W/M |
| Dimensions (Strip) | 16mm x 16mm |
| Available Lengths | 3.28 FT - 16.4 FT (One Side Output) |
| Cable Length | 13.12 FT (Compression-Molded) |
| Bend Direction | Top Bend Only |
Image: The LED strip is shown fully submerged, illustrating its IP68 'Depth Proof' capability and ability to illuminate underwater environments.
Image: A close-up of the silicone material, emphasizing its resistance to chlorine, ozone, acid, and alkali, crucial for pool environments.
Image: A detailed view of the strip's internal structure, highlighting its IK08 impact protection, water pressure resistance, and 16mm x 16mm dimensions.
Image: The strip emitting a vibrant, spot-free glow, illustrating its RGB capabilities, 120 LEDs/M, and 'Top Bend' flexibility.
Image: A close-up of the seamless connection point, featuring a 13.12 FT compression-molded cable for secure and cutting-free installation.
4. Installation Guidelines
Due to the specialized nature of this IP68 product, professional installation is mandatory. Improper installation can lead to product failure, safety hazards, and voiding of warranty. Consult with a certified electrician or lighting professional.
4.1 Pre-Installation Checks
- Verify that the power supply (not included) is compatible with the strip's voltage (DC24V) and wattage requirements.
- Ensure the installation environment meets all safety standards for underwater electrical equipment.
- Inspect the product for any visible damage before installation.
4.2 Mounting
- The strip is designed for 'Top Bend Only'. Do not attempt to bend the strip along its width.
- Secure the strip using appropriate mounting clips or channels designed for underwater use (not included). Ensure secure fastening to prevent movement.
- Plan the routing of the strip and its connection cable to avoid sharp edges or potential abrasion.
4.3 Electrical Connection
- Connect the 13.12 FT compression-molded cable to a suitable DC24V power supply and RGB+IC controller (not included).
- All electrical connections must be waterproofed to maintain the IP68 rating. Use IP68-rated connectors and sealing methods.
- Ensure proper polarity (+/-) when connecting to the power supply and controller.
- Test all connections for continuity and proper sealing before submerging the strip.
5. Operation
The Shine Decor IP68 RGB+IC Strip and PoolGlow Neon requires an external RGB+IC controller (not included) for operation. The controller allows for selection of colors, dynamic effects, and brightness adjustments.
- Refer to the specific instructions provided with your chosen RGB+IC controller for detailed operation.
- Ensure the controller is rated for the total wattage of the connected LED strips.
- Power on the system only after all installation and sealing procedures are complete and verified.
6. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your Shine Decor PoolGlow Neon.
- Cleaning: Periodically clean the surface of the LED strip to remove algae, mineral deposits, or debris that may accumulate. Use a soft brush or cloth and mild, non-abrasive cleaning solutions safe for silicone and pool environments.
- Inspection: Annually inspect the strip and all connections for any signs of wear, damage, or compromised sealing. Address any issues promptly to prevent water ingress.
- Chemical Exposure: While resistant, prolonged exposure to extremely high concentrations of pool chemicals should be avoided. Maintain proper water chemistry.
- Power Disconnection: Always disconnect power to the lighting system before performing any maintenance or cleaning.
7. Troubleshooting
If the LED strip is not functioning as expected, consider the following troubleshooting steps:
- No Light:
- Check if the power supply is receiving power and functioning correctly.
- Verify all electrical connections for proper contact and polarity.
- Ensure the controller is powered on and sending signals.
- Incorrect Colors/Flickering:
- Confirm the controller settings match the RGB+IC type of the LED strip.
- Check for loose connections between the strip and the controller.
- Ensure the power supply is adequate for the total length of the strip.
- Partial Lighting:
- This may indicate a localized fault within the strip or a connection issue. Professional inspection is recommended.
For issues not resolved by these steps, contact a qualified professional or Shine Decor customer support.
8. Warranty and Support
Shine Decor products are manufactured to high standards. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or visit the official Shine Decor website. Keep your purchase receipt as proof of purchase.
For technical assistance, troubleshooting, or warranty claims, please contact Shine Decor customer support through their official channels. Provide your product model number (IP68 RGB+IC Strip+PoolGlow Neon) and ASIN (B0FWBS3FY4) when seeking support.
