Lerliuo Corner Vanity Desk with 3-Way Mirror and Lights User Manual

Introduction

Thank you for choosing the Lerliuo Corner Vanity Desk. This manual provides detailed instructions for the assembly, operation, and maintenance of your new vanity desk. Designed with rattan craftsmanship and modern features, this vanity includes a 3-way mirror with adjustable lighting, a glass-top drawer, and a built-in charging station, offering both style and functionality for your bedroom.

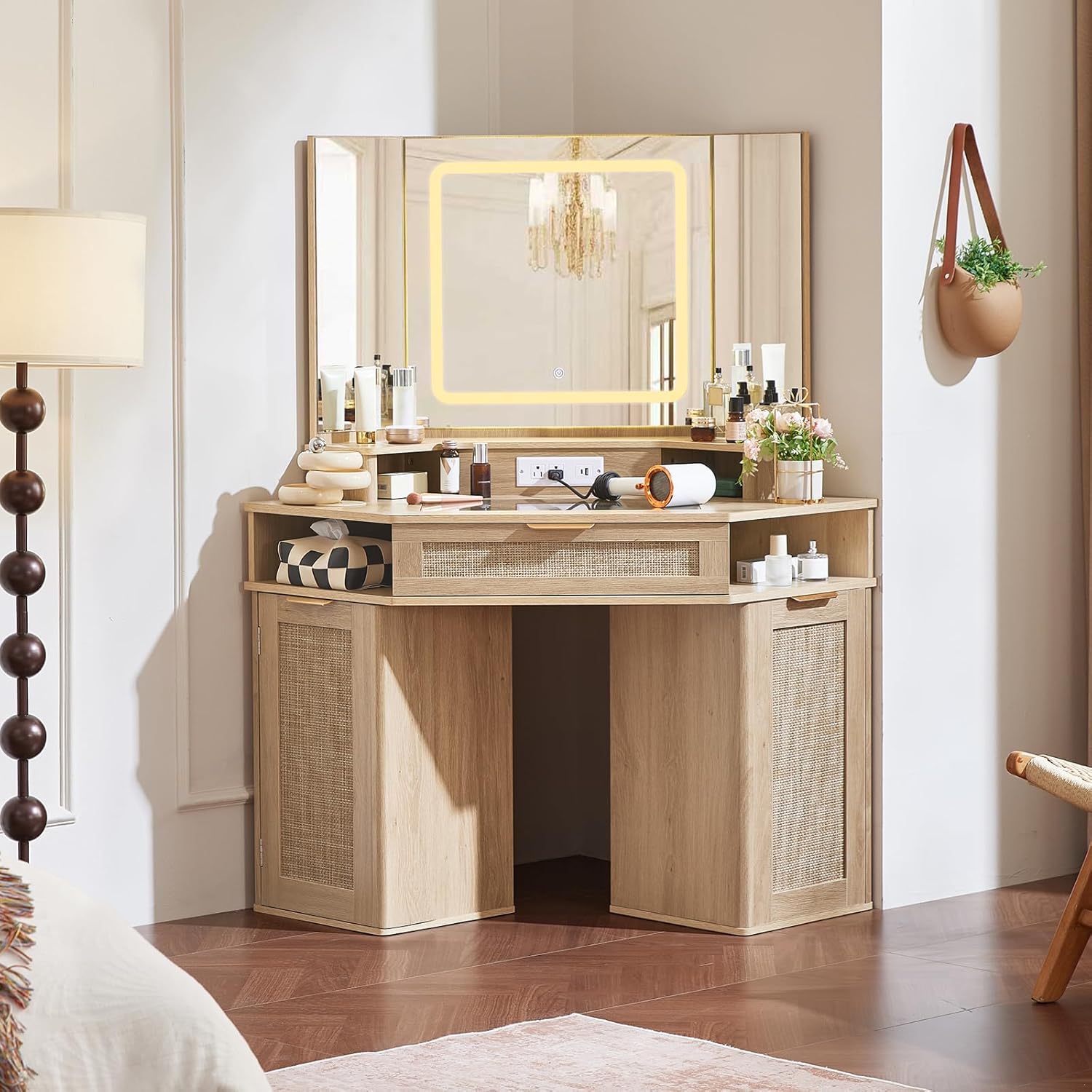

Figure 1: Lerliuo Corner Vanity Desk (Natural Wood)

Important Safety Warnings

• Assembly: This product requires assembly. Always follow the provided instructions carefully.
• Electrical Components: Handle with care. Unplug the product before cleaning or performing any maintenance.
• Stability: Ensure all connections are secure before use. Do not overload shelves or drawers.
• Glass Surfaces: Handle glass components with care to prevent breakage. Clean with appropriate glass cleaner.
• Children: Keep small parts away from children during assembly.

Package Contents

Your Lerliuo Corner Vanity Desk is shipped in multiple packages to ensure safe transport. Please verify all parts are present before beginning assembly. The packaging includes:

• All necessary wooden panels and components for the desk structure.
• 3-way mirror with integrated LED lights.
• Hardware kit (screws, dowels, cam locks, drawer slides, handles).
• Built-in charging station unit (AC outlets and USB ports).
• Detailed assembly manual.
• Basic tools for assembly (screwdriver).

Note: It is recommended to use a power drill for quicker and more efficient installation (not included).

Assembly Instructions

Follow these steps carefully to assemble your vanity desk. Refer to the included detailed manual for specific diagrams and part numbers.

1. Unpack and Organize: Carefully unpack all components from the two boxes. Separate and identify all wooden panels, hardware, and the mirror unit. Lay out all parts on a clean, soft surface to prevent scratches.
2. Assemble Base Structure: Begin by assembling the main base of the vanity desk, connecting the bottom panels and side supports using the provided hardware. Ensure all connections are tight and secure.
3. Construct Side Cabinets: Assemble the left and right storage cabinets, including any adjustable shelves. Attach the cabinet doors.
4. Install Desktop and Drawers: Secure the desktop panels to the base and side cabinets. Install the drawer slides and then assemble and insert the drawers, including the glass-top drawer.
5. Mount Mirror Unit: Carefully attach the 3-way mirror unit to the designated area on the desktop. Ensure it is stable and properly aligned.
6. Connect Electrical Components: Install the built-in charging station into its slot. Connect the power cord for the mirror lights and charging station to a suitable power outlet.

Video 1: Assembly overview of the Lerliuo Corner Vanity Desk.

Operating Instructions

3-Way Mirror with Adjustable Lights

The vanity features a 3-way mirror system with a 23-inch center mirror and two 9-inch side mirrors, providing a complete viewing range. The integrated LED lights offer three lighting modes and adjustable brightness.

• Power On/Off: Touch the power button icon on the mirror to turn the lights on or off.
• Change Lighting Mode: Briefly touch the mode button icon to cycle through the three lighting modes: Warm Light (3000K), Natural Light (4000K), and Cold Light (6000K).
• Adjust Brightness: Press and hold the mode button icon to adjust the brightness within the selected lighting mode. Release when desired brightness is achieved.

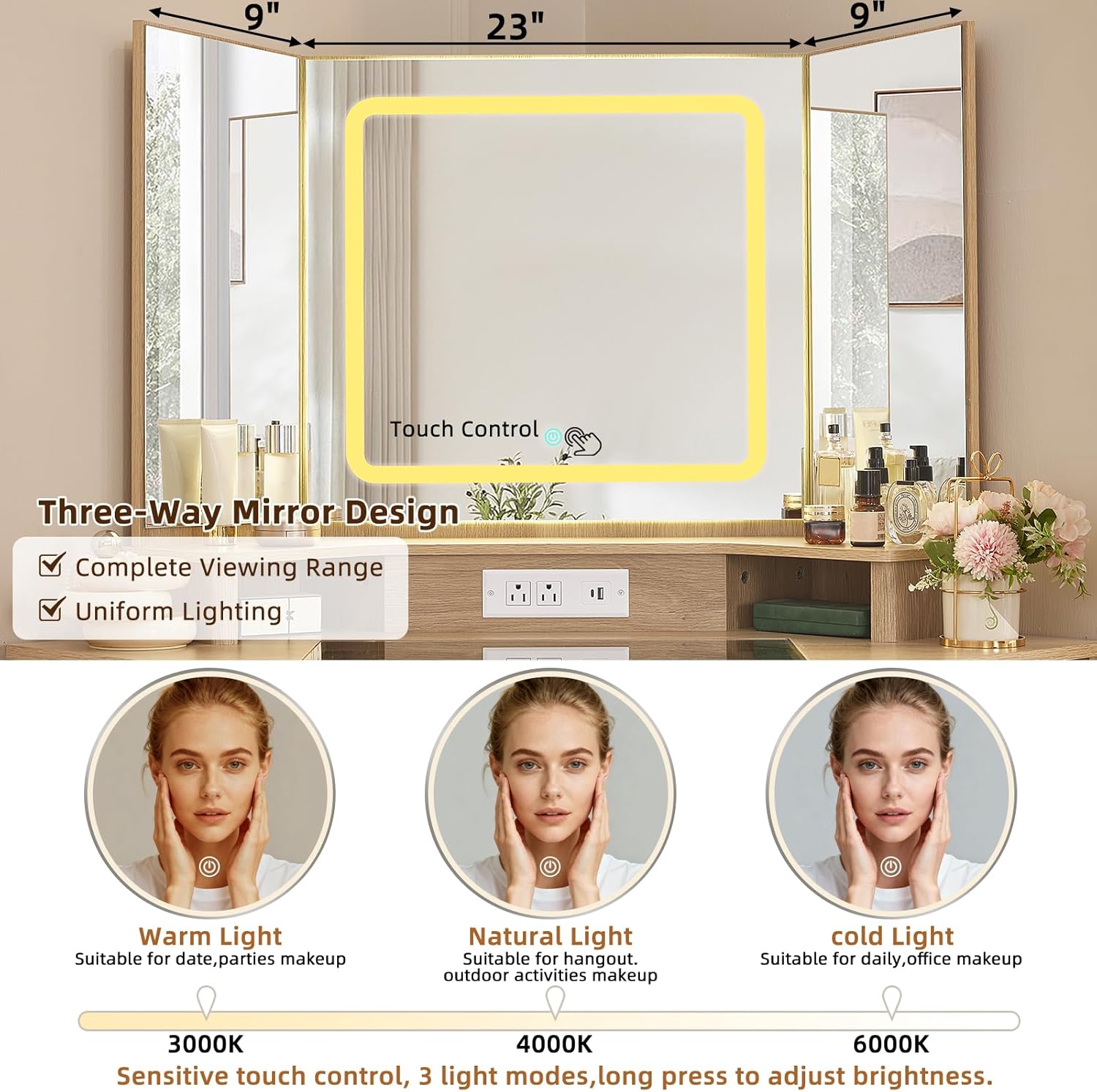

Figure 2: Three-Way Mirror Design and Lighting Modes

Built-in Charging Station

The vanity desk includes a convenient charging station with 2 AC power sockets and 2 USB ports (USB-A and USB-C) to power your devices while you get ready.

• Using AC Outlets: Plug your hair dryer, curling iron, or other AC-powered devices into the 125V/12A AC sockets.
• Using USB Ports: Connect your smartphone, tablet, or other USB-powered devices to the 5V/2A USB-A or USB-C ports for charging.

Figure 3: Ample Storage Capacity and Built-in Charging Station

Storage Features

The vanity offers diverse storage solutions to keep your items organized.

• Glass-Top Drawer: A large 21-inch wide drawer with a tempered glass top allows you to view and access cosmetics, jewelry, and watches easily.
• Open Side Cabinets: Semi-open cubbies provide quick access to frequently used items.
• Dual Storage Cabinets: Two cabinets with adjustable shelves offer customizable storage for taller bottles or various-sized essentials. The left cabinet features door shelves for additional organization.

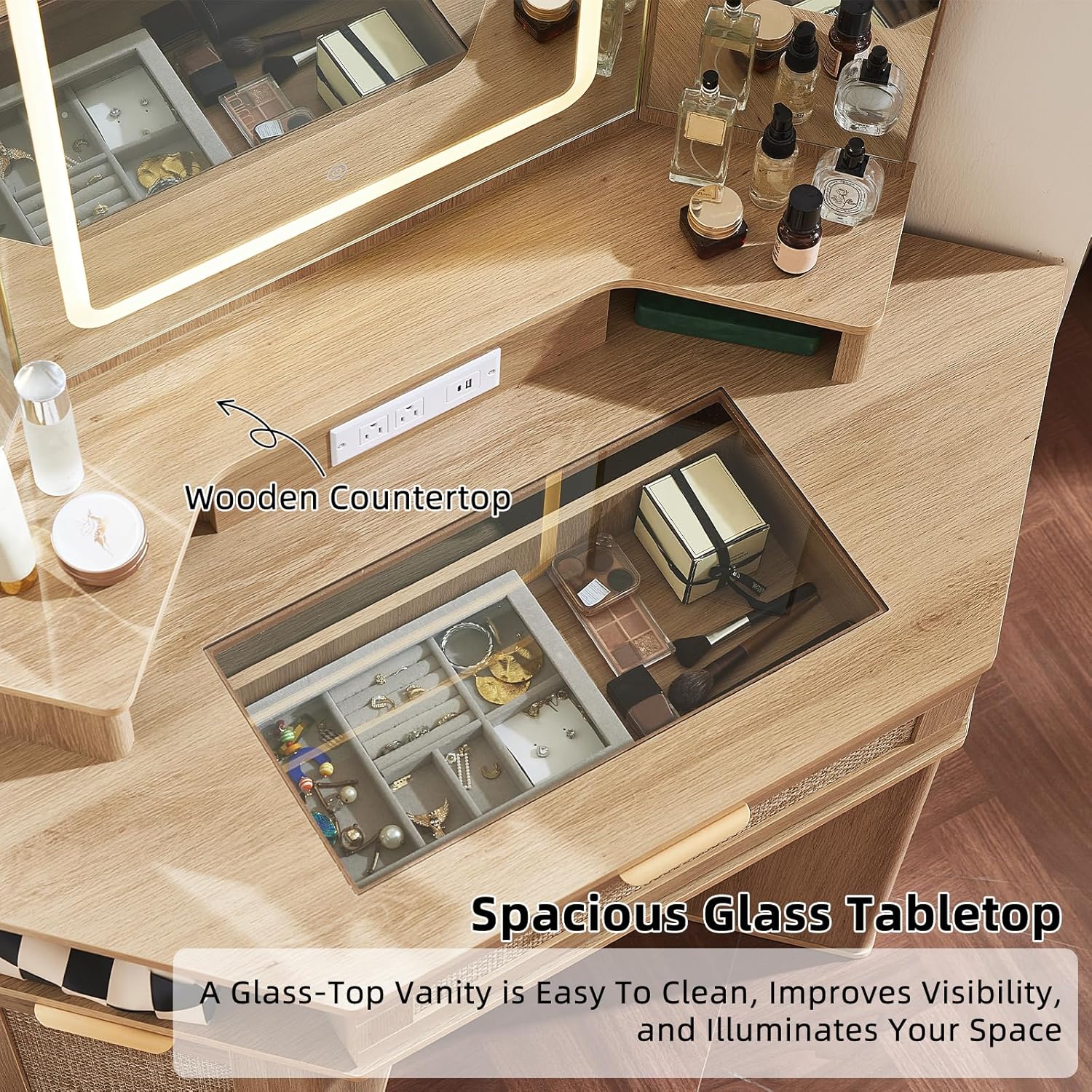

Figure 4: Spacious Glass Tabletop

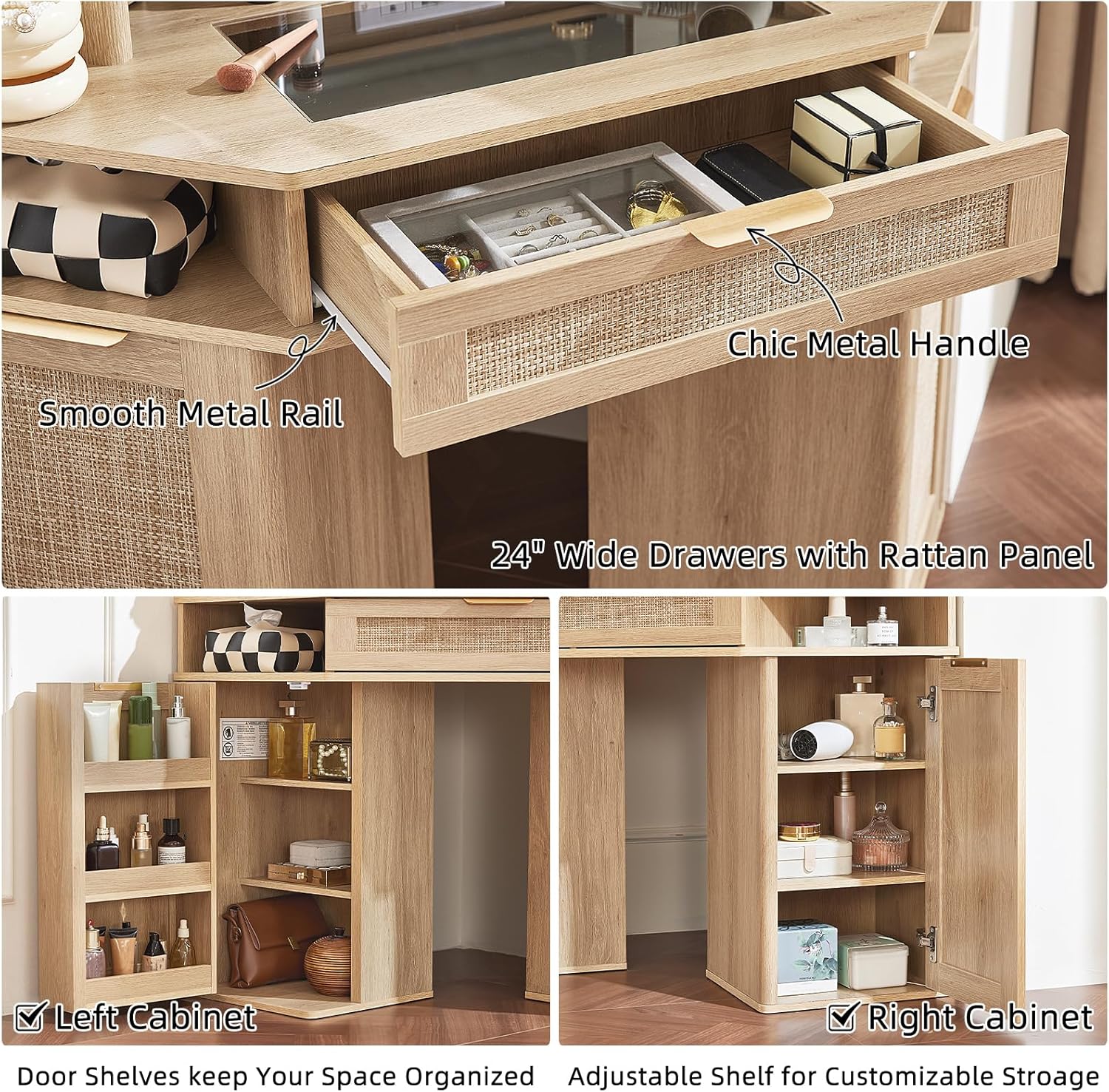

Figure 5: Drawer and Cabinet Details

Video 2: Demonstration of the vanity desk's 3 color lights and charging station.

Maintenance

• Cleaning: Wipe down wooden surfaces with a soft, damp cloth. For glass surfaces, use a non-abrasive glass cleaner. Avoid harsh chemicals that may damage the finish.
• Dusting: Regularly dust all surfaces to prevent buildup.
• Mirror Care: Clean the mirror with a soft, lint-free cloth and glass cleaner. Do not spray cleaner directly onto the mirror to avoid liquid seeping into electrical components.
• Electrical Safety: Ensure the vanity is unplugged before cleaning any electrical components or performing maintenance.

Troubleshooting

Lights Not Working

• Check Power: Ensure the vanity is properly plugged into a working electrical outlet.
• Touch Control: Verify you are touching the correct power icon on the mirror.
• Connections: Inspect all electrical connections for the mirror lights to ensure they are secure.

Charging Station Not Functioning

• Power Supply: Confirm the vanity's main power cord is securely plugged in.
• Device Compatibility: Ensure your device is compatible with the AC outlets or USB ports (125V/12A for AC, 5V/2A for USB).
• Cable Integrity: Try a different charging cable to rule out a faulty cable.

Drawers or Doors Sticking

• Alignment: Check if the drawer slides or door hinges are properly aligned and installed according to the assembly manual.
• Obstructions: Ensure there are no objects obstructing the movement of drawers or doors.

Specifications

Figure 6: Product Dimensions

Warranty and Support

This product is eligible for 30-day easy returns. For any questions, concerns, or assistance with your Lerliuo Corner Vanity Desk, please contact customer support through your retailer or the manufacturer's official channels. Refer to your purchase documentation for specific warranty details.

Customer Support: For assistance, please refer to the contact information provided with your purchase or visit the Lerliuo store online.
