1. Introduction
The GMKtec M7 Ultra Mini PC is a versatile and compact computing device designed for high performance in a small form factor. Equipped with an AMD Ryzen 7 PRO 6850U processor, ample DDR5 RAM, and fast PCIe SSD storage, it is capable of handling demanding tasks such as photo/video editing, gaming, and streaming. Its sleek design allows it to integrate seamlessly into various environments, from home offices to entertainment setups. This manual provides essential information for setting up, operating, and maintaining your M7 Ultra Mini PC.
2. What's in the Box
Upon unboxing your GMKtec M7 Ultra Mini PC, please ensure all the following items are present:
- GMKtec Nucbox M7 Ultra AMD Ryzen 7 PRO 6850U Mini PC Computer
- Power Supply & Cable
- HDMI Cable
- VESA Mount and Screws
- User Manual
3. Product Overview
The GMKtec M7 Ultra Mini PC is engineered for high performance in a compact design. It features an AMD Ryzen 7 PRO 6850U processor with 8 cores and 16 threads, capable of boosting up to 4.7 GHz. Integrated AMD Radeon 680M graphics provide robust visual performance, suitable for demanding applications and gaming with FSR 3.0+ technology support.
4. Ports and Connectivity
The M7 Ultra offers extensive connectivity options for various peripherals and displays.
4.1 Front Ports
- Oculink Port: For high-bandwidth external GPU connections (PCIe 4.0 x4).
- USB4 Port: Supports USB-C video output, power delivery, and data transfer.
- USB 3.2 (Gen2) Ports (x2): For high-speed peripheral connections.
- 3.5mm Audio Jack (CTIA): For headphones or microphones.
- Power Button: To power on/off the device.
4.2 Rear Ports
- USB2.0 Ports (x2): For connecting standard USB devices.
- HDMI 2.1 Port: Supports up to 8K@60Hz display output.
- DisplayPort 2.0: Supports up to 8K@60Hz display output.
- 2.5G LAN Ports (x2): Dual Intel i226V 2.5Gbps Ethernet for high-speed wired network connections.
- USB4 Port: Supports USB-C video output, power delivery, and data transfer.
- Kensington Lock Slot: For physical security.
- DC IN (19V 6.32A): Power input.
4.3 Wireless Connectivity
- WiFi 6: For fast and reliable wireless internet access.
- Bluetooth 5.2: For connecting wireless peripherals like keyboards, mice, and audio devices.
5. Display Capabilities
The M7 Ultra supports simultaneous quad-screen display, offering extensive options for multitasking and immersive experiences.
- Dual USB4 USB-C Video output (supports 4K@144Hz).
- HDMI 2.1 port (supports up to 8K@60Hz).
- DisplayPort 2.0 (supports up to 8K@60Hz).

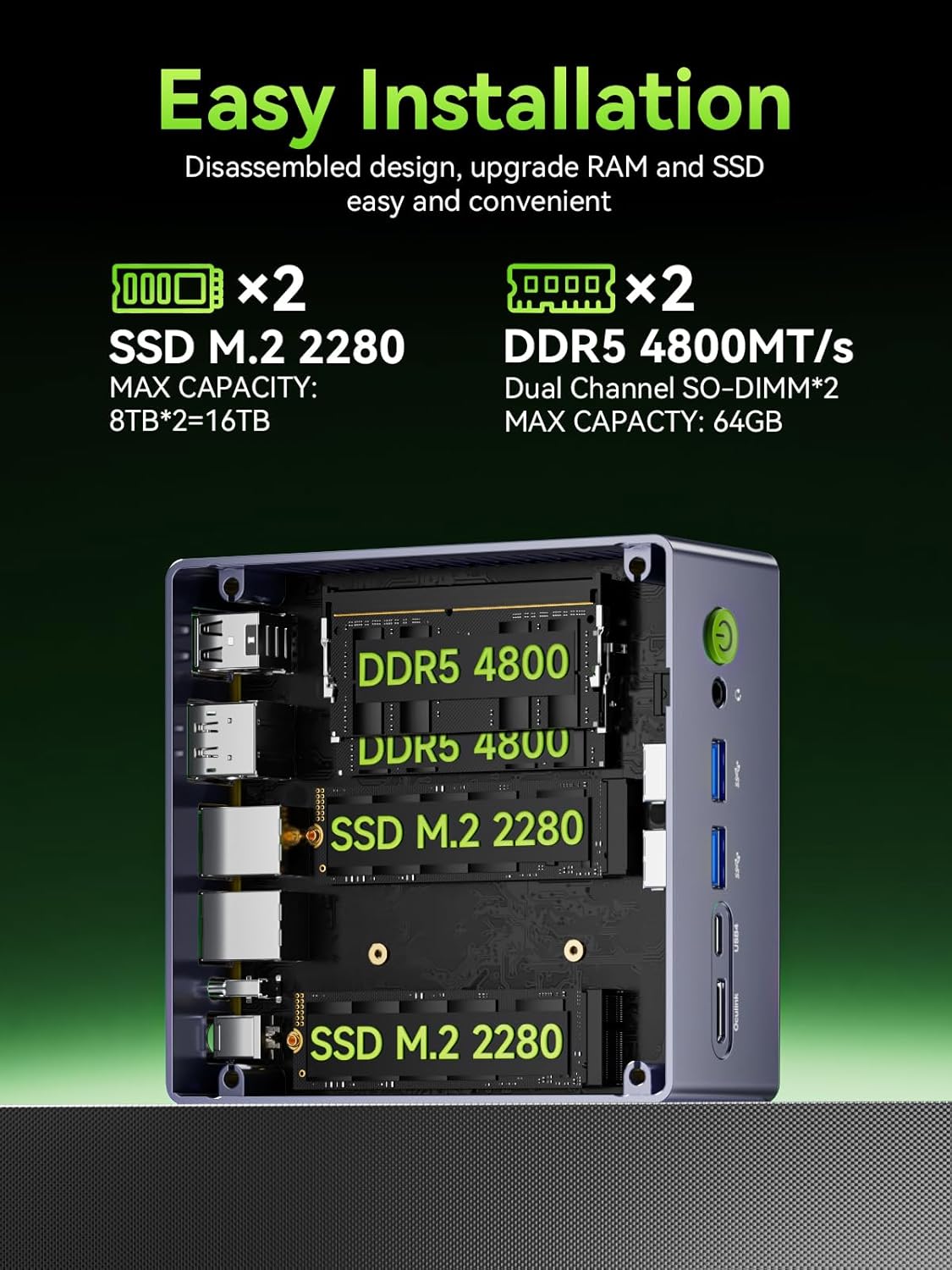

6. Storage and RAM Expansion
The M7 Ultra is designed for easy upgrades to meet your evolving needs.
- RAM: Comes with 16GB DDR5 4800MHz (Dual Channel 2x8GB) and supports expansion up to 96GB RAM.
- SSD: Features a 1TB M.2 2280 PCIe 3.0 SSD and supports dual slot expansion to 2*PCIe 4.0 2TB SSD, totaling up to 4TB.
7. Oculink Port Usage
The M7 Ultra features an Oculink port, which provides a direct PCIe x4 connection for external GPUs, offering higher bandwidth and lower latency compared to Thunderbolt connections.
- Benefits: Enables higher bandwidth capabilities, better frame rates, and lower lag for eGPU setups, beneficial for gamers and content creators.
- Note: Oculink does NOT support hot-plugging. Always power off the PC before connecting/disconnecting devices.
8. Cooling System
The M7 Ultra incorporates an upgraded dual cooling fan system, the Hyper Ice Chamber 2.0, designed for efficient heat dissipation and quiet operation.
- Features larger top and bottom cooling fans with 360-degree airflow.
- Copper base helps maintain optimal temperatures.
- Fan noise is reduced to 35dB in Quiet mode.
9. Operating Instructions
9.1 Performance Modes
The M7 Ultra offers three distinct performance modes, configurable via the updated BIOS, to suit different usage scenarios:
- Quiet Mode: 35W TDP, optimized for silent operation.
- Balance Mode: 50W TDP, offering a balance between performance and noise.
- Performance Mode: 65W-70W TDP, for maximum computing power.
9.2 BIOS Settings
The updated BIOS allows for advanced configurations, including VRAM allocation, Auto Power On, and Wake-on-LAN options.
10. Specifications
| Feature | Detail |
|---|---|
| Brand | GMKtec |
| Series | M7 Ultra |
| Item model number | M7 Ultra |
| Operating System | 11 Pro |
| CPU Model | AMD Ryzen 7 |
| Processor | 4.7 GHz amd_ryzen_7 |
| Number of Processors | 8 |
| RAM | DDR5 |
| Memory Speed | 4800 MHz |
| Memory Storage Capacity | 16 GB |
| Hard Drive | 2 TB M.2 2280 PCIE 4.0 NVME SSD DUAL SLOTS |
| Hard Drive Interface | PCIE x 16 |
| Hard Drive Rotational Speed | 7200 RPM |
| Graphics Coprocessor | AMD Radeon 680M |
| Graphics Card Description | Integrated |
| Graphics Card Ram Size | 16 GB |
| Max Screen Resolution | 4096x2160 Pixels |
| Wireless Type | 2.4 GHz Radio Frequency, 5 GHz Radio Frequency, 802.11ax, Bluetooth |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Item Weight | 1.39 pounds |
| Package Dimensions | 5.19 x 4.9 x 2.28 inches |
| Color | Black Metallic |
11. Warranty and Support
GMKtec is committed to providing reliable products and customer satisfaction.
- Warranty: GMKtec offers a 1-year limited warranty for each mini PC, starting from the date of purchase. This covers all defects due to design and workmanship.
- Support: A professional after-sales team is available to assist with any needs or issues you may encounter with your mini PC.
