1. Product Overview
This Gdrasuya10 Stainless Steel Blind Corner Cabinet Pull Out Organizer is designed to maximize storage space in blind corner kitchen cabinets. It features a 2-tier pull-out system with four large baskets, providing easy access to items typically hard to reach. Constructed from high-quality iron steel, it offers durability and a robust storage solution for various kitchen essentials.
Image 1.1: The Gdrasuya10 Blind Corner Cabinet Pull Out Organizer in use, displaying its two-tier storage capacity.
2. Safety Information
- Ensure all components are securely fastened before loading the organizer.
- Do not overload the baskets. The maximum shelf weight capacity is 33 pounds per shelf.
- Keep hands clear of moving parts during operation to prevent pinching.
- Children should not operate the pull-out mechanism unsupervised.
- Use appropriate tools for installation to avoid injury or damage to the product/cabinet.
3. Package Contents
Verify that all parts are present before beginning installation:
- 1x Blind Corner Pull-out Organizer Frame
- 4x Storage Baskets
- 1x English Installation Diagram
- All necessary accessories for installation (screws, connectors, etc.)
4. Specifications
| Feature | Detail |
|---|---|
| Material | Iron Steel |
| Color | Silver |
| Product Dimensions (D x W x H) | 19"D x 39"W x 21"H |
| Shelf Type | Pull-Out Shelf |
| Number of Shelves | 4 |
| Room Type | Kitchen |
| Assembly Required | Yes |
| Mounting Type | Insert Mount |
| Recommended Uses | Cookware, Cans, Bottles |
| Item Weight | 38 Pounds |
| Shelf Weight Capacity | 33 Pounds |
Image 4.1: Detailed dimensions of the organizer for precise fitting.
5. Installation Requirements
This pull-out organizer is designed specifically for LEFT opening blind corner cabinets. Please measure your cabinet carefully before installation.
- Cabinet Inner Width: 34-39 inches
- Cabinet Inner Depth: ≥ 21 inches
- Cabinet Inner Height: ≥ 22 inches (If there are drawers or pipes above the cabinet, the inner height must still be ≥ 22 inches)
- Door Opening Inner Width: ≥ 16 inches

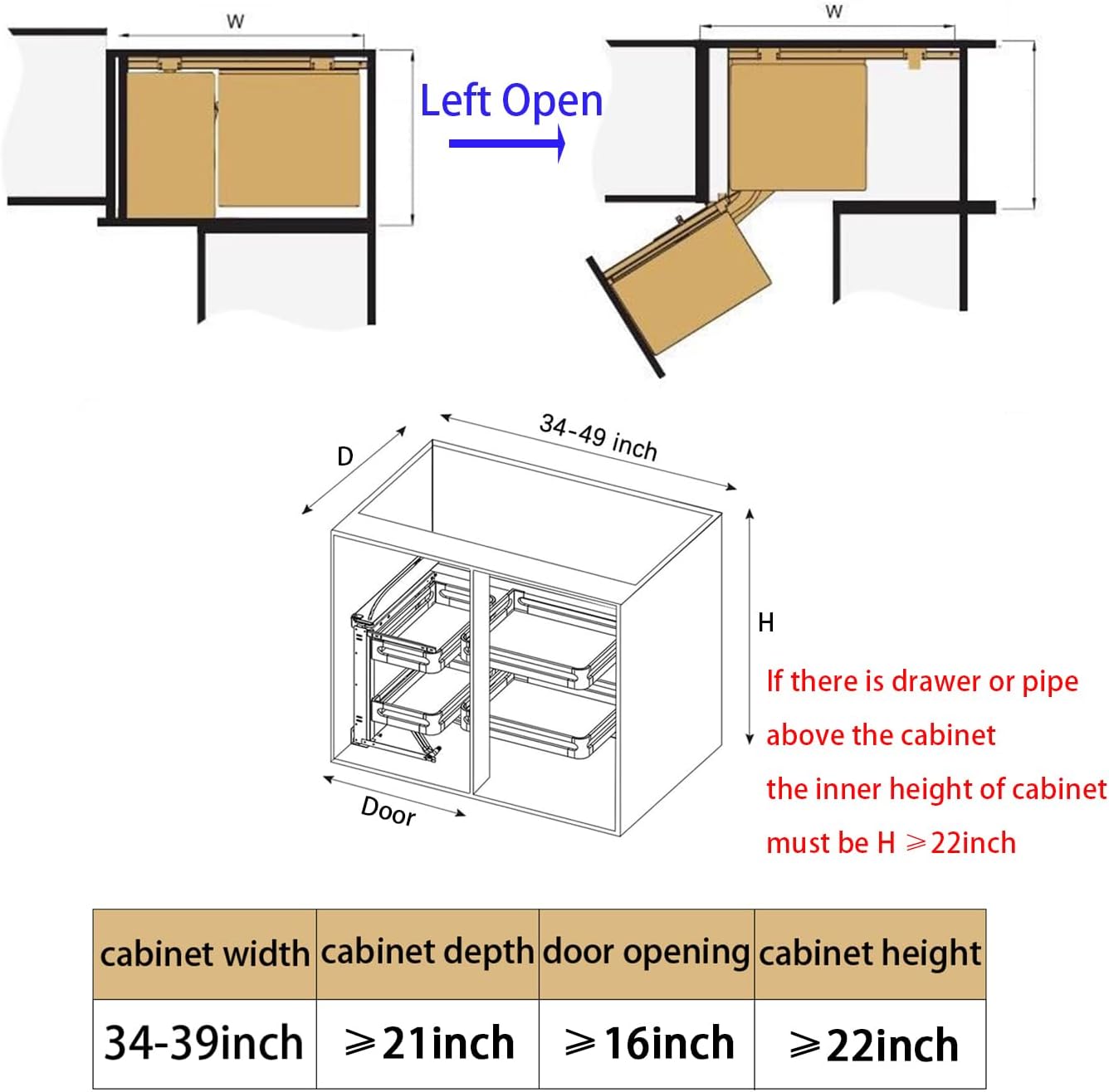

Image 5.1: Cabinet dimension requirements and illustration for left-opening door installation.
6. Installation Instructions
Follow these steps to install your Gdrasuya10 Blind Corner Cabinet Pull Out Organizer. For a visual guide, please refer to the assembly video below.
6.1. Assembly Video Guide
Video 6.1: Detailed assembly instructions for the Gdrasuya10 Blind Corner Cabinet Pull Out Organizer.
6.2. Step-by-Step Guide
- Prepare Components: Unpack all components and identify the sliding rail main frame, linkage rod, and door panel connector.
- Check Opening Direction: The linkage pull basket is designed for left or right-hand door opening. Ensure you have the correct configuration for your cabinet. The provided unit is for a left-opening door.
- Assemble Linkage Rod: If necessary, remove the top rod in front of the linkage rod. Connect the linkage rod to the main frame by aligning the holes and screwing it into place.
- Install Main Frame: Place the assembled main frame into the blind corner cabinet. Position it approximately 5 millimeters to 1 centimeter from the front edge of the door panel. Secure it to the inner wall of the cabinet with screws.
- Attach Baskets: Hang the storage baskets onto the main frame. The height of the baskets can be adjusted as needed.
- Install Door Panel Connector: Pull out the basket assembly. Take out the door panel connector and install it onto the front of the basket frame. Tighten the screws properly.
- Attach Door Panel: Measure the size on top of the installed unit. Then, install the door panel onto the door panel connector. Ensure it is securely attached and operates smoothly.
Image 6.2: The pull-out mechanism fully extended from the cabinet.
7. Operation
To operate the Gdrasuya10 Blind Corner Cabinet Pull Out Organizer:
- Open the cabinet door fully.
- Gently pull the front baskets towards you. The linkage mechanism will guide the rear baskets forward and to the side, making all items accessible.
- To close, push the baskets back into the cabinet until the door can be fully closed. Ensure no items obstruct the mechanism.
Image 7.1: Organizer filled with kitchen items, showcasing its practical use.
8. Care and Maintenance
- Cleaning: Wipe down the steel surfaces and baskets with a soft, damp cloth and mild detergent. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Drying: Ensure all parts are thoroughly dried after cleaning to prevent water spots or rust.
- Lubrication: Periodically check the sliding mechanisms for smooth operation. If needed, apply a small amount of silicone-based lubricant to the slides.
- Inspection: Regularly inspect all screws and connections to ensure they remain tight. Tighten any loose fasteners to maintain stability.
9. Troubleshooting
- Organizer does not slide smoothly:
- Check for obstructions in the cabinet or on the sliding rails.
- Ensure the rails are clean and free of debris.
- Apply lubricant to the sliding mechanisms if they feel stiff.
- Verify that the installation screws are not overtightened, which can impede movement.
- Baskets are wobbly or unstable:
- Check all connection points and screws for tightness.
- Ensure the organizer frame is securely mounted to the cabinet wall.
- Distribute weight evenly across the baskets; avoid placing heavy items on one side.
- Door panel does not align correctly:
- Re-check the positioning of the door panel connector. Adjust as needed to ensure proper alignment with the cabinet door.
- Verify that the cabinet door hinges are properly adjusted.
10. Warranty and Support
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Gdrasuya10 website. Keep your proof of purchase for any warranty claims.
