Domi 8'x10' Wall Mounted Hardtop Gazebo Instruction Manual

1. Introduction

1.1 Product Overview

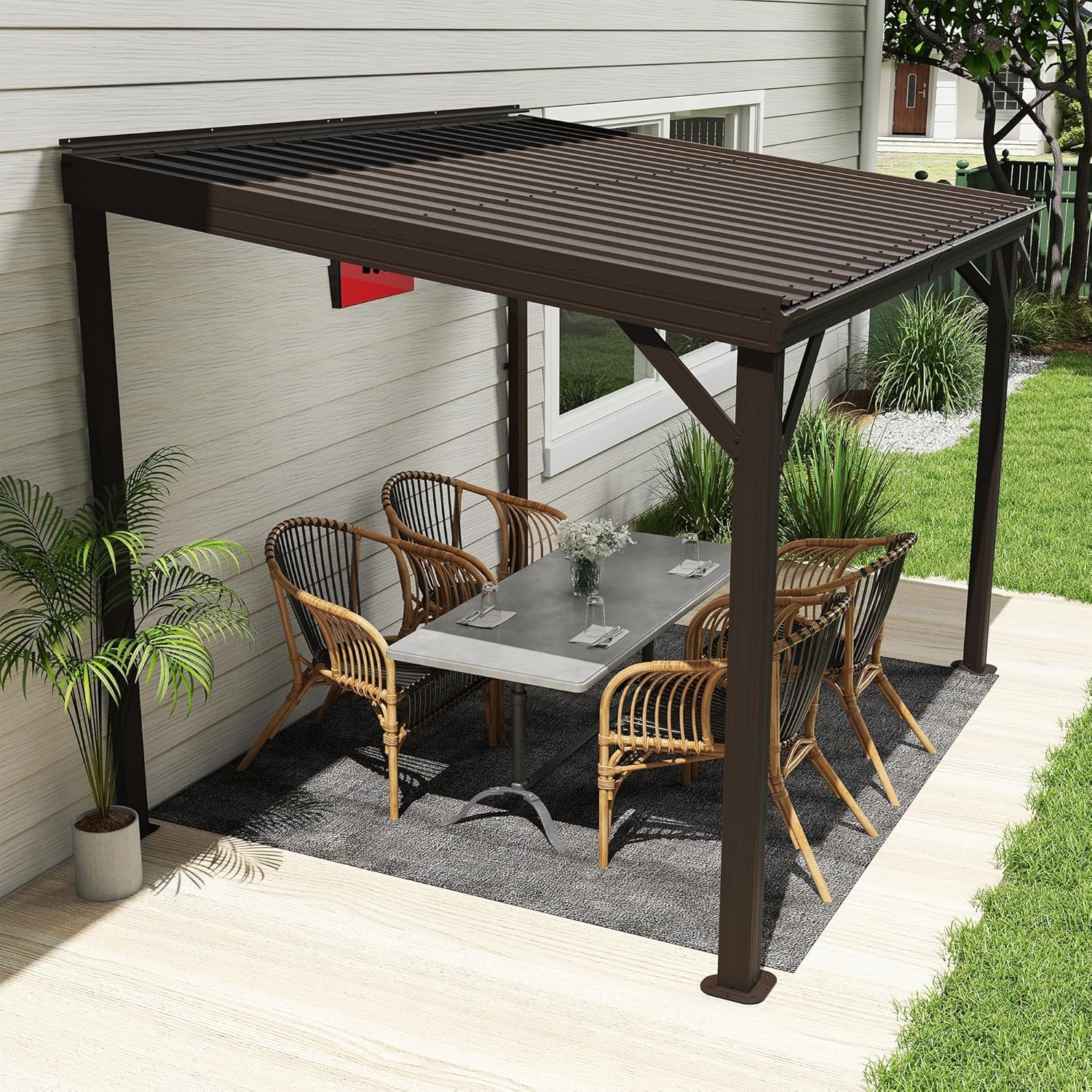

The Domi 8'x10' Wall Mounted Hardtop Gazebo is designed to provide a durable and stable outdoor shelter for patios, decks, and backyards. It features a galvanized steel roof and robust construction for enhanced weather resistance.

1.2 Key Features

• Premium Durability: Constructed with dual-protected galvanized and powder-coated steel (3.94" columns + 5 reinforced 5.2" beams) to resist rust, UV damage, and withstand 60 mph winds/22 lbs/sq.ft snow.
• All-Weather Performance: Features an upgraded gutter system for leak-proof drainage and a sloped galvanized roof to shed rain and snow efficiently.
• Spacious & Stable: Provides 122.4''x93.9'' coverage (92.1"H) for a shaded zone, with a wall-mounted design to save space.
• Seamless Gazebo Expansion: Can be connected with other same-width gazebos using specialized connector kits to create larger shaded areas.
• Hassle-Free Solution: Pre-engineered for straightforward installation, offering permanent protection for various outdoor spaces.

1.3 Safety Information

Please read and understand all safety warnings and instructions before assembly and use. Failure to follow these instructions may result in injury or property damage.

• Ensure the gazebo is installed on a level and stable surface.
• Properly anchor the gazebo to the ground or wall using appropriate hardware to prevent wind uplift.
• Do not climb on the gazebo structure. The roof is designed to support a snow load of 22 lbs/sq.ft, not human weight.
• Regularly inspect the structure for loose bolts, damaged parts, or signs of wear. Tighten or replace components as needed.
• Clear snow accumulation from the roof promptly to avoid exceeding the maximum snow load capacity.
• Keep children and pets away from the assembly area during installation.

2. Package Contents

Before beginning assembly, verify that all parts listed in the packing list are present and undamaged. If any parts are missing or damaged, contact customer service immediately.

The gazebo typically arrives in multiple packages. Ensure all packages have arrived before starting assembly.

3. Setup & Installation

3.1 Before You Begin

• Read the entire instruction manual carefully before starting.
• Gather all necessary tools (e.g., wrenches, screwdrivers, ladder, drill).
• Choose a suitable location for your gazebo, ensuring it is level and has adequate clearance.
• Two adults are recommended for assembly.

3.2 Assembly Steps (General Guide)

While specific steps are detailed in the included manual, the general assembly process involves:

1. Frame Assembly: Connect the main support beams and columns according to the diagrams.
2. Wall Mounting: Securely attach the wall-mounted side of the gazebo to a sturdy wall structure using appropriate fasteners. Ensure pre-drilled wall studs are utilized for maximum stability.
3. Roof Panel Installation: Install the galvanized steel roof panels. Note: Some panels may have a protective film that needs to be removed before installation. This film can be challenging to remove; using a hairdryer to gently warm the film may assist in peeling it off.
4. Gutter System: Assemble and attach the integrated gutter system to ensure proper water drainage.
5. Anchoring: Securely anchor the gazebo's base to the ground using the provided hardware or suitable alternatives for your specific surface (e.g., concrete bolts for concrete, deck screws for wood).

3.3 Video Guide: Domi Gazebo - Your Questions Answered

4. Operating Instructions

4.1 General Use

The Domi Wall Mounted Hardtop Gazebo is designed for outdoor use as a permanent or semi-permanent shelter. It provides shade and protection from light rain and snow. Ensure the gazebo is properly anchored at all times.

4.2 Weather Considerations

While designed to withstand 60 mph winds and 22 lbs/sq.ft snow, extreme weather conditions may require additional precautions. In severe weather, it is advisable to secure any loose items within the gazebo and regularly check the structural integrity.

5. Maintenance

5.1 Cleaning

Clean the gazebo frame and roof panels periodically with a mild soap and water solution. Rinse thoroughly with clean water. Avoid using abrasive cleaners, harsh chemicals, or stiff brushes, as these can damage the finish.

5.2 Seasonal Checks

• Before Winter: Inspect all bolts and connections for tightness. Ensure the roof is clear of debris.
• Before Summer: Check for any signs of rust or wear on the powder-coated steel. Touch up any scratches to prevent corrosion.

5.3 Drainage System

Regularly inspect the integrated gutter system for leaves, twigs, and other debris. Keep the gutters clear to ensure efficient water drainage and prevent accumulation on the roof.

6. Troubleshooting

6.1 Water Accumulation on Roof

• Cause: Clogged gutters or improper roof panel installation.
• Solution: Clear any debris from the gutter system. Verify that all roof panels are correctly seated and secured, ensuring the intended slope for drainage.

6.2 Gazebo Instability

• Cause: Loose connections or inadequate anchoring.
• Solution: Check and tighten all bolts and screws throughout the frame. Ensure the gazebo is securely anchored to the ground or wall according to the installation instructions. Confirm the installation surface is level.

6.3 Parts Not Aligning During Assembly

• Cause: Incorrect orientation of parts or minor manufacturing variations.
• Solution: Double-check the instruction manual diagrams for correct part orientation. Do not force parts together. If significant misalignment persists, contact customer support for assistance.

7. Specifications

8. Warranty & Support

8.1 Warranty Information

This Domi gazebo includes a 3-year protection plan. Please refer to your purchase documentation for specific terms and conditions of the warranty.

8.2 Customer Support

For any questions, missing parts, or assistance with assembly or troubleshooting, please contact Domi Outdoor Living customer service. Lifetime support is available for this product.

Visit the official Domi Outdoor Living store for more information: domi outdoor living Store
