1. Introduction
Thank you for choosing the EMKE 300W WiFi Smart Thermostatic Heating Rod. This device is designed to provide efficient and intelligent heating for your bathroom radiators and towel warmers, ensuring comfort and convenience. Made from high-quality stainless steel, it offers durability and a sleek design. This manual provides essential information for safe installation, operation, and maintenance of your heating rod.

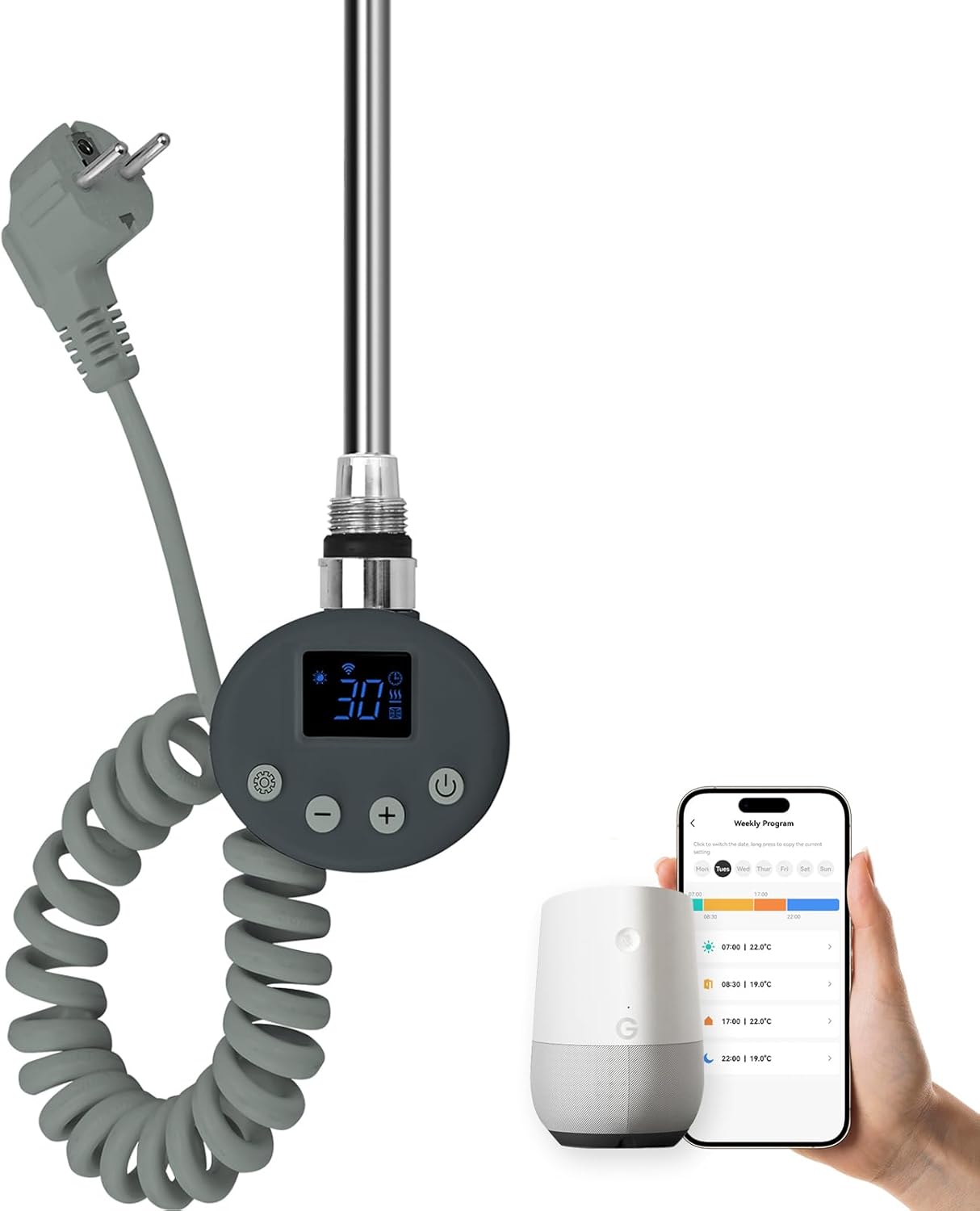

Image 1.1: The EMKE 300W WiFi Smart Thermostatic Heating Rod, showcasing its controller, connectivity with a smartphone application, and compatibility with smart home devices.
2. Safety Instructions
Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- The heating element must be installed only in a bathroom radiator for safety reasons.
- Before installation, ensure the power supply is completely switched off.
- During installation, ensure the bathroom radiator contains sufficient liquid (water/antifreeze).
- The towel warmer and heating element must be installed by qualified plumbers and electricians.
- The non-heating part of the rod is not heated for safety reasons.
- This device is rated IPX4, making it suitable for humid environments like bathrooms.
- Features child lock protection to prevent accidental changes.
- Includes overheating protection for enhanced safety.
- Automatic frost protection activates at temperatures below 7°C.

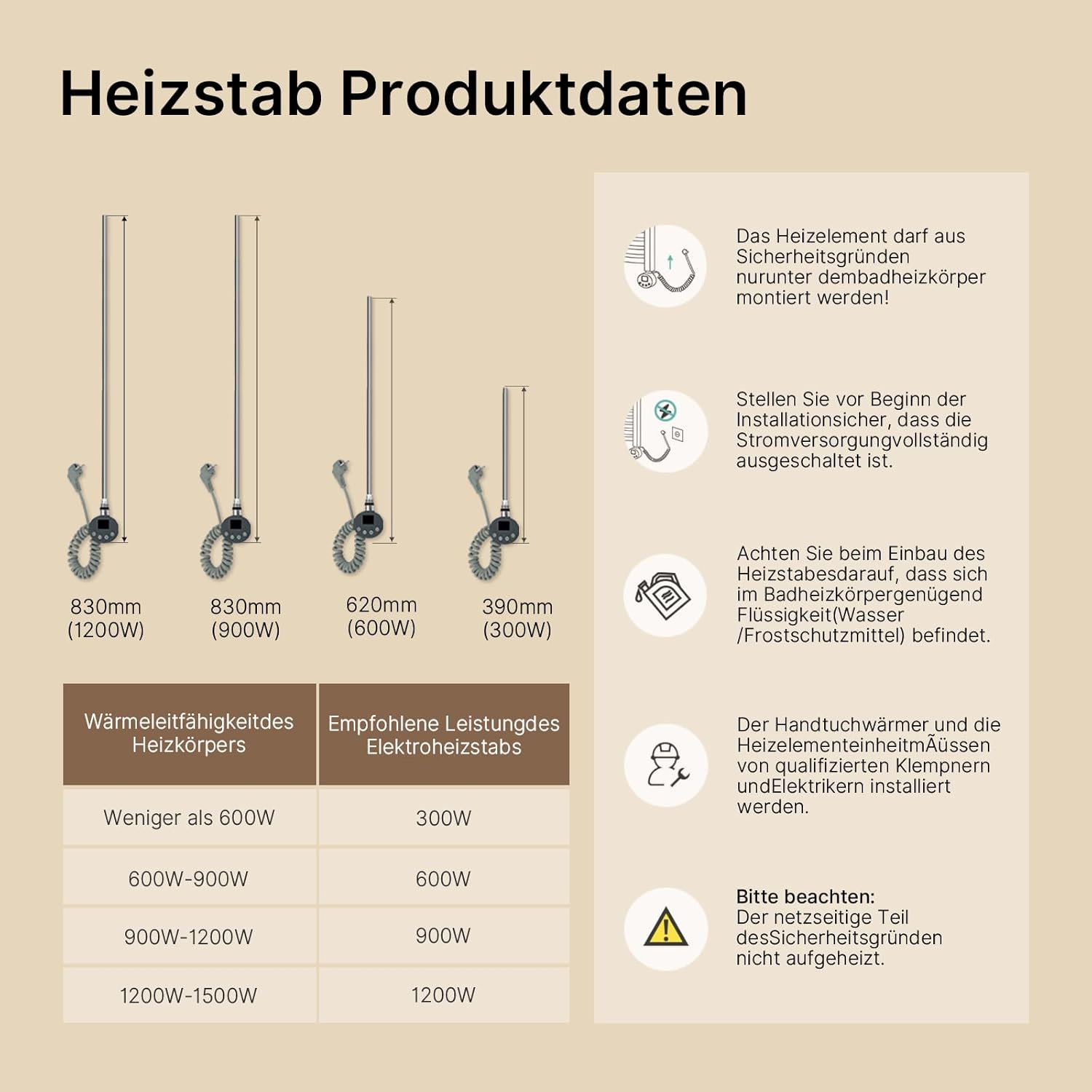

Image 2.1: Important safety guidelines and installation considerations for the EMKE heating rod, including professional installation recommendations.
3. Package Contents
Verify that all components are present in the package:
- EMKE Thermostatic Heating Rod (Model: THE530A-VC)
- Mounting Set
- Assembly Instructions
4. Specifications
| Feature | Specification |
|---|---|
| Model Number | THE530A-VC |
| Power | 300 W |
| Voltage | 220-240 V, 50 Hz |
| Protection Rating | IPX4 |
| Protection Class | Class I |
| Connection Thread | G1/2" |
| Heating Rod Dimensions | 390 x 12 mm (Length x Diameter) |
| Cable Length | 700 – 1400 mm |
| Max Operating Pressure | 10 bar |
| Material | High-quality 304 Stainless Steel |
| Temperature Range | 7°C to 30°C |
| Recommended Radiator Power | Ideal for towel warmers with 300 to 600 W power. |
Image 4.1: Detailed view of the heating rod's components, highlighting the quality materials and design, including the SUS304 stainless steel and LED display.
5. Setup and Installation
The EMKE heating rod is designed for easy installation, but it is crucial to follow these guidelines for safety and optimal performance.
- Preparation: Ensure the power supply to the radiator is completely disconnected before beginning installation.
- Radiator Fluid: Confirm that your bathroom radiator contains sufficient liquid (water or antifreeze solution).
- Placement: The heating rod must always be installed at the bottom of the towel warmer or radiator.
- Mounting: Use the provided mounting set to securely attach the heating rod to your radiator.
- Professional Installation: For safety and compliance, it is recommended that the installation be performed by qualified plumbers and electricians.
Image 5.1: Visual guide for safe installation practices, emphasizing the importance of professional assistance and correct placement within the radiator.
6. Operating Instructions
The EMKE heating rod offers intelligent control options for a comfortable environment.
6.1. Manual Control
The integrated controller allows for direct temperature adjustments and mode selection.
- Power Button: Press to turn the device on or off.
- Mode Button: Cycle through available heating modes.
- Temperature/Time Adjustment Buttons (+/-): Adjust the desired temperature or set timer values.
Image 6.1: Detailed view of the control panel, indicating the function of each button for manual operation.
6.2. Smart WiFi Control via App
Control your heating rod remotely using the smartphone application. This feature allows for flexible scheduling and precise temperature management.
- Download App: Download the compatible smart home application (e.g., Tuya Smart) on your smartphone.
- Pair Device: Follow the in-app instructions to pair your EMKE heating rod with your WiFi network.
- Remote Control: Adjust temperature, switch modes, and set schedules from anywhere.
- 7-Day/24-Hour Programming: Create custom heating schedules to ensure your bathroom is warm when you need it.
- Precise Temperature Selection: Set temperatures accurately between 7°C and 30°C.
Image 6.2: Demonstrates remote control capabilities of the heating rod through a smartphone application, allowing users to manage settings from a distance.
6.3. Heating Modes
The intelligent thermostat offers four heating modes for various needs:
- Comfort Mode: Provides a consistently warm environment (e.g., 30°C).
- Economy Mode: Maintains a lower, energy-saving temperature (e.g., 20°C).
- Boost Mode: Rapidly heats the area to a higher temperature (e.g., 70°C for quick towel drying).
- Frost Protection Mode: Prevents freezing by maintaining a minimum temperature (below 7°C).
Image 6.3: An example of the weekly programming interface on the smartphone app, illustrating how different heating modes can be scheduled throughout the day and week.
6.4. Smart Home Integration
The EMKE heating rod is compatible with popular smart home systems like Amazon Alexa and Google Home, allowing for voice control.
- Voice Commands: Use voice commands to adjust the temperature or change settings (e.g., "Alexa, set the bathroom temperature to 22 degrees.").
Image 6.4: Illustration of voice control functionality with smart home assistants, providing hands-free operation of the heating rod.
7. Maintenance
Regular maintenance ensures the longevity and efficient operation of your EMKE heating rod.
- Cleaning: Disconnect the power supply before cleaning. Wipe the surface of the heating rod and controller with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Inspection: Periodically check the power cable and plug for any signs of damage. If damage is found, discontinue use and contact customer support.
- Self-Cleaning Function: The device may feature a self-cleaning function. Refer to the app or detailed instructions for activation and frequency.
Image 7.1: Features like child lock, temperature compensation, window detection, and a self-cleaning reminder, which contribute to the device's safety and ease of maintenance.
8. Troubleshooting
If you encounter issues with your EMKE heating rod, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Device not heating | No power, incorrect settings, or insufficient fluid in radiator. | Check power connection. Verify temperature settings. Ensure radiator has adequate fluid. |
| WiFi connection issues | Incorrect WiFi password, device too far from router, or app not paired. | Re-enter WiFi password. Move device closer to router. Re-pair device in the app. |
| Inaccurate temperature reading | Sensor interference or need for calibration. | Ensure sensor is clear. Check app for temperature compensation settings (-5°C to 5°C). |
| Child lock engaged | Controls are locked. | Refer to the app or specific instructions to deactivate the child lock. |
9. Warranty and Support
EMKE is committed to providing high-quality products and customer satisfaction.
- Return Policy: The product is covered by a 14-day return policy.
- Repair Service: A 2-year repair service is provided for manufacturing defects.
- Contact Support: For any questions, technical assistance, or warranty claims, please contact EMKE customer service through the retailer or official website.
