1. Important Safety Information
Please read all instructions carefully before installation and use. Retain this manual for future reference.
- Ensure the power supply is completely switched off before any installation or maintenance.
- Installation must be performed by qualified plumbers and electricians.
- The heating element must always be installed in the lower part of the towel radiator.
- Ensure the radiator contains sufficient liquid (water/antifreeze) before installing the heating rod.
- This product is designed for use in humid environments like bathrooms, with an IPX4 splash protection rating.
- Do not immerse the control unit in water.
- Features child protection, overheating protection, and automatic antifreeze function (activates below 7°C).
- The non-heating part of the rod is for safety reasons and will not heat up.
Image 1.1: Overview of safety features and smart functions, including child lock and window detection.
2. Product Overview
The EMKE Smart WiFi Heating Rod is an intelligent heating solution for bathroom radiators, offering efficient and controllable warmth. It integrates with smart home systems for enhanced convenience.
Key Features:
- Smart WiFi Control: Manage settings via a smartphone app.
- Precise Temperature Control: Adjustable from 7°C to 30°C.
- Multiple Heating Modes: Includes Comfort, Economy, Boost, and Antifreeze modes.
- Safety Functions: Child protection, overheating protection, automatic antifreeze, and IPX4 splash protection.
- Durable Construction: Made from high-quality 304 stainless steel.

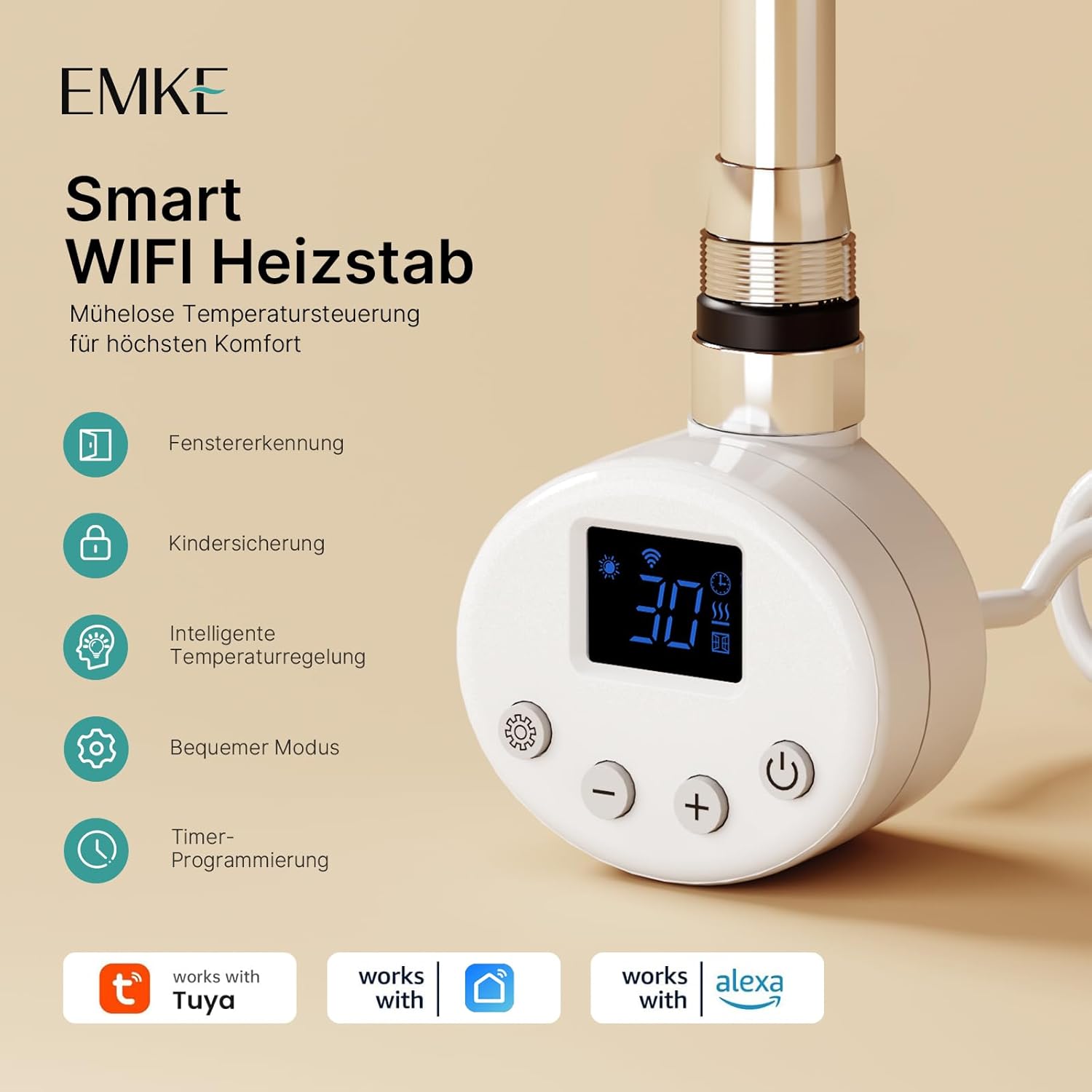

Image 2.1: The EMKE Smart WiFi Heating Rod highlighting its intelligent temperature control and compatibility with smart home systems like Tuya and Alexa.
Image 2.2: Close-up of the heating rod's components, showing the high-quality cable, European plug, SUS304 stainless steel construction, and LED display.
3. Setup and Installation
The installation of the heating rod is straightforward, but it is crucial to follow safety guidelines and ensure proper placement.
3.1 Pre-Installation Checks
- Verify that the power supply to the radiator circuit is completely disconnected.
- Ensure the towel radiator is filled with sufficient liquid (water or antifreeze solution).
- Confirm that the radiator's power rating is suitable for the 300W heating rod (ideal for radiators with 300W to 600W output).
3.2 Installation Steps
- Unscrew the existing plug or valve from the lower part of your towel radiator.
- Carefully insert the EMKE heating rod into the opening at the bottom of the radiator.
- Tighten the G1/2" connector thread securely to prevent leaks.
- Ensure the heating rod is positioned vertically and fully submerged in the radiator liquid.
- Connect the heating rod's power plug to a suitable electrical outlet.
- Restore power to the radiator circuit.
Important Note: The heating rod must always be installed in the lower section of the towel radiator for optimal performance and safety.
Image 3.1: Installation guidelines and power recommendations for various radiator sizes. Note the safety instructions regarding power disconnection and professional installation.
4. Operating Instructions
The EMKE Smart WiFi Heating Rod offers both manual control and smart app-based operation.
4.1 Manual Control
The control unit features an LED display and physical buttons for basic operation.
Image 4.1: Detailed view of the control panel, showing buttons for mode selection, temperature/time adjustment, and power on/off.
- Power Button (⏻): Press to turn the heating rod on or off.
- Mode Button (⚙): Cycle through available heating modes (Comfort, Economy, Boost, Antifreeze).
- Temperature/Time Adjustment Buttons (- / +): Adjust the target temperature or set timer values depending on the selected mode.
4.2 Smart WiFi App Control
For advanced control and scheduling, use the dedicated smartphone app (compatible with Tuya and Alexa).
- Download the App: Search for "Tuya Smart" or "Smart Life" in your smartphone's app store.
- Pairing: Follow the in-app instructions to pair your heating rod with your home WiFi network. This typically involves putting the device into pairing mode (refer to the app for specific steps).
- Temperature Adjustment: Set your desired temperature between 7°C and 30°C directly from the app.
- 7-Day/24-Hour Programming: Create flexible heating schedules to ensure your bathroom is warm when needed.
- Smart Home Integration: Connect with voice assistants like Amazon Alexa for hands-free control.
Image 4.2: Remote control of the heating rod via a smartphone app, allowing temperature adjustments from anywhere.
Image 4.3: Smart home integration with voice assistants like Alexa for convenient, hands-free operation.
4.3 Heating Modes
The heating rod features four distinct operating modes:
- Comfort Mode (30°C): Provides maximum warmth for a cozy bathroom environment.
- Economy Mode (20°C): Maintains a comfortable temperature while optimizing energy consumption.
- Boost Mode (70°C): Rapidly heats the radiator for quick towel drying or immediate warmth.
- Antifreeze Mode (<7°C): Automatically activates when the room temperature drops below 7°C to prevent freezing.
Image 4.4: Overview of the four heating modes and the weekly scheduling feature available through the app.
5. Maintenance
Regular maintenance ensures the longevity and efficient operation of your EMKE heating rod.
- Cleaning: Disconnect the power before cleaning. Wipe the exterior of the control unit and the visible part of the rod with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Liquid Level: Periodically check the liquid level in your radiator. Ensure it remains adequate for the heating rod to be fully submerged.
- Connections: Occasionally inspect the power cable and plug for any signs of damage. Ensure the connection to the radiator remains secure.
- Professional Check: For internal components or if you suspect a leak, consult a qualified professional.
6. Troubleshooting
If you encounter issues with your heating rod, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Heating rod not turning on. | No power supply; loose connection; device off. | Check power outlet and circuit breaker. Ensure plug is securely connected. Press the power button on the control unit or via the app. |
| Radiator not heating sufficiently. | Incorrect temperature setting; low liquid level in radiator; air in radiator. | Increase target temperature. Check and refill radiator liquid. Bleed the radiator to remove trapped air. |
| WiFi connection issues. | Incorrect WiFi password; device too far from router; router issues. | Verify WiFi password. Move device closer to router or use a WiFi extender. Restart your router. Re-pair the device via the app. |
| Error code displayed. | Internal fault; overheating. | Turn off the device, wait 15 minutes, then restart. If the error persists, contact customer support. |
If the problem persists after attempting these solutions, please contact EMKE customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | THE530W-VC |
| Power Output | 300 W |
| Heating Rod Dimensions | 390 x Φ12 mm |
| Cable Length | 700 – 1400 mm |
| Voltage | 220 – 240 V, 50 Hz |
| Max Operating Pressure | 10 bar |
| Connector Thread | G1/2" |
| Protection Class | Class I |
| Ingress Protection (IP) Rating | IPX4 (Splash-proof) |
| Temperature Range | 7°C to 30°C |
| Material | High-quality 304 Stainless Steel |
| Compatibility | Towel radiators with 300W to 600W power output. |
| Smart Home Integration | Tuya, Smart Life, Amazon Alexa |
8. Warranty and Support
EMKE provides comprehensive support for its products.
- Return Policy: 14-day return policy from the date of purchase.
- Repair Service: 2-year repair service for manufacturing defects.
- Customer Support: For technical assistance, troubleshooting, or warranty claims, please contact EMKE customer service through their official website or the retailer where the product was purchased.
