GZYF Steel Rotary Hook Instruction Manual (Model YFUS7FZ120)

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of the GZYF Steel Rotary Hook, part number #282293 / #DP2-457U(T) / #DP2-457UT. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.

2. Product Overview

The GZYF Steel Rotary Hook is a precision component designed for various zig-zag lockstitch sewing machines. Constructed from durable steel and titanium, it features a φ7.94MM rotary hook with a titanium-coated base. This design promotes smooth operation, reduces thread tangling, and contributes to consistent stitch quality.

Image 2.1: Top view of the GZYF Steel Rotary Hook, showing its main components.

Key features include:

• Material: High-quality steel and titanium for maximum strength and durability.
• Performance: Designed to prevent bobbin thread unraveling or tangling during sewing operations.
• Design: φ7.94MM rotary hook with a titanium-coated base for smooth, quiet, and lubricated operation.

Image 2.2: Angled view of the GZYF Steel Rotary Hook, highlighting its robust construction.

3. Compatibility

This rotary hook is compatible with many zig-zag lockstitch sewing machines. Verified compatible models include:

• For SINGER 457A
• For JACK JK-457
• For YULUN 475A-505-PBG-NHL 475A-625-NCB-LG
• For ZOJE ZJ457A, ZJ457B, ZJ457D

Please verify your sewing machine's part requirements against the provided part numbers: #282293 / #DP2-457U(T) / #DP2-457UT.

4. Specifications

5. Setup and Installation

Installing the rotary hook requires careful handling and adherence to your sewing machine's specific service manual. The following are general steps; always refer to your sewing machine's manufacturer instructions for precise guidance.

1. Power Off: Ensure your sewing machine is turned off and unplugged from the power source before beginning any installation or maintenance.
2. Access the Hook Area: Open the bobbin case cover and remove the bobbin and bobbin case. Depending on your machine model, you may need to remove additional plates or screws to access the rotary hook mechanism.
3. Remove Old Hook (if applicable): Carefully unfasten any retaining clips or screws holding the old rotary hook in place. Note the orientation of the old hook for correct installation of the new one.
4. Install New Hook: Position the GZYF Steel Rotary Hook into its designated slot. Ensure it sits flush and aligns correctly with the machine's drive mechanism. Fasten any retaining clips or screws securely, but do not overtighten.
5. Reassemble: Replace any covers or plates that were removed. Insert the bobbin case and bobbin.
6. Test: Plug in and power on your machine. Perform a few test stitches on scrap fabric to ensure the hook is functioning correctly and thread tension is balanced.

Image 5.1: Bottom view of the rotary hook, illustrating the area where the bobbin case is inserted.

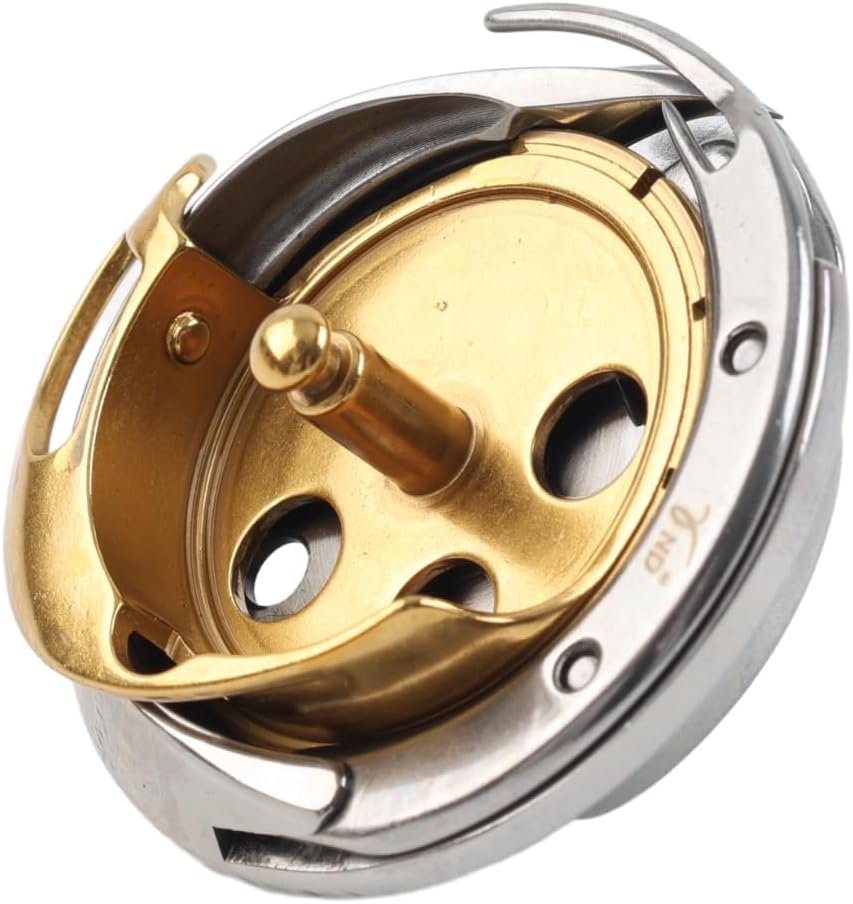

Image 5.2: Top view of the rotary hook, showing the internal mechanism that interacts with the needle thread.

6. Operating Principles

The rotary hook is a critical component in forming a lockstitch. As the needle descends and then rises, it creates a loop of upper thread. The rotary hook's point catches this loop and carries it around the bobbin case, allowing the upper thread to interlock with the bobbin thread. This precise action ensures the formation of a secure and balanced stitch.

The design of this GZYF rotary hook helps to maintain consistent thread tension and prevents the bobbin from over-spinning, which can lead to tangles and skipped stitches, especially during frequent start-and-stop operations.

7. Maintenance

Regular maintenance of your rotary hook and surrounding bobbin area is essential for optimal sewing machine performance and to extend the life of the component.

• Cleaning: Periodically remove the bobbin case and use a small brush or lint remover to clear any lint, dust, or thread fragments that accumulate around the rotary hook and feed dogs. Accumulation can impede smooth operation and affect stitch quality.
• Lubrication: Apply a small drop of high-quality sewing machine oil to the designated lubrication points of the rotary hook, as indicated in your sewing machine's manual. Do not over-oil.
• Inspection: Regularly inspect the rotary hook for any signs of wear, nicks, or burrs, especially on the hook point. Damaged hooks can snag thread and cause skipped stitches or thread breakage.

Image 7.1: Composite view of the rotary hook, useful for identifying areas for cleaning and lubrication.

8. Troubleshooting

If you encounter issues after installing or during use of the rotary hook, consider the following common troubleshooting steps:

• Skipped Stitches:
  • Ensure the needle is inserted correctly and is not bent or dull.
  • Check that the rotary hook is installed correctly and its timing is synchronized with the needle.
  • Clean any lint or debris from the hook area.
• Thread Breakage:
  • Inspect the rotary hook for any burrs or rough spots that could be snagging the thread.
  • Verify correct threading of both upper and bobbin threads.
  • Adjust thread tension.
• Noisy Operation:
  • Ensure the rotary hook is properly lubricated.
  • Check for any loose components or debris in the hook area.
• Bobbin Thread Tangling:
  • Ensure the bobbin is wound evenly and inserted correctly into the bobbin case.
  • Verify the bobbin case tension is appropriate.
  • Clean any lint from the bobbin case and hook area.

If problems persist, consult a qualified sewing machine technician or your machine's service manual.

9. Warranty and Support

This GZYF Steel Rotary Hook is manufactured to high-quality standards. For specific warranty information, please refer to the product packaging or contact GZYF customer support directly. Keep your purchase receipt as proof of purchase.

For technical assistance or further inquiries, please contact your retailer or the manufacturer.
