Soozier All-in-One Home Gym Machine System (Model A91-446V00YL) Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective use of your Soozier All-in-One Home Gym Machine System, Model A91-446V00YL. This versatile machine is designed for full-body strength training, combining multiple exercise stations into a single unit. Please read this manual thoroughly before assembly and operation to ensure proper usage and to prevent injury.

Figure 1: Soozier All-in-One Home Gym Machine System (Model A91-446V00YL).

2. Safety Information

Always consult with a healthcare professional before starting any new exercise program. Failure to follow these safety guidelines may result in serious injury.

• Read and understand all instructions before use.
• Keep children and pets away from the equipment during operation.
• Inspect the machine for loose or damaged parts before each use. Do not use if any components are compromised.
• Ensure all pins, bolts, and fasteners are securely in place before beginning an exercise.
• Wear appropriate athletic attire and footwear.
• Do not exceed the maximum user weight capacity of 264 lbs (120.2 kg).
• Perform exercises with controlled movements. Avoid sudden jerking motions.
• Stop exercising immediately if you feel pain, dizziness, or nausea.
• Maintain a clear area around the machine, free from obstructions.

3. Setup and Assembly

The Soozier All-in-One Home Gym Machine System requires assembly. It is recommended to have at least two people for assembly. The product is typically packaged in multiple boxes. Ensure all packages have arrived before starting assembly.

Figure 2: The home gym system is typically shipped in multiple packages.

3.1 Unpacking and Inspection

1. Carefully unpack all components from the boxes.
2. Refer to the included parts list (not provided in this manual, typically found in a separate assembly guide) to identify and verify all parts.
3. Report any missing or damaged parts to customer service immediately.

3.2 Assembly Guidelines

Follow the detailed assembly instructions provided with your product. General steps include:

• Assemble the main frame components first, ensuring all bolts are finger-tight before final tightening.
• Attach the weight stack and pulley system, ensuring cables are routed correctly and pulleys move smoothly.
• Install the seat, backrest, preacher curl pad, and other adjustable components.
• Once fully assembled, tighten all nuts and bolts securely.

Figure 3: The robust steel frame ensures stability during workouts.

4. Operating Instructions

The Soozier All-in-One Home Gym offers a variety of exercises for a comprehensive full-body workout. Familiarize yourself with the machine's adjustments and functions before performing exercises.

4.1 Adjustments

• Weight Stack: The machine includes a 152 lbs weight stack. Adjust the resistance by inserting the selector pin into the desired weight plate. Ensure the pin is fully inserted before lifting.
• Seat and Elbow Pads: The seat is 3-position adjustable, and the elbow pads are 3-position adjustable (36.2"-40.2" / 92-102 cm). Use the adjustment knobs to set them to a comfortable and effective height for your body.
• Bench Backrest: The sit-up bench backrest is 8-position adjustable, allowing for various incline and decline positions for different exercises.

Figure 4: Adjustable seat, elbow pads, and backrest for customized workouts.

Figure 5: The 152 lbs weight stack can be customized for various strength levels.

4.2 Exercise Guide

The following are examples of exercises that can be performed on this machine. Always use proper form and control.

• Lat Pulldown: Targets the back muscles (lats). Sit on the seat, grasp the lat pulldown bar with an overhand grip, and pull the bar down to your upper chest.
• Chest Press / Butterfly Press: Works the chest muscles. Adjust the handles to the chest press position and push forward, or use the butterfly press motion.
• Leg Extension: Strengthens quadriceps. Sit on the seat, place your shins behind the padded rollers, and extend your legs forward.
• Preacher Curl: Isolates biceps. Use the preacher curl pad and handle to perform bicep curls.
• Dip Station: Develops triceps, chest, and shoulders. Use the dip handles for bodyweight dips.
• Pull-up Bar: Strengthens back, lats, and biceps. Use the pull-up bar for bodyweight pull-ups.
• Sit-up Bench: For abdominal exercises. Adjust the backrest to your desired incline.
• Seated Row: Targets back muscles. Use the low pulley attachment while seated.

Figure 6: Visual guide to multiple exercises possible with the system.

Figure 7: Front view of exercises including Lat Pull Down, Leg Raise, and Chest Press.

Figure 8: Side view of exercises including Dips, Sit Ups, and Pull Ups.

4.3 Video Demonstrations

For visual guidance on various exercises and machine functions, please refer to the following official product videos:

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your home gym system.

• Cleaning: Wipe down the machine with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
• Inspection: Periodically check all nuts, bolts, and moving parts for tightness and wear. Tighten any loose fasteners.
• Lubrication: Apply a silicone-based lubricant to the guide rods of the weight stack and any moving pivot points as needed to ensure smooth operation.
• Cable Check: Inspect cables for fraying or damage. Replace worn cables immediately.
• Pads and Rollers: Check foam rollers and padded cushions for tears or excessive wear. Replace if necessary for comfort and safety.

Figure 9: Ensure foam rollers and padded cushions are in good condition for comfortable workouts.

Figure 10: Regularly inspect the pulleys and steel cables for smooth operation and wear.

6. Troubleshooting

If you encounter any issues with your Soozier Home Gym, refer to the following common troubleshooting tips:

• Squeaking Noises: Check all moving parts and pivot points. Apply lubricant if necessary. Ensure all bolts are tightened.
• Rough Cable Movement: Inspect cables for proper routing through pulleys. Clean guide rods and lubricate if needed. Check for any obstructions.
• Unstable Machine: Verify that the machine is placed on a flat, stable surface. Re-tighten all assembly bolts.
• Weight Stack Sticking: Ensure the selector pin is fully inserted. Clean and lubricate the guide rods.

For issues not covered here, please contact Soozier customer support.

7. Specifications

Key specifications for the Soozier All-in-One Home Gym Machine System (Model A91-446V00YL):

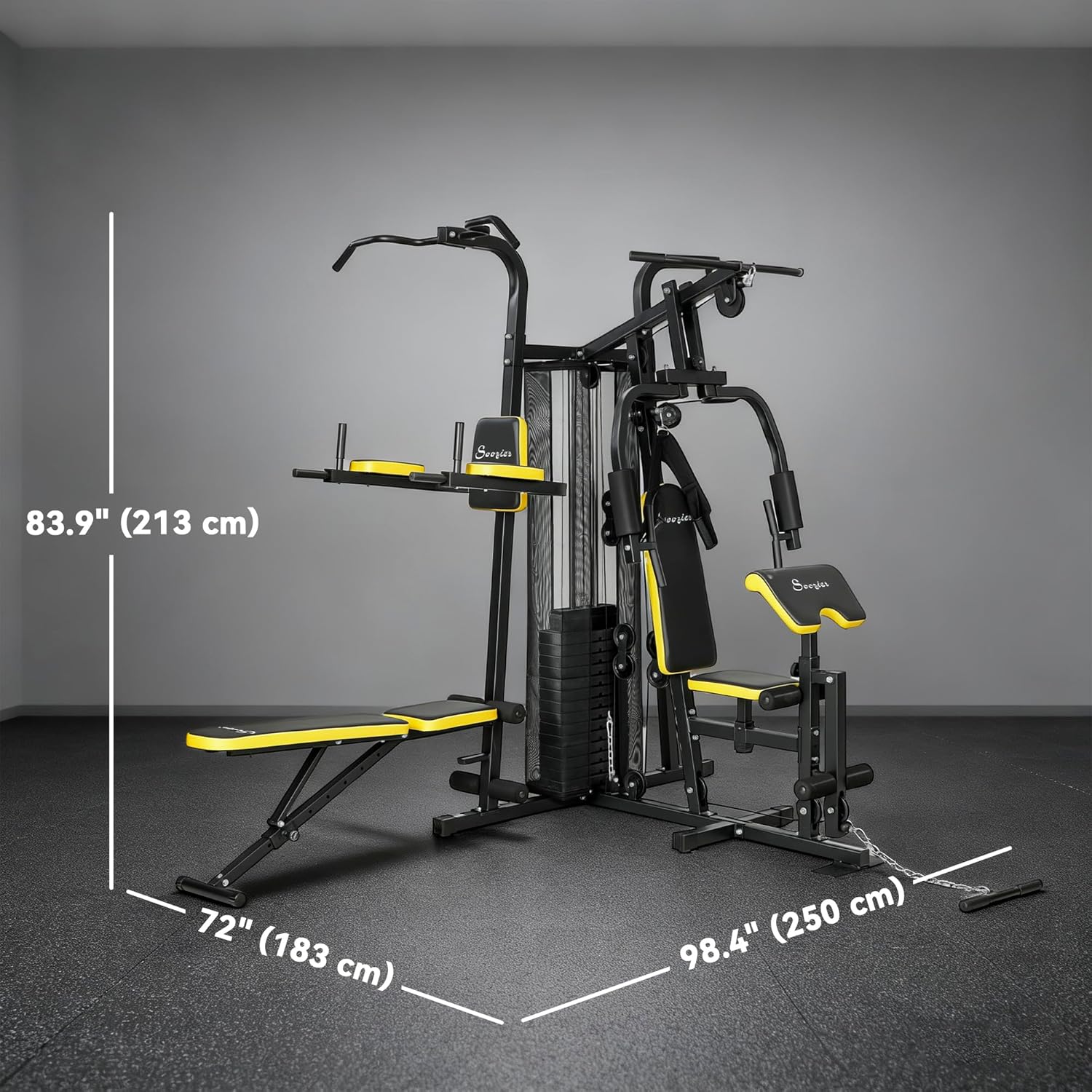

Figure 11: Detailed dimensions of the home gym system.

8. Warranty and Support

Your Soozier All-in-One Home Gym Machine System is eligible for return or refund within 30 days of receipt. For specific warranty details, product support, or to report any issues, please contact Aosom Canada customer service.

Manufacturer: Aosom Canada

Place of Business: Markham, Ontario, CA

Telephone: 1-416-792-6088

You can also visit the Soozier Store on Amazon for more information and support resources.
