Acouto 5-Button Folding Key Fob Replacement Instruction Manual

Introduction

This manual provides instructions for the Acouto 5-Button Folding Key Fob Replacement shell. This product is designed to replace your existing worn or damaged key fob casing, allowing you to transfer your original internal electronic components (circuit board, transponder chip, battery) into a new, durable shell. This product does not include internal electronics or a battery.

Product Overview

The Acouto 5-Button Folding Key Fob Replacement is a high-quality ABS plastic shell designed for durability and a secure fit. It features five buttons for standard vehicle functions and a folding key blade mechanism.

Image: The Acouto 5-Button Folding Key Fob Replacement with its key blade extended, showing the 'LOCK', 'UN LOCK', trunk, and panic buttons, along with the folding mechanism button.

Key Features:

• Durable Construction: Manufactured from ABS material for resistance to wear and tear.
• 5-Button Design: Includes standard lock, unlock, trunk release, and panic buttons.
• Folding Key Blade: Protects the key blade when not in use and reduces bulk.
• Direct Replacement: Designed for easy transfer of internal components from your original key fob.

Package Contents:

• 1 x Acouto 5-Button Folding Car Key Fob Shell
• 1 x Small Screw (for securing the key blade or internal components, if applicable)

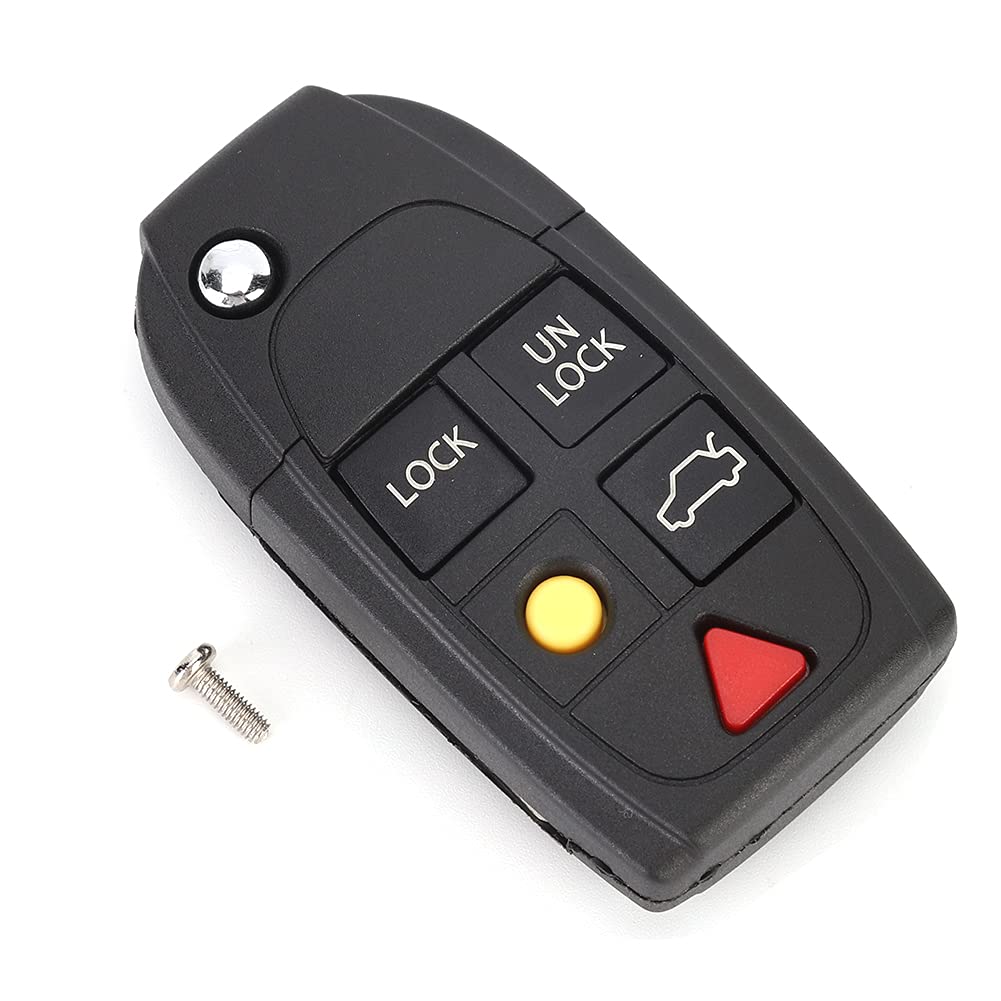

Image: The Acouto 5-Button Folding Key Fob Replacement shown alongside a small screw, which may be used for assembly.

Compatibility

This key fob replacement shell is compatible with the following Volvo models:

• Volvo S60
• Volvo S80
• Volvo V70
• Volvo XC70
• Volvo XC90

Ensure your original key fob has 5 buttons and matches the appearance of this replacement shell for proper fitment.

Setup and Installation

This product is a key shell only. Installation involves transferring the internal electronics from your existing key fob into this new shell. No programming is required if you are transferring existing components.

Required Tools:

• Small flathead screwdriver or pry tool (for opening key fobs)
• Small Phillips head screwdriver (if your original key fob or new shell uses screws)

Installation Steps:

1. Open Your Original Key Fob: Carefully use a small flathead screwdriver or pry tool to separate the two halves of your existing key fob. Locate and remove the internal circuit board, transponder chip, and battery. Note their orientation.
2. Prepare the New Key Shell: If the new shell has a blank key blade, you will need to transfer your original cut key blade or have the new blade cut by a locksmith. If your original key blade is integrated, you may need to transfer the entire blade assembly.
3. Insert Components: Carefully place your original circuit board, transponder chip, and battery into the corresponding slots within the new Acouto key shell. Ensure they are seated correctly and securely.
4. Close the New Key Shell: Align the two halves of the new key shell and press them firmly together until they snap into place. If a small screw was provided, use it to secure the shell if there is a designated screw hole.
5. Test Functionality: Test all buttons (lock, unlock, trunk, panic) and ensure the vehicle starts correctly.

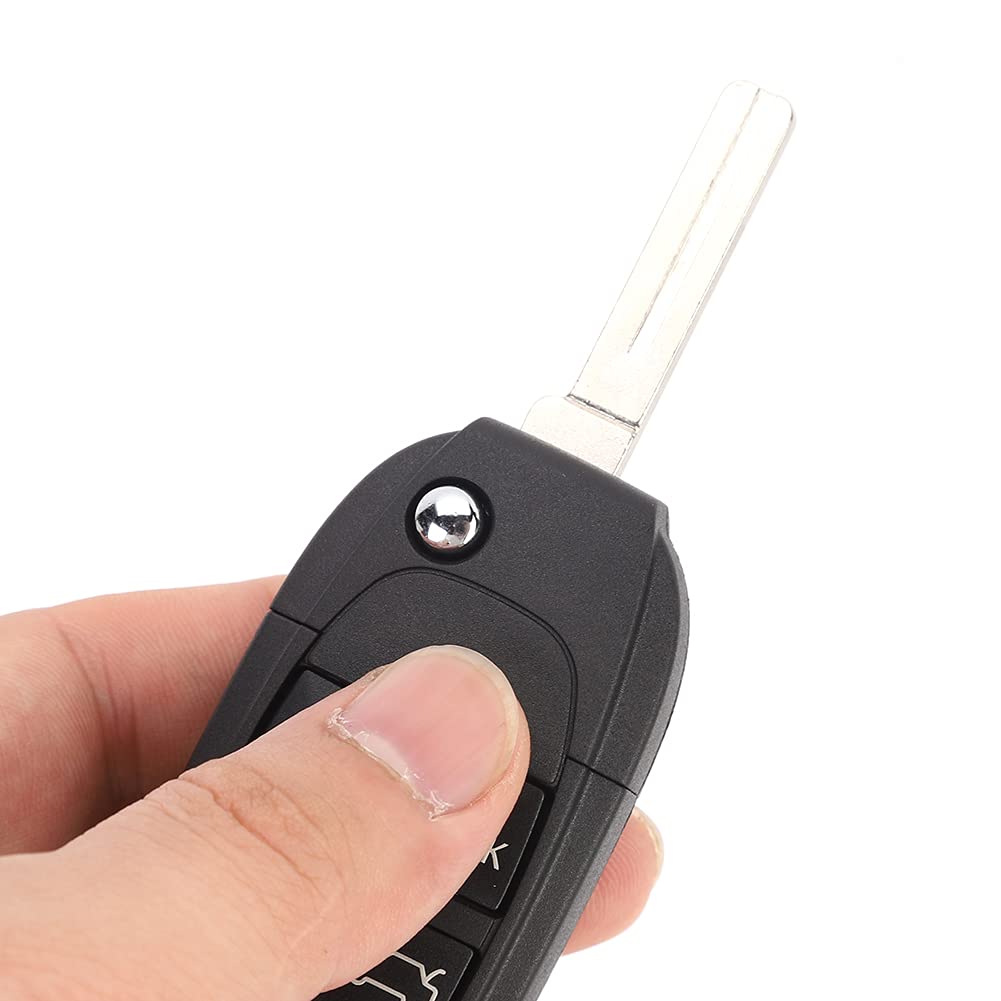

Image: A hand demonstrating the folding mechanism of the Acouto 5-Button Key Fob Replacement, illustrating its compact design.

Operating Instructions

Once the internal components are successfully transferred, the key fob will function identically to your original. The buttons perform the following actions:

• LOCK Button: Locks all vehicle doors.
• UN LOCK Button: Unlocks all vehicle doors.
• Trunk Release Button (Car Icon): Opens the vehicle's trunk or tailgate.
• Panic Button (Red Triangle): Activates the vehicle's alarm system. Press again to deactivate.
• Folding Mechanism Button (Small Silver Button): Press to release the key blade, allowing it to fold out. Press again to fold it back into the casing.

Maintenance

To ensure the longevity and proper function of your Acouto key fob shell, follow these maintenance guidelines:

• Keep Clean: Wipe the key fob with a soft, dry cloth to remove dust and grime. Avoid harsh chemicals or abrasive cleaners.
• Avoid Impact: Protect the key fob from drops or strong impacts, which can damage the casing or internal components.
• Protect from Moisture: While the shell offers some protection, it is not waterproof. Avoid exposing the key fob to excessive moisture.
• Battery Replacement: If your vehicle's remote functions become unreliable, the battery inside your transferred circuit board may need replacement. Refer to your vehicle's owner's manual for the correct battery type and replacement procedure.

Troubleshooting

If you encounter issues after installing the new key fob shell, consider the following:

Key Fob Not Functioning:

• Check Component Placement: Re-open the key fob shell and ensure the circuit board, transponder chip, and battery are correctly seated and oriented.
• Battery Check: Verify that the battery is correctly installed and has sufficient charge. Replace if necessary.
• Damage to Components: Inspect your original circuit board and transponder chip for any visible damage that might have occurred during transfer.

Key Blade Not Folding/Unfolding Smoothly:

• Check for Obstructions: Ensure no debris is lodged in the folding mechanism.
• Proper Assembly: Verify that the key blade assembly is correctly installed within the shell.

Specifications

Warranty and Support

For any questions regarding the Acouto 5-Button Folding Key Fob Replacement, please contact your retailer or the manufacturer's customer support. This product is a replacement shell and does not typically come with an electronic warranty, as it contains no electronic components. Any warranty would apply to the physical casing itself.
