Thanaddo 13'x26'x10' Heavy Duty Carport Instruction Manual

Introduction

This manual provides comprehensive instructions for the safe and efficient assembly, operation, and maintenance of your Thanaddo 13'x26'x10' Heavy Duty Carport. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

The Thanaddo carport is designed to provide reliable protection for vehicles such as cars, SUVs, boats, and farm UTVs, as well as for general outdoor storage or as a temporary workspace. It features a robust galvanized steel frame and a durable 160G PE tarp, engineered to withstand various weather conditions.

Safety Information

Important Safety Warnings:

• Always ensure the carport is properly anchored to the ground using the provided expansion screws and wind-resistant guy ropes.
• Do not use this carport in wind conditions exceeding 65 mph (105 km/h). High winds can cause structural damage and potential injury.
• Ensure the assembly area is clear of obstructions and overhead power lines.
• Assembly requires at least 2-3 adults. Do not attempt to assemble alone.
• Wear appropriate safety gear, such as gloves, during assembly to prevent cuts or pinches.
• Regularly inspect the frame and tarp for any signs of wear, damage, or loose connections. Address issues promptly.
• Keep children and pets away from the assembly area.

Package Contents

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, contact Thanaddo customer support immediately.

Anchoring Components: Includes 12 expansion screws, 4 spike anchors, and 4 windproof ropes for secure ground fastening.

Frame and Tarp Details: Illustrates galvanized steel tubes, bunge cords, horizontal beams, strapping tape, and strong welds, which are key components of the carport structure.

Note: Your carport will be delivered in two separate packages, which may arrive at different times. Please wait patiently for all packages before starting assembly.

Specifications

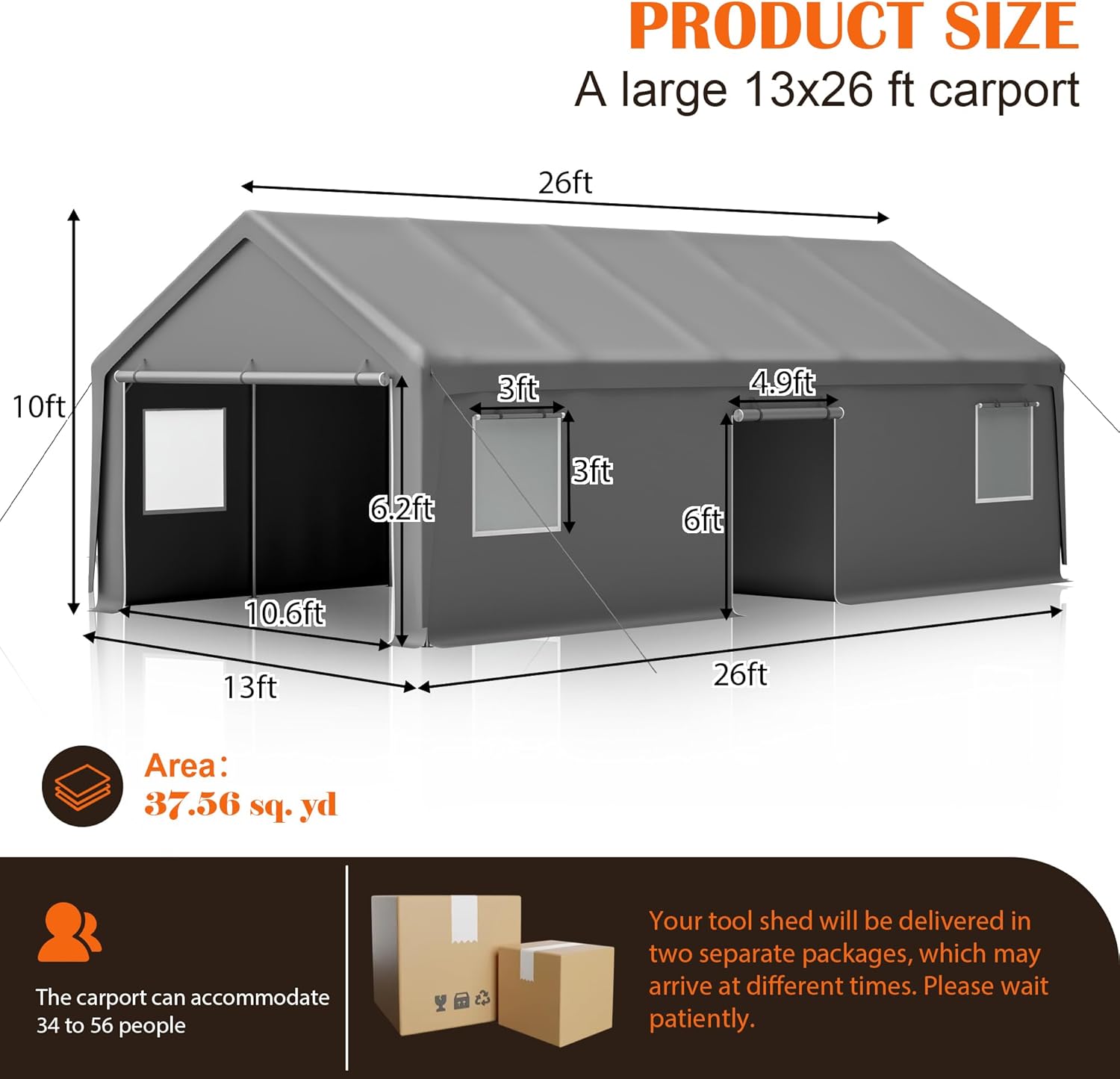

Product Dimensions: An illustration detailing the length, width, and height of the 13x26 ft carport.

Setup and Assembly

Assembly of the Thanaddo carport is designed to be straightforward, requiring no additional tools beyond what may be included or commonly available. Each component is marked for easy identification. Follow these steps carefully:

1. Prepare the Site: Choose a level, clear area for assembly. Ensure adequate space around the carport for installation and future access.
2. Unpack Components: Carefully unpack all parts and lay them out. Refer to the parts list (usually included in a separate diagram) to identify each piece.
3. Assemble the Frame: Connect the galvanized steel pipes according to the numbered instructions. Ensure all connections are secure. The frame consists of sturdy 1.65-inch diameter pipes with powder-coated surfaces to resist rust and corrosion.
4. Attach the Tarp: Carefully drape the 160G PE tarp over the assembled frame. Ensure it is centered and evenly distributed. The tarp is tear-proof, waterproof, and UV-resistant, providing all-season protection.
5. Secure the Tarp: Use the provided bunge cords and strapping tape to securely fasten the tarp to the frame. Ensure the tarp is taut to prevent water pooling and wind damage.
6. Install Sidewalls and Windows: Attach the roll-up sidewalls and ventilated windows. The unique double-layer curtain design allows for better ventilation and privacy.
7. Anchor the Carport: This is a critical step for stability. Use the 12 expansion screws and 4 spike anchors to firmly secure the carport to the ground. Additionally, attach and tension the 4 wind-resistant guy ropes to further enhance stability against wind gusts up to 65 mph.

Note: Two to three adults are recommended for efficient and safe assembly.

All-Weather Protection: The 160 GSM PE tarp provides comprehensive protection against sun, rain, snow, and other elements. Velcro strips around the edges ensure a tight window seal.

Ventilated Windows: The double-layer curtain system features rollable outer layers and inner gauze for adjustable ventilation and privacy.

Operating Instructions

Your Thanaddo carport is designed for versatile use. Follow these guidelines for optimal operation:

• Vehicle Storage: Drive vehicles carefully into the carport, ensuring adequate clearance. The 26 L × 13.34 W × 10 H ft interior accommodates full-size trucks, boats, and other large vehicles.
• Roll-up Sidewalls: The sidewalls can be rolled up to allow for increased airflow and easier access. Secure them in the rolled-up position using the integrated straps.
• Ventilated Windows: Utilize the double-layer windows for ventilation. The outer layer can be rolled up, while the inner gauze layer provides insect protection and partial privacy.
• Weather Protection: Ensure all sidewalls are down and securely fastened during adverse weather conditions (rain, snow, high winds) to maximize protection for contents.

Maintenance

Regular maintenance will extend the lifespan of your carport and ensure its continued performance:

• Frame Inspection: Periodically check all frame connections for tightness. Tighten any loose bolts or screws. Inspect the galvanized steel pipes for any signs of rust or damage to the powder coating.
• Tarp Inspection: Examine the 160G PE tarp for tears, punctures, or excessive wear. Small tears can often be repaired with a suitable tarp repair kit. Ensure the tarp remains taut to prevent water accumulation.
• Anchoring System: Regularly check the ground anchors (expansion screws, spike anchors) and guy ropes to ensure they are secure and properly tensioned. Re-tension guy ropes as needed, especially after strong winds.
• Cleaning: Clean the tarp and frame with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the material or coating. Rinse thoroughly.
• Snow Removal: In areas with heavy snowfall, regularly remove accumulated snow from the roof to prevent excessive weight from damaging the frame.

Troubleshooting

Here are solutions to common issues you might encounter:

Customer Support

For further assistance, missing parts, or warranty inquiries, please contact Thanaddo customer support. Have your model number (13'x26'x10') and purchase information ready when contacting support.

Contact information is typically found on the product packaging or the retailer's website.
