Uthfy 32 Inch Convection Panel Heater PN2000GS User Manual

1. Introduction

Thank you for choosing the Uthfy 32 Inch Convection Panel Heater, Model PN2000GS. This electric space heater is designed to provide efficient and quiet heating for indoor spaces up to 400-500 square feet. Featuring a sleek tempered glass LED display, remote control, and a 24-hour timer, it offers versatile heating solutions for bedrooms, living rooms, and offices. This manual provides essential information for safe operation, installation, and maintenance of your new heater.

Figure 1: Uthfy 32 Inch Convection Panel Heater with remote control.

2. Important Safety Information

Please read all safety warnings and instructions before using this appliance to reduce the risk of fire, electric shock, or injury. Keep this manual for future reference.

• Overheat Protection: The heater is equipped with a built-in overheat protection system that automatically shuts off the unit if it becomes too hot. If this occurs, unplug the heater, allow it to cool, and ensure no obstructions are blocking the air inlets or outlets before restarting.
• Tip-Over Protection: For your safety, the heater includes an automatic tip-over power-off function. If the heater is accidentally knocked over, it will automatically shut off. Place the heater on a stable, level surface.
• Child Lock: The remote control features a manual child lock function to prevent unintended operation by children or pets. Activate this feature to enhance safety.
• Placement: Always place the heater on a firm, level surface. Maintain a minimum distance of 3 feet (0.9 meters) from walls, furniture, curtains, and other combustible materials.
• Do Not Cover: Never cover the heater or block the air vents. Covering the heater can lead to overheating and fire hazards.
• Power Source: Ensure the heater is plugged into a grounded outlet with the correct voltage and amperage. Avoid using extension cords or power strips.
• Moisture: Do not use the heater in wet or damp locations, such as bathrooms or laundry areas. Keep the heater away from water.

Figure 2: Built-in safety protections for the Uthfy Convection Panel Heater.

3. Package Contents

Verify that all components are present upon unpacking:

• Uthfy Convection Panel Heater (Model PN2000GS)
• Remote Control (batteries not included)
• Feet Stands (2 units)
• Wall-Mounting Tools (screws, anchors, bracket)
• User Manual

4. Product Features

The Uthfy Convection Panel Heater offers advanced features for optimal heating performance and user convenience:

• Efficient Convection Heating: Utilizes a motor-free design for ultra-quiet operation and rapid heat distribution, covering areas up to 400-500 sq. ft.
• Multiple Operating Modes: Includes 750W (low power), 1500W (high power), and ECO (energy-saving) modes to suit various heating needs.
• Adjustable Temperature: Allows temperature settings from 41°F to 95°F (5°C to 35°C).
• 24-Hour Timer: Program the heater to turn on or off automatically, aligning with your schedule and reducing energy consumption.
• Dual Control Options: Operate the heater using the sensitive touch panel on the tempered glass LED display or the included remote control.
• 2-in-1 Installation: Can be used as a freestanding unit with included feet or wall-mounted to save floor space.

Figure 3: The Uthfy Convection Panel Heater provides whole-room heating for spaces up to 500 square feet.

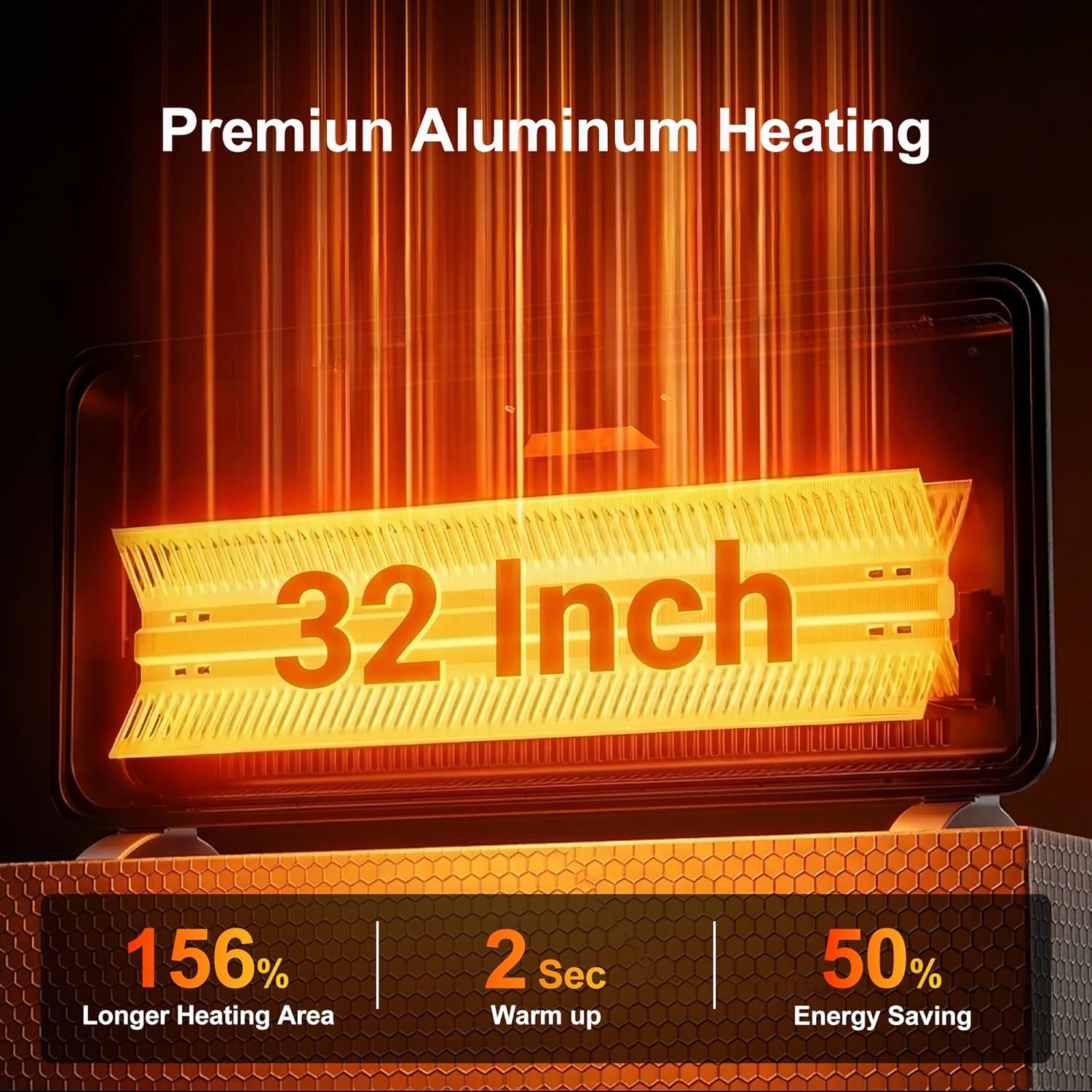

Figure 4: Internal heating elements of the Uthfy Convection Panel Heater, highlighting its 32-inch length and rapid heating capability.

5. Setup

Your Uthfy Convection Panel Heater offers two installation options: freestanding or wall-mounted.

5.1. Freestanding Installation

1. Carefully remove the heater from its packaging.
2. Attach the two feet stands to the bottom of the heater using the provided screws. Ensure they are securely fastened.
3. Place the heater on a stable, level surface, ensuring adequate clearance from walls and other objects (minimum 3 feet).

5.2. Wall-Mounted Installation

1. Remove the feet stands if they were previously attached.
2. Select a suitable wall location, ensuring it is away from curtains, furniture, and other flammable materials. The heater should be mounted at a safe height, typically with the bottom edge at least 6 inches from the floor.
3. Use the provided wall-mounting bracket as a template to mark the drilling points on the wall.
4. Drill holes and insert wall anchors if necessary (for drywall).
5. Securely attach the wall bracket to the wall using the provided screws.
6. Carefully hang the heater onto the wall bracket, ensuring it is firmly seated and level.

Figure 5: Illustration of the 2-in-1 installation methods for the Uthfy Convection Panel Heater.

6. Operating Instructions

The Uthfy Convection Panel Heater can be operated via its touch panel or the remote control.

6.1. Powering On/Off

• Plug the heater into a suitable electrical outlet.
• Press the Power button on the touch panel or remote control to turn the unit on or off. The LED display will illuminate when powered on.

6.2. Adjusting Temperature

• Use the Up (▲) and Down (▼) buttons on the touch panel or remote to set your desired temperature between 41°F and 95°F. The display will show the current room temperature and your set temperature.

6.3. Selecting Operating Modes

Press the Mode button on the touch panel or remote to cycle through the following heating modes:

• 750W (Low Power): For gentle, continuous heating.
• 1500W (High Power): For rapid heating of larger spaces.
• ECO Mode: Energy-saving mode that automatically adjusts power consumption to maintain the set temperature efficiently.

6.4. Setting the 24-Hour Timer

• Press the Timer button on the touch panel or remote.
• Use the Up (▲) and Down (▼) buttons to set the desired operating duration (from 1 to 24 hours). The heater will automatically turn off once the timer expires.

6.5. Child Lock Function

• To activate the child lock, press and hold the Lock button on the remote control for 3 seconds. The display will indicate that the lock is active.
• To deactivate, press and hold the Lock button again for 3 seconds.

Figure 6: The LED display and remote control allow for easy adjustment of settings.

7. Maintenance

Regular cleaning and proper storage will ensure the longevity and efficient operation of your heater.

• Cleaning: Before cleaning, always unplug the heater and allow it to cool completely. Use a soft, damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or solvents. Ensure no water enters the interior of the heater.
• Storage: When not in use, store the heater in a cool, dry place. If storing for an extended period, cover it to protect against dust.

8. Troubleshooting

If you encounter issues with your heater, refer to the following common problems and solutions:

9. Specifications

10. Warranty and Support

For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official Uthfy website. Keep your purchase receipt as proof of purchase for warranty claims.
