EOEOTWO Electric Scooter GT06 User Manual

Introduction

This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your EOEOTWO Electric Scooter GT06. Please read it thoroughly before your first ride to ensure optimal performance and safety.

The EOEOTWO Electric Scooter GT06 is designed for adults, featuring a powerful 1200W motor, capable of reaching speeds up to 31 MPH and offering a range of 20-25 miles on a single charge. It is equipped with 11-inch off-road tires, a wide footboard, and full suspension for a comfortable and stable riding experience. Dual brakes and front & rear lights enhance safety during various conditions.

Safety Guidelines

• Always wear a helmet and appropriate safety gear when riding.
• Ensure all components are securely fastened before each ride.
• Do not ride in heavy rain or extreme weather conditions.
• Adhere to local traffic laws and regulations.
• Avoid riding on public roads if prohibited by local laws.
• Maintain a safe distance from other vehicles and pedestrians.
• Do not perform stunts or reckless maneuvers.
• The scooter is designed for adults aged 14 to 60 years old, with a height range of 5'0'' to 6'1''.
• Maximum weight limit is 330 lbs.

Package Contents

Upon opening the package, verify that all items are present and undamaged:

• EOEOTWO Electric Scooter (main unit)
• Charger
• Toolkit (Allen wrenches, screwdriver, wrench)
• User Manual
• Keys (for ignition)
• Rear fender
• Kickstand
• Turn signals

Setup and Assembly

Follow these steps to assemble your EOEOTWO Electric Scooter GT06:

1. Unboxing: Carefully remove the scooter and all accessories from the packaging.
2. Handlebar Installation:
   • Unfold the main stem of the scooter.
   • Attach the handlebar assembly to the stem, ensuring all cables are properly routed and not pinched.
   • Secure the handlebar using the provided screws and Allen wrench.
3. Front Light Connection: Connect the front light cable to the corresponding port on the scooter.
4. Kickstand Attachment: Install the kickstand to the designated area on the scooter deck using the provided screws and Allen wrench.
5. Rear Fender Installation: Attach the rear fender over the rear wheel, securing it with the provided screws.
6. Turn Signal Installation: Install the rear turn signals on either side of the rear fender, connecting their respective cables.
7. Initial Charge: Fully charge the electric scooter before its first use for optimal battery performance.

Operating Instructions

Familiarize yourself with the controls and features of your scooter before riding.

1. Power On/Off: Insert the key into the ignition and turn it to the ON position to power on the scooter. Turn to OFF to power off.
2. Speed Modes: The scooter features multiple speed modes (1, 2, 3) for different riding preferences. Select the desired mode using the control panel.
   • Mode 1: Approximately 15.5 MPH (suitable for novices)
   • Mode 2: Approximately 21.7 MPH (for efficient trips)
   • Mode 3: Approximately 28.6 MPH (extreme speed for experienced riders)
3. Acceleration: Gently press the accelerator button to engage the motor and begin moving.
4. Braking: Use the dual brake levers (front and rear) to slow down or stop. Apply both brakes smoothly for effective stopping.
5. Lights: Activate the front headlight and rear lights for visibility, especially during low-light conditions. Use the turn signals when changing direction.
6. Folding Mechanism: To fold the scooter for storage or transport, disengage the folding latch on the stem and carefully fold the handlebar down until it locks into place.

Maintenance

Regular maintenance ensures the longevity and safe operation of your scooter.

• Tire Pressure: Check tire pressure regularly and inflate to the recommended PSI for optimal performance and safety.
• Brake System: Inspect brake levers, cables, and pads for wear and proper function. Adjust or replace as needed.
• Battery Care:
  • Charge the battery fully before the first ride and after each use.
  • Avoid completely draining the battery.
  • Store the scooter in a cool, dry place when not in use, and charge it periodically if stored for extended periods.
• Cleaning: Wipe down the scooter with a damp cloth. Avoid using high-pressure water jets directly on electrical components.
• Fasteners: Periodically check all screws and bolts for tightness and secure them if loose.

Troubleshooting

If you encounter issues with your scooter, refer to the following common troubleshooting tips:

• Scooter not turning on:
  • Ensure the key is fully inserted and turned to the ON position.
  • Check the battery level on the display. Charge if necessary.
  • Verify all electrical connections are secure.
• Loss of power or reduced range:
  • The battery may not be fully charged.
  • Riding conditions (e.g., uphill, heavy load, cold weather) can affect range.
  • Check tire pressure; underinflated tires reduce efficiency.
• Brakes not responding effectively:
  • Inspect brake pads for wear and replace if worn.
  • Adjust brake cable tension if levers feel too loose.
• Unusual noises during operation:
  • Check for loose components or debris caught in the wheels or motor.
  • If the noise persists, contact customer support.

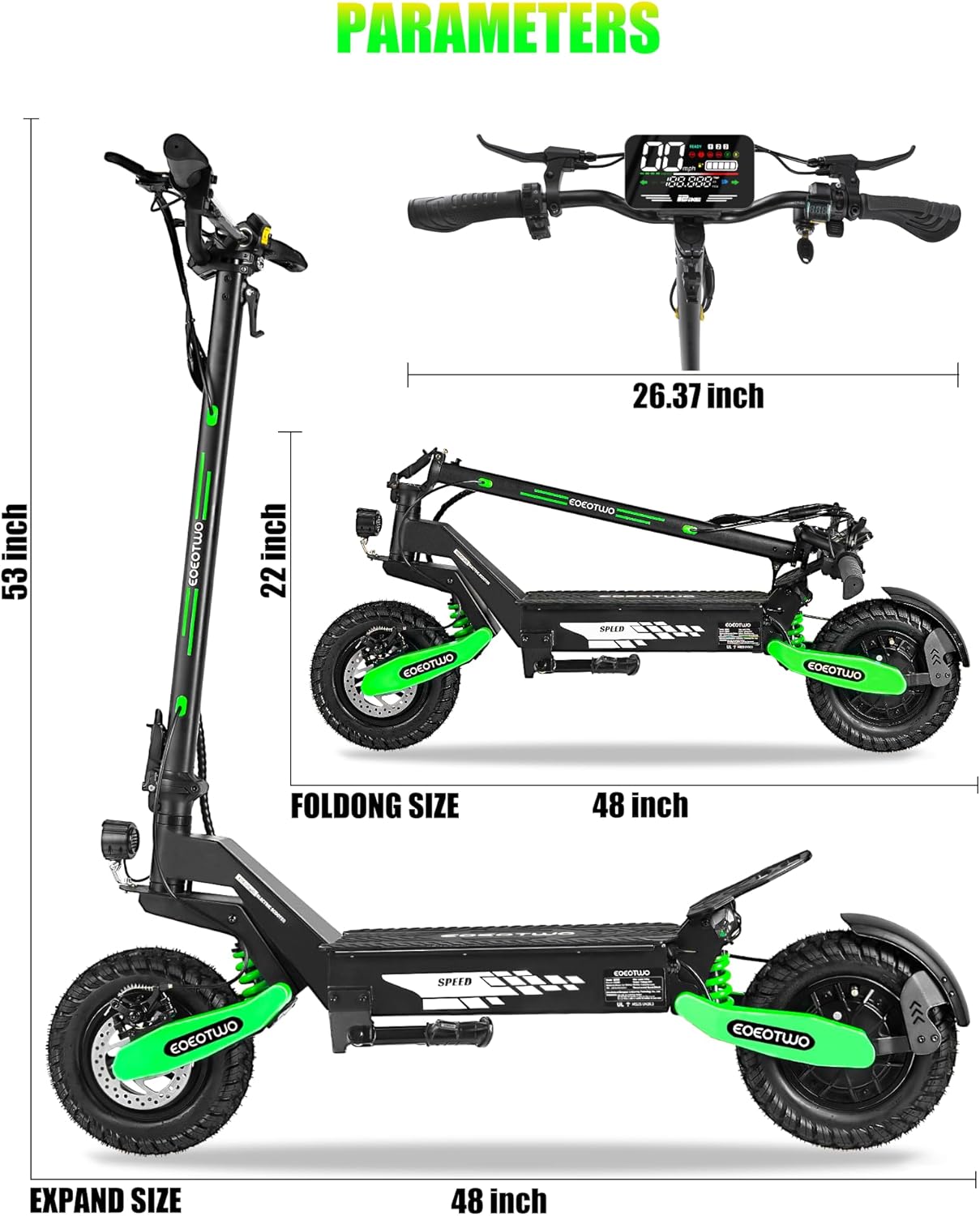

Specifications

Warranty and Support

Your EOEOTWO Electric Scooter GT06 comes with a 1-Year Manufacturer's Limited Warranty. Additionally, a 60-day service is provided to ensure your peace of mind.

For any questions, technical assistance, or warranty claims, please contact EOEOTWO Outlet customer support. You can find contact information on the product packaging or through your purchase platform.

The product is eligible for 30-day easy returns. Please refer to the return policy of your retailer for detailed information.
