MAXGROOM 5-in-1 Electric Body Trimmer for Men

1. Introduction

Welcome to the MAXGROOM 5-in-1 Electric Body Trimmer for Men, Model LK-892. This versatile grooming tool is designed for precise and comfortable hair removal across various body areas. Please read this manual thoroughly before use to ensure safe and effective operation.

2. Product Overview & Components

Your MAXGROOM 5-in-1 Electric Body Trimmer comes with a comprehensive set of accessories to meet all your grooming needs:

• Main Trimmer Unit
• V-shaped Body Hair Trimmer Head
• U-shaped Beard Trimmer Head
• T-shaped Hair Clipper Head
• Nose/Ear Hair Trimmer Head
• Shaver Head
• Charging Base
• USB-C Charging Cable
• T-type Guide Combs (3mm, 6mm, 9mm, 12mm)
• Adjustable U-type Guide Comb (2mm, 3mm, 5mm, 6mm)
• Cleaning Brush
• Storage Bag

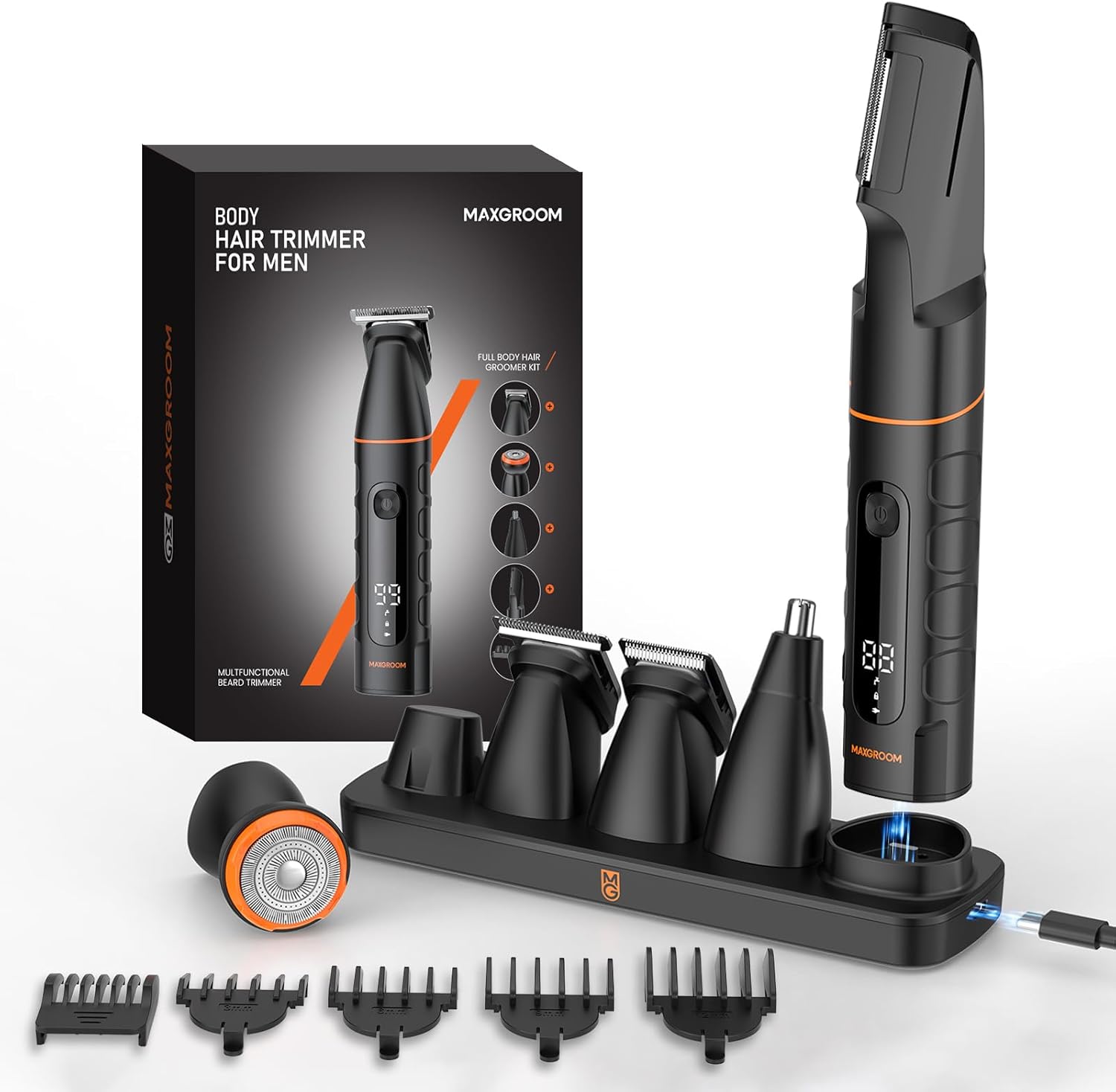

MAXGROOM 5-in-1 Body Trimmer with all interchangeable heads and accessories.

The MAXGROOM Body Trimmer main unit, showcasing its ergonomic design.

3. Setup

Before first use, ensure the trimmer is fully charged. Select the appropriate head for your grooming needs. To attach a head, align it with the main unit and gently push until it clicks into place. To remove, pull it off. The magnetic head attachment system allows for quick and easy changes.

Illustrates the various interchangeable heads for different grooming tasks, including body, beard, and nose/ear trimming.

4. Charging

The MAXGROOM trimmer offers two convenient charging methods: via the included USB-C cable directly into the trimmer, or by placing the trimmer on the charging base. A full charge provides up to 120 minutes of cordless operation. The integrated LED display indicates the remaining battery percentage, ensuring you are never caught off guard by a low battery.

The charging base with the trimmer inserted, showing the USB-C connection for power.

Close-up of the trimmer's LED display showing battery charge level and charging status.

5. Operation

The trimmer features a powerful 7000 RPM motor for efficient hair removal. It is suitable for both wet and dry use, allowing for comfortable grooming with or without foam/gel.

Using the Trimmer Heads:

• V-shaped Body Hair Trimmer Head: Designed for precision in difficult-to-reach areas like the back, underarms, and groin. Use gently against the skin for a smooth, irritation-free trim.
• U-shaped Beard Trimmer Head: Ideal for daily beard maintenance and shaping.
• T-shaped Hair Clipper Head: For general hair trimming, including head hair. Use with the provided T-type guide combs (3mm, 6mm, 9mm, 12mm) for desired length.
• Nose/Ear Hair Trimmer Head: Carefully insert into nostrils or ears to trim unwanted hair.
• Shaver Head: For a clean, close shave on the face or body.

The V-shaped trimming head in action, demonstrating its use for sensitive body areas.

6. Cleaning and Maintenance

The MAXGROOM trimmer is IPX6 waterproof, allowing for easy and thorough cleaning under running water. After each use, remove the trimming head and rinse it thoroughly to prevent hair buildup and maintain hygiene. The magnetic head attachment allows for quick removal and reattachment. Ensure the device is completely dry before storing or charging.

The MAXGROOM trimmer being rinsed under running water, illustrating its IPX6 waterproof rating for easy cleaning.

7. Safety Information

• Do not use on broken or irritated skin.
• Avoid contact with eyes.
• Keep away from water sources when charging.
• Do not use on children or infants.
• Follow recommended cleaning and maintenance instructions.
• Do not leave the device charging unattended.
• Store in a cool, dry place.

8. Troubleshooting

• Device not turning on: Ensure the battery is sufficiently charged. If the device is fully charged and still not operating, contact customer support.
• Reduced performance: Clean the trimming head thoroughly. Ensure no hair buildup is obstructing the blades. If performance does not improve, the blade may need replacement.
• Skin irritation: Ensure the blades are clean and sharp. Use the trimmer on clean, dry skin or with a suitable shaving foam/gel for wet use. If irritation persists, discontinue use.

9. Specifications

10. Warranty and Support

MAXGROOM products are certified according to MSDS, EMC, and RoHS standards, ensuring high quality and safety. Your product benefits from a 24-month extended warranty. For any inquiries, technical assistance, or support, please contact MAXGROOM customer service. Our dedicated team aims to respond within 24 hours to provide professional assistance.

Thank you for choosing MAXGROOM.
