1. Introduction
The Seauto Abys 300 is a premium wireless robotic pool cleaner designed for efficient and thorough cleaning of your swimming pool. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your device. Please read this manual carefully before using the Abys 300 and retain it for future reference.
2. Safety Instructions
To ensure safe operation and prevent damage to the product or injury to users, always adhere to the following safety guidelines:
- Do not operate the cleaner when people or pets are in the pool.
- Ensure the charging port is dry before connecting the charger.
- Use only the original charger provided by Seauto.
- Keep the cleaner out of reach of children.
- Do not attempt to disassemble or repair the cleaner yourself. Contact qualified service personnel.
- Store the cleaner in a cool, dry place when not in use.
- Avoid exposing the cleaner to direct sunlight for extended periods when not in the pool.
3. Product Features
The Seauto Abys 300 incorporates advanced features for superior pool cleaning:
- Wireless Operation: Cable-free design for unrestricted movement and ease of use.
- Extended Battery Life: Equipped with a 7800 mAh lithium battery, providing 2 to 3 hours of cleaning autonomy.
- Comprehensive Cleaning: Dual PVC rollers simultaneously brush and vacuum the pool floor, walls, and waterline.
- Powerful Suction: 300 liters per minute suction power combined with a 250-micron filter captures fine particles like sand, algae, and organic debris.
- Intelligent Navigation: 3D-NAVI technology ensures optimal path planning for complete pool coverage without wasted energy.
- Fast Charging: Battery recharges in approximately 3 hours.
- Versatile Compatibility: Suitable for all pool shapes and surfaces, including PVC, tile, stone, and fiberglass.
- Durable Design: IP65 water resistance and high-adhesion dual rollers ensure robustness and efficiency.
- Replaceable Battery: Designed for prolonged product lifespan and flexible usage.

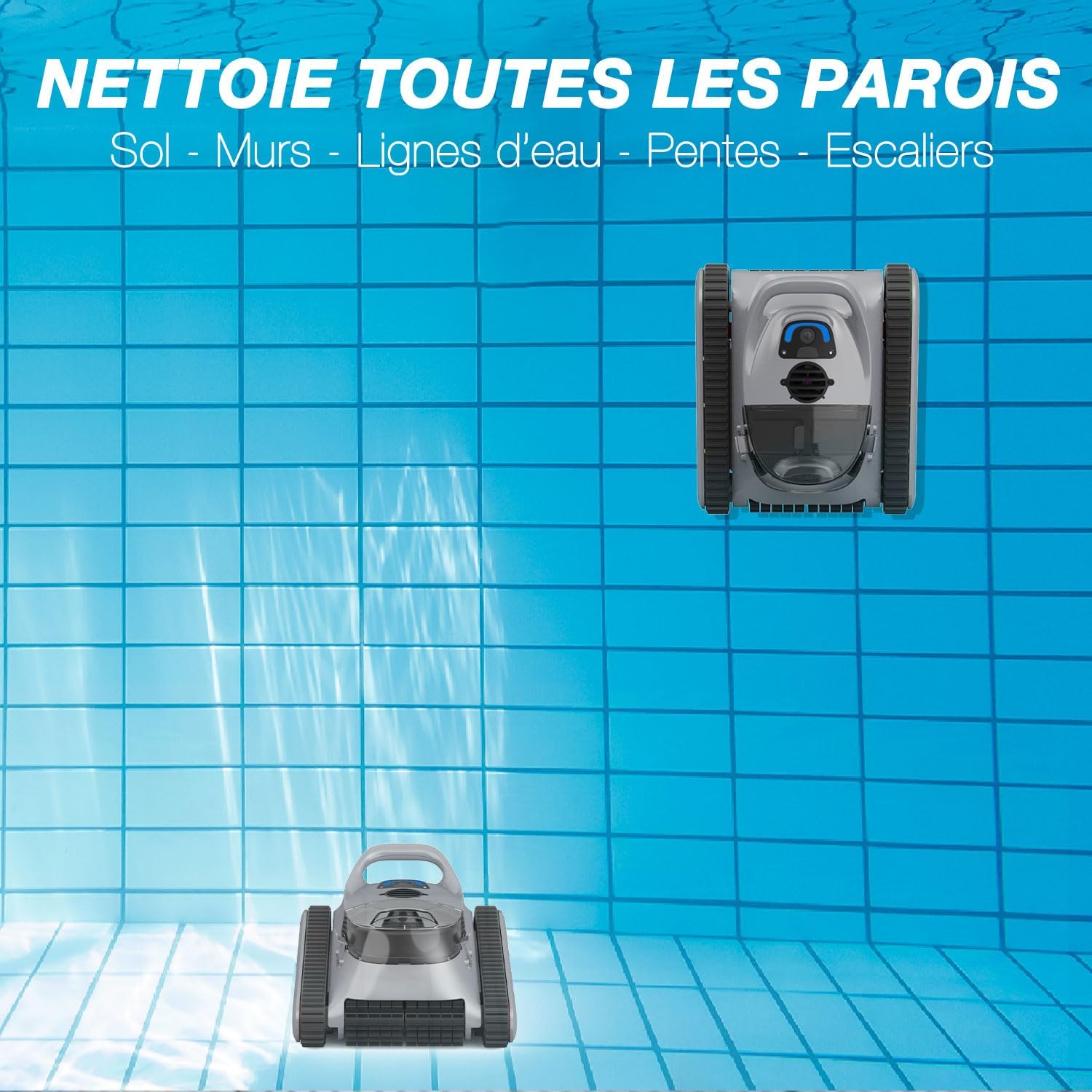

Image: The Seauto Abys 300 robot cleaning various surfaces of a pool, including the floor, walls, and waterline.
Image: Illustration of the Seauto Abys 300's 3D-NAVI intelligent navigation system, showing its methodical cleaning path.

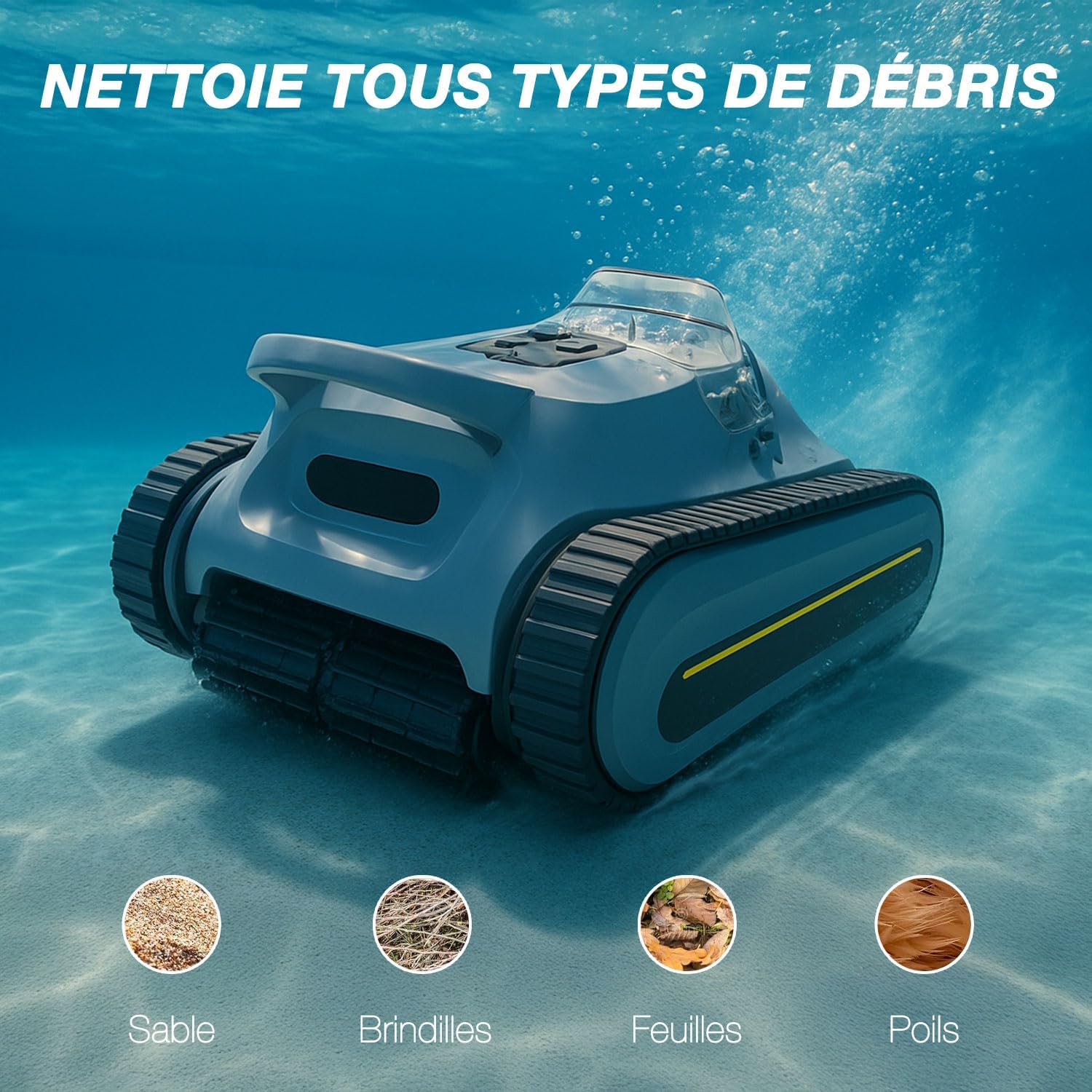

Image: The Seauto Abys 300 effectively cleaning different types of debris such as sand, twigs, leaves, and hair from the pool floor.
Image: A close-up view of the Seauto Abys 300 highlighting its dual cleaning brushes for thorough scrubbing and vacuuming.
4. Setup
4.1 Charging the Battery
Before initial use, fully charge the robot's battery. The battery capacity is 7800 mAh, and a full charge takes approximately 3 hours.
- Ensure the robot is dry and clean, especially the charging port.
- Connect the charger to the robot's charging port.
- Plug the charger into a standard electrical outlet.
- The indicator light on the robot will show charging status (refer to LED indicators section in the full manual for details).
- Once fully charged, disconnect the charger from the outlet and then from the robot.
Image: The Seauto Abys 300 robot connected to its charger, illustrating the fast charging process which completes in 3 hours.
4.2 Placing the Robot in the Pool
Carefully lower the robot into the pool. Ensure it sinks to the bottom completely before starting operation. The robot is designed to be easily handled, weighing only 8.7 kg.

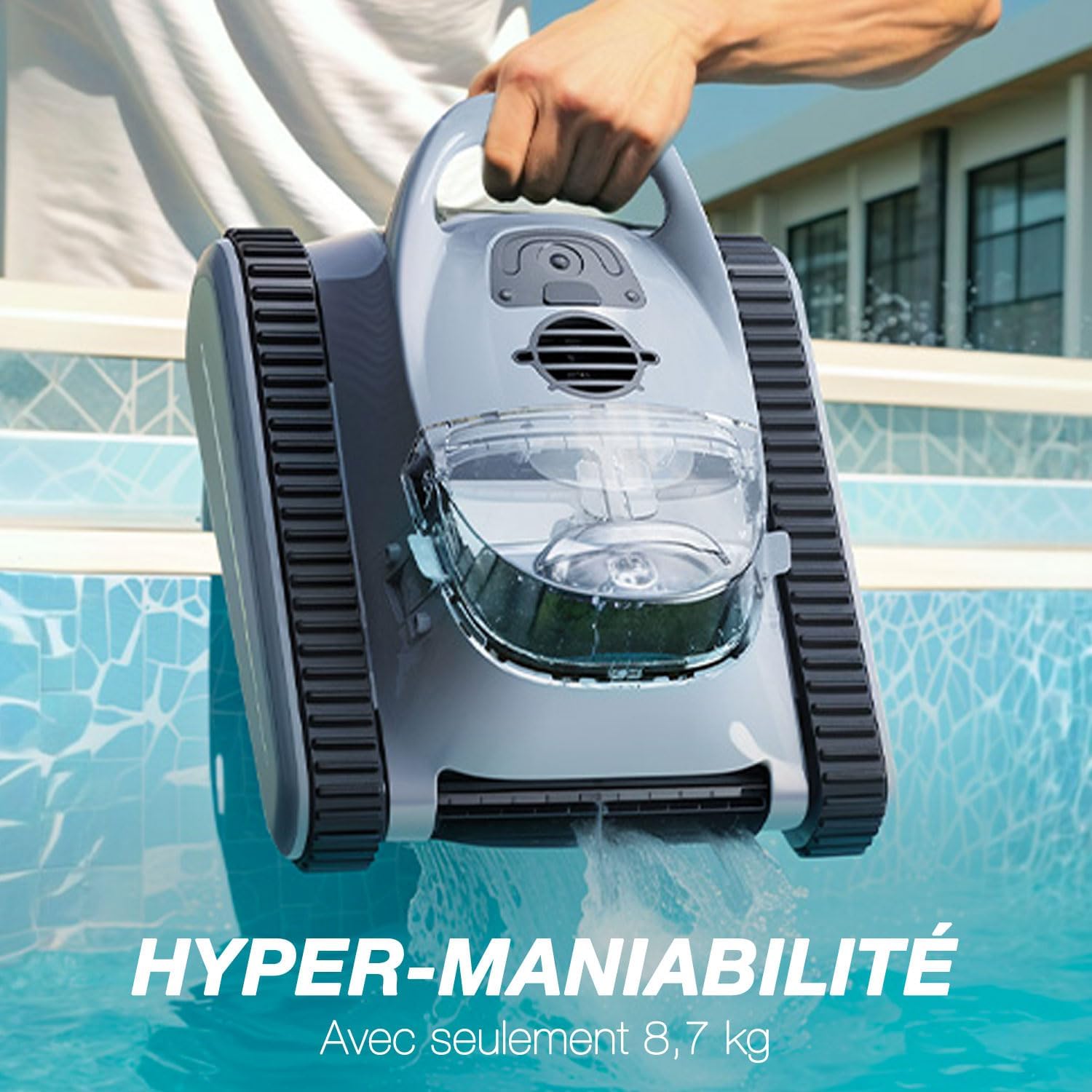

Image: A person easily lifting the Seauto Abys 300 from the pool, demonstrating its lightweight and manageable design.
5. Operating Instructions
5.1 Starting the Cleaning Cycle
Once the robot is submerged, press the power button to initiate a cleaning cycle. The robot will begin its intelligent navigation to clean the pool floor, walls, and waterline.

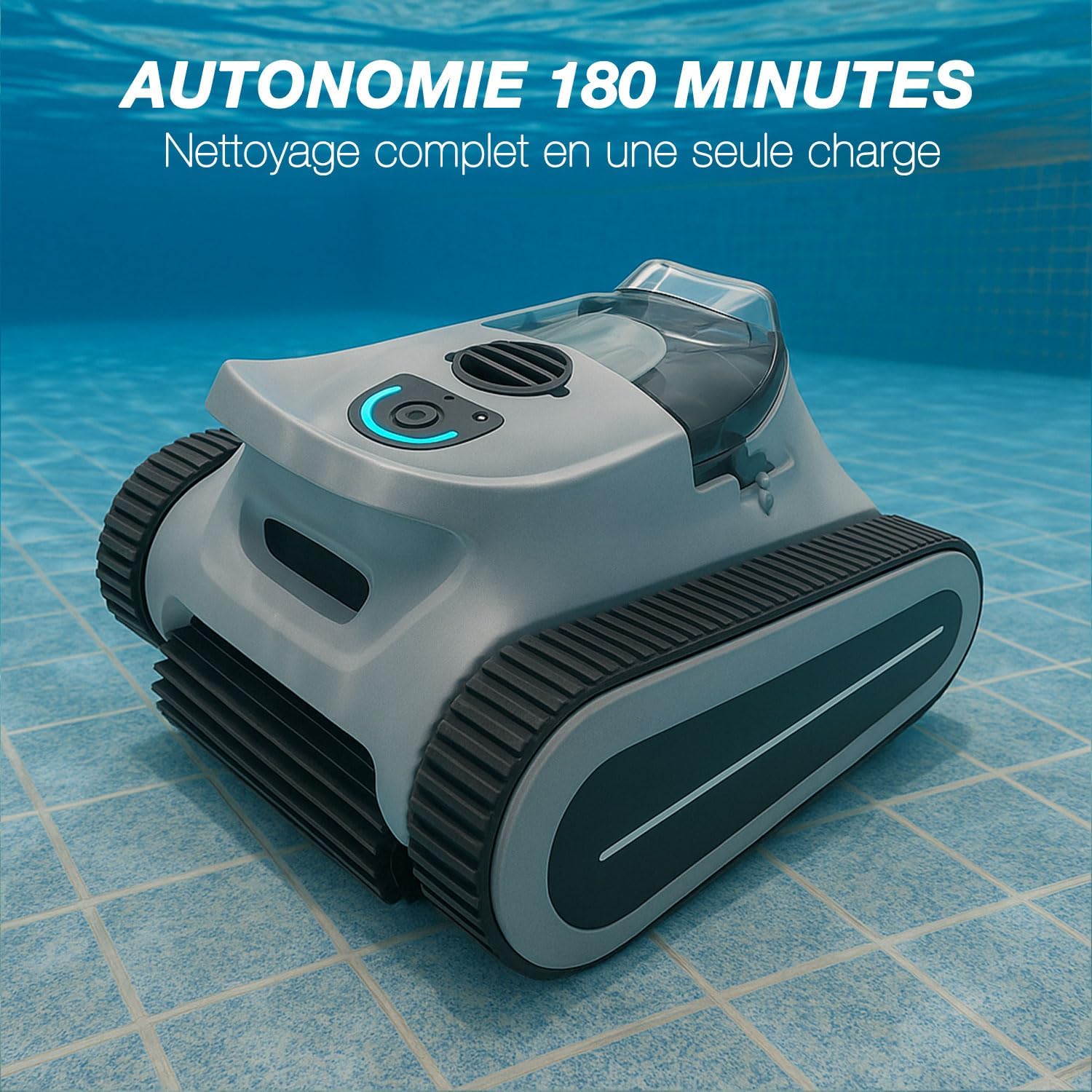

Image: The Seauto Abys 300 robot operating underwater, showcasing its 180 minutes (3 hours) of cleaning autonomy on a single charge.
5.2 Intelligent Navigation (3D-NAVI)
The Abys 300 utilizes 3D-NAVI technology to map your pool and plan an efficient cleaning route. This ensures comprehensive coverage and prevents the robot from repeatedly cleaning the same areas.
5.3 App Control
The robot can be controlled via a dedicated application. Refer to the separate app manual for detailed instructions on pairing and using the app for advanced control and monitoring.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your Abys 300.
6.1 Cleaning the Filter
After each cleaning cycle, or when the filter indicator light illuminates, clean the 250-micron filter. A clean filter is crucial for maintaining strong suction power.
- Remove the robot from the pool.
- Open the filter compartment (refer to product diagram for location).
- Remove the filter basket.
- Rinse the filter basket thoroughly with a garden hose until all debris is removed.
- Reinsert the clean filter basket and close the compartment securely.
6.2 Cleaning the Rollers
Periodically inspect the dual PVC rollers for any trapped debris, hair, or string. Clean them as needed to ensure proper traction and brushing action.
6.3 Battery Care and Replacement
The lithium battery has a lifespan of approximately 500 charge cycles. To maximize battery life, avoid fully discharging it frequently. The battery is replaceable, allowing for extended product use.
Image: A hand replacing the battery of the Seauto Abys 300, demonstrating its user-friendly replaceable battery feature for extended product life.
6.4 Storage
When storing the robot for an extended period, ensure it is clean, dry, and fully charged. Store it in a cool, dry place away from direct sunlight and extreme temperatures.
7. Troubleshooting
If you encounter issues with your Abys 300, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Robot does not start | Low battery; Power button not pressed; Obstruction | Charge the battery; Press power button firmly; Check for debris blocking movement |
| Poor cleaning performance | Clogged filter; Worn rollers; Low battery | Clean the filter basket; Inspect and clean rollers; Fully charge the battery |
| Robot gets stuck | Obstruction; Uneven pool surface; Low water level | Remove obstruction; Ensure adequate water level; Robot may adapt to minor unevenness |
| Charging issue | Charger not connected properly; Faulty charger/battery | Ensure secure connection; Contact support if issue persists |
If the problem persists after attempting these solutions, please contact Seauto customer support for assistance.
8. Specifications
| Feature | Specification |
|---|---|
| Model Name | Abys 300 |
| Brand | Seauto |
| Material | Plastic |
| Dimensions (L x W x H) | 33L x 25W x 36H cm |
| Power Source | Battery Powered |
| Battery Type | Lithium-ion |
| Battery Capacity | 7800 mAh (7000 mAh listed in some specs) |
| Runtime | 2-3 hours (180 minutes) |
| Charging Time | 3 hours |
| Suction Power | 300 Liters/minute |
| Filter Micron Rating | 250 microns |
| Control Method | Application |
| Water Resistance Rating | IP65 |
| Weight | 8.7 kg |
| Model Year | 2025 |
9. Warranty and Support
The Seauto Abys 300 comes with a limited warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or visit the official Seauto website.
For technical support, service, or inquiries about replacement parts, please contact Seauto customer service through the contact information provided on the official website or in your product packaging. Please have your model number (Abys 300) and purchase date ready when contacting support.
