1. Product Overview
The SHIMGE JET750 (formerly SGJS750N) is a 1HP water pump engineered for efficient and reliable water transfer. It features a durable stainless steel body and shaft, a high-quality mechanical seal, and an integrated thermal protector. This pump is suitable for a wide range of residential and commercial applications, including water well pumping, water supply towers, automatic irrigation systems, small air conditioning systems, and various other equipment requiring the transfer of clean water.

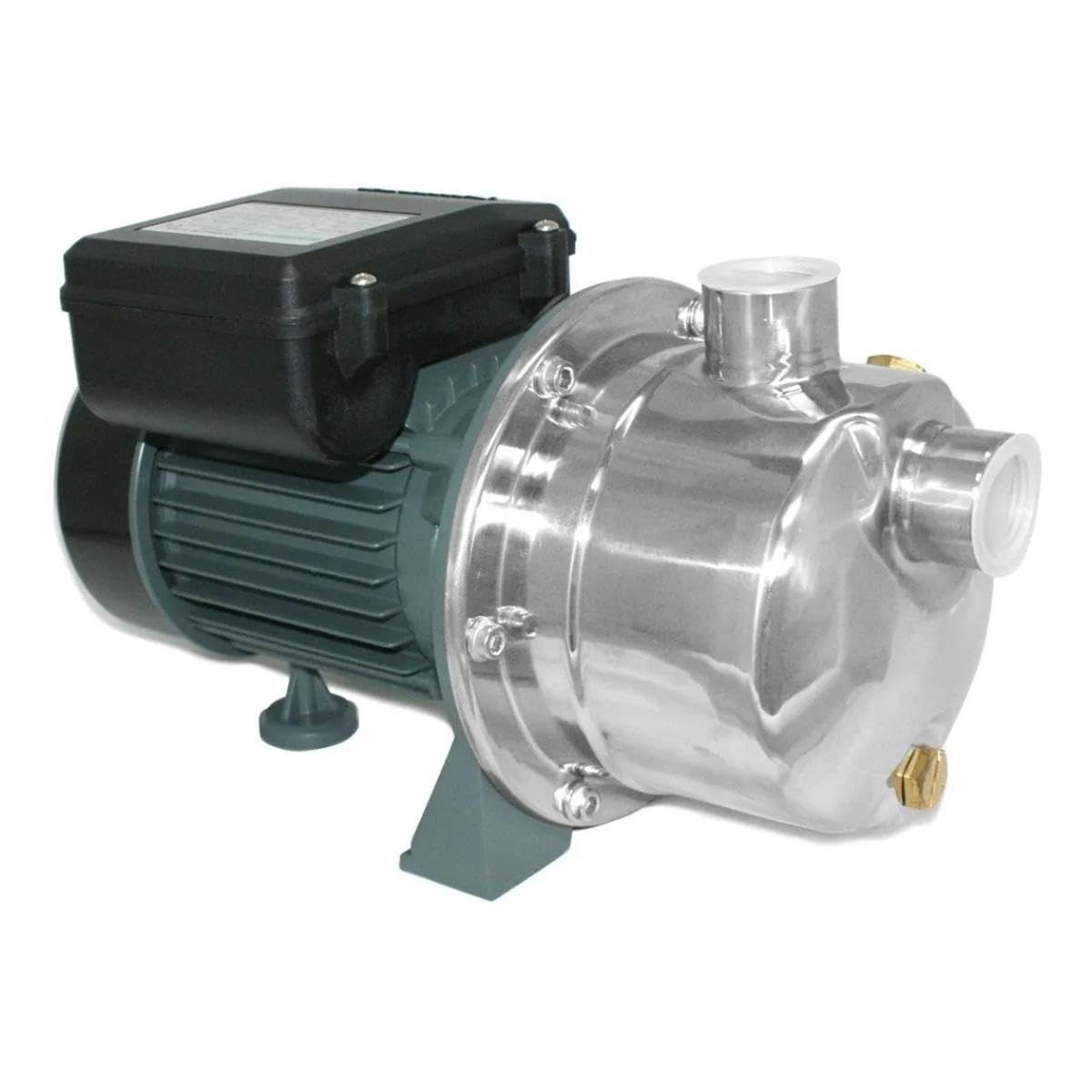

Figure 1: SHIMGE JET750 1HP Water Pump. This image shows the compact design of the pump, highlighting its stainless steel head and motor housing.
2. Safety Instructions
Read and understand all safety warnings and instructions before installing, operating, or performing maintenance on this pump. Failure to follow these instructions may result in electric shock, fire, serious injury, or death.
- Electrical Safety: Always disconnect power to the pump before any installation, maintenance, or repair work. Ensure the pump is properly grounded to prevent electrical shock. All electrical wiring must comply with local codes and regulations.
- Dry Operation: Never operate the pump without water (dry running). Dry running can cause severe damage to the pump and void the warranty.
- Installation Environment: Install the pump in a well-ventilated area, protected from direct sunlight, rain, and freezing temperatures.
- Unauthorized Access: Keep children and unauthorized personnel away from the pump during operation.
- Water Quality: This pump is designed for clean water transfer only. Do not use it for flammable, corrosive, or abrasive liquids.
3. Product Features
- Power: 1 HP motor with 750 W output.
- Motor Winding: Durable copper winding for extended life.
- Electrical: Operates on 127V / 1 Phase, 60Hz power supply.
- Connections: 1-inch NPT (National Pipe Taper) suction and discharge diameters.
- Construction: Stainless steel (SS304) body and shaft for corrosion resistance.
- Protection: Equipped with a high-quality mechanical seal and thermal protector to prevent overheating.
- Performance: Optimized hydraulic design ensures excellent performance and stability.
4. Specifications
| Specification | Value |
|---|---|
| Power | 1 HP (750 W) |
| Voltage | 127V, 60Hz |
| Current | 7.8 A |
| Maximum Flow Rate | 70 Liters per minute |
| Maximum Head | 30.5 Meters (at 10 L/min) |
| Minimum Head | 10.5 Meters (at 62 L/min) |
| Maximum Suction Lift | 9 Meters |
| Speed | 3450 rpm |
| Suction Diameter | NPT 1" |
| Discharge Diameter | NPT 1" |
| Product Dimensions (L x W x H) | 40 cm x 30 cm x 28 cm |
| Weight | 14 kg |
| Material | Cast Iron Body, Stainless Steel Head/Shaft |
| Color | Silver |
5. Setup
- Unpacking and Inspection: Carefully remove the pump from its packaging. Inspect the pump for any visible damage that may have occurred during shipping. Report any damage to your supplier immediately.
- Location Selection: Choose a suitable, level, and dry location for the pump. The location should be protected from direct weather exposure, excessive dust, and freezing temperatures. Ensure adequate ventilation around the motor.
- Pipe Connections: Connect the suction and discharge pipes to the pump's NPT 1" ports. Use appropriate thread sealant (e.g., PTFE tape) to ensure airtight and watertight connections. The suction line should be as short and straight as possible, with a slight upward slope towards the pump to prevent air pockets.
- Priming the Pump: Before the first operation, the pump casing and suction line must be filled completely with water. Remove the priming plug (if present) or fill through the discharge port until water overflows. Replace the plug securely. This step is crucial for self-priming pumps to initiate operation.
- Electrical Connection: Connect the pump to a dedicated 127V, 60Hz grounded power supply. Ensure the electrical circuit is protected by a suitable circuit breaker or fuse. Consult a qualified electrician if you are unsure about the electrical connections.
6. Operating Instructions
- Pre-Operation Check: Verify that the pump is properly primed and that all pipe connections are secure and leak-free. Ensure all necessary valves in the suction and discharge lines are open.
- Starting the Pump: Turn on the power supply to the pump. The pump should start immediately.
- Monitoring: Observe the pump during operation. Listen for any unusual noises or vibrations. Check for proper water flow and pressure. If the pump does not deliver water within a few minutes, turn it off, re-prime, and check for air leaks in the suction line.
- Stopping the Pump: To stop the pump, simply turn off the power supply. If the pump will not be used for an extended period, it is advisable to close any isolation valves.
7. Maintenance
Regular maintenance ensures optimal performance and extends the life of your pump.
- Regular Inspection: Periodically inspect the pump for any signs of leaks, corrosion, or damage to the casing, pipes, and electrical connections.
- Cleaning: Keep the exterior of the pump clean and free from debris to ensure proper motor cooling.
- Winterization: If the pump is installed in an area subject to freezing temperatures and will not be used, drain all water from the pump casing and pipes to prevent damage from freezing.
- Mechanical Seal: The mechanical seal is a wear item. If persistent leaks occur from the seal area, it may need replacement. This should be performed by a qualified technician.
- Electrical Connections: Annually check all electrical connections for tightness and signs of corrosion.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump not starting | No power supply, tripped circuit breaker, faulty motor. | Check power connection, reset breaker, consult electrician. |
| Pump runs but no water delivery | Pump not primed, air leak in suction line, suction lift too high, clogged impeller. | Re-prime pump, check all suction connections for leaks, reduce suction lift, clean impeller. |
| Low flow or pressure | Partial blockage in pipes/impeller, air in system, worn impeller, incorrect pipe sizing. | Check for blockages, re-prime, inspect impeller, ensure correct pipe diameter. |
| Excessive noise or vibration | Cavitation (air in suction), loose mounting bolts, foreign object in impeller, worn bearings. | Check suction line for air leaks, tighten mounting bolts, inspect/clean impeller, contact service for bearing replacement. |
| Pump leaks | Loose pipe connections, damaged mechanical seal, cracked casing. | Tighten connections, replace mechanical seal (professional service recommended), replace pump if casing is cracked. |
9. Warranty and Support
This SHIMGE JET750 water pump typically includes a manufacturer's warranty. Please refer to the specific warranty documentation provided with your purchase for detailed terms, conditions, and duration. Retain your proof of purchase for any warranty claims.
For technical support, service, or inquiries regarding replacement parts, please contact the manufacturer or your authorized dealer. Provide your pump's model number (JET750) and serial number (if applicable) when seeking assistance.
Return Policy: This product is eligible for a 30-day return or replacement policy from the date of purchase. Please consult your retailer for specific return procedures.
