1. Important Safety Information
Please read and understand all instructions before assembling and using this recliner chair. Keep this manual for future reference.
- Weight Capacity: Do not exceed the maximum weight capacity of 120 kg (264 lbs).
- Children and Pets: Keep children and pets away from the recliner mechanism to prevent injury.
- Stable Surface: Always place the recliner on a flat, stable, and level surface.
- Moving Parts: Be aware of moving parts during recline and rocking operations. Keep hands and feet clear.
- Assembly: Ensure all components are securely fastened before use. Do not use if any parts are missing or damaged.
2. Package Contents
Verify that all components are present before beginning assembly.
- Recliner Base
- Seat Cushion
- Backrest
- Armrests (included as per specifications)
- Assembly Hardware (screws, bolts, tools if provided)
Image: Two cardboard shipping boxes, suggesting the recliner may arrive in multiple packages.
3. Setup and Assembly
Assembly is required for this recliner chair. Follow these general steps. Refer to the included assembly diagram for detailed instructions.
- Unpack all components and lay them out on a clean, soft surface to prevent scratches.
- Attach the base to the main seat frame, ensuring all connections are secure.
- Slide the backrest into the designated slots on the seat frame until it clicks into place or is securely bolted.
- Attach the armrests if they are separate components, following the specific instructions for your model.
- Tighten all screws and bolts using the provided tools. Do not overtighten.
- Ensure the chair is stable and all mechanisms operate smoothly before first use.
Image: Two assembled recliner chairs in a living room, showcasing the final product.
4. Operating Instructions
This HOMCOM recliner offers manual recline, 360° swivel, and rocking functions for optimal comfort.
4.1 Manual Recline Function
To recline the chair:
- Locate the manual lever, typically on the side of the chair.
- Pull the lever to release the footrest and initiate the recline mechanism.
- Lean back gently to adjust the recline angle up to 135 degrees.
To return to the upright position:
- Push down with your legs and heels on the footrest to retract it.
- Lean forward to bring the backrest to its original position.
Image: Manual recline lever and visual representation of upright and reclined positions.
4.2 Swivel Function
The chair features a 360° swivel base, allowing you to rotate freely in any direction.
- Simply apply gentle pressure with your feet or body to rotate the chair.
Image: Rear view of the chair highlighting its 360-degree swivel function.
4.3 Rocking Function
The chair is designed with a rocking mechanism for added relaxation.
- Gently lean back and forth to engage the rocking motion.
Image: Visual demonstration of the chair's rocking capability.
5. Maintenance and Care
Proper care will extend the life and appearance of your HOMCOM recliner.
- Cleaning: Wipe clean with a damp cloth. For stubborn stains, use a mild fabric cleaner and test on an inconspicuous area first. Do not use harsh chemicals or abrasive cleaners.
- Spills: Blot spills immediately with a clean, dry cloth.
- Mechanism: Periodically check all bolts and screws to ensure they are tight. Lubricate moving parts if necessary with a silicone-based lubricant (do not use oil-based lubricants).
- Sunlight: Avoid prolonged exposure to direct sunlight to prevent fading of the fabric.
6. Troubleshooting
If you encounter any issues with your recliner, refer to the following common problems and solutions.
- Recliner not engaging/disengaging smoothly:
Solution: Check for any obstructions around the mechanism. Ensure all assembly bolts are tightened correctly. A small amount of silicone lubricant can be applied to moving parts if they feel stiff. - Chair feels unstable or wobbly:
Solution: Re-tighten all assembly hardware, especially those connecting the base and backrest. Ensure the chair is on a flat, even surface. - Rocking/Swivel mechanism is stiff:
Solution: Ensure the chair is not placed on thick carpet that might obstruct the base. Check for any debris in the swivel mechanism. Lubricate with a silicone-based spray if needed.
If problems persist, contact HOMCOM customer support.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | HOMCOM |
| Model Number | 83B-586V01BU |
| Color | Turquoise |
| Overall Dimensions (D x W x H) | 94 cm x 76 cm x 100 cm |
| Reclined Length | 160 cm (approx. from image) |
| Seat Height | 49.5 cm |
| Seat Depth | 56 cm |
| Seat Width | 55 cm |
| Backrest Height (internal) | 61 cm |
| Armrest Height | 61 cm |
| Weight Capacity | 120 kg |
| Material (Frame) | Alloy Steel |
| Material (Upholstery) | Polyester (Linen-effect fabric) |
| Filling Material | Sponge, Pocket Springs |
| Recline Angle | Up to 135° |
| Special Features | Adjustable Backrest, Swivel, Rocking |
| Assembly Required | Yes |
| Product Care | Wipe clean with a cloth |

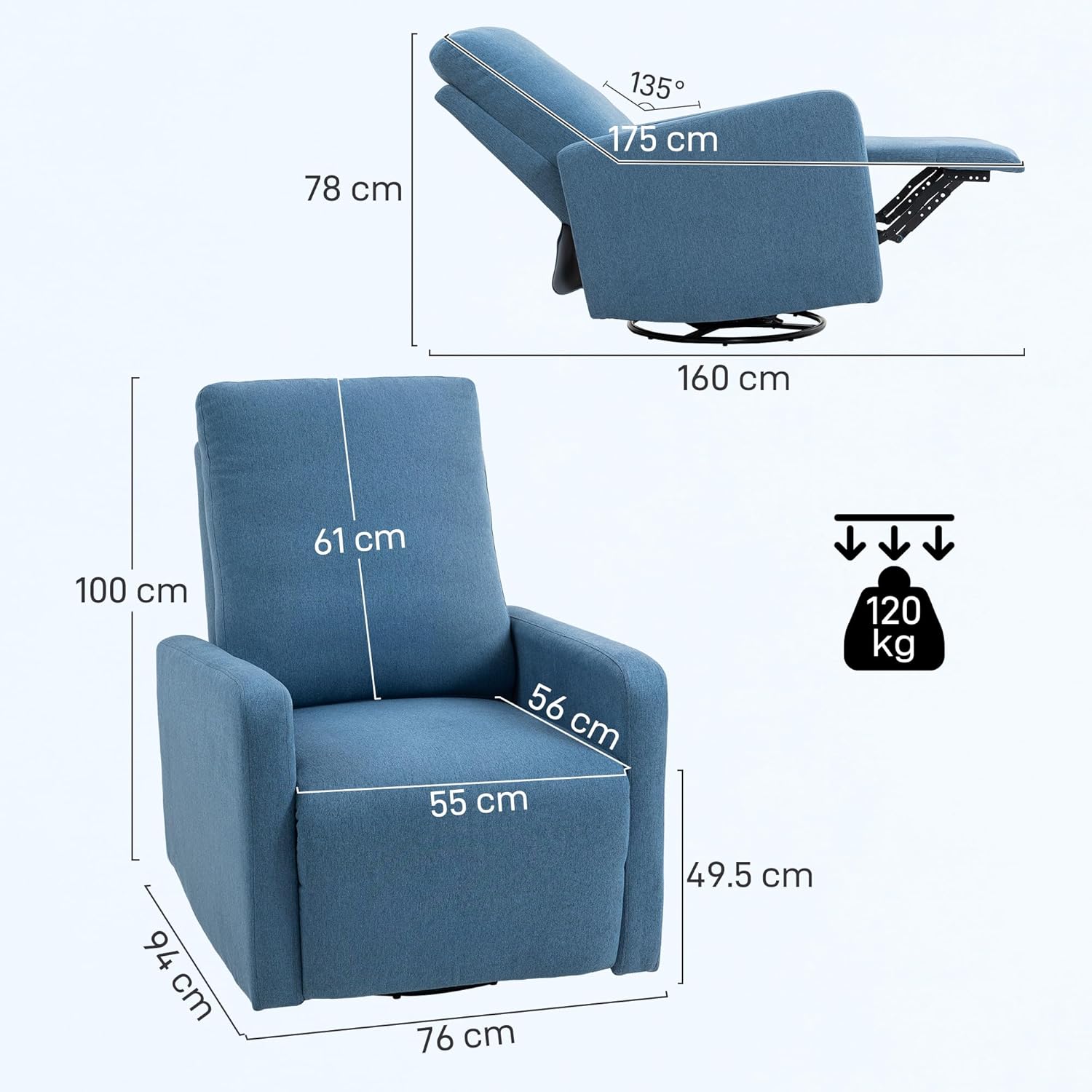

Image: Detailed dimensions and weight capacity of the recliner chair.
Image: Internal construction layers of the chair, showing fabric, foam, and pocket springs.
8. Warranty and Support
For warranty information or customer support, please refer to the documentation provided with your purchase or visit the official HOMCOM website. Keep your proof of purchase for any warranty claims.
Manufacturer: Aosom Italy
