1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your AECOJOY 8x8 Hardtop Gazebo. This heavy-duty outdoor gazebo features a galvanized steel sloping roof and is designed for use on patios, decks, and lawns. Please read this manual thoroughly before beginning assembly or use to ensure proper installation and safe operation.
Image 1.1: The AECOJOY 8x8 Hardtop Gazebo provides a shaded outdoor area.
2. Safety Information
Always adhere to the following safety guidelines during assembly, disassembly, and maintenance of the gazebo:
- Follow all included instructions carefully for assembly, disassembly, and maintenance.
- Use appropriate tools as specified in the assembly guide.
- Secure the gazebo to a stable and level foundation to prevent tipping or damage, especially during heavy weather conditions.
- Exercise caution when handling heavy materials to avoid personal injury.
- Keep children and pets away from the assembly area to prevent accidents.
- Ensure all connections are tightened securely before and after use.
- Do not hang heavy objects from the gazebo frame.
- In extreme weather conditions (e.g., hurricanes, blizzards), consider disassembling or reinforcing the gazebo to prevent damage.
3. Package Contents and Parts List
Before beginning assembly, verify that all parts listed in the included parts list are present and undamaged. Refer to the separate parts list document provided in your package for a complete inventory of components, including hardware and structural elements.
If any parts are missing or damaged, contact customer support immediately before proceeding with assembly.
4. Assembly Instructions
The AECOJOY Hardtop Gazebo is designed for straightforward assembly. It is recommended that two people perform the assembly for efficiency and safety.
- Preparation: Clear the assembly area. Ensure you have all necessary tools as specified in the parts list. Unpack all components and organize them according to the parts list.
- Frame Assembly: Begin by assembling the main frame structure. Follow the step-by-step diagrams in the provided manual. Ensure all bolts are finger-tightened initially.
- Roof Panel Installation: Carefully install the galvanized steel roof panels. Ensure they are correctly aligned and secured according to the instructions. Pay attention to the waterproof washers and ensure they are properly seated to prevent leaks.
- Securing the Gazebo: Once the frame and roof are assembled, securely anchor the gazebo to your patio, deck, or ground using the appropriate hardware. For wall-mounted models, ensure proper wall support for mounting.
Detailed visual guides and step-by-step video tutorials are available to assist with the assembly process. Refer to the QR code or link provided in your package for access to these resources.
Image 4.1: The gazebo can be wall-mounted to extend your living space.

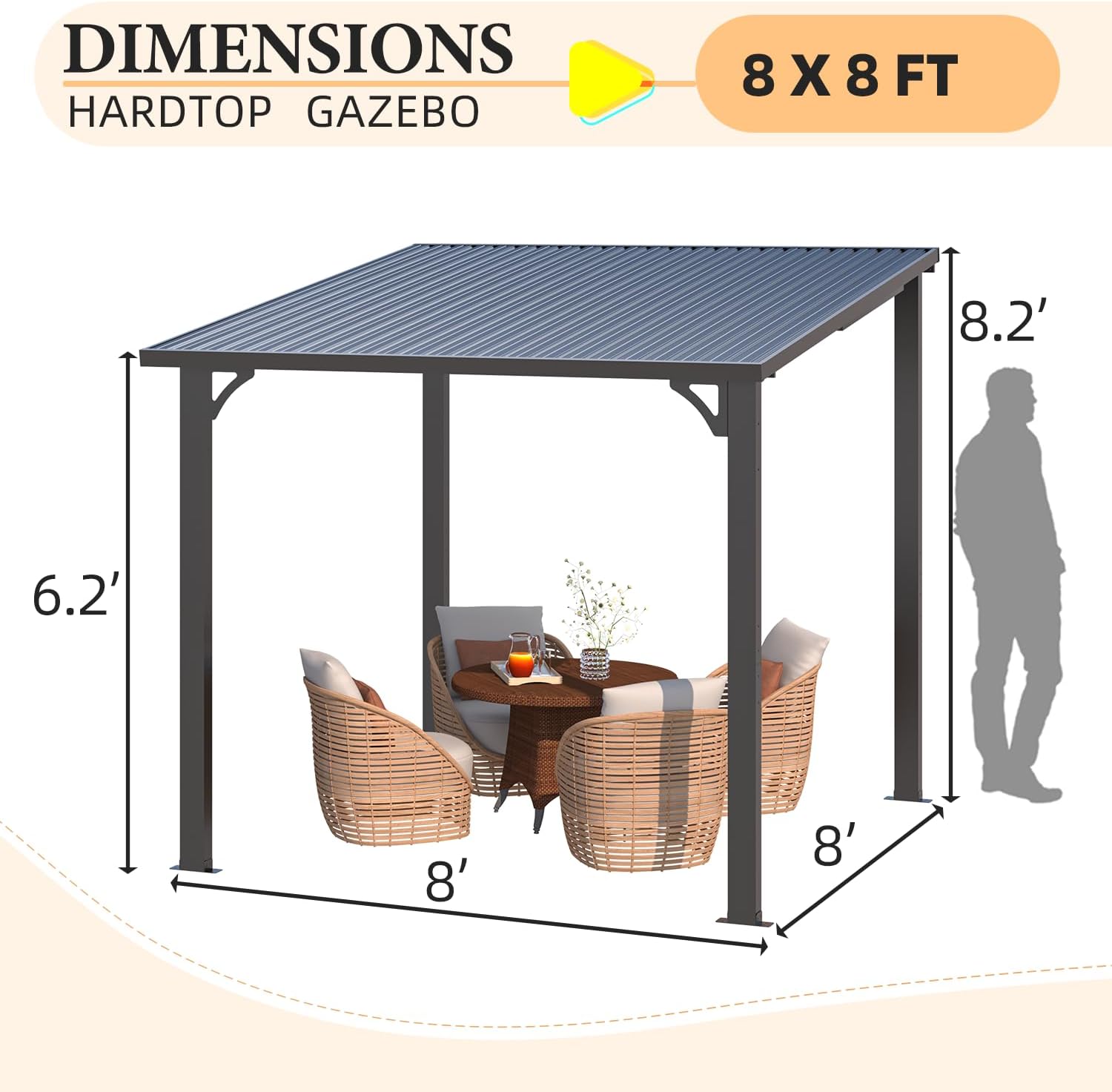

Image 4.2: Refer to the dimensions diagram for accurate placement and planning.
5. Operating Instructions
Your AECOJOY Hardtop Gazebo is designed to provide a shaded and protected outdoor area. Once properly assembled and secured, it offers:
- UV Protection: The galvanized steel hardtop provides 100% UV protection, creating a comfortable shaded spot.
- Weather Resistance: The hardtop is designed to withstand winds up to 80 MPH and can support up to 20 inches of heavy snow. It is also waterproof.
- Drainage: The sloping roof design facilitates smooth drainage of rainwater.
Enjoy your outdoor space for relaxation, dining, or gatherings under the protection of your gazebo.
Image 5.1: The gazebo provides a comfortable outdoor space day or night.
Image 5.2: Key features include complete UV blockage, high-hardness hardtop for hail, and exceptional snow load capacity.
Image 5.3: The gazebo is designed to handle significant snow accumulation.
Image 5.4: The galvanized hardtop offers multiple protective features.
6. Maintenance
Regular maintenance will extend the lifespan and preserve the appearance of your gazebo:
- Cleaning: Clean the galvanized steel roof and aluminum frame periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Fastener Check: Periodically inspect all bolts and fasteners to ensure they remain tight. Re-tighten as necessary.
- Snow Removal: While the gazebo is designed for heavy snow, it is advisable to remove excessive snow accumulation from the roof to prevent undue stress on the structure, especially during prolonged heavy snowfall.
- Drainage Inspection: Ensure the roof's drainage channels are clear of debris (leaves, twigs) to allow for proper water runoff.
- Seasonal Inspection: Conduct a thorough inspection at the beginning and end of each outdoor season for any signs of wear or damage.
7. Troubleshooting
This section addresses common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Missing or damaged parts upon delivery | Shipping error or manufacturing defect. | Do not proceed with assembly. Contact AECOJOY customer support immediately with your order details and a list of missing/damaged parts. |
| Difficulty during assembly | Incorrect part orientation, misinterpretation of instructions, or attempting assembly alone. | Review the instruction manual and video tutorials carefully. Ensure parts are oriented correctly. Assembly is easier with two people. If issues persist, contact customer support. |
| Gazebo feels wobbly after assembly | Fasteners not fully tightened, improper anchoring, or uneven ground. | Ensure all bolts and connections are securely tightened. Verify that the gazebo is anchored properly to a stable, level surface. Adjust anchoring if necessary. |
| Water leakage from roof | Improperly installed roof panels or damaged waterproof washers. | Inspect roof panel seams and waterproof washers. Ensure panels are correctly seated and washers are not damaged or deformed. Replace damaged washers if needed. |
For issues not covered here, please contact AECOJOY customer support.
8. Specifications
- Brand: AECOJOY
- Model Number: 16415BK
- Product Dimensions (L x W x H): 96" x 96" x 98.4" (8' x 8' x 8.2')
- Floor Area: 64 Square Feet
- Item Weight: 137.8 Pounds
- Frame Material: Aluminum
- Roof Material: Galvanized Steel
- Water Resistance Level: Waterproof
- Ultraviolet Light Protection: 100% UV Block
- Wind Resistance: Up to 80 MPH
- Snow Load Capacity: Up to 20 inches
- Assembly Required: Yes
- Color: Black
9. Warranty and Support
AECOJOY stands behind the quality of its products. Your gazebo comes with a commitment to customer satisfaction.
- Return Policy: This product is eligible for a 30-day return for refund or replacement. Please refer to your purchase platform's specific return policy for details.
- Maintenance and Replacements: AECOJOY provides support for maintenance and replacement parts.
- Customer Support: For any questions regarding installation, usage, or other concerns, our professional team is available 24/7. Contact information can be found on the AECOJOY official website or through your purchase platform.
For the most up-to-date warranty information and support options, please visit the official AECOJOY website or contact their customer service directly.
