1. Product Overview
The AirWire 10'x8' Wall-Mounted Lean-to Gazebo is designed to enhance your outdoor living space. Constructed with a sturdy aluminum frame and durable polycarbonate panels, this hardtop pergola provides reliable shelter and shade for your backyard, porch, or deck. Its sloped roof design ensures efficient water drainage, making it suitable for various weather conditions.

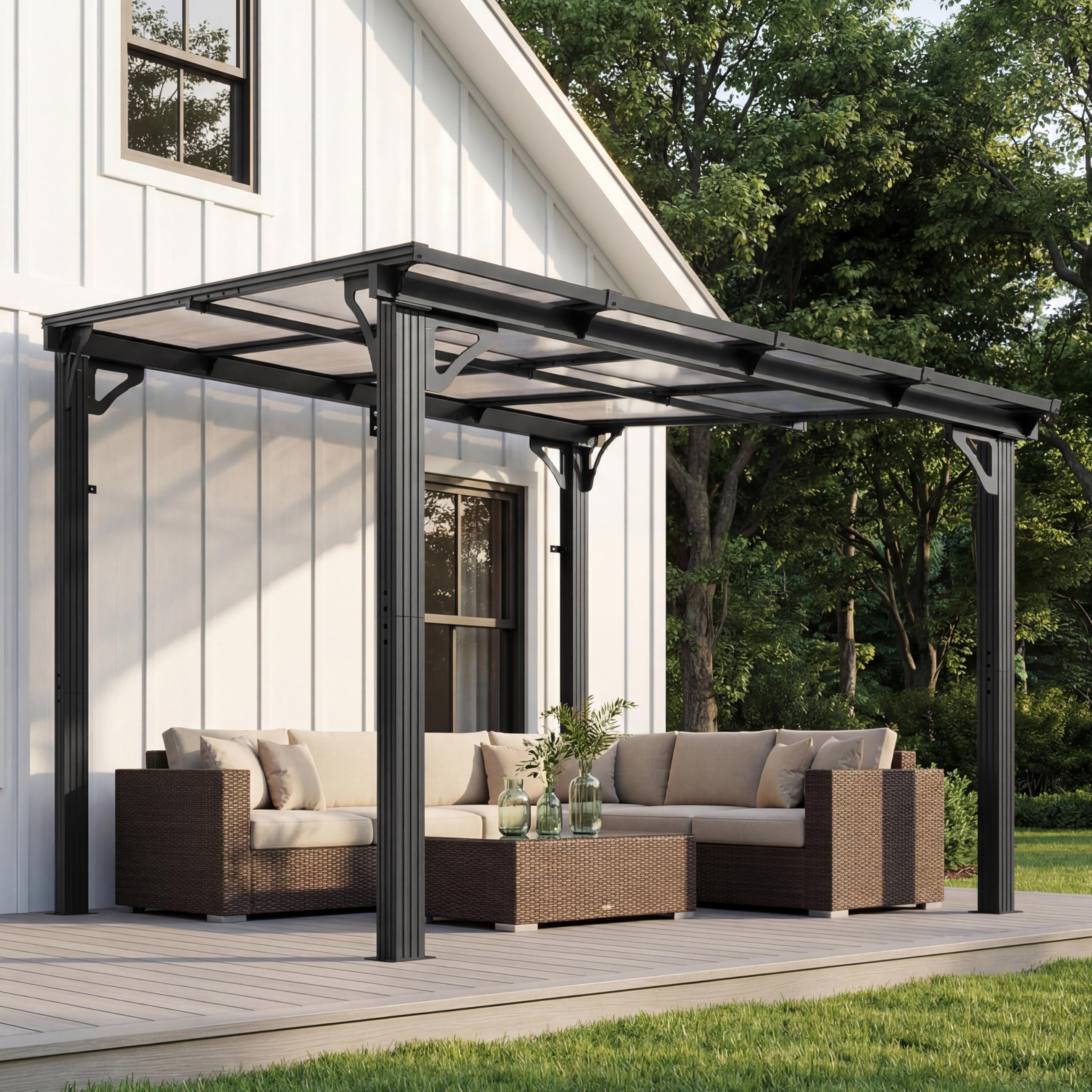

Image: The AirWire 10'x8' Wall-Mounted Lean-to Gazebo, showcasing its design and integration into an outdoor setting.
2. Safety Information
Please read and understand all safety instructions before assembly and use. Failure to follow these instructions may result in injury or product damage.
- Always secure the gazebo to a stable foundation using the provided expansion bolts.
- Do not assemble or disassemble the gazebo in windy conditions.
- Follow the illustrated step-by-step instructions carefully to avoid injury.
- Inspect the gazebo regularly for any damage or wear and tear, and perform necessary maintenance to ensure its stability and safety.
3. Product Specifications
| Feature | Detail |
|---|---|
| Brand | AirWire |
| Model Number | AKQ1008GY |
| Material | Aluminum Frame, Polycarbonate Panels |
| Color | Gray |
| Product Dimensions (L x W x H) | 94.88" x 118.5" x 99.17" |
| Item Weight | 77 Pounds |
| Water Resistance Level | Waterproof |
| Ultraviolet Light Protection | Yes |
| Assembly Required | Yes |
Image: Detailed product dimensions for the AirWire 10'x8' Wall-Mounted Lean-to Gazebo.
4. Setup and Assembly Instructions
This section provides a general overview of the assembly process. For detailed, step-by-step visual guidance, please refer to the official installation video below.
4.1. Assembly Overview Video
Video: Official installation guide for the AirWire 10x8 Lean-to Gazebo with Polycarbonate panels. This video provides a comprehensive visual walkthrough of the assembly process.
4.2. Key Assembly Steps
- Prepare the Site: Ensure your chosen wall and ground surface are stable, level, and clear of obstructions. Gather all tools and components.
- Assemble the Main Frame: Connect the horizontal beams and vertical posts according to the instructions. Secure all connections with the provided hardware.
- Attach Support Brackets: Install the triangular support brackets to the main frame, ensuring they are firmly attached for stability.
- Install Roof Panels: Carefully slide the polycarbonate roof panels into the designated channels on the frame. Ensure proper alignment and secure them as per the manual.
- Wall Mounting: Position the assembled gazebo against the wall. Mark and drill holes for the expansion bolts. Securely fasten the gazebo to the wall using the expansion bolts.
- Ground Anchoring: Anchor the base of the vertical posts to the ground using the provided ground stakes or expansion bolts for concrete surfaces.
Image: Illustrates the robust triangular structure, secure anchoring base, and wall-mounted features that contribute to the gazebo's stability.
Image: A visual representation of the DIY canopy design, indicating how the gazebo can be configured to different sizes.
5. Operating Instructions
Once fully assembled and securely anchored, your AirWire Lean-to Gazebo is ready for use. It provides a versatile shaded space for various outdoor activities.
- Enjoy your patio, deck, or poolside area with protection from sun and light rain.
- The polycarbonate roof offers UV protection, allowing gentle light while shielding from harmful rays.
- The sloped roof design ensures efficient rainwater runoff, keeping your space dry.
Video: An overview of the AirWire 10x14 FT Lean-to Gazebo, demonstrating its features and potential uses in an outdoor setting.
Image: Demonstrates the gazebo's performance in both sunny summer conditions (with UV protection) and snowy winter conditions (with high load rating).
6. Maintenance
Regular maintenance will help prolong the life and appearance of your AirWire gazebo.
- Cleaning: Clean the polycarbonate panels and aluminum frame with mild soap and water. Avoid abrasive cleaners or tools that could scratch the surfaces.
- Inspection: Periodically check all bolts, screws, and connections to ensure they remain tight. Re-tighten if necessary.
- Drainage System: Ensure the sloped roof and drainage system are free from debris (leaves, dirt) to maintain efficient water runoff.
- Winter Care: While designed for heavy snow, it is advisable to clear excessive snow accumulation from the roof to prevent potential damage and extend product lifespan.
7. Troubleshooting
If you encounter any issues with your AirWire gazebo, please refer to the following common solutions:
- Loose Connections: If the gazebo feels unstable, check all bolts and screws and tighten them securely.
- Water Pooling: Ensure the roof panels are correctly installed and the drainage channels are clear of debris.
- Panel Damage: For minor scratches or damage, repair kits may be available. For significant damage, contact customer support for replacement parts.
- Missing Parts: If any parts are missing upon delivery, contact customer support immediately.
8. Warranty and Customer Support
For any product-related inquiries, technical assistance, or to report missing/damaged parts, please contact AirWire customer support. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.
You may also consider purchasing extended protection plans available through the retailer for additional coverage.
