Introduction
This manual provides detailed instructions for the assembly, installation, operation, and maintenance of your WIN STELLAR 84" H x 42" W 5 Lites Black Wood Glass Sliding Barn Door. Please read all instructions carefully before beginning installation to ensure safe and proper use of the product.

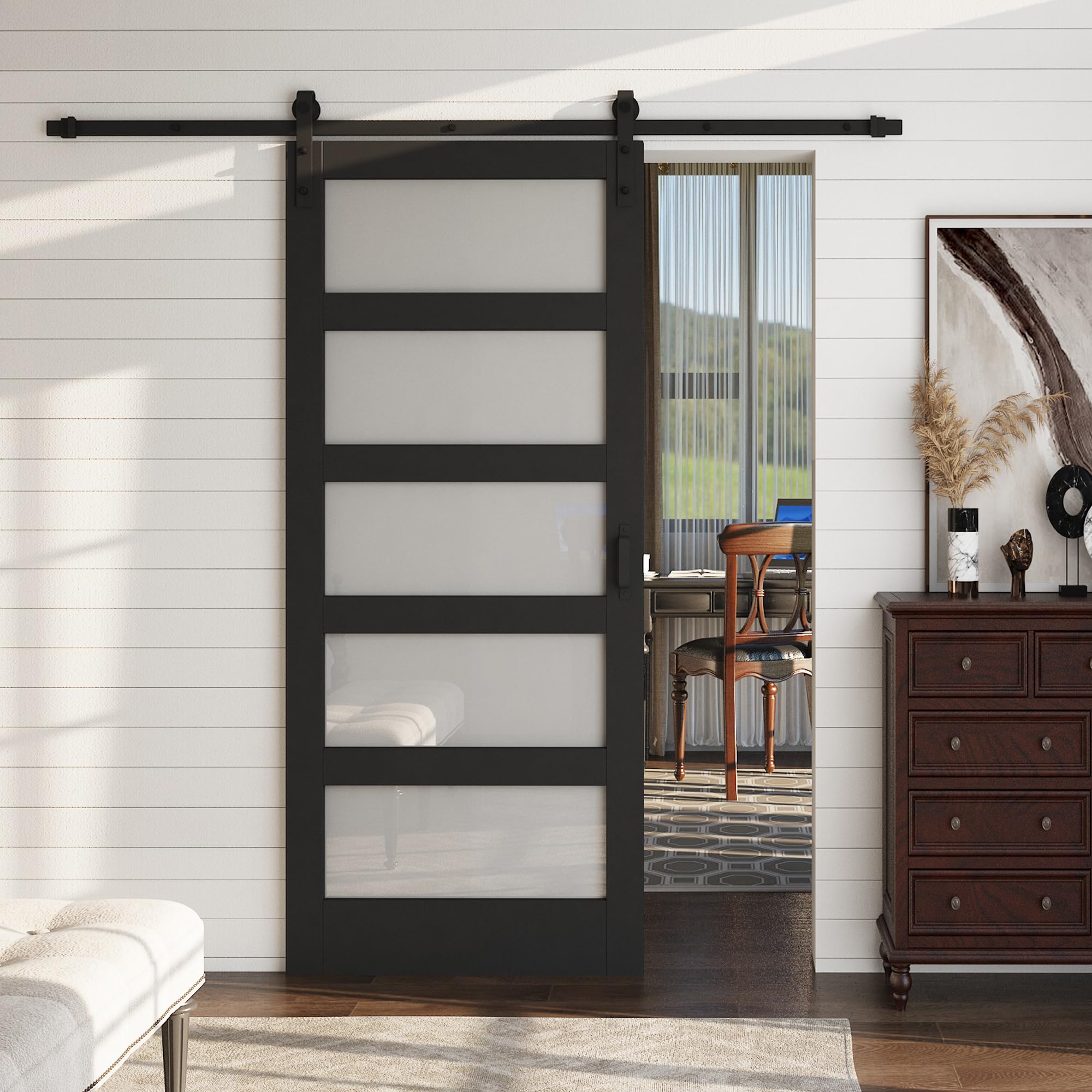

Image: The complete WIN STELLAR 84" H x 42" W 5 Lites Black Wood Glass Sliding Barn Door with its track system.
Package Contents
Before beginning assembly, verify that all components listed below are present and undamaged. The product is delivered in two separate packages for transportation safety.
- Barn Door (requires assembly)
- Hardware Kit
- Handle
- Soft Close Mechanism
Image: Illustration showing the two packages: one for the barn door hardware and one for the door slab.
Image: A visual representation of the barn door components included in the package: the unassembled door, hardware kit, handle, and soft close mechanism.
Setup and Installation
Follow these steps for the proper installation of your sliding barn door. A header board is not included and may be required for secure mounting depending on your wall structure.
- Assemble the Slats: Begin by assembling the individual slats of the barn door according to the provided diagrams.
- Insert Carriage Bolts and Plastic Caps: Securely insert the carriage bolts and plastic caps into their designated holes on the door panel.
- Assemble the Rail: Mount the sliding rail system to your wall. Ensure it is level and securely fastened.
- Hang the Door on the Rail: Carefully lift and hang the assembled door onto the installed rail.
Note: The door slab requires assembly but does not require drilling for the hardware components.

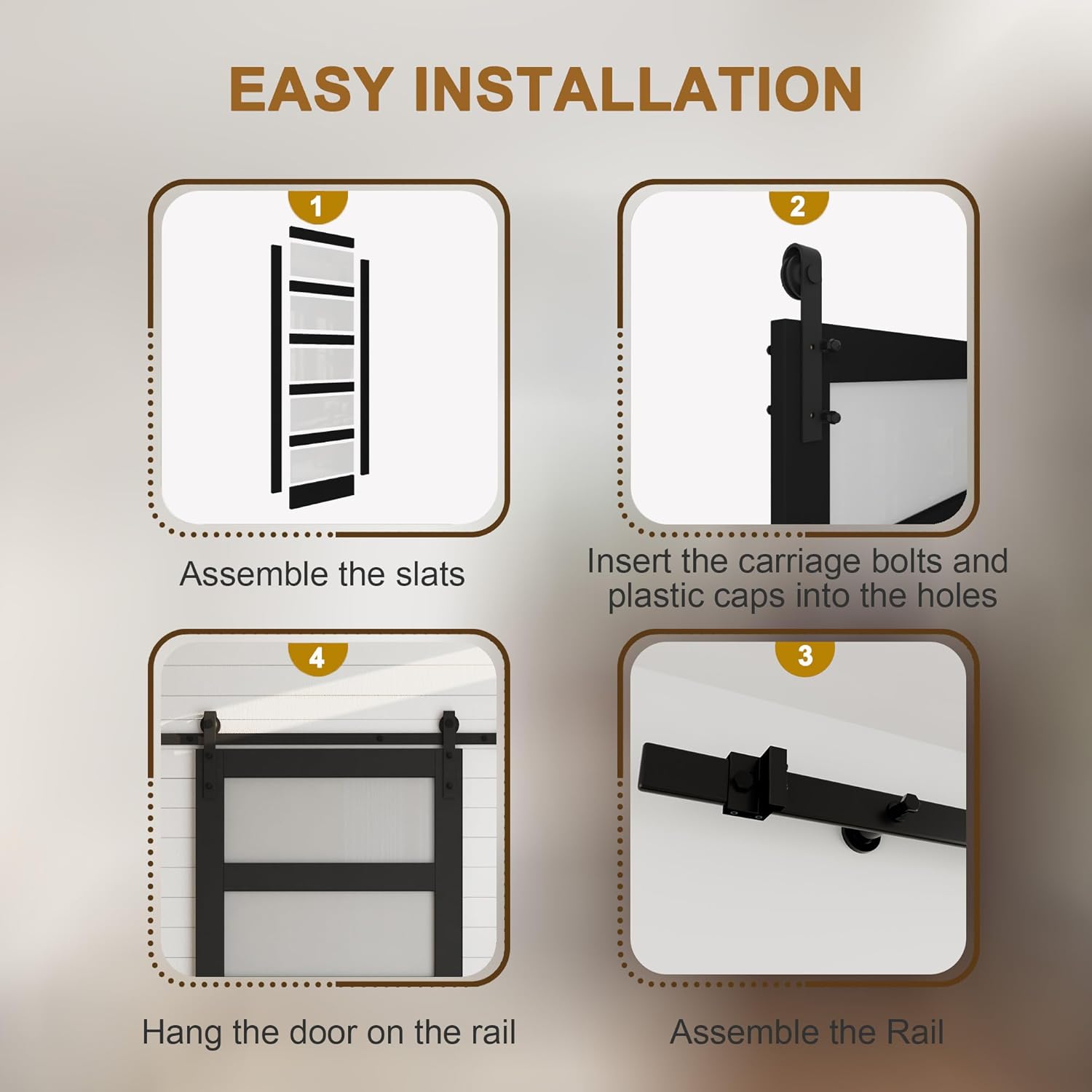

Image: A visual guide illustrating the four main steps for easy barn door installation: assembling the slats, inserting carriage bolts, assembling the rail, and hanging the door.
Hardware Size Recommendation
Refer to the table below to determine the appropriate hardware size based on your door and opening dimensions.
Image: A diagram and table providing guidance on how to choose the correct hardware size, detailing door size, recommended opening width and height, track length, and required clearance height.
| Door Size (W x H) | Opening Width (Recommend) | Opening Height (Recommend) | Track Length | Clearance Height Need |
|---|---|---|---|---|
| 30 inch x 84 inch | <28 inch | <82 inch | 72 inch | 90 inch |
| 36 inch x 84 inch | <34 inch | <82 inch | 79 inch | 90 inch |
| 42 inch x 84 inch | <40 inch | <82 inch | 84 inch | 90 inch |
| 48 inch x 84 inch | <46 inch | <82 inch | 96 inch | 90 inch |
Operating Instructions
The barn door is designed for smooth and quiet operation. To open or close the door, gently slide it along the track. The integrated soft-close mechanism will engage near the end of the door's travel, providing a controlled and silent stop.
This sliding door system offers a space-saving solution, ideal for compact areas where traditional swing doors are impractical.
Image: Detailed views of the barn door's accessories, highlighting the smooth-gliding roller, the ergonomic handle, and the floor guide for stable operation.
Maintenance
To ensure the longevity and optimal performance of your barn door, follow these maintenance guidelines:
- Cleaning: The door features a scratch-resistant, easy-to-clean, and water-resistant PVC surface. For general cleaning, wipe the door and glass panels with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Glass Care: The 4mm tempered glass is fingerprint resistant. Clean with standard glass cleaner and a lint-free cloth.
- Hardware: Periodically check all hardware components (rollers, track, fasteners) for tightness. Tighten any loose screws to prevent wear and ensure smooth operation. The hardware is tested for 100,000 open-and-close cycles, indicating high durability.
- Track: Keep the track free of dust and debris to prevent obstruction and ensure the door glides smoothly.
Image: A close-up view detailing the 4mm tempered glass, highlighting its frosted effect which blurs objects beyond 2 inches, and its fingerprint-resistant properties. The glass is SGCC certified for safety.
Troubleshooting
If you encounter any issues with your barn door, refer to the following common troubleshooting tips:
- Door not sliding smoothly: Check the track for any obstructions or debris. Ensure the rollers are clean and properly seated on the track. Verify that all track mounting screws are tight.
- Door is wobbly: Confirm that the floor guide is correctly installed and adjusted. Check all door panel connections and hardware fasteners for tightness.
- Soft close not engaging: Inspect the soft close mechanism for proper alignment and ensure no obstructions are preventing its function.
- Noise during operation: Lubricate the rollers and track with a silicone-based lubricant if squeaking occurs. Ensure no parts are rubbing against each other.
Specifications
- Dimensions: 84 inches (Height) x 42 inches (Width)
- Door Type: 5 Lites Sliding Barn Door
- Material: Wood, Glass, PVC Surface
- Glass Type: 4mm Tempered Glass, SGCC Certified, Frosted, Fingerprint Resistant
- Color: Black
- Hardware: Durable, tested for 100,000 open-and-close cycles, includes soft close mechanism.
- Features: Scratch-resistant, easy-to-clean, water-resistant finish.
Warranty Information
Specific warranty details for this product are typically provided by the manufacturer or seller at the time of purchase. Please refer to your purchase documentation or contact the seller directly for information regarding warranty coverage and terms.
Support
For further assistance, technical support, or to inquire about replacement parts, please contact WIN STELLAR customer service or visit the official WIN STELLAR store:
