Introduction
This manual provides instructions for the proper installation, operation, and maintenance of your Secura Grass Catcher Bag. This product is designed as a replacement or accessory for MTD 40 PO 11B-I1MD600 (2008) lawn mowers. Please read these instructions carefully before use to ensure safe and efficient operation.
Safety Information
Always prioritize safety when working with lawn care equipment. Failure to follow safety instructions may result in injury or damage to equipment.
- Ensure the lawn mower engine is off and the spark plug wire is disconnected before installing or removing the grass catcher bag.
- Wear appropriate personal protective equipment (PPE), such as gloves, when handling the grass catcher bag.
- Inspect the grass catcher bag for any damage before each use. Do not use if torn or damaged.
- Keep hands and feet clear of moving parts of the lawn mower during operation.
- Refer to your lawn mower's original instruction manual for additional safety guidelines.
Package Contents
Verify that all items are present upon unpacking:
- 1 x Secura Grass Catcher Bag (Model: 7483193)

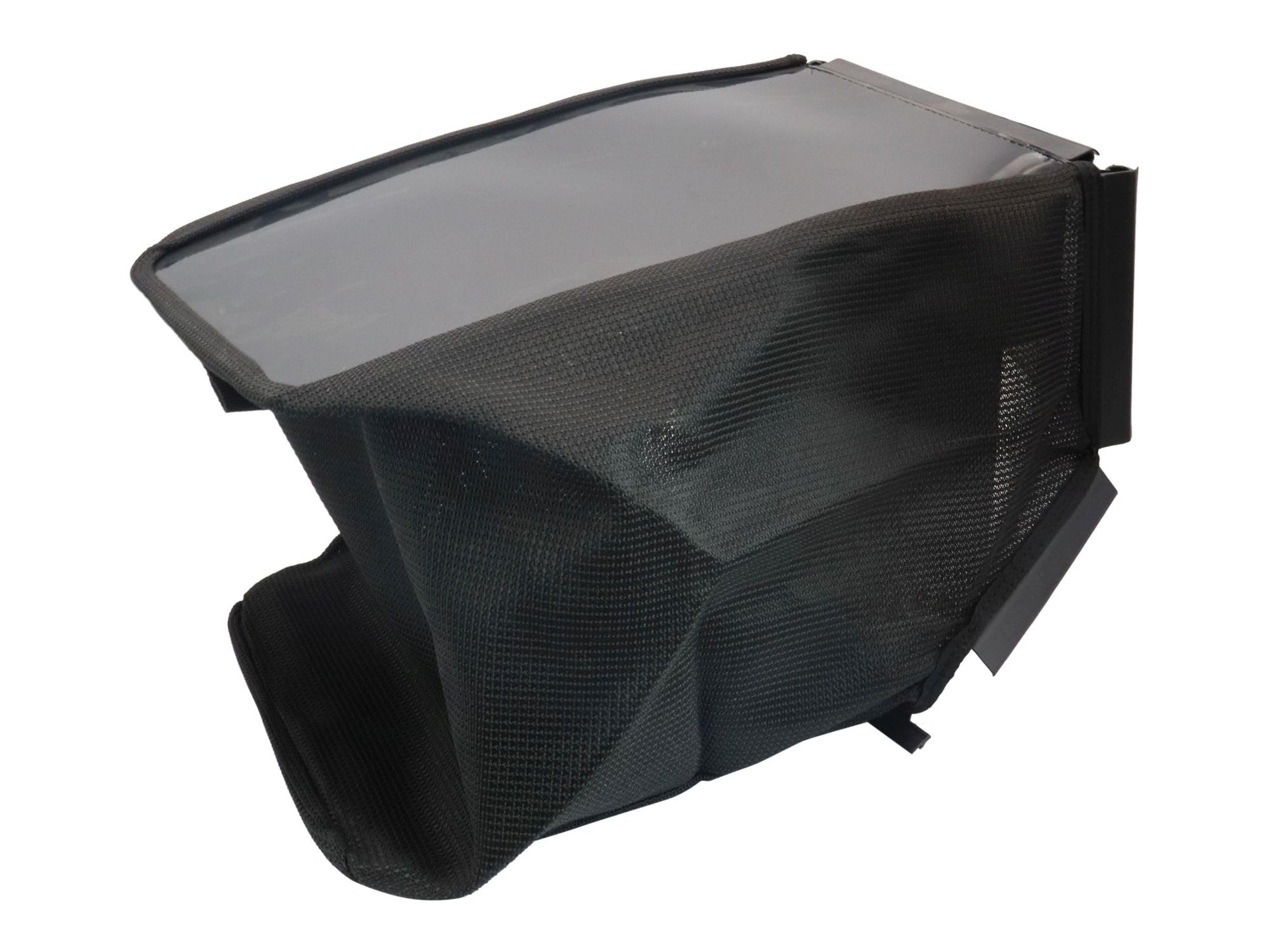

Image 1: The Secura Grass Catcher Bag, folded for storage or transport. It features a durable black mesh fabric and a sturdy plastic frame.
Setup and Installation
Follow these steps to properly install the grass catcher bag onto your MTD 40 PO 11B-I1MD600 (2008) lawn mower.
- Prepare the Mower: Ensure the lawn mower is turned off, the engine is cool, and the spark plug wire is disconnected to prevent accidental starting.
- Locate Discharge Chute: Identify the rear discharge chute on your lawn mower. This is where the grass clippings exit the mower deck.
- Lift Discharge Door: Carefully lift the spring-loaded rear discharge door (if applicable) on your lawn mower.
- Attach Grass Bag: Align the frame of the Secura Grass Catcher Bag with the mounting points or grooves around the discharge opening. The bag's opening should fit securely over the discharge chute.
- Secure in Place: Ensure the bag's frame is firmly seated and locked into position. Some models may have clips or levers to secure the bag. Refer to your lawn mower's manual for specific attachment mechanisms.
- Lower Discharge Door: Once the bag is securely attached, gently lower the discharge door so it rests against the top of the grass bag frame, creating a seal.
- Verify Installation: Tug gently on the grass bag to confirm it is securely attached and will not dislodge during operation.
Operating Instructions
Once the grass catcher bag is installed, you can begin mowing. Observe the following guidelines for optimal performance:
- Monitor Bag Fill Level: Periodically check the grass catcher bag to prevent overfilling. An overfilled bag can reduce collection efficiency and put strain on the mower engine.
- Emptying the Bag: When the bag is full, turn off the lawn mower engine and disconnect the spark plug wire. Carefully remove the grass catcher bag from the mower.
- Disposing of Clippings: Empty the grass clippings into a compost pile, waste bin, or designated area.
- Reattach Bag: Reattach the empty grass catcher bag by following the "Setup and Installation" steps in reverse.
- Mowing Conditions: For best results, mow when grass is dry. Wet grass can clog the discharge chute and reduce bagging efficiency.
Maintenance and Care
Regular maintenance will extend the life of your grass catcher bag and ensure continued performance.
- Cleaning: After each use, or as needed, remove grass clippings and debris from the bag. You can shake it out or use a brush. For a deeper clean, the fabric bag can be rinsed with water and mild soap. Allow it to air dry completely before storage or re-use.
- Inspection: Periodically inspect the fabric for tears, holes, or excessive wear. Check the frame for bends, cracks, or loose connections. Replace the bag if significant damage is present.
- Storage: Store the grass catcher bag in a clean, dry place away from direct sunlight and extreme temperatures when not in use.
Troubleshooting
If you encounter issues with your grass catcher bag, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Grass not collecting efficiently | Bag is full; discharge chute clogged; wet grass; bag not properly installed. | Empty the bag; clear the chute; mow when grass is dry; re-install bag securely. |
| Bag detaches during operation | Bag not securely attached; worn mounting points on mower. | Ensure bag is firmly locked into place; inspect mower's attachment points for damage. |
| Excessive dust or debris escaping | Bag is torn or damaged; discharge door not sealing properly. | Inspect bag for damage and replace if necessary; ensure discharge door closes fully against the bag frame. |
Specifications
Key technical details for the Secura Grass Catcher Bag:
- Brand: Secura
- Model Number: 7483193
- Compatibility: MTD 40 PO 11B-I1MD600 (2008) Lawn Mower
- Material: Durable mesh fabric with plastic frame
- Color: Black
- ASIN: B0FT2XV6F4
Warranty Information
Secura products are manufactured to high-quality standards. This product is covered by a limited warranty against manufacturing defects. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official Secura website. Keep your proof of purchase for warranty claims.
Customer Support
If you have any questions, require assistance, or need to report an issue with your Secura Grass Catcher Bag, please contact our customer support team. You can typically find contact information on the product packaging or the official Secura website.
Please have your model number (7483193) and purchase details ready when contacting support.
