EAFC 2000A Car Jump Starter (Model JC-02) Instruction Manual

1. Introduction

Thank you for choosing the EAFC 2000A Car Jump Starter. This portable and powerful device is designed to provide emergency jump-starting for 12V vehicles, act as a versatile power bank for your electronic devices, and offer illumination with its built-in LED flashlight. This manual provides essential information for safe operation, maintenance, and troubleshooting.

Package Contents:

• EAFC 2000A Car Jump Starter Unit
• Smart Jumper Clamps
• USB Power Cable
• Waterproof Zipper Storage Bag
• Instruction Manual

2. Safety Information

Please read all safety warnings and instructions before using this product. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Do not operate the jump starter if it is damaged.
• Do not jump-start a frozen battery.
• Ensure proper polarity connection (red clamp to positive, black clamp to negative) to avoid sparks or damage.
• Do not allow the smart clamps to touch each other when connected to the jump starter.
• Keep the device away from children.
• Use the jump starter in a well-ventilated area.
• Do not expose the device to water or extreme temperatures.
• Always remove the clamps from the vehicle battery immediately after the vehicle starts.

3. Product Overview

Familiarize yourself with the components and controls of your EAFC 2000A Car Jump Starter.

Figure 1: EAFC 2000A Car Jump Starter with labeled components including ON/OFF button, smart display screen, anti-reverse interface, charging port, 5V 2.0A output, and LED light.

Key Components:

• ON/OFF Button: Powers the device on or off.
• Smart Display Screen: Shows battery percentage and output status.
• DO Anti-Reverse Interface: Connection point for smart jumper clamps.
• Charging Port: For recharging the jump starter unit.
• Output 5V 2.0A / QC 3.0 / Type-C: USB ports for charging electronic devices.
• LED Light: Multi-mode flashlight for illumination.

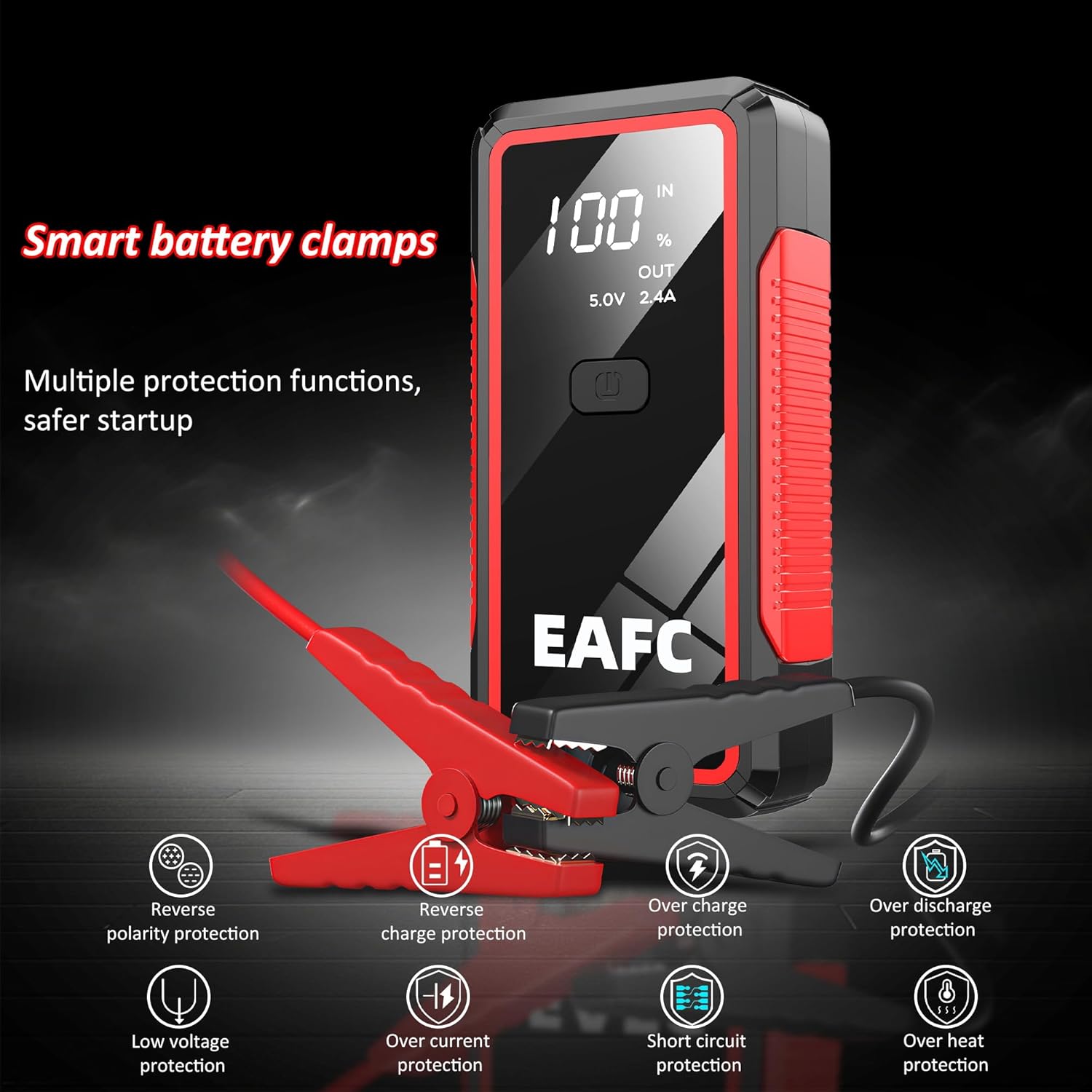

Figure 2: Smart battery clamps illustrating multiple protection functions for safer startup, including reverse polarity, reverse charge, overcharge, over discharge, low voltage, over current, short circuit, and over heat protection.

4. Setup

Charging the Jump Starter

Before first use, fully charge the EAFC 2000A Car Jump Starter. The LCD screen will display the remaining power, indicating when it's time to recharge. Use the provided USB power cable to charge the unit.

1. Connect the USB power cable to the charging port on the jump starter.
2. Plug the other end of the USB cable into a suitable USB power adapter (not included) or a car charger.
3. The display will show the charging progress. Charge until the display indicates 100%.

5. Operating Instructions

5.1. Jump Starting a Vehicle

The EAFC 2000A Car Jump Starter is designed to safely jump-start 12V vehicles with up to 6.0L gas or 4.0L diesel engines.

Figure 3: Visual guide showing the four steps to jump-start a car: 1. Insert the smart clamps into the jump starter. 2. Connect the clamps to the car battery. 3. Start the engine. 4. Remove the clamps.

1. Prepare the Vehicle: Ensure the vehicle's ignition is off and all accessories (lights, radio, etc.) are turned off.
2. Connect Smart Clamps to Jump Starter: Firmly insert the smart jumper clamps into the DO anti-reverse interface on the jump starter. Ensure a secure connection.
3. Connect Clamps to Vehicle Battery:
   • Connect the RED positive (+) clamp to the positive (+) terminal of the vehicle battery.
   • Connect the BLACK negative (-) clamp to the negative (-) terminal of the vehicle battery.

   The smart clamps will indicate a correct connection with a solid green light. If a red light or flashing light appears, check connections for proper polarity.

4. Start the Vehicle: Once the clamps are correctly connected and the smart clamps show a solid green light, start the vehicle's engine. For severely dead batteries (below 9V), press the 'Boost' button on the smart clamps if available, then attempt to start the vehicle within 30 seconds.
5. Remove Clamps: After the vehicle starts, immediately remove the smart clamps from the vehicle battery, first the negative (-) clamp, then the positive (+) clamp. Then disconnect the clamps from the jump starter.

5.2. Using as a Portable Power Bank

The EAFC 2000A Car Jump Starter features a 20000mAh capacity and multiple output ports (5V 2.0A, QC 3.0, Type-C) to charge your electronic devices.

1. Turn on the jump starter unit.
2. Connect your device's charging cable to one of the available USB output ports on the jump starter.
3. The jump starter will begin charging your device.

Figure 4: The EAFC 2000A Car Jump Starter connected via USB to charge a smartphone, demonstrating its function as a portable power bank.

5.3. Using the LED Flashlight

The built-in LED flashlight offers three modes for various emergency situations.

1. Press and hold the flashlight button (usually indicated by a lightbulb icon) to turn on the flashlight in constant illumination mode.
2. Press the button again to switch to SOS mode (flashing Morse code for distress).
3. Press the button a third time to activate strobe mode (rapid flashing).
4. Press and hold the button again to turn off the flashlight.

Figure 5: The EAFC 2000A Car Jump Starter's LED flashlight in use, highlighting its three switching modes: Highlight lighting, SOS, and Flash, useful for nighttime emergencies.

6. Maintenance

Proper maintenance ensures the longevity and optimal performance of your jump starter.

• Recharge Regularly: To maintain battery health, recharge the unit at least once every 3-6 months, even if not in use.
• Storage: Store the jump starter in its waterproof zipper storage bag in a cool, dry place, away from direct sunlight and extreme temperatures.
• Cleaning: Wipe the unit with a dry, soft cloth. Do not use harsh chemicals or abrasive materials.

7. Troubleshooting

If you encounter issues with your EAFC 2000A Car Jump Starter, refer to the following common problems and solutions:

• Device Not Turning On: Ensure the unit is charged. If the battery is completely depleted, it may take a few minutes of charging before it responds.
• Vehicle Not Starting:
  • Check that the smart clamps are securely connected to both the jump starter and the vehicle battery terminals with correct polarity.
  • Ensure the jump starter has sufficient charge (at least 50% recommended for optimal performance).
  • For very low vehicle batteries, use the 'Boost' function on the smart clamps if available.
• Smart Clamps Indicator Light Issues: Refer to the smart clamps' manual for specific light indications (e.g., red light for incorrect connection, flashing for low battery).
• Device Not Charging: Ensure the USB cable and power adapter are functioning correctly. Try a different cable or adapter.

8. Specifications

9. Warranty and Support

This EAFC product is designed for reliability and performance. For any warranty claims or technical support, please refer to the contact information provided on your product packaging or the official EAFC website. Protection plans are available for extended coverage.
