1. Introduction

The XRIDONSEN 8PCS Sync Blue Grill Emergency Lights (Model: XR-890S) are designed to enhance vehicle visibility and safety in emergency situations. These surface mount LED lights provide bright, noticeable illumination, making your vehicle more visible to others on the road, even during daylight hours. Constructed from high-quality PC material, they offer excellent anti-collision, shockproof, dustproof, and anti-corrosion performance with an IP67 waterproof rating, ensuring durability in various weather conditions. Each light features a spotlight TIR lens, low power consumption, and a service life of 50,000 hours.

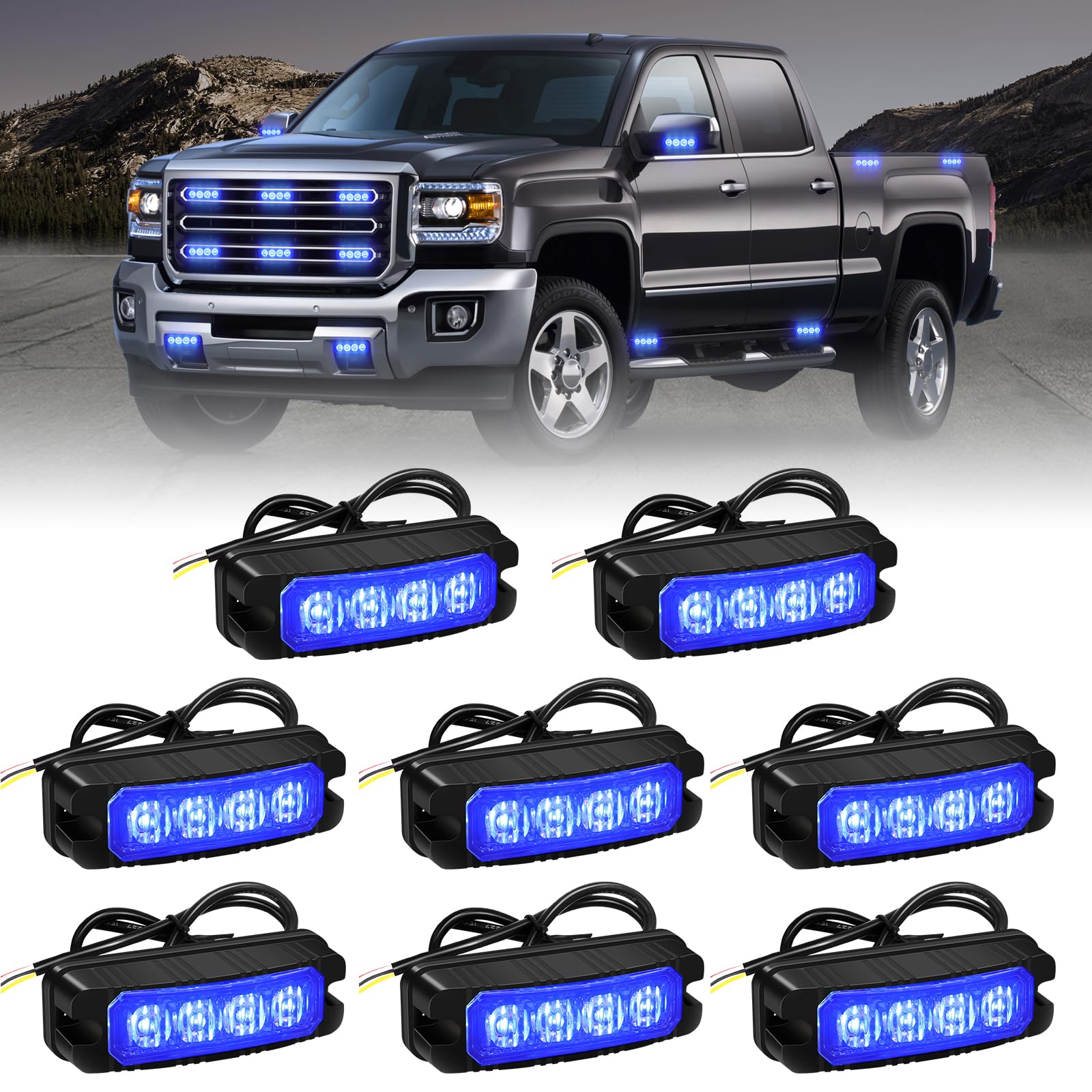

Image: XRIDONSEN 8PCS Sync Blue Grill Emergency Lights installed on a vehicle's grille, emitting bright blue light.

2. What's in the Box

• 8PCS 4 LED Strobe Lights
• Mounting Bolts and Nuts (16 sets)
• Mounting Screws (16 pieces)
• Wire Connectors (32 pieces)
• Rubber Gaskets (8 pieces)

Image: Contents of the XRIDONSEN emergency light kit, including 8 LED lights, bolts, screws, wire connectors, and rubber gaskets.

3. Specifications

4. Setup and Installation

The XRIDONSEN emergency lights are designed for easy surface mounting on various parts of your vehicle. They are compatible with almost any vehicle that has a 12V-24V power source.

4.1 Recommended Installation Locations:

• Grille
• Front Bumper
• Bumper Corners
• Tailgate
• Running Board
• Side Surfaces
• Rearview Mirrors
• Exterior Roof Rack

The lights can be securely mounted using the provided bolts or self-tapping screws. An upgraded thick rubber base pad is included at the bottom of each light to prevent damage to your vehicle's surface during installation.

4.2 Wiring Instructions:

• Red Wire: Positive (+)
• Black Wire: Negative (-)
• Yellow Wire: Flash Pattern Control (Touch to black wire to cycle patterns)
• White Wire: Synchronization (Connect white wires of all heads together for synchronized flashing)

Use the included wire connectors for quick and secure connections without the need for stripping or welding.

Image: Wiring diagram for XRIDONSEN emergency lights.

Image: Mounting options and components for installation.

5. Operating Instructions

The XRIDONSEN emergency lights offer 20 distinct flashing patterns to suit various operational needs. The lights feature a quick response time and will save the last strobe pattern used, ensuring convenience upon restart.

5.1 Changing Flash Patterns:

To cycle through the 20 available flashing patterns, momentarily touch the yellow wire to the black (negative) wire. Each touch will advance to the next pattern.

5.2 Synchronization:

For synchronized flashing across all installed lights, connect the white wires of all individual light heads together. This ensures a unified and highly visible warning signal.

6. Maintenance

To ensure optimal performance and longevity of your XRIDONSEN emergency lights, follow these maintenance guidelines:

• Regular Cleaning: Clean the light surfaces periodically with a soft cloth and mild soap to remove dirt and debris. Avoid abrasive cleaners that could scratch the polycarbonate lens.
• Inspect Wiring: Routinely check all wiring connections for any signs of wear, corrosion, or loose contacts. Ensure all connections remain secure and insulated.
• Check Mounting: Verify that all lights are securely mounted and that bolts/screws are tightened appropriately. The rubber base pads should be intact to prevent vibration and surface damage.
• Environmental Protection: While IP67 rated, prolonged exposure to extreme conditions can still affect lifespan. Consider additional protection if operating in exceptionally harsh environments.

7. Troubleshooting

If you encounter issues with your XRIDONSEN emergency lights, consider the following troubleshooting steps:

• Lights Not Turning On:
  • Check power connections (red wire to positive, black wire to negative) for secure contact.
  • Verify the vehicle's power source (12V-24V) is active.
  • Inspect for any blown fuses in the vehicle's electrical system or in-line fuse if installed.
• Lights Not Synchronizing:
  • Ensure all white synchronization wires are correctly connected together.
  • Check for any breaks or loose connections in the white synchronization wire circuit.
• Incorrect or No Flash Pattern Change:
  • Confirm the yellow wire is momentarily touching the black (negative) wire to cycle patterns.
  • Ensure the yellow wire connection is clean and making proper contact.
• Dim or Intermittent Lighting:
  • Check for loose power connections or insufficient voltage from the power source.
  • Inspect for any damage to the light unit or wiring.

If these steps do not resolve the issue, please contact customer support.
