Varpoolfaye 65000 BTU Inverter Electric Pool Heat Pump User Manual

1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Varpoolfaye 65000 BTU Inverter Electric Pool Heat Pump, Model KSPF-010L1UR1A2. Please read this manual thoroughly before using the product and retain it for future reference.

1.1 Safety Information

• Ensure all electrical connections are performed by a qualified electrician in accordance with local and national electrical codes.
• Do not operate the heat pump if any part is damaged or malfunctioning.
• Keep children and pets away from the unit during operation.
• Ensure proper ventilation around the unit. Do not block air inlets or outlets.
• Always disconnect power before performing any maintenance or service.

2. Product Overview

The Varpoolfaye 65000 BTU Inverter Electric Pool Heat Pump is designed to efficiently heat or cool your pool water, extending your swimming season. It features advanced inverter technology for energy efficiency and quiet operation.

2.1 Key Features

• High Efficiency: Delivers 65000 BTU with a Coefficient of Performance (COP) of 6.6, utilizing air energy to reduce electricity consumption for heating or cooling.
• Quiet Operation: Operates at a low noise level of approximately 45dB, ensuring a peaceful pool environment.
• Inverter Technology: Features an inverter compressor for extended lifespan, lower energy usage, and precise temperature control.
• Smart Control Panel: Equipped with an intelligent touch control panel for easy adjustments and a one-button fast heat function.
• WiFi Connectivity: Remote control via a dedicated mobile application allows temperature adjustments, scheduling, and mode switching from any location.
• Versatile Application: Suitable for both freshwater and saltwater pools, including above-ground and in-ground installations up to 21,000 gallons.
• Easy Installation: Includes 1.5-inch connectors and a 118-inch power cord for minimal setup effort.

2.2 Product Components

Figure 1: Front view of the Varpoolfaye 65000 BTU Inverter Electric Pool Heat Pump.

Figure 2: Included components and dimensions of the heat pump unit.

• Heat Pump Unit (36.2 x 13.8 x 25.6 inches)
• Instruction Manual
• Condense Water Draining Hose (x2)
• Rubber Shock Absorption Pad (x4)
• Condense Water Draining Fitting (x2)
• Adapter (x2)

3. Setup & Installation

Proper installation is crucial for the performance and longevity of your heat pump. Follow these steps carefully.

3.1 Unpacking and Placement

• Carefully remove the heat pump from its packaging.
• Place the unit on a flat, stable surface. The included rubber shock absorption pads should be placed under the unit's feet to minimize vibration and noise.
• Ensure adequate clearance around the unit for proper airflow (refer to the manual for specific distances). Do not place the unit in an enclosed space.

3.2 Electrical Connection

• This unit requires a 220V-240V (AC) power supply.
• The heat pump comes with a 118-inch power cord.
• Important: Electrical installation must be performed by a qualified electrician to ensure compliance with all local and national electrical codes and safety standards.

3.3 Water Connection

The heat pump connects to your pool's filtration system. Water flows from the pool, through the filter, then through the heat pump, and back to the pool.

Figure 3: Various connection options for integrating the heat pump with your pool system.

• Connect the water inlet and outlet ports of the heat pump to your pool's circulation system using the provided 1.5-inch connectors or appropriate adapters for your hose size.
• Ensure all connections are secure and watertight to prevent leaks.
• The recommended flow rate for optimal performance is 1800-2400 Gallons Per Hour (GPH).

4. Operation

Your Varpoolfaye heat pump can be operated directly via its control panel or remotely using the WiFi app.

4.1 Control Panel Operation

Figure 4: The intelligent touch control panel for direct unit operation.

1. Power On/Off: Press and hold the power button (usually indicated by a circle with a vertical line) for 2-3 seconds to turn the unit on or off.
2. Mode Selection: Use the 'M' button to cycle through available modes (e.g., Heat, Cool, Smart Heat, Eco Heat, Boost Heating, Eco Cooling, Boost Cooling).
3. Temperature Adjustment: Use the up and down arrow buttons to set your desired water temperature.
4. WiFi Connection: To initiate WiFi pairing, press and hold the top right button (often a WiFi icon) and the down arrow simultaneously until the WiFi signal icon on the display flashes. It will become solid once connected to your network.

4.2 WiFi App Control

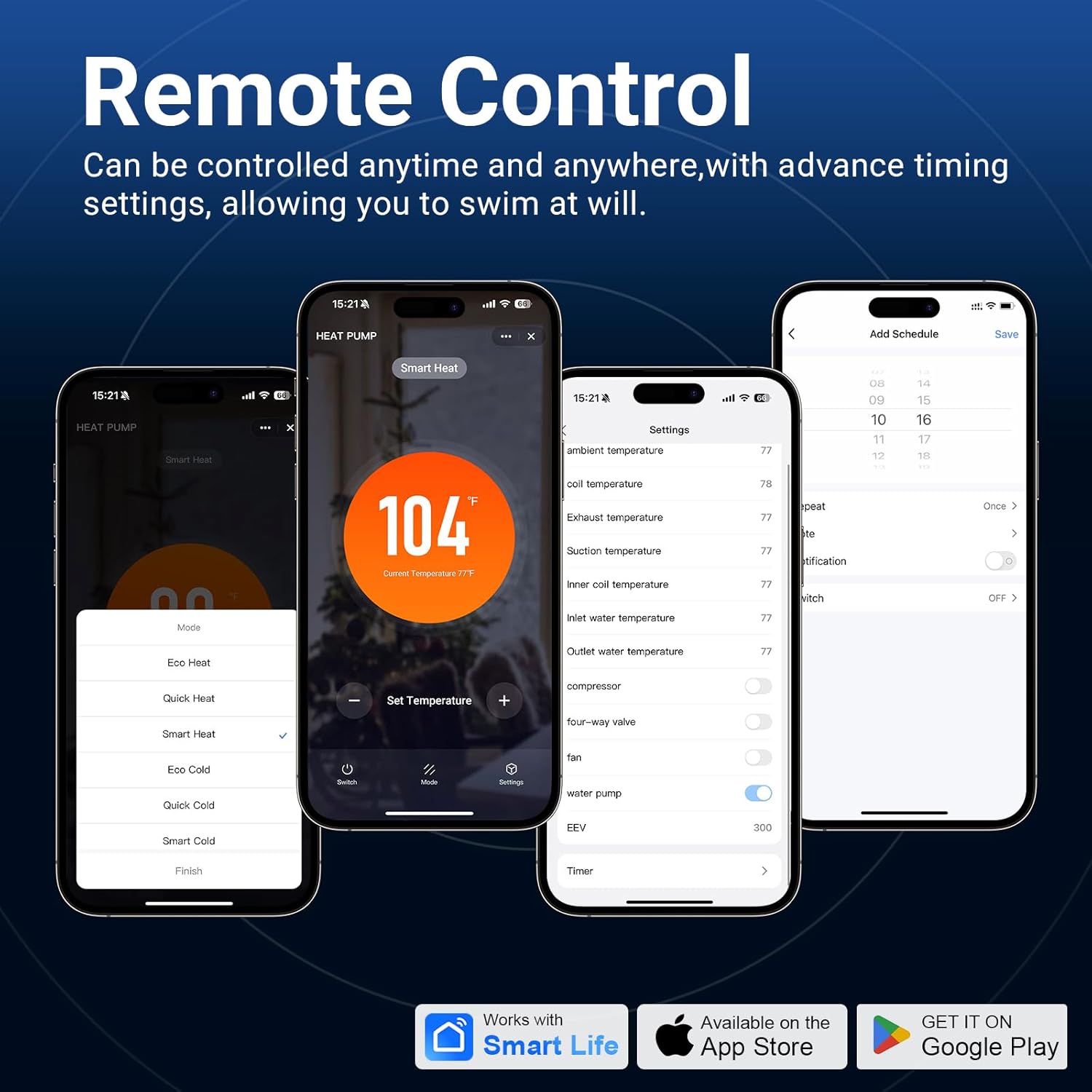

The Varpoolfaye heat pump can be controlled remotely via a smartphone app. Scan the QR code in the instruction booklet to download the app (available on App Store and Google Play).

• Once the app is installed and your heat pump is paired (as described in 4.1), you can:
• Monitor current pool temperature.
• Adjust the target temperature.
• Switch between heating and cooling modes.
• Set operational schedules and timers.
• Receive notifications regarding unit status.

5. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your heat pump.

• Clean the Unit: Periodically clean the exterior of the heat pump to remove dust, leaves, and debris. Ensure the air intake and exhaust vents are clear.
• Check Water Flow: Regularly inspect the water connections and hoses for any blockages or leaks. Maintain proper water flow through the unit.
• Condensate Drainage: Ensure the condensate drain hose is clear and allows for proper water drainage.
• Winterization: Before freezing temperatures, properly winterize the unit by draining all water from the heat pump and disconnecting it from the power supply. Consult a professional if unsure.
• Professional Inspection: Consider an annual inspection by a qualified technician to ensure all components are functioning correctly.

6. Troubleshooting

This section addresses common issues you might encounter. For more complex problems, contact customer support.

7. Specifications

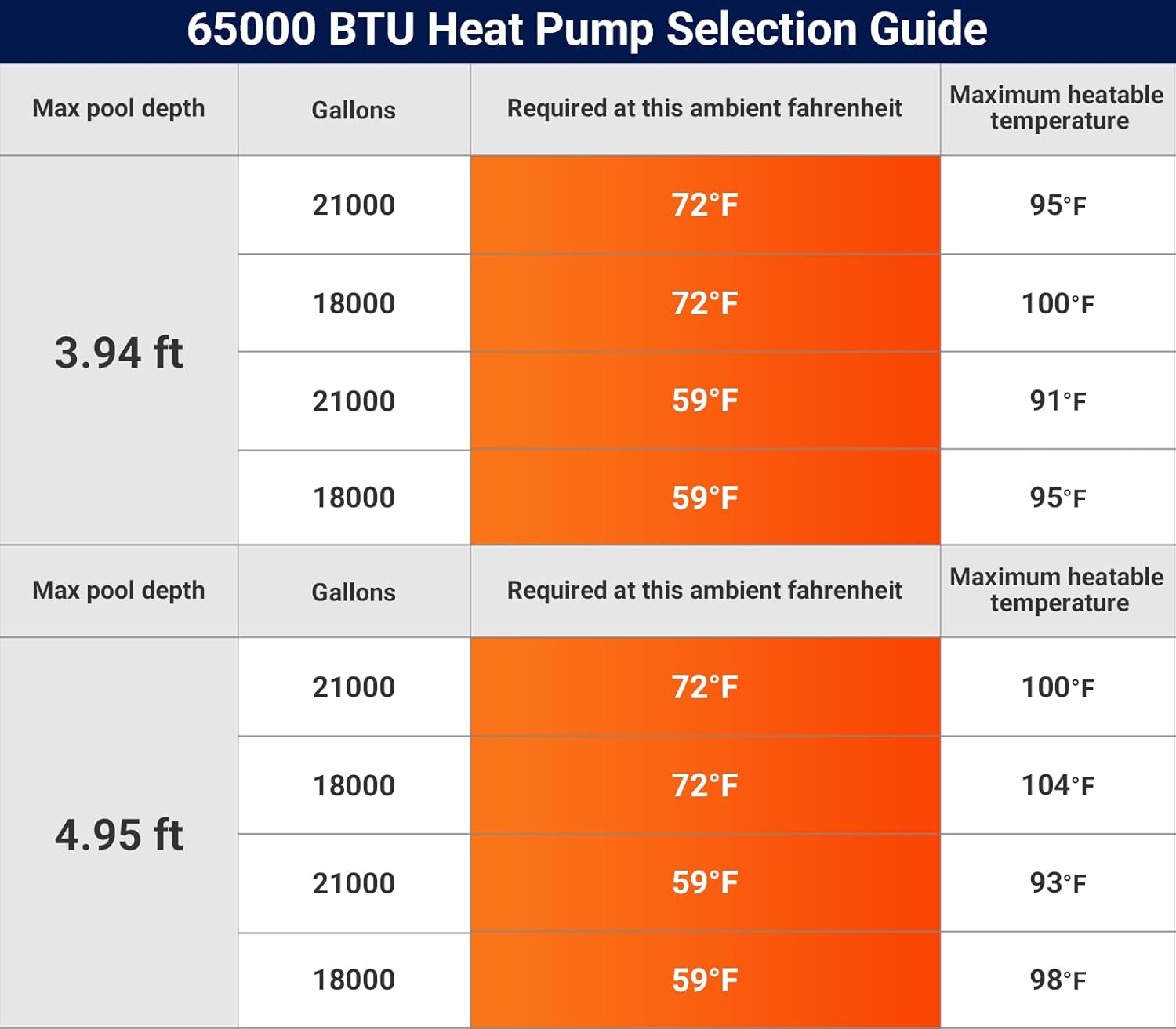

Figure 5: Heat Pump Selection Guide based on pool size and desired temperature.

8. Warranty & Support

For warranty information, technical support, or service inquiries, please refer to the contact details provided in your product packaging or visit the official Varpoolfaye website. Keep your purchase receipt as proof of purchase for warranty claims.
