INSE S62 Cordless Vacuum Cleaner User Manual

1. Important Safety Instructions

Read all instructions before using this appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up toxic material, such as chlorine bleach, ammonia, or drain cleaner.
• Do not use without dust cup and/or filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not charge the unit outdoors.
• Use only the charger supplied by the manufacturer to recharge.
• Do not incinerate the appliance even if it is severely damaged. Batteries can explode in a fire.

2. Product Components

The INSE S62 Cordless Vacuum Cleaner comes with various components designed for versatile cleaning. Refer to the image below for a visual guide to the included parts.

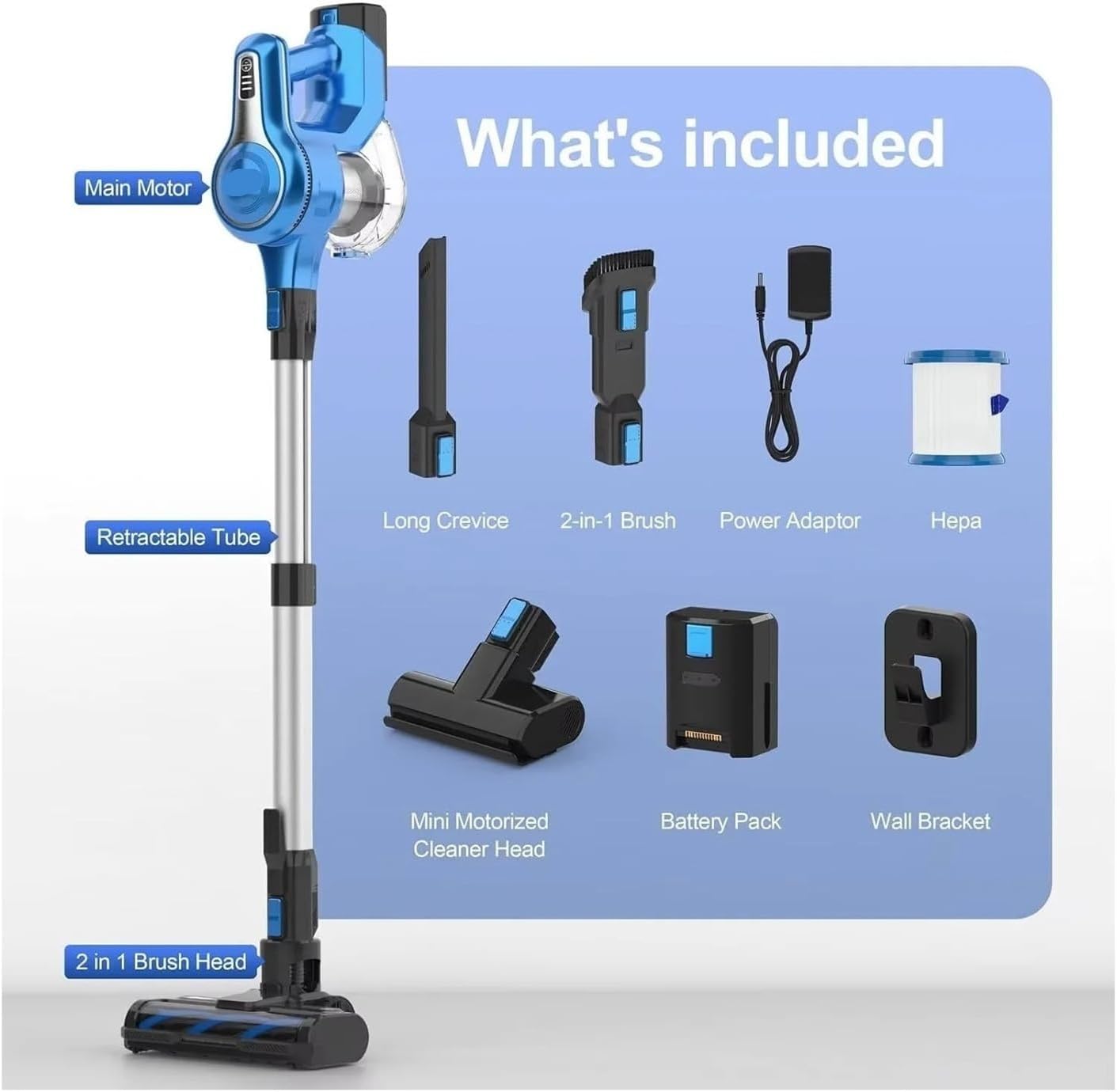

This image illustrates the complete set of components included with your INSE S62 vacuum cleaner, such as the main motor, retractable tube, various brush heads, and accessories.

Included Parts List:

1. Flexible hose
2. Main motor (motor & dust cup)
3. Motorized brush head
4. Long crevice tool
5. Wall mount
6. Stiff roller brush
7. Soft roller brush
8. Mini Motorized brush head
9. 2-in-1 brush
10. Screws (for wall mount)
11. Straight metal tube (retractable tube)
12. Power Adapter
13. Cleaning gadget
14. User manual (this document)
15. Extra HEPA Filter

3. Setup and Assembly

3.1 Initial Charging

Before first use, fully charge the vacuum cleaner's battery. Connect the Power Adapter to the charging port on the main motor unit and plug it into a wall outlet. The charging indicator will show the charging status. A full charge typically takes approximately 5 hours.

3.2 Assembling the Stick Vacuum

1. Insert the straight metal tube (retractable tube) into the main motor unit until it clicks securely into place.
2. Attach the desired brush head (Motorized brush head, Stiff roller brush, or Soft roller brush) to the other end of the straight metal tube, ensuring it clicks into place.
3. Confirm all connections are firm before operation.

3.3 Wall Mount Installation (Optional)

To store your vacuum conveniently, you can install the wall mount:

1. Choose a suitable location near a power outlet.
2. Mark the drilling points using the wall mount as a template.
3. Drill holes and insert wall anchors if necessary.
4. Secure the wall mount with the provided screws.
5. Hang the vacuum cleaner on the wall mount for storage and charging.

4. Operating Instructions

4.1 Powering On/Off and Suction Modes

Press the power button on the main motor unit to turn the vacuum cleaner on. Press it again to cycle through suction modes (Standard mode for up to 45 minutes runtime, Max mode for up to 20 minutes runtime). Press a third time to turn off the appliance.

The INSE S62 provides 30000Pa suction power, effectively cleaning various types of debris including dust, hair, and larger particles from floors.

4.2 Using Different Attachments

The INSE S62 is a 7-in-1 cleaning appliance, adaptable for various surfaces and tasks.

• Motorized Brush Head: Ideal for general floor cleaning. It features a 2-in-1 turbo brush head suitable for both carpets and hard floors.


The versatile 2-in-1 Turbo Brush Head is designed to effectively clean various surfaces, including low pile carpets, tile floors, rugs, and hardwood floors.

• Long Crevice Tool: Use for narrow gaps, corners, and hard-to-reach areas like car seats or between cushions.
• 2-in-1 Brush: Combines a brush and a wide nozzle for cleaning upholstery, curtains, or delicate surfaces.
• Mini Motorized Brush Head: Excellent for pet hair removal from upholstery, stairs, and mattresses.
• Flexible Hose: Provides extended reach and flexibility when using handheld attachments in tight spaces.

4.3 Converting to Handheld Vacuum

To convert the stick vacuum into a handheld unit, simply detach the straight metal tube from the main motor unit. You can then directly attach any of the smaller accessories (Long crevice tool, 2-in-1 brush, Mini Motorized brush head, or Flexible hose) to the main motor unit for portable cleaning.

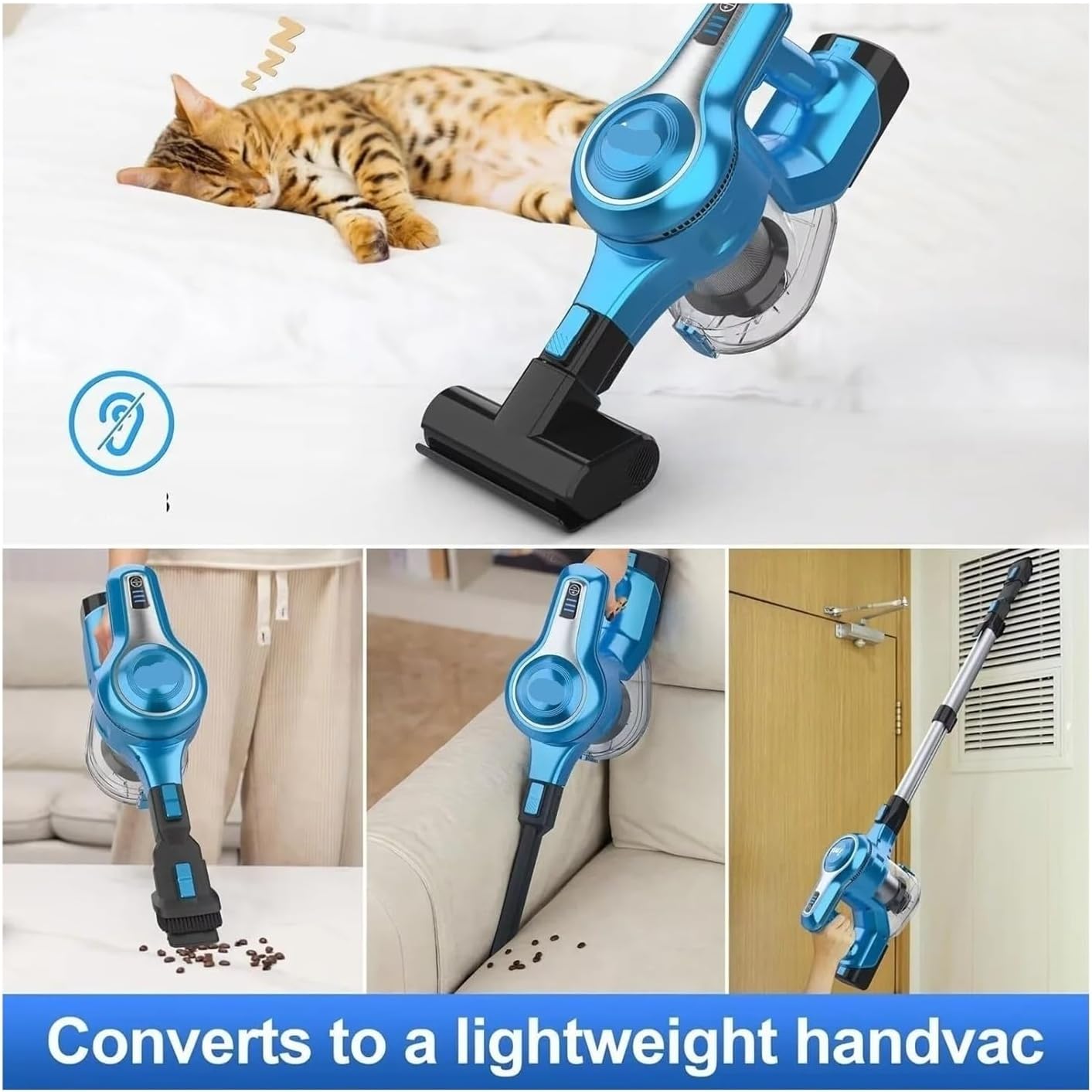

The INSE S62 easily transforms into a lightweight handheld vacuum, making it convenient for cleaning beds, car interiors, shelves, and other elevated or confined areas.

5. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your INSE S62 Cordless Vacuum Cleaner.

5.1 Emptying the Dust Cup

Empty the dust cup after each use or when the MAX fill line is reached.

1. Ensure the vacuum is turned off.
2. Press the dust cup release button (often labeled "One click empties the dust") to detach the dust cup from the main motor unit.
3. Position the dust cup over a trash bin.
4. Press the dust cup bottom release button to open the flap and empty the contents.
5. Close the flap and reattach the dust cup to the main motor unit until it clicks.

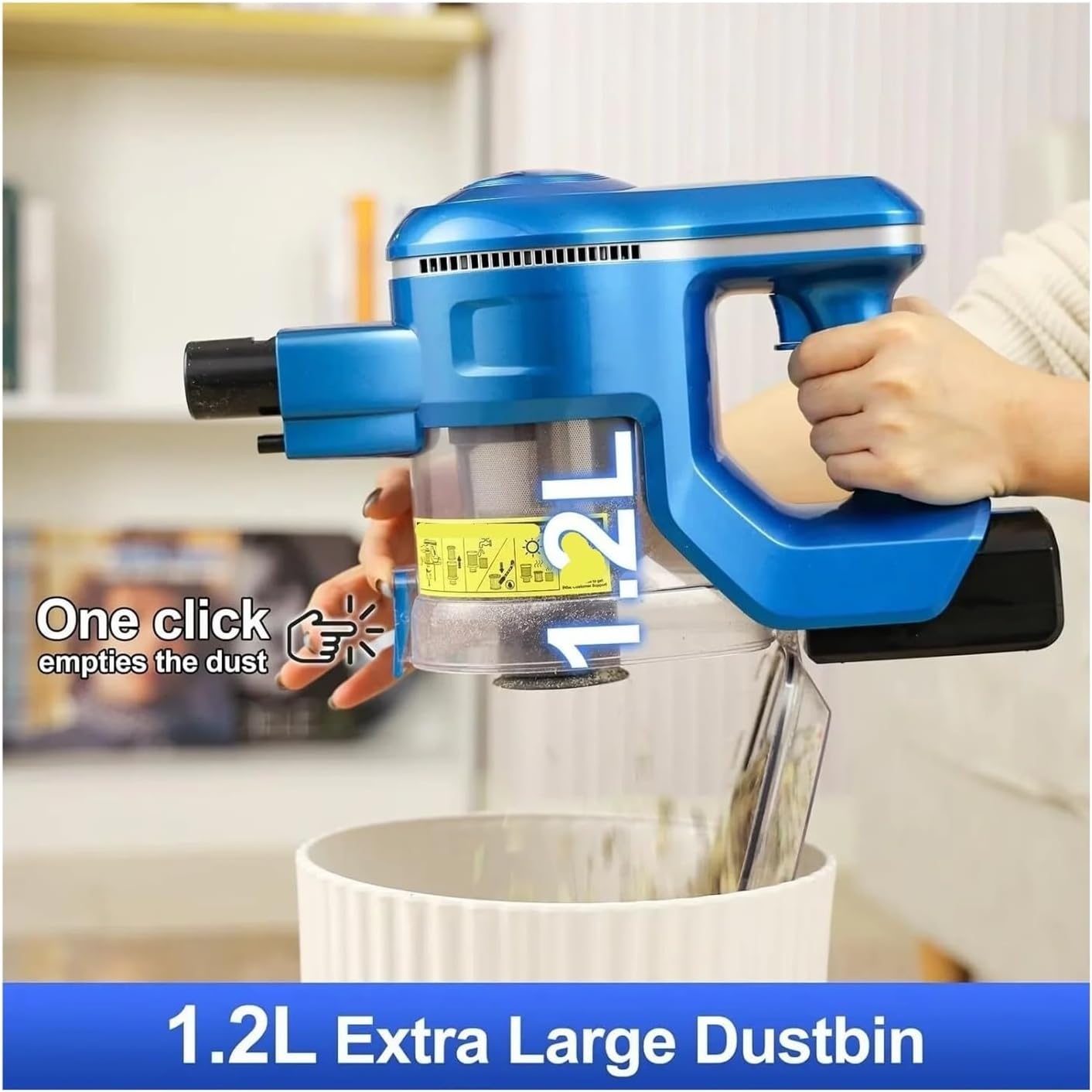

The 1.2L extra-large dustbin can be emptied with a single click, simplifying the disposal of collected debris.

5.2 Cleaning the Filters

The HEPA filter and mesh filter should be cleaned regularly (e.g., monthly, depending on usage) to maintain suction power.

1. Remove the dust cup as described above.
2. Twist and pull out the filter assembly from the dust cup.
3. Separate the HEPA filter from the mesh filter.
4. Tap off loose dirt from both filters over a trash bin.
5. Rinse both filters under cool running water until the water runs clear. Do not use detergent.
6. Allow filters to air dry completely for at least 24 hours before reassembling. Ensure they are completely dry to prevent mold or damage to the motor.
7. Reassemble the filters and place them back into the dust cup, then reattach the dust cup to the main motor unit.

5.3 Cleaning Brush Heads

Periodically check and clean the roller brushes for tangled hair or debris.

1. Turn off the vacuum and detach the brush head.
2. Locate the brush roll release mechanism (usually a latch or screw) and remove the roller brush.
3. Use the cleaning gadget (or scissors) to cut and remove any tangled hair or fibers from the brush roll.
4. Wipe the brush head housing with a damp cloth.
5. Reinsert the clean roller brush and secure it.

6. Troubleshooting

If you encounter issues with your INSE S62, refer to the following common problems and solutions:

7. Specifications

8. Warranty and Support

For warranty information and customer support, please refer to the warranty card included in your product packaging or visit the manufacturer's official website. Keep your purchase receipt as proof of purchase.

Manufacturer: ZGHQHCDRH

Model Number: S62
