WeatherTech Custom Scratch Protection Kit for Buick Envista (SP0293)

Introduction

This manual provides detailed instructions for the proper installation and care of your WeatherTech Custom Scratch Protection Kit (SP0293) for Buick Envista models. This kit is designed to protect vulnerable painted surfaces such as door handle cups, door edges, and sills from scratches and minor abrasions. The protective film is a clear, high-performance polyurethane that adheres directly to your vehicle's painted surface without causing damage.

Image: A diagram illustrating the areas of a vehicle protected by the film, including door handle cups, door edges, and sills. The protected areas are highlighted in red for visibility, but the actual film is clear.

Setup and Installation

Careful preparation and application are essential for optimal adhesion and appearance of the protective film. Perform installation in a clean, dust-free environment, ideally between 60-80°F (15-27°C).

1. Gather Necessary Items

Before beginning, ensure you have the following:

• WeatherTech Scratch Protection Kit (includes film pieces)
• Clean spray bottle with water and a few drops of mild soap (slip solution)
• Clean spray bottle with 70% isopropyl alcohol and water (prep/tack solution)
• Squeegee (soft plastic or rubber)
• Lint-free microfiber cloths
• Heat gun or hairdryer (optional, for complex curves)

Image: A collection of items typically used for protective film installation, including spray bottles, a squeegee, scissors, and a microfiber cloth.

2. Surface Preparation

1. Clean the Surface: Thoroughly wash the vehicle areas where the film will be applied using a mild car shampoo and water. Rinse completely and dry with a clean microfiber cloth. Ensure no dirt, wax, or residue remains.
2. Degrease: Lightly spray the application area with the 70% isopropyl alcohol/water solution (prep/tack solution) and wipe clean with a fresh microfiber cloth. This removes any remaining oils or contaminants.
3. Inspect: Carefully inspect the surface for any imperfections, dust, or debris. The film will conform to the surface, so any trapped particles will be visible.

Image: A hand spraying a clear solution onto a vehicle's painted surface, demonstrating the application of a prep/tack solution before film installation.

3. Film Application

1. Spray Slip Solution: Liberally spray the cleaned vehicle surface and both sides of the protective film with the soap and water solution (slip solution). This allows for easy positioning.
2. Position the Film: Carefully peel the film from its backing and place it onto the wet surface. Slide and adjust the film until it is perfectly aligned with the contours of the area it is designed to protect (e.g., door handle cup, door edge, sill).
3. Squeegee Out Water: Starting from the center of the film and working outwards, use the squeegee to gently push out the water and air bubbles from underneath the film. Apply firm, even pressure. For curved areas, a heat gun on a low setting can help the film conform, but use sparingly to avoid stretching or damaging the film.
4. Repeat for All Pieces: Follow these steps for each piece of the scratch protection kit.

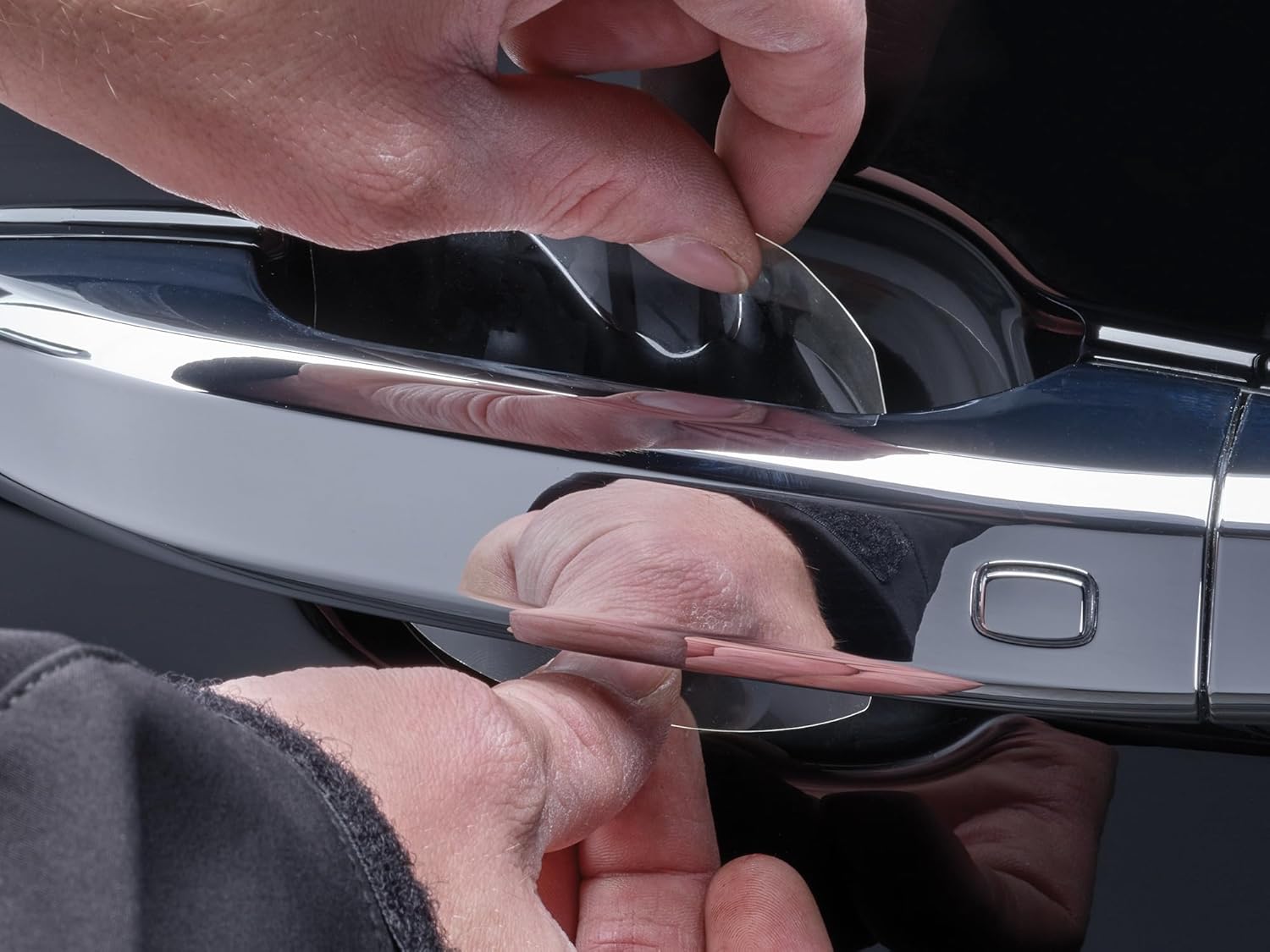

Image: A close-up of hands carefully applying the clear protective film into the recessed area of a car door handle cup.

Image: Hands applying the clear protective film to the top edge of a vehicle's rear bumper, demonstrating protection for the trunk sill area.

4. Finishing and Drying

• After squeegeeing, gently dab the edges of the film with a clean microfiber cloth to absorb any excess solution.
• Allow the film to cure for at least 24-48 hours without washing the vehicle or exposing it to heavy moisture. Full adhesion can take several days, depending on temperature and humidity.
• During the curing process, small water bubbles or haziness may appear. These should dissipate as the film dries and adheres completely.

Care and Maintenance

To ensure the longevity and clarity of your WeatherTech Scratch Protection Film, follow these care guidelines:

• Regular Cleaning: Wash the protected areas with standard car wash soap and water. Avoid harsh chemicals or abrasive cleaners.
• Avoid Pressure Washing: Do not direct high-pressure water streams directly at the film's edges, as this can cause lifting.
• Waxing: You can wax the film just as you would your vehicle's paint. Use non-abrasive waxes.
• Stains: For stubborn stains, use a mild automotive cleaner specifically designed for paint protection films.

Image: Examples of suitable WeatherTech TechCare products for cleaning and maintaining your vehicle's finish and protective film.

Troubleshooting

Specifications

Warranty Information

This WeatherTech Custom Scratch Protection Kit is backed by a Lifetime Limited Warranty. For specific terms, conditions, and to file a warranty claim, please refer to the official WeatherTech website or contact customer support directly. The warranty covers defects in material and workmanship under normal use.

Customer Support

For further assistance, questions regarding installation, or product inquiries, please contact WeatherTech customer support:

• Website: Visit the official WeatherTech Store on Amazon or the main WeatherTech website.
• Phone: Refer to the contact information provided on the product packaging or the official WeatherTech website.
