1. Introduction
The Wooask A8 Translation Earbuds are an advanced AI-powered device designed to facilitate real-time communication across language barriers. This device integrates seamless online and offline translation capabilities, high-definition audio for calls and music, a ChatGPT assistant, and meeting recording functions. It operates independently without requiring a smartphone application or Bluetooth pairing, offering a streamlined user experience.
Key features include:
- Real-time online translation in 144 languages and accents.
- Offline translation support for 16 languages, ideal for travel without internet access.
- Integrated ChatGPT assistant for information retrieval and conversational AI.
- Dual-microphone noise cancellation for clear audio in various environments.
- Multiple translation modes: In-ear, Speaker, and Earbud-to-Screen.
- Long-lasting battery life for extended use.
- Compact and portable design with a 2.5-inch HD touchscreen.
2. Product Overview
The Wooask A8 system consists of a main translator device with a built-in screen and a pair of wireless earbuds. The device is designed for intuitive operation directly from its touchscreen interface.
Figure 2.1: Wooask A8 Translator Device with Earbuds
2.1. What's in the Box
- A8 Translator Device (x1)
- USB-A to Type-C Charging Cable (x1)
- User Manual (x1)
3. Setup
3.1. Initial Charging
Before first use, fully charge the Wooask A8 device using the provided USB-A to Type-C charging cable. Connect the Type-C end to the device and the USB-A end to a compatible power adapter (not included). A full charge typically takes 1-2 hours.

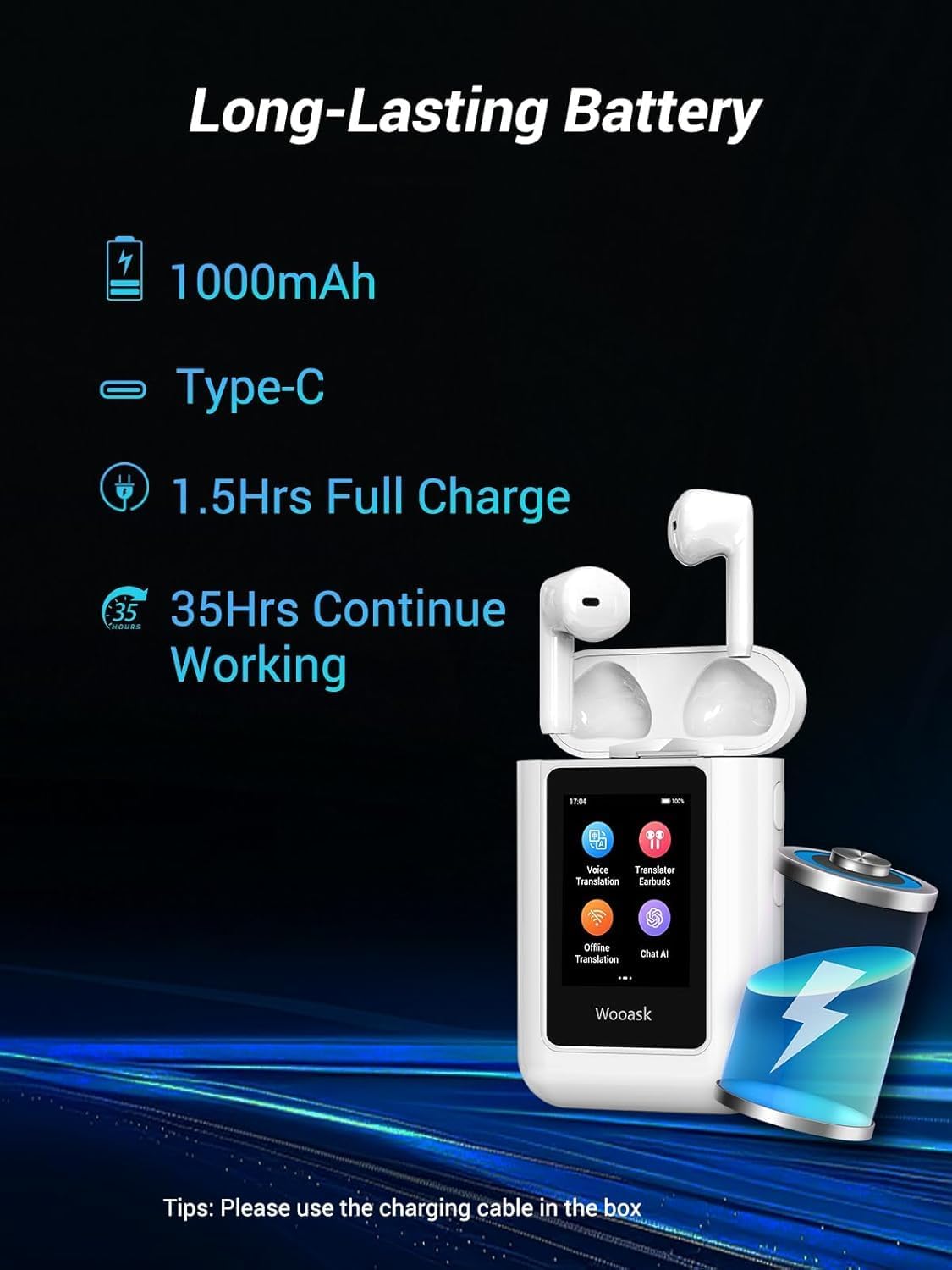

Figure 3.1: Battery Information and Charging Port
3.2. Powering On/Off
To power on the device, press and hold the power button located on the side until the screen illuminates. To power off, press and hold the power button and select 'Power Off' from the on-screen options.
3.3. Earbud Pairing
The earbuds are designed for instant pairing with the Wooask A8 device. Simply place the earbuds into the charging case, ensure the device is powered on, and they will automatically connect. No manual Bluetooth pairing is required.
Figure 3.2: Instant Earbud Pairing
4. Operating the Wooask A8
The Wooask A8 offers various modes to suit different communication needs. Navigate through the main menu on the 2.5-inch HD touchscreen to select your desired function.
Figure 4.1: Independent Operation of Wooask A8
4.1. Translation Modes
The device supports multiple translation modes for flexible communication:
- In-ear Mode: For private, one-on-one conversations. Each participant wears an earbud, and translations are delivered directly to their ear.
- Speaker Mode: For group discussions or when earbuds are not preferred. The device's built-in speaker broadcasts translations.
- Earbud-to-Screen Translation: Allows one person to speak into an earbud while the translation appears on the device's screen for another person to read.
Figure 4.2: In-ear and Speaker Translation Modes
Figure 4.3: In-Ear Mode in Use
Figure 4.4: Speaker Mode in Use
4.2. Language Selection
The Wooask A8 supports a wide range of languages for both online and offline translation. Select your desired source and target languages from the device's menu.
4.2.1. Online Translation
The device supports 144 languages and accents for online real-time translation. An internet connection (Wi-Fi or mobile hotspot) is required for online translation.
Figure 4.5: Online Translation in Action
Figure 4.6: Online Languages for In-ear Mode
Figure 4.7: Online Languages for Speaker Mode
4.2.2. Offline Translation
The Wooask A8 supports offline translation for 16 languages, allowing communication without an internet connection. These languages include English, Spanish, Simplified Chinese, Traditional Chinese, Japanese, Arabic, Portuguese, Russian, French, German, Korean, Thai, Hindi, Vietnamese, Italian, and Indonesian.
Figure 4.8: Offline Translation Languages and Scenarios
Figure 4.9: Offline Languages for Speaker Mode
4.3. ChatGPT Assistant
Access the integrated ChatGPT assistant for various queries, information, and conversational interactions. The ChatGPT feature supports 43 languages.
Figure 4.10: ChatGPT Assistant Interface
Figure 4.11: ChatGPT Supported Languages
4.4. Additional Features
- Meeting Recording: The device can record conversations, which can be useful for business meetings or language learning.
- Music Playback: Enjoy immersive music playback through the earbuds or device speaker.
- Voice Switching: The device supports switching between male and female voices for translations.
- Record Forwarding: Easily forward recorded translations via email or other compatible methods.
Figure 4.12: Entertainment On-the-Go
Figure 4.13: Male and Female Voice Switching
Figure 4.14: Easy Record Forwarding
5. Maintenance
5.1. Cleaning
Wipe the device and earbuds with a soft, dry cloth. Do not use liquid cleaners or abrasive materials. Ensure no moisture enters the charging port or speaker grilles.
5.2. Storage
Store the Wooask A8 in a cool, dry place away from direct sunlight and extreme temperatures. When not in use for extended periods, ensure the device is fully charged before storage and recharge it periodically to maintain battery health.
5.3. Battery Care
Use only the original charging cable provided. Avoid exposing the device to temperatures below 0°C (32°F) or above 45°C (113°F) as this can affect battery performance and lifespan.
6. Troubleshooting
This section addresses common issues you might encounter with your Wooask A8 Translation Earbuds.
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not power on | Low battery; device frozen | Charge the device for at least 30 minutes. If still unresponsive, perform a soft reset by holding the power button for 10-15 seconds. |
| No translation output | Incorrect language selection; no internet connection (for online mode); microphone blocked | Verify source and target languages. Ensure a stable internet connection for online translation. Check if the microphone is clear. |
| Earbuds not connecting | Earbuds not properly seated in case; low earbud battery | Ensure earbuds are correctly placed in the charging case. Charge the device and earbuds. |
| Translation accuracy issues | Unclear speech; noisy environment; complex sentence structure | Speak clearly and at a moderate pace. Reduce background noise. Simplify sentences if possible. |
7. Specifications
| Feature | Detail |
|---|---|
| Model | A8 |
| Package Dimensions | 4.8 x 4.1 x 1.7 inches |
| Item Weight | 9 ounces |
| Batteries | 3 Lithium Ion batteries required |
| Battery Capacity | 1000mAh (device) |
| Charging Time | Approx. 1.5 hours for full charge |
| Continuous Translation Time | Up to 35 hours |
| Standby Time | Up to 10 days |
| Online Languages | 144 languages & accents |
| Offline Languages | 16 languages |
| ChatGPT Languages | 43 languages |
| Manufacturer | Wooask |
| ASIN | B0FSZ42F9Z |
Figure 7.1: Advanced Technology Overview
8. Warranty and Support
For warranty information and technical support, please refer to the official Wooask website or contact their customer service directly. Details can typically be found on the product packaging or the manufacturer's official online resources.
For further assistance, please visit the Wooask Store on Amazon.
