1. Product Overview
This manual provides detailed instructions for the assembly, operation, and maintenance of your PURPLE LEAF Sunroom 10' x 13' Double Roof Enclosed Gazebo. This outdoor structure is designed to provide a versatile living space, suitable for various backyard activities and year-round enjoyment.

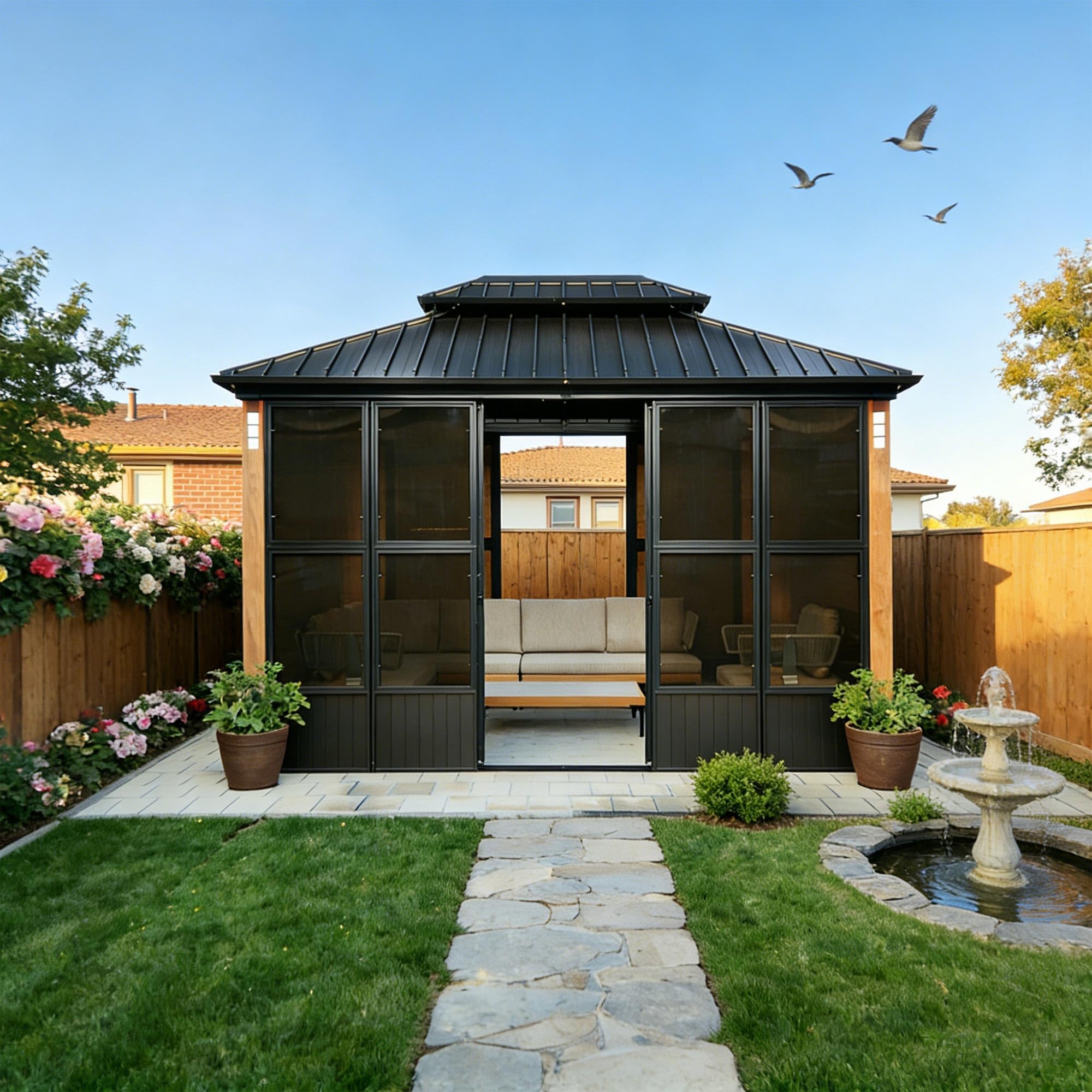

Image 1.1: The PURPLE LEAF 10' x 13' Sunroom Gazebo, offering an enclosed outdoor living space.
Image 1.2: Interior view of the gazebo, showcasing its potential as a functional outdoor room.
2. Safety Information
Read and understand all instructions before assembly and use. Failure to follow these instructions may result in injury or damage to the product.
- Assembly: Always assemble with at least two adults. Wear appropriate safety gear, including gloves and eye protection.
- Anchoring: Ensure the gazebo is securely anchored to a solid, level surface to prevent wind damage. Consult local building codes for specific requirements.
- Weather Conditions: In areas prone to heavy snow, take precautions to disperse snow weight or remove panels as recommended in the maintenance section. High winds may require additional securing or temporary disassembly of certain components.
- Clearance: Maintain adequate clearance around the gazebo for safe operation of sliding doors and for maintenance access.
- Electrical: If installing electrical components (e.g., lights, fans), ensure all work is performed by a qualified electrician and complies with local electrical codes.
3. Setup and Assembly
Assembly of this gazebo requires careful attention to detail and is best performed by two or more individuals. Organize all parts and hardware before beginning. Do not fully tighten all screws until instructed, as this allows for necessary adjustments during assembly.
3.1. Unpacking and Part Identification
Carefully unpack all boxes and verify that all components listed in the parts list are present and undamaged. Refer to the included diagrams for part identification.
3.2. Foundation Preparation
Select a firm, level surface for installation. A recommended reserved placement area of 205" x 165" is suggested to allow for door operation and maintenance. Ensure the foundation can support the weight of the gazebo (approximately 528.5 pounds) and any additional loads.
Image 3.1: Recommended reserved placement area for optimal functionality and maintenance.
3.3. Frame Assembly
Follow the step-by-step diagrams provided in your separate assembly guide to construct the aluminum frame. The wood-grain aluminum frame offers a natural aesthetic with low maintenance.
Image 3.2: Detail of the wood-grain aluminum frame, combining durability with aesthetic appeal.
3.4. Roof Installation
Install the galvanized steel double roof panels. This design improves airflow and reduces heat buildup, providing reliable protection against sun and rain.
Image 3.3: The galvanized steel double roof provides enhanced ventilation and weather protection.
3.5. Panel and Door Installation
Install the dual-layer mesh screens and tinted PC panels. The magnetic sliding doors should be installed according to the diagrams, ensuring smooth operation and secure closure.
Image 3.4: The detachable PC screen wall offers flexibility for privacy and weather protection.
Image 3.5: Sliding doors can be configured for full closure, partial opening, or full opening for airflow.
Image 3.6: Magnetic strips on the sliding doors ensure a secure and tight seal.
3.6. Integrated Panel Storage Rack
Utilize the integrated panel storage rack for convenient storage of removed PC panels, keeping your outdoor space tidy and protecting the panels from damage.
Image 3.7: The PC window panel storage shelf provides an organized solution for storing panels when not in use.
3.7. Video Guides for Assembly
For visual assistance during assembly, refer to the following official product videos:
Video 3.8: Overview of the PURPLE LEAF Sunroom Patio Hardtop Gazebo, demonstrating key features and potential uses.
Video 3.9: Detailed look at the PURPLE LEAF Sunroom Outdoor Hardtop Gazebo, including its aluminum solarium design.
Video 3.10: A vertical format video showcasing the PURPLE LEAF Patio Double Hardtop Gazebo Sun Room Solarium.
4. Operating Instructions
4.1. Sliding Doors
The front and rear sliding doors are equipped with magnetic strips for smooth operation and a secure closure. To open, gently slide the door along its track. To close, ensure the magnetic strips align for a tight seal, minimizing outside interference.
4.2. Detachable PC Panels and Mesh Screens
The dual-layer mesh screens provide continuous airflow and visibility. The tinted PC panels can be easily installed or removed to provide wind protection, privacy, or to adapt to changing weather conditions. Store removed panels in the integrated storage rack.
Video 4.3: Demonstrates the detachable windows feature of the PURPLE LEAF Sun Room.
4.3. Hanging Hooks
The gazebo roof includes three integrated hanging hooks. These hooks are designed to support lightweight items such as decorative lights or small fans, enhancing the usability of your outdoor space.
Image 4.1: Three hanging hooks are provided for lights or fans.
5. Maintenance
Regular maintenance will extend the life and appearance of your gazebo.
- Cleaning: Clean the aluminum frame and PC panels with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish or panels. Rinse thoroughly with clean water.
- Seasonal Care: In regions with heavy snowfall, it is recommended to regularly clear snow from the roof to prevent excessive weight accumulation. Consider removing PC panels during winter months and storing them in the provided storage rack to prevent damage from extreme cold or heavy snow loads.
- Hardware Inspection: Periodically check all bolts, screws, and connections to ensure they remain tight. Retighten as necessary.
- Drainage: Ensure the roof drainage system is clear of debris to prevent water buildup.
6. Troubleshooting
This section addresses common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Difficulty aligning parts during assembly | Screws tightened prematurely; slight manufacturing variations. | Ensure all fasteners are loose until the entire section is assembled. Gently adjust and shimmy parts into place. If a part is significantly misaligned, contact support. |
| Water leakage from roof or sides | Improperly sealed panels; loose connections; debris in drainage. | Verify all roof panels are correctly seated and sealed. Check that all frame connections are tight. Clear any debris from the roof and drainage channels. |
| Sliding doors do not close smoothly or securely | Debris in tracks; misaligned tracks; damaged magnetic strips. | Clean door tracks thoroughly. Check for any obstructions. Ensure the frame is level and square. Inspect magnetic strips for damage; contact support if damaged. |
| Gazebo unstable in wind | Insufficient anchoring; loose frame connections. | Ensure the gazebo is properly anchored to a solid foundation. Verify all frame bolts are securely tightened. Consider additional anchoring methods in high-wind areas. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | PURPLE LEAF |
| Model Number | SRW1013 |
| Product Dimensions (L x W x H) | 147.63"L x 108.26"W x 120.8"H |
| Floor Area | 130 square feet |
| Item Weight | 528.5 pounds |
| Frame Material | Aluminum (Wood Grain finish) |
| Roof Material | Galvanized Steel (Double Roof) |
| Panel Material | Tinted PC Panel & Mesh Screens |
| Water Resistance Level | Water Resistant |
| Ultraviolet Light Protection | Yes |
| Color | Wood Grain & Brown PC Panel |
8. Warranty & Support
8.1. Product Warranty
Your PURPLE LEAF Sunroom Gazebo comes with the following warranty coverage:
- Top Panel: 5 Years
- PC Screen & Netting: 2 Years
- Frame: 1 Year
Please retain your proof of purchase for warranty claims.
8.2. Customer Support
For any questions, assistance with assembly, missing parts, or warranty inquiries, please contact PURPLE LEAF customer support:
- Email: gazebo@purpleleafgarden.com
- Availability: 24/7 Real-Person Support
The seller, PURPLE LEAF PALACE, offers 30-day easy returns and dedicated customer support.
