Curtis Stone Dura-Pan Contact Indoor Panini Sandwich Grill User Manual

Introduction

This manual provides essential instructions for the safe and efficient operation, maintenance, and care of your Curtis Stone Dura-Pan Contact Indoor Panini Sandwich Grill. Please read all instructions thoroughly before first use and retain for future reference.

Image: The Curtis Stone Dura-Pan Contact Indoor Panini Sandwich Grill in its closed position, showcasing the stainless steel finish and control panel.

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.

Parts and Features

Familiarize yourself with the components of your grill:

• Upper Grill Plate: Nonstick Dura-Pan surface for cooking.
• Lower Grill Plate: Nonstick Dura-Pan surface for cooking.
• Handle: For opening and closing the grill.
• Temperature Dial: Adjusts cooking temperature (Low, Medium, High).
• Timer Dial: Sets cooking time (up to 30 minutes).
• Power Indicator Light (Red): Illuminates when the grill is powered on.
• Ready Indicator Light (Green): Illuminates when the grill has reached the set temperature.
• Drip Tray: Collects excess grease and liquids during cooking.

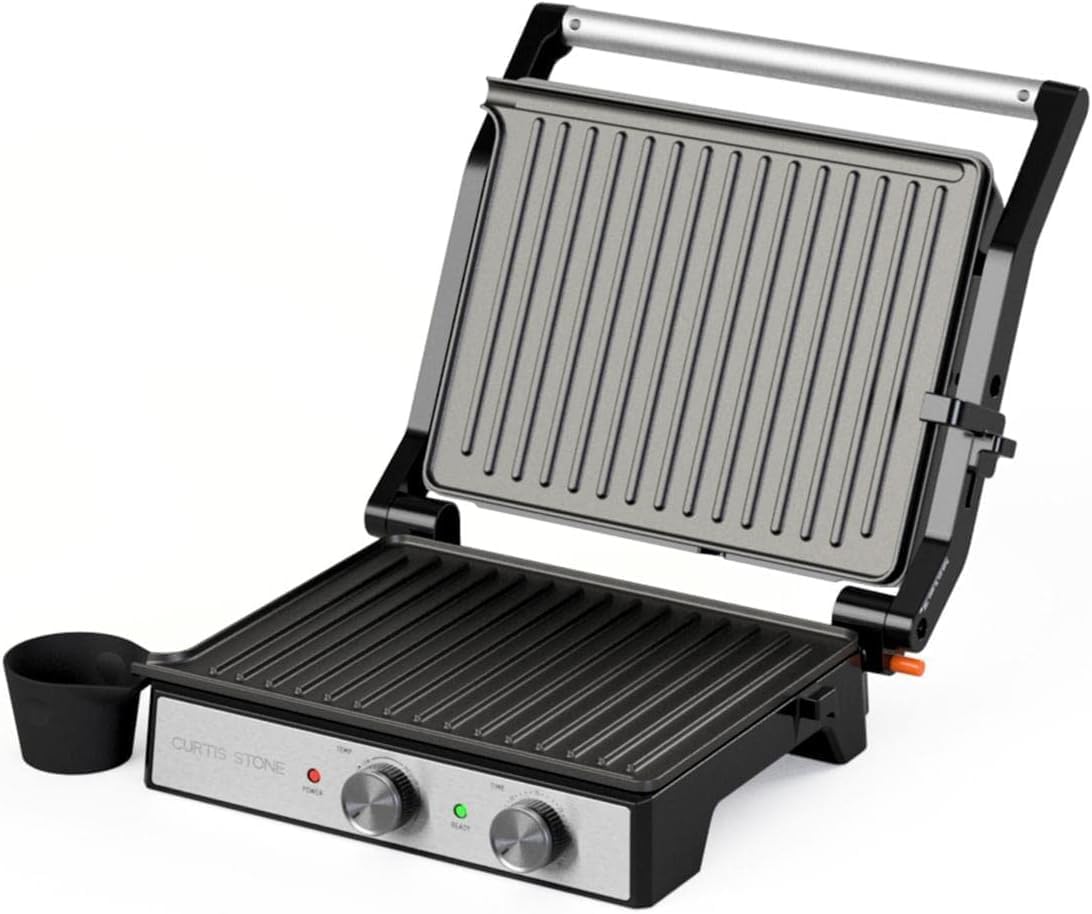

Image: The grill shown in its open position, revealing the Dura-Pan nonstick cooking plates and the removable drip tray.

Setup

1. Unpack: Carefully remove the grill and all accessories from the packaging. Dispose of packaging materials responsibly.
2. Clean: Before first use, wipe the cooking plates with a damp cloth or sponge. Dry thoroughly. The drip tray can be washed with warm, soapy water.
3. Position: Place the grill on a stable, heat-resistant, and dry surface. Ensure there is adequate ventilation around the appliance.
4. Insert Drip Tray: Slide the drip tray into its designated slot at the front or side of the grill to collect any drippings during cooking.

Operating Instructions

General Operation

1. Plug In: Plug the power cord into a standard electrical outlet. The red Power indicator light will illuminate.
2. Preheat: Close the grill and turn the Temperature Dial to your desired setting (Low, Medium, or High). The grill will begin to preheat. The green Ready indicator light will illuminate once the grill has reached the set temperature. This typically takes 5-10 minutes.
3. Place Food: Once preheated, carefully open the grill and place your food (e.g., sandwiches, meats, vegetables) onto the lower grill plate.
4. Cook: Close the upper grill plate over the food. The floating hinge design allows the top plate to adjust to the thickness of your food. Turn the Timer Dial to your desired cooking time.
5. Monitor: Periodically check food for desired doneness. Adjust cooking time as needed.
6. Remove Food: Once cooking is complete, carefully open the grill and remove food using heat-resistant, non-metallic utensils to avoid scratching the nonstick coating.
7. Turn Off: Turn the Temperature Dial to "OFF" and unplug the grill from the outlet. Allow the appliance to cool completely before cleaning.

Using the 180-Degree Open Position

The grill plates can open 180 degrees, allowing you to use both the upper and lower grill plates as a flat cooking surface, effectively doubling your cooking area.

1. Open Fully: With the grill closed, gently lift the handle and continue to push it back until the upper grill plate lies flat, parallel to the lower grill plate.
2. Cook: Use both surfaces for grilling larger quantities of food.
3. Close: To return to the contact grill position, lift the upper plate and gently guide it back into the closed position.

Maintenance and Cleaning

Proper cleaning and maintenance will ensure the longevity and performance of your grill.

1. Cool Down: Always ensure the grill is unplugged and completely cool before cleaning.
2. Empty Drip Tray: Remove and empty the drip tray. Wash it in warm, soapy water. Rinse and dry thoroughly.
3. Clean Grill Plates: Wipe the Dura-Pan nonstick cooking plates with a soft, damp cloth or sponge. For stubborn food residue, use a small amount of mild dish soap. Avoid abrasive cleaners, scouring pads, or metal utensils, as these can damage the nonstick coating.
4. Clean Exterior: Wipe the exterior of the grill with a damp cloth. Do not immerse the appliance in water or any other liquid.
5. Storage: Once clean and dry, store the grill in a cool, dry place.

Troubleshooting

Specifications

• Model: B0FSSSGZLN
• Brand: Curtis Stone
• Special Features: Non Stick Coating (Dura-Pan), Opens 180°, PFOA-Free
• Color: Stainless
• Product Dimensions (D x W x H): 13" x 14" x 6"
• Included Components: Sandwich Grill, Drip Tray
• UPC: 601570662003

Image: Diagram illustrating the dimensions of the grill: 14 inches wide, 13 inches deep, and 6 inches high.

Warranty and Support

For warranty information or customer support regarding your Curtis Stone Dura-Pan Contact Indoor Panini Sandwich Grill, please refer to the warranty card included with your purchase or visit the official Curtis Stone website. You may also contact customer service through the retailer where the product was purchased.
