NEEWER Z3-N 100Ws 2.4G TTL Round Head Flash Speedlite Instruction Manual

1. Introduction

The NEEWER Z3-N is a professional 100Ws 2.4G TTL Round Head Flash Speedlite designed for Nikon cameras. It features 1/8000s High-Speed Sync (HSS), a touch screen interface, and dual modeling lamps. This manual provides detailed instructions for its setup, operation, and maintenance to ensure optimal performance.

2. What's in the Box

• 1 x NEEWER Z3-N Flash Speedlite
• 1 x Lithium Battery
• 1 x USB Cable
• 1 x Protective Case
• 1 x Dome Diffuser
• 1 x Mini Stand
• 1 x User Manual

3. Setup

3.1. Battery Installation

1. Locate the battery compartment on the side of the flash unit.
2. Press the release button and slide out the battery cover.
3. Insert the provided 3000mAh lithium battery, ensuring correct polarity.
4. Close the battery cover until it clicks securely into place.

3.2. Mounting on Camera

1. Slide the flash unit onto your Nikon camera's hot shoe mount.
2. Rotate the locking ring clockwise until the flash is securely fastened to the hot shoe.

4. Operating Instructions

4.1. Power On/Off

Press and hold the power button (usually located on the side or rear panel) to turn the flash on or off. The touch screen will illuminate upon activation.

4.2. Flash Modes

The Z3-N supports multiple flash modes for various photographic needs:

• TTL Mode: Through-The-Lens automatic flash, which measures the light through the camera lens to determine the correct flash output.
• M (Manual) Mode: Allows manual control over flash output from 1/256 to 1/1 power with 0.1EV precision.
• RPT (Stroboscopic) Mode: Fires a series of rapid flashes during a single exposure, ideal for capturing multiple movements of a subject.

4.3. High-Speed Sync (HSS)

The Z3-N supports 1/8000s HSS, allowing you to use flash at shutter speeds faster than your camera's native sync speed. This is useful for freezing fast action or overpowering ambient light outdoors.

4.4. Front/Rear Curtain Sync

Supports both front and rear curtain sync. Front curtain sync fires the flash at the beginning of the exposure, while rear curtain sync fires it at the end, creating different motion blur effects.

4.5. Modeling Lamps

Equipped with two 3300K LED modeling lamps offering 10 brightness levels. These lamps provide a continuous light source to preview lighting effects before taking a shot.

4.6. Touch Screen Interface

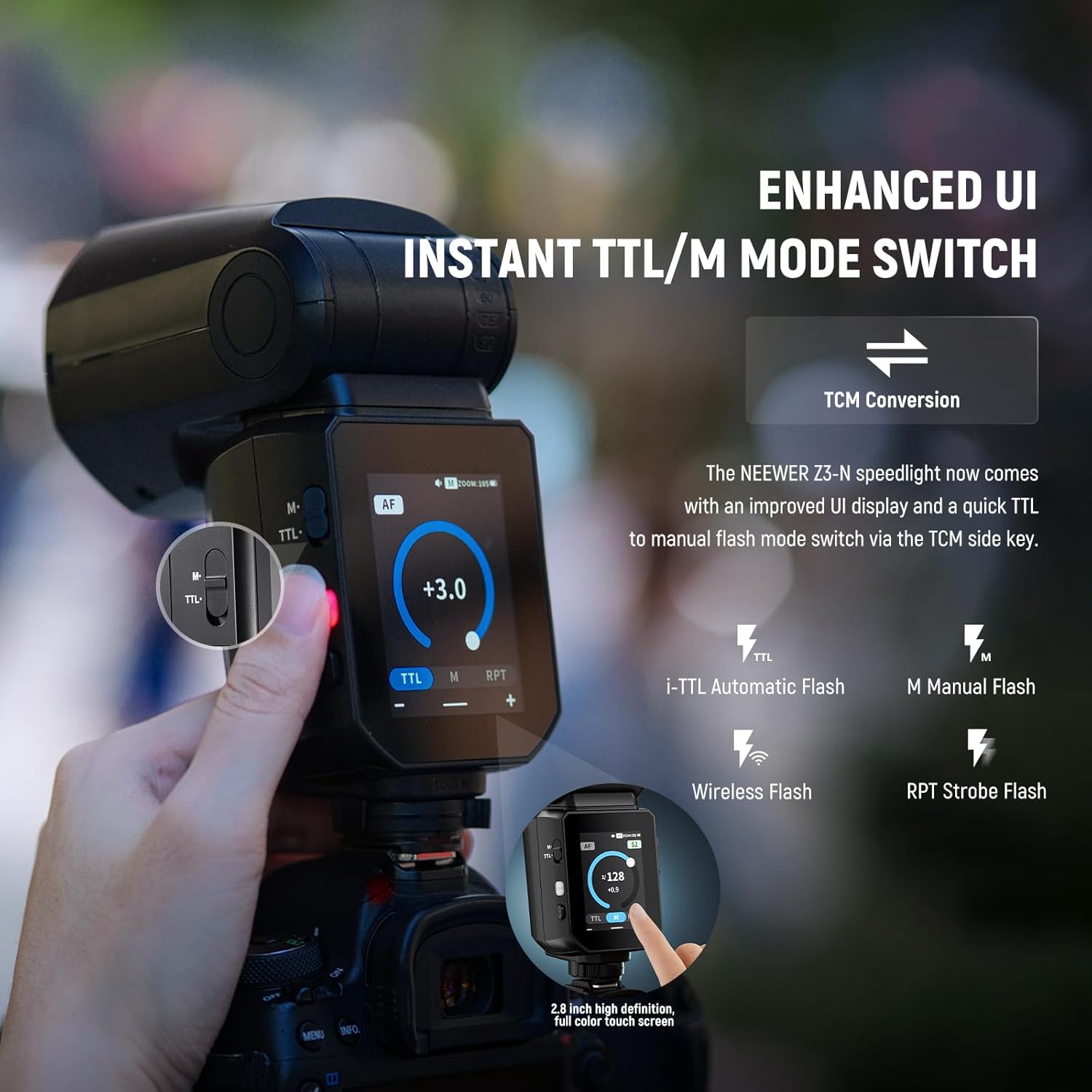

The Z3-N features a large, high-definition color touch screen for intuitive control. Adjust power, mode, and modeling light settings directly on the screen. A dedicated TTL/M toggle switch is also available for quick mode changes.

4.7. Flexible Flash Head

The flash head can rotate horizontally from 0-330° and tilt from -7° to 120°, allowing for bounce flash and flexible lighting angles.

5. Battery and Charging

The Z3-N is powered by a 3000mAh lithium battery, providing up to 500 full-power flashes and a rapid recycle time of 1.7 seconds. The battery can be charged directly via the USB Type-C port on the flash unit or using an external charging dock (not included) for a full charge in approximately 2.5 hours.

6. Wireless System

The flash features a built-in 2.4G Wireless Q System, offering 4 control groups, 32 channels, and 99 IDs. It can function as both a master and slave unit for other Q flashes. It is also compatible with the Godox 2.4GX system (RX COMPAT) and can work as a slave unit with Xpro, X3, and X2 transmitters. Note that the Q system and X system cannot be used simultaneously, and a firmware update may be required for full compatibility.

7. Compatibility

The NEEWER Z3-N is compatible with Nikon DSLR cameras, including models such as Z9, Z8, ZFC, Z50, Z5, Z6, Z7, Z6II, Z7II, D4, D5, D6, D60, D70S, D90, D100, D200, D300, D300S, D500, D610, D700, D750, D780, D800, D850, D3100, D3200, D3300, D3400, D3500, D5000, D5100, D5200, D5300, D5600, D7100, D7200, and D7500. Note: Not compatible with D810.

8. Maintenance

• Keep the flash unit clean and free from dust and moisture.
• Use a soft, dry cloth to clean the exterior. For the flash tube, use a lint-free cloth.
• Avoid dropping the unit or subjecting it to strong impacts.
• Store the flash in its protective case when not in use.
• Remove the battery if the flash will not be used for an extended period.

9. Troubleshooting

• Flash not firing: Ensure the battery is charged and correctly inserted. Check if the flash is securely mounted on the camera's hot shoe. Verify flash mode settings.
• Inconsistent flash output: Check battery level. Ensure the flash head is properly positioned. In wireless mode, confirm channel and group settings.
• Overexposure/Underexposure: Adjust flash exposure compensation (FEC) or manual power settings. Check camera's ISO, aperture, and shutter speed settings.
• Wireless connection issues: Ensure both master and slave units are on the same channel and group. Check for obstructions between units.

10. Specifications

11. Warranty and Support

For warranty information and technical support, please refer to the official NEEWER website or contact their customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
