Varpoolfaye 120000 BTU Inverter Electric Pool Heater Instruction Manual

1. Important Safety Information

Please read this manual thoroughly before installation, operation, or maintenance. Failure to follow these instructions may result in property damage, serious injury, or death. Keep this manual for future reference.

Electrical Safety

• The unit requires a 220V-240V, 60Hz power supply.
• Installation must be performed by a qualified electrician in accordance with all local and national electrical codes.
• Ensure proper grounding to prevent electrical shock.
• The unit is designed with water-electric separation for enhanced safety.

General Safety

• Do not operate the unit if any part is damaged.
• Keep children and pets away from the unit during operation.
• Ensure adequate ventilation around the unit.

2. Product Overview

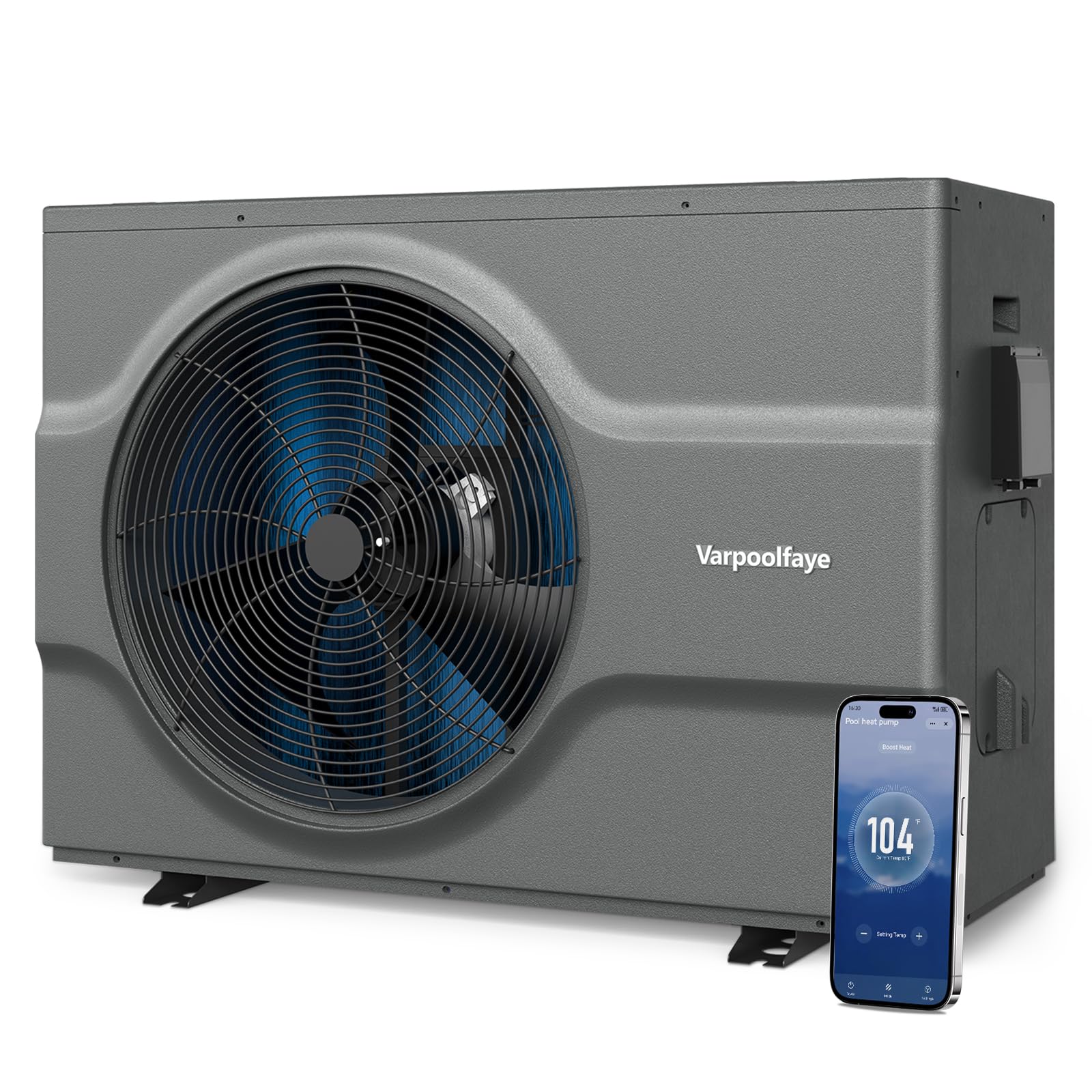

The Varpoolfaye 120000 BTU Inverter Electric Pool Heater is an energy-efficient heat pump designed for both inground and above-ground pools up to 33,000 gallons. It utilizes inverter technology for stable heating and cooling, lower energy consumption, and quiet operation. The unit features a smart touch control panel and WiFi connectivity for remote management.

3. Package Contents

Verify that all items are present in the package:

• Varpoolfaye Inverter Electric Pool Heater (1 unit)
• Instruction Manual (2 copies)
• Condense Water Draining Hose
• Rubber Shock Absorption Pad (4 units)
• Condense Water Draining Fitting (2 units)
• Adapter (1.5-inch connectors)
• 118-inch power cord

4. Setup and Installation

4.1 Placement

Place the heat pump on a stable, level surface with adequate clearance for airflow. Ensure the unit is not obstructed by walls, plants, or other objects. The unit operates at a low noise level of 47dB, making it suitable for various pool environments.

4.2 Plumbing Connection

The heat pump connects to your pool's filtration system. Water flows from the pool pump, through the filter, and then into the heat pump's inlet. Heated water exits the heat pump's outlet and returns to the pool. The unit includes 1.5-inch connectors for quick setup.

It is recommended to install bypass valves to control water flow through the heater and allow for maintenance without draining the pool. The heat pump should only operate when the pool pump is running to ensure proper water circulation.

4.3 Electrical Connection

Connect the provided 118-inch power cord to a dedicated 220V-240V, 60Hz electrical circuit. Ensure the circuit is protected by an appropriate circuit breaker (e.g., 15 amp for this model, as lower amperage is sufficient due to inverter technology's efficiency). All electrical work must comply with local and national codes and be performed by a certified professional.

5. Operating Instructions

5.1 Control Panel Operation

The heat pump features an intelligent touch control panel with a protective hinged cover. Use the intuitive interface to adjust settings directly on the unit.

• Power Button: Turns the unit on or off.
• Mode Selection: Choose between various operating modes such as Heating, Cooling, Eco Heating, Eco Cooling, Boost Heating, and Boost Cooling.
• Temperature Adjustment: Use the up/down arrows to set your desired water temperature.
• One-Button Fast Heat: Quickly activate a rapid heating function.

5.2 WiFi App Control

Remotely control your heat pump using the dedicated mobile application. Adjust temperature, schedule run times, or switch modes from anywhere for convenience.

• Download the app from your smartphone's app store (compatible with Smart Life).
• Pair your device with the heat pump following the in-app instructions.
• Access all control panel functions and additional scheduling options through the app.

5.3 Recommended Flow Rate

For optimal performance, maintain a recommended water flow rate of 4500-5500 GPH (Gallons Per Hour) through the heat pump. Insufficient flow can lead to slow heating or cooling. If your pool pump's flow rate is too high, consider installing a bypass to regulate the flow through the heat pump.

6. Maintenance

6.1 General Care

• Keep the unit clean and free from debris to ensure optimal airflow.
• Regularly inspect plumbing and electrical connections for any signs of wear or damage.
• During winter months or extended periods of non-use, follow proper winterization procedures to protect the unit from freezing.

6.2 Condensate Drainage

The heat pump produces condensate during operation. Ensure the condensate drain hose is properly connected and free of obstructions to allow for efficient drainage.

7. Troubleshooting

If you encounter issues with your Varpoolfaye heat pump, refer to the following common troubleshooting tips:

• Unit not turning on: Check electrical connections and circuit breaker. Ensure the pool pump is running.
• Slow heating/cooling: Verify the water flow rate is within the recommended range. Ensure the pool cover is used to retain heat.
• Compressor not working correctly: If the timer function is active, it might interfere with compressor operation. Ensure the timer is turned off if not needed.
• Error codes: Consult the detailed troubleshooting section in the full instruction manual for specific error code meanings and solutions.

8. Specifications

Key specifications for the Varpoolfaye 120000 BTU Inverter Electric Pool Heater:

9. Warranty and Support

9.1 Warranty

The Varpoolfaye 120000 BTU Inverter Electric Pool Heater comes with a 3-year warranty. Please retain your proof of purchase for warranty claims.

9.2 Customer Support

For any questions, technical assistance, or warranty inquiries, please contact Varpoolfaye customer support. You can find contact information on the official Varpoolfaye website or through your retailer.

Visit the official Varpoolfaye Store for more products and information.
