YANPXDOE Join Connector Instruction Manual

1. Product Overview

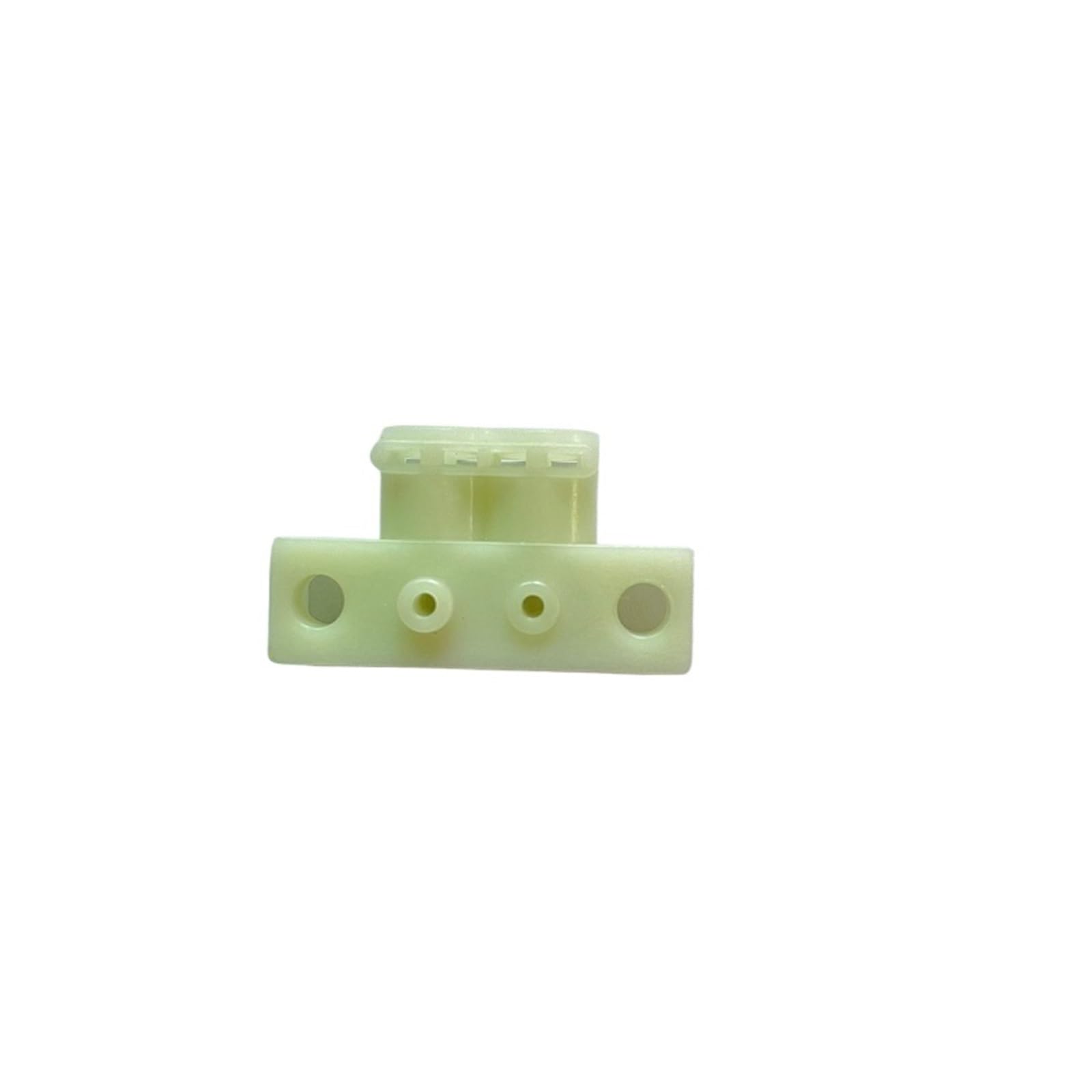

The YANPXDOE Join Connector is a crucial component designed to facilitate the connection between the water inlet valve and the solenoid valve within compatible Merol coffee machines. Its primary function is to ensure a secure and leak-free pathway for water flow, which is essential for the proper operation of your coffee machine's brewing system.

The solenoid valve, which this connector helps integrate, plays a vital role in controlling the flow of water, ensuring the correct pressure and volume for optimal coffee brewing. This connector ensures the integrity of this critical connection.

2. Installation

Safety First: Before beginning any installation, ensure your Merol coffee machine is completely unplugged from the power outlet and has cooled down. Drain any remaining water from the system to prevent spills and electrical hazards.

1. Identify Components: Locate the existing water inlet valve and solenoid valve within your coffee machine. The join connector will bridge these two parts.
2. Remove Old Connector (if applicable): If replacing an existing connector, carefully disconnect it from both the water inlet valve and the solenoid valve. Note the orientation for correct installation of the new part.
3. Install New Connector: Align the YANPXDOE Join Connector with the ports on the water inlet valve and the solenoid valve. Gently push the connector into place, ensuring a snug and secure fit. Verify that any seals or O-rings are properly seated to prevent leaks.
4. Secure Connections: If applicable, tighten any retaining clips or screws that hold the connector in place. Do not overtighten.
5. Inspect: Visually inspect all connections to ensure they are firm and properly aligned.

3. Operation

The YANPXDOE Join Connector is a passive component that facilitates the proper functioning of your coffee machine's water system. Once correctly installed, it requires no direct user operation. Its role is to maintain a sealed and stable connection between the water inlet valve and the solenoid valve, allowing water to flow efficiently and without leaks as controlled by the machine's internal mechanisms.

Proper installation ensures that the coffee machine's water path operates as intended, contributing to consistent brewing performance.

4. Maintenance

To ensure the longevity and reliable performance of your Join Connector, consider the following maintenance guidelines:

• Regular Inspection: Periodically inspect the connector and its surrounding areas for any signs of wear, cracks, discoloration, or water leakage. Early detection of issues can prevent further damage to your coffee machine.
• Cleaning: If necessary, gently clean the exterior of the connector with a soft, damp cloth. Avoid using abrasive cleaners or harsh chemicals, as these can damage the plastic material.
• Seal Integrity: Ensure that any associated O-rings or seals remain pliable and free from damage. Damaged seals can lead to leaks.

5. Troubleshooting

If you encounter issues related to water flow or leakage, the Join Connector may be a contributing factor. Here are common troubleshooting steps:

• Water Leakage: If water is leaking from around the connector, first ensure that it is securely seated and fully connected to both the water inlet valve and the solenoid valve. Check for any visible cracks in the connector itself or damage to the seals/O-rings. Replace the connector if it is cracked or if seals are compromised.
• Loose Connection: A loose connector can lead to inconsistent water flow or leaks. Power off and unplug the machine, then carefully re-seat the connector, ensuring it clicks or locks firmly into place.
• No Water Flow: While less common for a passive connector, a severely obstructed or improperly installed connector could impede water flow. Verify correct installation. If no water flows, the issue might lie with the water inlet valve, solenoid valve, pump, or other internal components of the coffee machine.

If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified technician or contact customer support.

6. Specifications

7. Support

For further assistance, technical support, or inquiries regarding your YANPXDOE Join Connector, please contact the seller or manufacturer through the platform where the product was purchased. Provide your product model number (B0FSCT9C4B) and a detailed description of the issue for efficient support.
